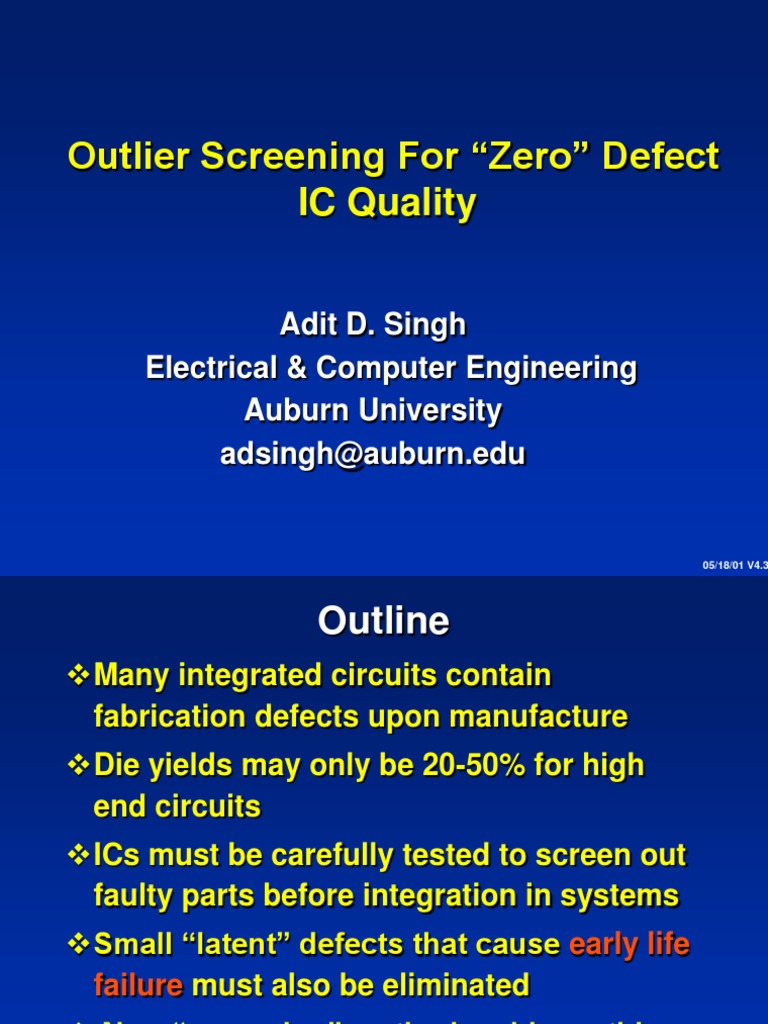

Outlier Screening For Zero Defect IC Quality

Adit D. Singh Electrical & Computer Engineering Auburn University adsingh@auburn.edu

05/18/01 V4.3

Outline
Many integrated circuits contain fabrication defects upon manufacture Die yields may only be 20-50% for high end circuits ICs must be carefully tested to screen out faulty parts before integration in systems

Small latent defects that cause early life failure must also be eliminated
New screening methods address this problem

IC Testing is a Difficult Problem

Need 23 = 8 input patterns to exhaustively test a 3-input NAND 2N tests needed for N-input circuit 3-input NAND Many ICs have > 100 inputs

2100 = 1.27 x 1030

Applying 1030 tests at 109 per second (1 GHZ) will require 1021 secs = 400 billion centuries! Only a very few input combinations can be applied in practice

IC Testing in Practice
For high-end ICs 20-100 seconds of test time on very expensive production testers Several thousand test patterns applied

Test patterns chosen to detect likely faults

High economic impact -total test costs are approaching total manufacturing costs Despite the costs, testing is imperfect

How well must we test?

Approximate order-of-magnitude estimates Number of parts per typical system: 100
Acceptable system defect rate: 1% (1 per 100) Therefore, required part reliability 1 defect in 10,000 100 Defects Per Million (100 DPM) Requirement ~100 DPM for commercial ICs ~500 DPM for ASICs

How well must we test?

Assume 2 million ICs manufactured with 50% yield
1 million GOOD >> shipped 1 million BAD >> test escapes cause defective parts to be shipped

For 100 BAD parts in 1M shipped (DPM=100)

Test must detect 999,900 out of the 1,000,000 BAD For 100 DPM: Needed Test Coverage = 99.99%

DPM Depends on incoming Yield

Test Coverage: 99.99% (Escapes 100 per million defective)

1 Million Parts @ 10% Yield

0.1 million GOOD >> shipped 0.9 million BAD >> 90 test escapes DPM = 90 /0.1 = 900

1 Million Parts @ 90% Yield

0.9 million GOOD >> shipped 0.1 million BAD DPM = 10/0.9 = 11 >> 10 test escapes

Defect Clustering on Wafers

Defects on semiconductor wafers are not uniformly distributed but are clustered

x x x x

Local regions of low yield can give high DPM

x x x x

Good die from Bad Neighborhoods must be more carefully tested to ensure no test escapes

IC Reliability: Early Life Failures

Manufacturing defects cause ICs to fail the production test - Killer defects - failing parts discarded following testing

ICs also experience significant early life or

infant mortality failures Reliability problem Infant mortality results from Latent defects - manufacturing flaws undetectable at initial test

Defect Types
Killer Defect

Latent Defect

A Resistive Via with an unfilled Void

Resistive open due to unfilled via causing a TDF [Madge et al, IEEE D&T 2003]

Stress Testing
Infant mortality results from latent manufacturing flaws that are undetectable at initial wafer probe testing Tested using accelerated life cycle or stress tests Burn-in tests exercise circuits at elevated voltages and temperatures for a few hours up to a few days in temperature controlled burn-in ovens

Burn-in is Expensive
High end circuits have nanometer feature sizes and operate on low voltages Stress voltages and temperatures must be

carefully (individually) controlled to avoid

damaging the circuits >> expensive ovens Needed burn-in times are growing because voltage/temperature stress levels can only be marginally increased from the nominal Most ICs today cannot afford Burn-in!

New Automotive Reliability Specs

Motivated by
Long warrantees ( ~ 4 years)

High warrantee repair costs ($1000)

Large number of parts per auto High volumes ( ~30 million US sales) Requirement: < 10 DPM Zero Defects Quality

Focus: DPM Due to Latents

Assume Latent Defect Density - 1% Killer Defect Density
Average No. (per die)

Killer Defects (l) Latent Defects

1.0 0.01

0.5 0.005
60% 0.005 5,000

0.1 0.001
90% 0.001 1,000

0.01 0.0001
99% 0.0001 100

Die Yield (e-l) 37% Probability of Latent 0.01 PPM Latents

10,000

Poisson Yield Model

Assume Latent Defect Density - 1% Killer Defect Density Die Yield (e-l) 37% Probability of Latent 0.01 PPM Latents
10,000 60% 0.005 5,000 90% 0.001 1,000 99% 0.0001 100

DPM from Latents: Digital 10,000 Analog (Latents 0.1%?) 1,000

5,000 500

1,000 100

100 10

Analog Parts

Reliability Screening
Screening involves discarding parts on suspicion without proof of functional error Excessive yield loss if parts from bad neighborhoods are completely discarded * 100-1000X overkill because there is no test information from the die itself Outlier detection methods can screen out potential reliability failures with less overkill - but at higher test cost

Exploiting parameter correlation outlier" screening

Key Idea: Analog circuit performance measures within die or between nearby die on the wafer should be

correlated because of parameter matching

Any anomalies, even if within functional specifications, indicate a defect which could be a test escape and fail in the field, or result in a reliability problem

Exploiting parameter correlation for Reliability Screening

Application to
- Digital Delay Testing - Analog Testing Looks for an outlier electrical signature of a latent defect

Timing Tests

V1

V2

Two-pattern test vectors <V1V2> cause a change at the outputs Switching delay is the time from the application (launch) of V2 until change at the output

Worst case switching delay < clock period

Limitation of Testing for Timing Fails at Functional Clock Rate

<V1V2>
Timing Margin

critical path
Timing margins to allow for parameter variations, clock skew, variations in test conditions can make small defects undetectable.

minVDD Testing
minVDD Testing finds the lowest VDD for
which the circuit passes a transition delay fault (TDF) test for a given clock speed An abnormal minVDD value with respect to the expected value for the lot/neighborhood

indicates a defect that may be a test escape

or reliability failure

minVDD Testing
minVDD is found by repeatedly running the
test vectors at different VDD voltages and performing a binary search until the failing voltage is identified within desired accuracy Since binary searches on full vector sets can

be expensive, methods have been developed

to work with reduced test sets.

MinVDD Test
<V1V2>
Timing Margin

critical path
Reducing VDD slows the gates and increases circuit delay until the circuit fails at the rated clock A delay defect can make it fail earlier, exposing hidden latent defects

MinVDD vs Device Speed

Two different lots showing min VDD outliers and lot-to-lot intrinsic variation.

minVDD Testing

Minimum VDD results for different functional tests clearly showing min VDD outliers (circled)

Applying Outlier Screening to Analog Parts

Outliers Screening with MultipleParameter Correlation Testing for Analogue ICs
Liguan Fang, Mohammed Lemnawar and Yizi Xing Automotive Business Line Philips Semiconductors

Nijmegen, The Netherlands

European Test Symposium, Southampton May 2006

Outliers Screening with MultipleParameter Correlation Testing for Analogue ICs

Goal: Achieve zero-defect product quality in automotive application through outlier screening In Vehicle Network Communication IC (interface between the protocol controller and the physical bus)

How Multiple-Parameter Correlation Testing Works for Analog ICs

Specifications can have wide limits to allow for normal process based parameter variations However parameters within the same device track

One test result can often be more tightly predicted based on others for the same part
- Two identical channels have matched gain - Blocks using the same core amplifier layout should have measured gain reflecting the

feedback ratios

How Multiple-Parameter Correlation Testing Works

Block Diagram of the test Vehicle

In Vehicle Network Communication IC

Correlation in transmitter performance in two modes (A+B and A+C)

FA indicates 10% of field returns caused by particle defects at C4 and C5

Correlated Tests 540 and 550

Test 540: Blocks A and C active Test 550: Blocks A and B active

New Test 555

Test 555 = Test 550 - 0.35 * Test 540 + 57.94 Mean value (from data) 0; standard deviation 2.2 6 Sigma Test limits for Test 555 = [-13.2, 13.2]

Verification based on historic data logs

One 6-sigma New Test 555 outlier out of 160K devices tested and passed over 4 months

Test introduced in Production

Six screened parts in Batch A, mostly from expected wafer locations: near wafer edge or near other failed die Defects observable in 4 out of 6 cases using only visual inspection with microscope

Defect Visualization

Defect Visualization

Defect Visualization

Reduction Trend in Customer Returns

Conclusions (Philips)
Virtually all the Outliers could be traced to physical defects suggesting the potential for reliability failure and customer returns Reduction is customer returns since introducing the test is strong evidence of its effectiveness The correlation test needs only minimum post data calculation and no extra measurement

The extra test time was less than 1ms

Overall very low cost and effective approach

Outlier Screening
European Test Symposium, Southampton U.K. May 2006
Adit D. Singh Auburn University

What is screening?
Discarding some suspect die without conclusive evidence that they will fail in operation

Based on:

Profiling: Bad Neighborhood

company you keep

Outliers: Behave differently in some way

something doesnt look right

Basis for Screening

Profiling: company you keep Outliers: something doesnt look right

Airport Security Screens

because exhaustive testing - strip searching and x-raying every airline passenger is cost prohibitive Same cost trade-off!

What happens next?

Suspects are discarded - (bumped off the flight)
Extreme cases!

Suspects are tested further More generally Test Optimization - saves high cost testing of exhaustive testing of every passenger Adaptive testing - Appropriate tests are applied depending on what looks different

Questions?
