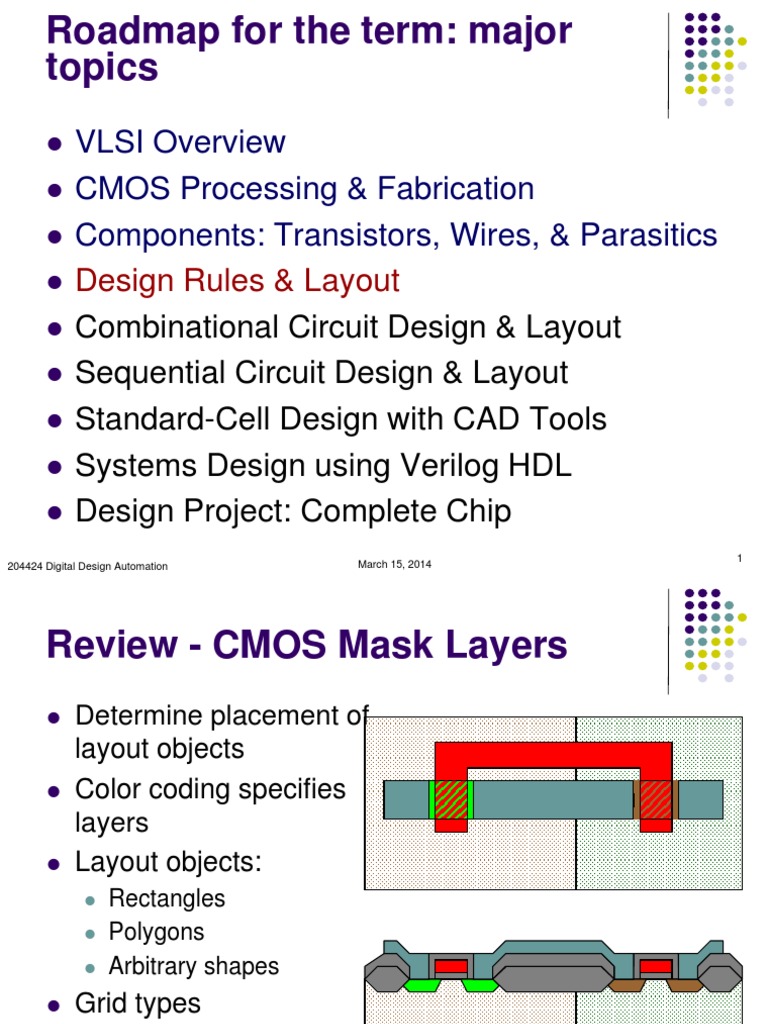

Roadmap for the term: major topics
VLSI Overview CMOS Processing & Fabrication Components: Transistors, Wires, & Parasitics Design Rules & Layout Combinational Circuit Design & Layout Sequential Circuit Design & Layout Standard-Cell Design with CAD Tools Systems Design using Verilog HDL Design Project: Complete Chip
March 15, 2014 1
204424 Digital Design Automation
Review - CMOS Mask Layers
Determine placement of layout objects Color coding specifies layers Layout objects:

Rectangles Polygons Arbitrary shapes Absolute (micron) Scaleable (lambda)

n well
Grid types

P substrate wafer
March 15, 2014
Mask Generation
Mask Design using Layout Editor user specifies layout objects on different layers output: layout file Pattern Generator Reads layout file Generates enlarged master image of each mask layer Image printed on glass Step & repeat camera Reduces & copies image onto mask One copy for each die on wafer Note importance of mask alignment
March 15, 2014 3
Symbolic Mask Layers
Key idea: Reduce layers to those that describe design Generate physical layers as needed Magic Layout Editor: "Abstract Layers metal1 (blue) - 1st layer metal (equiv. to physical layer) Poly (red) - polysilicon (equivalent to physical layer) ndiff (green) - n diffusion (combination of active, nselect) ntranistor (green/red crosshatch) - combined poly, ndiff pdiff (brown) - p diffusion (combination of active, pselect) ptransistor (brown/red crosshatch) - combined poly, pdiff contacts: combine layers, cut mask
March 15, 2014
About Magic
Scalable Grid for Scalable Design Rules

Grid distance: l (lambda) Value is process-dependent: l = 0.5 X minimum transistor length Paint squares on grid for each mask layer Layers to interact to form components (e.g. transistors)
Painting metaphor
March 15, 2014
Mask Layers in Magic
Poly (red) N Diffusion (green) P Diffusion (brown) Metal (blue) Metal 2 (purple) Well (cross-hatching) Contacts (X)
March 15, 2014
Magic User-Interface
Graphic Display Window

Cursor
Cursor Box - specifies area to paint
Command window (not shown)
accepts text commands Box :paint poly : paint red :paint ndiff :paint green Paint :write (poly) prints error & status messages
March 15, 2014
Paint
(ntransistor)
Paint
(pdiff)
Layer Interaction in Magic
Transistors - where poly, diffusion cross poly crosses ndiffusion - ntransistor poly crosses pdiffusion - ptransistor Vias - where layers connect Metal 1 connecting to Poly - polycontact Metal 1 connecting to P-Diffusion (normal) - pdc Metal 1 connecting to P-Diffusion (substrate contact) psc Metal 1 connecting to N-Diffusion (normal) - ndc Metal 1 connecting to N-Diffusion (substrate contact) nsc Metal 1 connecting to Metal 2 - via
March 15, 2014 8
Magic Layers - Example

nsc p-transistor metal1 nwell polycontact poly polycontact poly metal1 psc ndc ndc ntransistor
pdc
metal1
March 15, 2014
Why we need design rules

Masks are tooling for manufacturing. Manufacturing processes have inherent limitations in accuracy. Design rules specify geometry of masks which will provide reasonable yields. Design rules are determined by experience.
March 15, 2014
10
Manufacturing problems

Photoresist shrinkage, tearing. Variations in material deposition. Variations in temperature. Variations in oxide thickness. Impurities. Variations between lots. Variations across a wafer.
March 15, 2014
11
Transistor problems
Varaiations in threshold voltage:

oxide thickness; ion implanatation; poly variations.
Changes in source/drain diffusion overlap. Variations in substrate.
March 15, 2014
12
Wiring problems
Diffusion: changes in doping -> variations in resistance, capacitance. Poly, metal: variations in height, width -> variations in resistance, capacitance. Shorts and opens:
March 15, 2014
13
Oxide problems

Variations in height. Lack of planarity -> step coverage.

metal 2 metal 2 metal 1
March 15, 2014
14
Via problems

Via may not be cut all the way through. Undesize via has too much resistance. Via may be too large and create short.
March 15, 2014
15
MOSIS SCMOS design rules
Designed to scale across a wide range of technologies. Designed to support multiple vendors. Designed for educational use. Ergo, fairly conservative.
March 15, 2014
16
l and design rules

l is the size of a minimum feature. Specifying l particularizes the scalable rules. Parasitics are generally not specified in l units
March 15, 2014
17
Design Rules
Typical rules: Minumum size Minimum spacing Alignment / overlap Composition Negative features
March 15, 2014
18
Types of Design Rules
Scalable Design Rules (e.g. SCMOS) Based on scalable coarse grid - l (lambda) Idea: reduce l value for each new process, but keep rules the same Key advantage: portable layout Key disadvantage: not everything scales the same Not used in real life Absolute Design Rules Based on absolute distances (e.g. 0.75m) Tuned to a specific process (details usually proprietary) Complex, especially for deep submicron Layouts not portable
March 15, 2014 19
SCMOS Design Rules
Intended to be Scalable

Original rules: SCMOS Submicron: SCMOS-SUBM Deep Submicron: SCMOS-DEEP
Pictorial Summary: Book Fig. 2-24, p. 27 Authoritative Reference: www.mosis.org
March 15, 2014
20
SCMOS Design Rule Summary
Line size and spacing: metal1: Minimum width=3l, Minimum Spacing=3l metal2: Minimum width=3l, Minimum Spacing=4l poly: Minimum width= 2l, Minimum Spacing=2l ndiff/pdiff: Minimum width= 3l, Minimum Spacing=3l, minimum ndiff/pdiff seperation=10l wells: minimum width=10l, min distance form well edge to source/drain=5l Transistors: Min width=3l Min length=2l Min poly overhang=2l
March 15, 2014 21
SCMOS Design Rule Summary
Contacts (Vias) Cut size: exactly 2l X 2l Cut separation: minimum 2l Overlap: min 1l in all directions Magic approach: Symbolic contact layer min. size 4 l X 4l Contacts cannot stack (i.e., metal2/metal1/poly) Other rules cut to poly must be 3l from other poly cut to diff must be 3l from other diff metal2/metal1 contact cannot be directly over poly negative features must be at least 2l in size CMP Density rules (AMI/HP subm): 15% Poly, 30% Metal
March 15, 2014 22
Design Rule Checking in Magic
Design violations displayed as error paint Find which rule is violated with ":drc why
Poly must overhang transistor by at least 2 (MOSIS rule #3.3)
March 15, 2014
23
Scaling Design Rules
Effects of scaling down are positive See book, p. 78-79 - if everything scales, scaling circuit by 1/x increases performance by x Problem: not everything scales proportionally
March 15, 2014
24
Aside - About MOSIS
MOSIS - MOS Implementation Service Rapid-prototyping for small chips Multi-project chip idea - several designs on the same wafer Reduced mask costs per design Accepts layout designs via email Brokers fabrication by foundries (e.g. AMI, Agilent, IBM, TSMC) Packages chips & ships back to designers Our designs will use AMI 1.5m process (more about this later)
March 15, 2014 25
Aside - About MOSIS
Some Typical MOSIS Prices (from www.mosis.org) AMI 1.5m Tiny Chip (2.2mm X 2.2mm) $1,080 AMI 1.5m 9.4mm X 9.7mm $17,980 AMI 0.5m 0-5mm2 $5,900 TSMC 0.25m 0-10mm2 $15,550 TSMC 0.18m 0-7mm2 $24,500 TSMC 100-159mm2 $63,250 + $900 X size MOSIS Educational Program (what we use) AMI 1.5m Tiny Chip (2.2mm X 2.2mm) FREE* AMI 0.5mm Tiny Chip (1.5mm X 1.5mm) FREE*
*sponsored by Semiconductor Industry Assn., Semiconductor Research Corp., | AMI, Inc., DuPont Photomasks, and MOSIS
March 15, 2014
26
Layout Considerations
Break layout into interconnected cells Use hierarchy to control complexity Connect cells by

Abutment Added wires Minimize size of overall layout Meet performance constraints Meet design time deadlines
March 15, 2014 27
Key goals:

Hierarchy in Layout
Chips are constructed as a hierarchy of cells

Leaf cells - bottom of hierarchy Root cells - contains overall cell Pad frame - ring that contains I/O pads Core - contains logic organized as subcells
Shift register FSM Other cells
Example - hypothetical UART

March 15, 2014
28
Hierarchy Example
Root Cell: UART

Root Ce ll: UART
Pad Frame
Core
Pad 1
Pad 2
...
Pad N
Shift Re giste r
FSM
Othe r Ce lls
March 15, 2014
29
Wires
metal 3
3
3
metal 2
metal 1
3
2
pdiff/ndiff
poly
March 15, 2014 30
Transistors
2 3 2
3
1
March 15, 2014
31
Vias
Types of via: metal1/diff, metal1/poly, metal1/metal2.

4 1 2
March 15, 2014
32
Metal 3 via

Type: metal3/metal2. Rules:

cut: 3 x 3 overlap by metal2: 1 minimum spacing: 3 minimum spacing to via1: 2
March 15, 2014
33
Tub tie
4 1
March 15, 2014
34
Spacings

Diffusion/diffusion: 3 Poly/poly: 2 Poly/diffusion: 1 Via/via: 2 Metal1/metal1: 3 Metal2/metal2: 4 Metal3/metal3: 4
March 15, 2014
35
Overglass

Cut in passivation layer. Minimum bonding pad: 100 m. Pad overlap of glass opening: 6 Minimum pad spacing to unrelated metal2/3: 30 Minimum pad spacing to unrelated metal1, poly, active: 15
March 15, 2014
36
Stick diagrams (1/3)

A stick diagram is a cartoon of a layout. Does show all components/vias (except possibly tub ties), relative placement. Does not show exact placement, transistor sizes, wire lengths, wire widths, tub boundaries.
March 15, 2014
37
Stick Diagrams (2/3)
Key idea: "Stick figure cartoon" of a layout Useful for planning layout
relative placement of transistors assignment of signals to layers connections between cells cell hierarchy
March 15, 2014
38
Stick Diagrams (3/3)
March 15, 2014
39
Example - Stick Diagrams (1/2)
Alternatives - Pull-up Network
Circuit Diagram.
Pull-Down Network (The easy part!)
Complete Stick Diagram
March 15, 2014
40
Example - Stick Diagrams (2/2)
March 15, 2014
41
Dynamic latch stick diagram

VDD
in
out
VSS
phi
phi
March 15, 2014 42
Stick Diagram XOR Gate Examples
March 15, 2014
43
Hierarchical Stick Diagrams
Define cells by outlines & use in a hierarchy to build more complex cells
March 15, 2014
44
Cell Connection Schemes
External connection - wire cells together Abutment - design cells to connect when adjacent Reflection, mirroring - use to make abutment possible
March 15, 2014
45
Example: 2-input multiplexer
First cut:
March 15, 2014
46
Sticks design of multiplexer
Start with NAND gate:
March 15, 2014
47
NAND sticks
VDD a
out
VSS
204424 Digital Design Automation March 15, 2014 48
Refined one-bit Mux Design
Use NAND cell as black box Arrange easy power connections Vertical connections for allow multiple bits
March 15, 2014
49
3-bit mux sticks

select a2 b2 ai bi select select select
m2(one-bit-mux)
VDD oi VSS VDD oi VSS
o2
a1 b1
ai bi
select
select
m2(one-bit-mux)
select select
o1
a0 b0
ai bi
m2(one-bit-mux)
VDD oi VSS
o0
March 15, 2014
50
Multiple-Bit Mux
March 15, 2014
51
Cell Mirroring, Overlap
Use mirroring, overlap to save area
March 15, 2014
52
Example: Layout / Stick Diagram
Create a layout for a NAND gate given constraints:
Use minimum-size transistors Assume power supply lines pass through cell from left to right at top and bottom of cell Assume inputs are on left side of cell Assume output is on right side of cell Optimize cell to minimize width Optimize cell to minimize overall area
March 15, 2014
53
Layout Example
Circuit Diagram.
Exterior of Cell
March 15, 2014
54
Example - Magic Layout
Overall Layout: 52 X 16
March 15, 2014
55
Review - VLSI Levels of Abstraction

Specification
(what the chip does, inputs/outputs)
Architecture
major resources, connections
Register-Transfer
logic blocks, FSMs, connections
Logic
gates, flip-flops, latches, connections
Circuit
transistors, parasitics, connections
You are Here
Layout
mask layers, polygons
56
March 15, 2014
Levels of Abstraction Perspective
Right now, were focusing on the low level:

Circuit level - transistors, wires, parasitics Layout level - mask objects Logic level - individual gates, latches, flip-flops Register- transfer level - Verilog HDL Behavior level - Specifications
Well work upward to higher levels:

March 15, 2014
57
The Challenge of Design
Start: higher level (spec) Finish: lower level (implementation) Must meet design criteria and constraints
Design time - how long did it take to ship a product? Performance - how fast is the clock? Cost - NRE + unit cost
CAD tools - essential in modern design
March 15, 2014
58
CAD Tool Survey: Layout Design
Layout Editors Design Rule Checkers (DRC) Circuit Extractors Layout vs. Schematic (LVS) Comparators Automatic Layout Tools

Layout Generators ASIC: Place/Route for Standard Cells, Gate Arrays
March 15, 2014
59
Layout Editors
Goal: produce mask patterns for fabrication Grid type:
Absolute grid (MAX, LASI, LEdit, Mentor ICStation, other commercial tools) Magic: lambda-based grid - easier to learn, but less powerful Absolute mask (one layer for each mask) Magic: symbolic masks (layers combine to generate actual mask patterns)
March 15, 2014 60
Mask description:

Design Rule Checkers
Goal: identify design rule violations Often a separate tool (built in to Magic) General approach: scanline algorithm Computationally intensive, especially for large chips
March 15, 2014
61
Circuit Extractors
Goal: extract netlist of equivalent circuit

Identify active components Identify parasitic components

Capacitors Resistors
March 15, 2014
62
Layout Versus Schematic (LVS)
Goal: Compare layout, schematic netlists
Compare transistors, connections (ignore parasitics) Issue error if two netlists are not equivalent Important for large designs
March 15, 2014
63
Automatic Layout Tools
Layout Generators - produce cell from spec.

Simple: Procedural specification of layout (see book Fig. 2-33, p. 95) Complex: Netlist - places & wires individual transistors
ASIC - Place, route modules with fixed shape
Standard Cells - use predefined cells as "cookie cutters" Gate Arrays - configurable pre-manufactured gates (only change metal masks) FPGAs - electrically configurable array of gates
March 15, 2014 64
Layout design and analysis tools
Layout editors are interactive tools. Design rule checkers are generally batch--identify DRC errors on the layout. Circuit extractors extract the netlist from the layout. Connectivity verification systems (CVS) compare extracted and original netlists.
March 15, 2014
65
Automatic layout
Cell generators (macrocell generators) create optimized layouts for ALUs, etc. Standard cell/sea-of-gates layout creates layout from predesigned cells + custom routing.
Sea-of-gates allows routing over the cell.
March 15, 2014
66
Standard cell layout
routing area routing area routing area
routing area
March 15, 2014
67

Major topics covered in digital design term roadmap

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Major topics covered in digital design term roadmap

Uploaded by

Copyright:

Available Formats

Roadmap for the term: major topics

204424 Digital Design Automation

Review - CMOS Mask Layers

Rectangles Polygons Arbitrary shapes Absolute (micron) Scaleable (lambda)

204424 Digital Design Automation

March 15, 2014

204424 Digital Design Automation

Symbolic Mask Layers

204424 Digital Design Automation

March 15, 2014

Scalable Grid for Scalable Design Rules

204424 Digital Design Automation

March 15, 2014

Mask Layers in Magic

204424 Digital Design Automation

March 15, 2014

Graphic Display Window

Cursor Box - specifies area to paint

Command window (not shown)

204424 Digital Design Automation

Layer Interaction in Magic

204424 Digital Design Automation

Magic Layers - Example

204424 Digital Design Automation

March 15, 2014

Why we need design rules

204424 Digital Design Automation

March 15, 2014

204424 Digital Design Automation

March 15, 2014

Varaiations in threshold voltage:

oxide thickness; ion implanatation; poly variations.

Changes in source/drain diffusion overlap. Variations in substrate.

204424 Digital Design Automation

March 15, 2014

204424 Digital Design Automation

March 15, 2014

Variations in height. Lack of planarity -> step coverage.

204424 Digital Design Automation

March 15, 2014

204424 Digital Design Automation

March 15, 2014

MOSIS SCMOS design rules

204424 Digital Design Automation

March 15, 2014

l and design rules

204424 Digital Design Automation

March 15, 2014

204424 Digital Design Automation

March 15, 2014

Types of Design Rules

204424 Digital Design Automation

SCMOS Design Rules

Original rules: SCMOS Submicron: SCMOS-SUBM Deep Submicron: SCMOS-DEEP

Pictorial Summary: Book Fig. 2-24, p. 27 Authoritative Reference: www.mosis.org

204424 Digital Design Automation

March 15, 2014

SCMOS Design Rule Summary

204424 Digital Design Automation

SCMOS Design Rule Summary

204424 Digital Design Automation

Design Rule Checking in Magic

204424 Digital Design Automation
