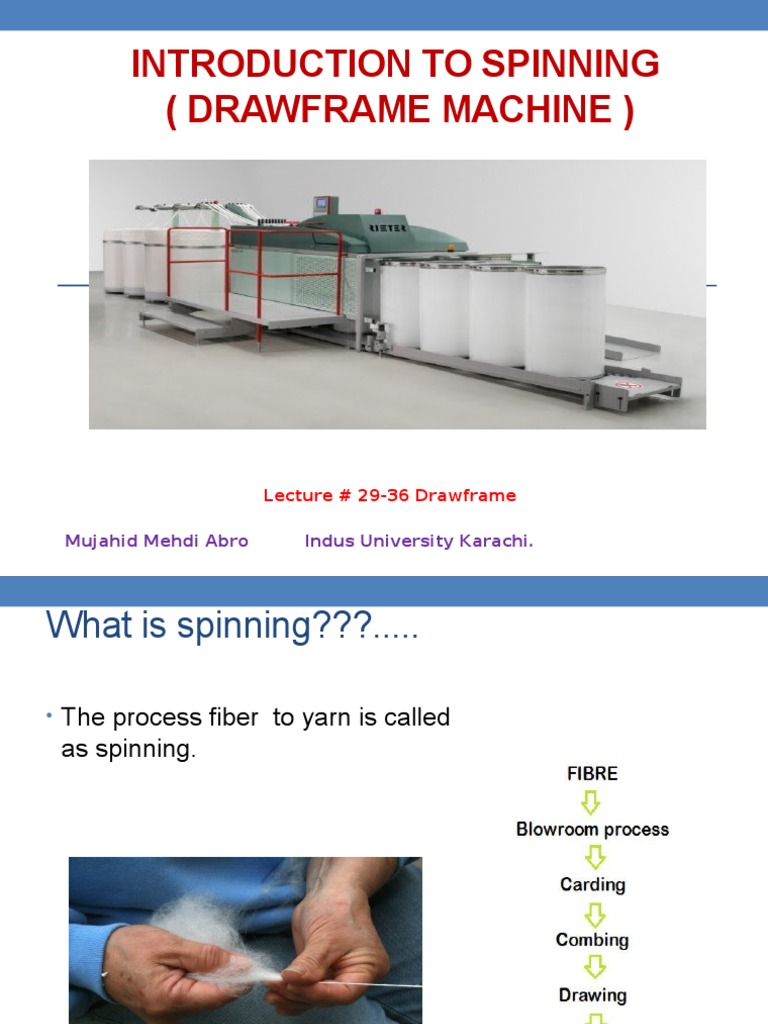

INTRODUCTION TO SPINNING
( DRAWFRAME MACHINE )
Lecture # 29-36 Drawframe
Mujahid Mehdi Abro
Indus University Karachi.
What is spinning???.....
The process fiber to yarn is called
as spinning.
Drawframe machine
Drawing (Drawframe)
Drawframe
Carded sliver are feed into the drawframe to make fibers
uniform. Drawframe in a textile mill is unavoidable in yarn
spinning as fiber need to be parallel. This is done as you
see that most of the fibers at carding stage are drawn so
fast that there is little or no fiber parallel. The drawframe is
achieve into two stages:
First passage ( Breaker )
Second passage ( Finisher drawing )
Drawframe machine combines many slivers usually 8 to
24 slivers and give a single sliver. The combines slivers
stretched by the machine and take out as a single sliver.
Due to this process of combining and stretching, the
output sliver will become more uniform and hence quality
of final sliver will be improve.
Objectives
Equalizing
Parallelization
Blending
Dust removal
Parts of Drawframe
Creel Portion
Guiding Roller
Auto leveler / Equalizer
Drafting system
Coiler
Equalizer / Auto leveler
Can
Working of Drawframe
Carded slivers ( can ) are feed into creel portion of draw
frame machine. Generally, 8 to 24 slivers ( cans )are feed
for drawing process. These slivers are feed into main
machine parts via guided rollers these guided rollers are
just used for path providing through these guiding rollers ,
slivers are passed through the equalizer / auto leveler. In
auto leveler, uniform feed is control or a uniform mass is
controlled. After these slivers passing through auto
leveler, the slivers are feed into drafting system.
Working of Drawframe
The drafting system is the main part of drawframe machine.
In drafting system, length is increase and diameter is reduce
according to requirement. The drafting system is responsible
for mass of sliver, paralyzing of fibers and blending of slivers.
After drafting system, fibers are again converted into sliver
( drawn sliver ) we achieve a desire mass of sliver ( grains )
although some variation in mass occurs after drafting system.
This is controlled in equalizer / auto leveler. Now this sliver
( drawn sliver ) is finally wound on can.
NUMERICALS OF DRAFTING SYSTEM :
Formulae :
Break Draft = V2 / V1
Middle Draft = V3 / V2
Main Draft = V3 / V2 or V4 / V3
Total Draft = Break draft + Middle draft + Main draft
Application of Drafting System:
Drawframe machine.
Lap former machine.
Combing machine.
Simplex / Roving machine.
Ring machine / Ring frame machine.
QUESTIONS OF DRAFTING SYSTEM:
Q: If a drafting system of drawframe machine , speed
of back roller is 30 m/s and speed of middle roller is
40 m/s and speed of front roller is 60 m/s. Calculate
the total draft of drawframe machine ?
DATA:
Back roller ( V1 ) = 30 m/s
Middle roller ( V2 ) = 40 m/s
Front roller ( V3 ) = 60 m/s
Total draft of drawframe machine = ?
SOLUTION :
Break draft = V2 / V1
Break draft = 40 / 30 = 1.333
Main draft = V3 / V2
Main draft = 60 / 40 = 1.5
Total draft = Break draft + Main draft
Total draft = 1.333 + 1.5
Total draft = 2.833 Answer
QUESTIONS OF DRAFTING SYSTEM:
Q: Calculate the total draft . If speed of front roller is
80 m/s, speed of back roller is 40 m/s and speed of
middle rollers are 50 m/s and 60 m/s ?
DATA:
Back roller ( V1 ) = 40 m/s
Middle rollers ( V2 , V3 ) = 50 m/s , 60 m/s
Front roller ( V4 ) = 80 m/s
Total draft of drawframe machine = ?
SOLUTION :
Break draft = V2 / V1
Break draft = 50 / 40 = 1.25
Middle draft = V3 / V2
Middle draft = 60 / 50 = 1.2
Middle draft = V4 / V3
Middle draft = 80 / 60 = 1.333
Total draft = Break draft + Middle draft + Main draft
Total draft = 1.25 + 1.2 + 1.333
Total draft = 3.783 Answer
QUESTIONS OF DRAFTING SYSTEM:
Q: Calculate the breack draft . If speed of front roller
is 100 m/s, speed of middle rollers are 80 m/s and
total draft is 3.95 ?
DATA:
Front roller ( V3 ) = 100 m/s
Middle roller ( V2 ) = 80 m/s
Total draft = 3.95
Break draft of drawframe machine = ?
SOLUTION :
Main draft = V3 / V2
Main draft = 100 / 80 = 1.25
Total draft = Break draft + Main draft
3.95 = Break draft + 1.25
3.95 1.25 = Break draft
Break draft = 2.7 Answer
