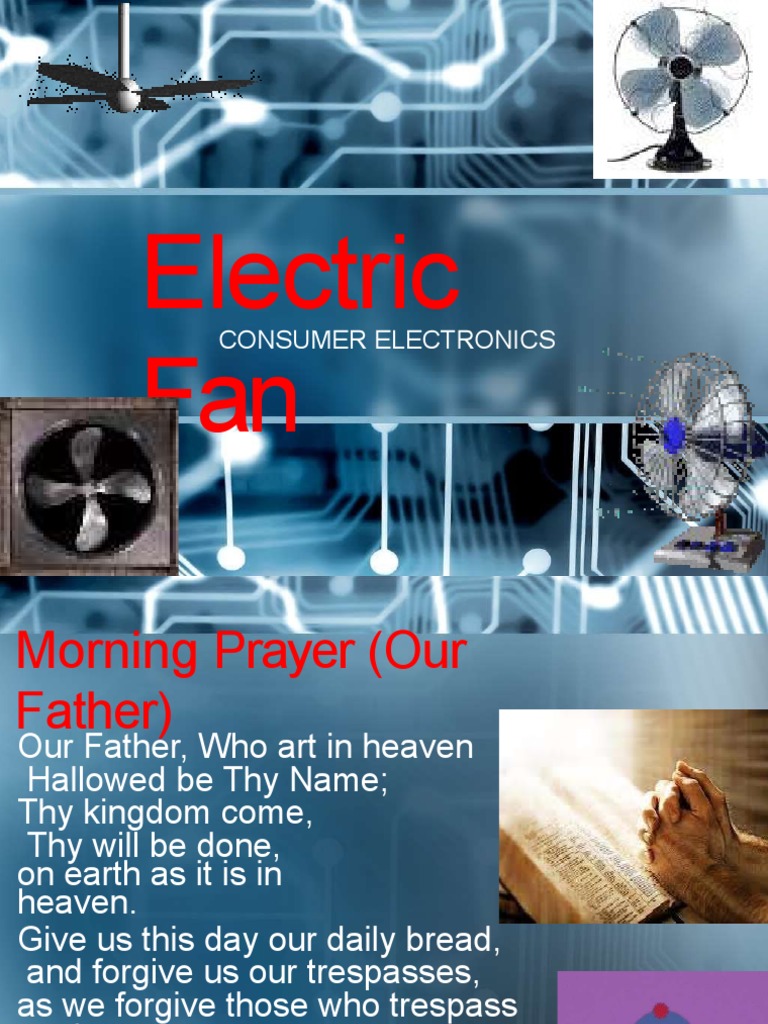

Electric

CONSUMER ELECTRONICS

Fan
Morning Prayer (Our
Father)
Our Father, Who art in heaven
Hallowed be Thy Name;
Thy kingdom come,
Thy will be done,
on earth as it is in
heaven.
Give us this day our daily bread,
and forgive us our trespasses,
as we forgive those who trespass
against us;
and lead us not into temptation,
but deliver us from evil. Amen.
Yesterday………
External
Parts
Fleming’s Left Hand
Rule
Current Force

Magnetic Field

Current
Objectives
The students can identify the
internal parts of an electric fan.

The students can able to

perform troubleshooting in the
electric fan in setting the rotor’s
speed.
Importance of electric
fan• Electric fan
Group
Activity
(Text Twist)
Each group will rearrange the letters to
form a words that i will discuss for the
topic of the day. ( 5 minutes )
After forming a words kindly paste
those words in the illustration board.
What is Electric
fan?
• It is a type of
electronic
appliances that
is run by an
electronic motor.
Purpose Of The
Electrical
Fan
Electric Energy

• To convert
electrical
energy to
mechanical
energy.

Mechanical Energy
• To make
consumers feel
comfortable
during hot
seasons or
summer days.
Internal Parts Of The
Electric Fan
Selector
Switch
• It is a part of
Rotary Switch
electric fan that
can intensify
the produce air
for the
consumers. Push Button Switch
Electric
Motor
• It is the main part of
the electric fan that
produces
mechanical energy
to make the
propeller rotate.
Rotor
• It is the
movable part
of the
electrical
motor that
rotates
Stator
• It is a non movable
part of the electric
motor that provides
electro magnetic
energy to the rotor.
Copper
Winding Copper Winding in
Stator
• It is a set of
copper wire that
supplies electricity
in the stator and
rotor.
Copper Winding in
Rotor
Setting Up The Speed
Of The Electric Fan
Setting the speed of the electric fan
requires:
• Electric Motor
• Selector Switch
• Handtools
• Terminal Block
Keep in mind that before doing
this trouble shoot:
• Safety : Before
working, the
technician is need
to focus to avoid
accidents not just
ourselves but also
the safety of
components.
• Schematic : Read and
understand first the
schematic diagram.
• Preparation : Prepare
the tools needed for the
troubleshoot.
 Let’s Start the
Troubleshootin
g
 Current and
Resistance
• The Higher Resistance
means a Low Current
which will result slow
rotation of the
propeller.
• The Lower
Resistance means
a Higher Current
which will result in
fast rotation of the
propeller.
Fan Speed
Control
• Since that the no.1
in the selector
switch has a slow
rotation of rotor it
means that the
resistance needed
is high.
• No.2 in the selector
switch will have a
moderate resistance
and the no.3 has a
lowest resistance
0 1 2 3
0 3 2 1
In Order To Do This
Fan Speed Control
 Termina
l
Example resistance Block Selector
300 3 Switch
Motor
ohms
320 2
ohms
330 1
ohms

Common Common

Line
Cord
 After
•wiring….
With the use of
tester, test the
wiring if it has a
right value of
resistance.
• By connecting the
test probes of tester
in the line cord.
Let’s Have a
Quiz
Rule
s • No one is allowed to talk to their
seatmates.
• Any form of cheating is not allowed
during the quiz.
Do your best and
Good luck
Identification
1)

• It is a movable part of the motor

which rotates.
2)
• It is a non movable part of the
electric motor that provides
electro magnetic energy to the
rotor.
3)
• It is a part of electric fan that can
intensify the produce air for the
consumers.
Identification
4)
5)
Identification
1)
Rotor
• It is a movable part of the motor
which rotates.
2)
Stator
• It is a non movable part of the
electric motor that provides
electro magnetic energy to the
rotor.
3) Selector
Switch
• It is a part of electric fan that can
intensify the produce air for the
consumers.
Identification
4) Electric
Motor
5) Copper
Winding
Individual
Activity
• Today, we need to
control the speed of the
electric fan based on
the discussion.
• I will call 3 students to
perform trouble shooting
in the electric fan.
Schematic Diagram of
an Electric Fan
Assignment
• Research about the different
models or types of electric fan
and it’s uses.
• Write your assignments in your
notebook.
Good Bye
Class
