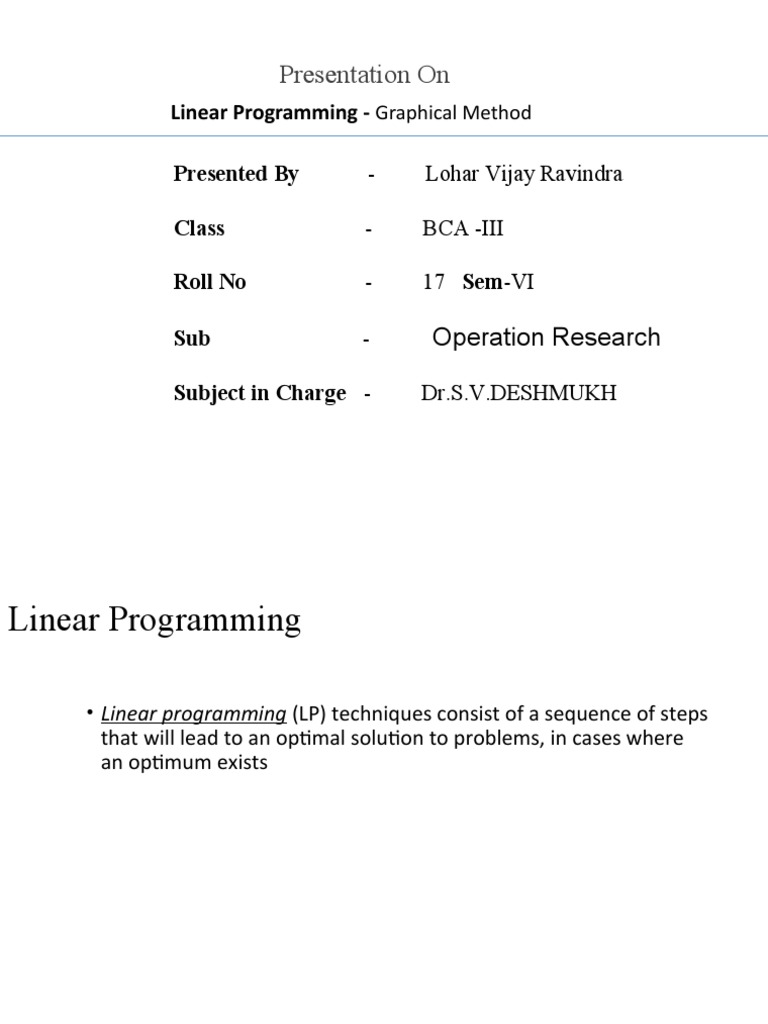

Presentation On

Linear Programming - Graphical Method

Presented By - Lohar Vijay Ravindra

Class - BCA -III

Roll No - 17 Sem-VI

Sub - Operation Research

Subject in Charge - Dr.S.V.DESHMUKH

Linear Programming

• Linear programming (LP) techniques consist of a sequence of steps

that will lead to an optimal solution to problems, in cases where
an optimum exists

6S-2
Graphical Linear Programming

Graphical method for finding optimal

solutions to two-variable problems
1.Set up objective function and constraints in mathematical
format
2.Plot the constraints
3.Identify the feasible solution space
4.Plot the objective function
5.Determine the optimum solution

6S-3
Linear Programming Example

• Objective - profit
Maximize Z=60X1 + 50X2
• Subject to
Assembly 4X1 + 10X2 <= 100 hours
Inspection 2X1 + 1X2 <= 22 hours
Storage 3X1 + 3X2 <= 39 cubic feet
X1, X2 >= 0

6S-4
Linear Programming Example

Assembly Constraint
4X1 +10X2 = 100

12
10
Product X2

8
6
4
2
0
0 2 4 6 8 10 12 14 16 18 20 22 24
Product X1

6S-5
Linear Programming Example

Add Inspection Constraint

2X1 + 1X2 = 22

25
20
Product X2

15
10
5
0
0 2 4 6 8 10 12 14 16 18 20 22 24
Product X1

6S-6
Linear Programming Example

Add Storage Constraint

3X1 + 3X2 = 39

25
Inspection
20
Product X2

15
Storage
Assembly
10
5
0
0 2 4 6 8 10 12 14 16 18 20 22 24
Feasible solution space Product X1

6S-7
Linear Programming Example

Add Profit Lines

25

20
Z=900
Product X2

15

10
5

0
0

14
10

12

16

18

20

22

24
Product X1
Z=300 Z=600

6S-8
Solution

• The intersection of inspection and storage

• Solve two equations in two unknowns
2X1 + 1X2 = 22
3X1 + 3X2 = 39

X1 = 9
X2 = 4
Z = $740

6S-9
 Solutions and Corner Points
• Feasible solution space is usually a polygon
• Solution will be at one of the corner points

• Enumeration approach: Substituting the coordinates of each corner point

into the objective function to determine which corner point is optimal.

6S-10
