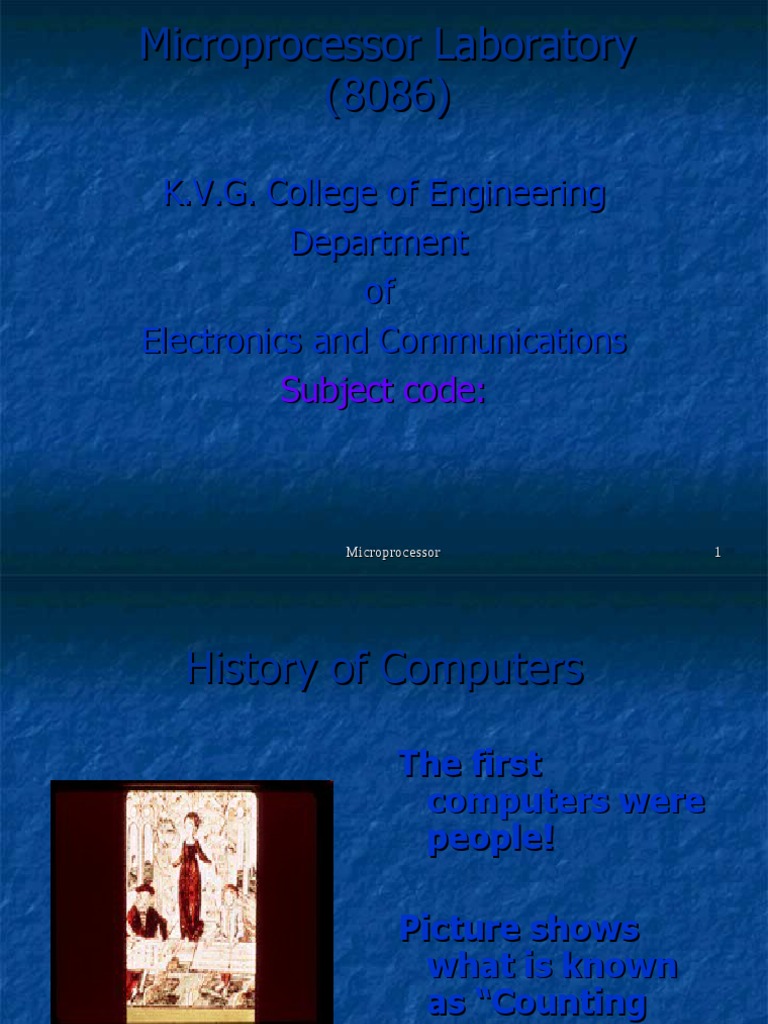

Microprocessor Laboratory

(8086)

K.V.G. College of Engineering

Department
of
Electronics and Communications
Subject code:

Microprocessor 1
History of Computers

The first
computers were
people!

Picture shows
what is known
as “Counting
Tables”

Microprocessor 2
 History of Computers
(300 B. C, Babylonia)

A very old Abacus A Modern Abacus

Microprocessor 3
 History of Computers
Napier’s Bones-1617

The original Napier's bones

Modern set of Napier’s Bones
John Napier invented logarithm
Successive addition=multiplication.
Microprocessor 4
 History of Computers
Slide Rule -1632

It was still in use in the 1960’s by the NASA

engineers and by the men who landed on
the moon.
Microprocessor 5
 History of Computers
Pascaline -1642

Blaise Pascal
Gear driven calculator

Microprocessor 6
 History of Computers
Punched Cards-1801
Joseph Marie Jacquard
Frenchman

Design of fabric was

read from punched
cards

Microprocessor 7
 History of Computers
Difference Engine-1822
Charles Babbage

Difference Engine never

finished

Analytical Engine

Store=Memory
Mill=CPU

Microprocessor 8
 History of Computers
Analytical Engine
Ada Byron, Countess
Lady Lovelace by
marriage, prepared a
detailed sequence of
instructions for the
Analytic Engine. She
earned her spot in
history as the first
computer programmer

Microprocessor 9
 History of Computers
Hollerith desk-1890
In 1890 the prize was won by
Herman Hollerith who helped
with his invention by saving the
government 5 million dollars.

Punch (write) new cards based

upon an analysis (reading) of
some other set of cards. today
called a read/write technology.

Hollerith built a company, the

Tabulating Machine Company
which, after a few buyouts,
eventually became International
Business Machines, known
today as IBM.
Microprocessor 10
 History of Computers
Two types of punched cards

Microprocessor 11
 History of Computers
1944
World War II
25 miles target.

Solving equations was

laborious

Harvard and IBM

Mark I computer.

Switches, relays, rotating

shafts, and clutches.

Ran non-stop for 15 years

Microprocessor 12
 History of Computers
”Bug”
First computer "bug": a
dead moth that had
gotten into the Mark I
and whose wings were
blocking the reading of
the holes in the paper
tape. The word "bug"
had been used to
describe a defect since
at least 1889 but Hopper
is credited with coining
the word "debugging" to
describe the work to
eliminate program
faults.
Microprocessor 13
 History of Computers
1953 Grace Hopper invented the first high-
level language, "Flow-matic". This
language eventually became COBOL

A high-level language is worthless without a

program -- known as a compiler -- to
translate it into the binary language of the
computer

Microprocessor 14
 History of Computers- 1959

IBM Stretch

Computer of 1959

Microprocessor 15
 History of Computers
Apple Computer of 1976

Apple was sold as a

do-it-yourself kit
for $600

Microprocessor 16
 History of Computers
Mainframe CDC 7600

Computers were
expensive because
of their extensive
wiring

Microprocessor 17
 History of Computers
Between Mainframe and Desk Top

Minicomputers.

DEC PDP-12 1969

Microprocessor 18
 History of Computers

Between 1943 and

1945 by two
professors, John
Mauchly and the 24
year old J. Presper
Eckert built the
ENIAC

Microprocessor 19
 History of Computers

Cables were “tested” by rats!!!!!

ENIAC did humanity no favor when it declared
the hydrogen bomb feasible. This first ENIAC
program remains classified
Microprocessor
even today. 20
 History of Computers

Eckert and Mauchly's

next teamed up
with the
mathematician
John von Neumann
to design EDVAC,
which pioneered
the stored
program.

Microprocessor 21
 History of Computers
After ENIAC and EDVAC came
other computers with
humorous names such as
ILLIAC,

JOHNNIAC,

and, of course,

MANIAC.
Microprocessor 22
 History of Computers
Arthur C. Clarke
chose to have the
HAL computer of
his famous book
"2001: A Space
Odyssey" born at
Champaign-
Urbana. Have you
ever noticed that
you can shift each
of the letters of
IBM backward by
one alphabet
position and get
HAL?
Microprocessor 23
 History of Computers

The original IBM Personal Computer (PC)

Microprocessor 24
 The Microprocessor Age
 1971
 World’s first microprocessor is Intel 4004.
 4096 4-bit wide memory locations.
 45 instructions.
 p-channel MOSFET technology, 50
KIPS( kilo instructions per second)

Microprocessor 25
Intel 4004

Microprocessor 26
 Technical details of the Intel 4004
 Maximum clock speed was 740 kHz
 Instruction cycle time: 10.8 µs[12] (8 clock cycles /
instruction cycle)
 Instruction execution time 1 or 2 instruction cycles (10.8 or
21.6 µs), 46300 to 92600 instructions per second
 Separate program and data storage. Contrary to
Harvard architecture designs, however, which use separate
buses, the 4004, with its need to keep pin count down, used
a single multiplexed 4-bit bus for transferring:
 12-bit addresses
 8-bit instructions
 4-bit data words
 Instruction set contained 46 instructions (of which 41 were
8 bits wide and 5 were 16 bits wide)
 Register set contained 16 registers of 4 bits each
 Internal subroutine stack 3 levels deep.

Microprocessor 27
 Intel 8008
 3500 transistors
 .5 MHz
 48 instructions
 16 Kbytes
memory
 The 8008 was
the CPU for the
very first
commercial
personal
computers.
Microprocessor 28
 Bit-Byte-Nibble
Bit= 0 or 1
Eight bits = byte (Bite) 

Four bits = Nibble (Small bite) 

Microprocessor 29
 Intel 8080
 1974
 8 bit microprocessor
 Motorola released MC6800
 8080 was TTL compatible
 Interfacing was much
easier and less expensive.
 64 Kbyte memory.
 First PC Altair 8800
released. BASIC language
interpreter developed by
Bill Gates.
Microprocessor 30
 Intel 8085
 1977
 769,230 instructions per
second
 Internal clock generator,
internal system
controller and higher
clock frequency
 About 200 million in
existance.

Microprocessor 31
 The Modern Microprocessor
 In 1976 the Intel 8086
was released
 16 bit microprocessor
 2.5 MIPS (million
instructions per second)
 1 Mbytes of memory
 4 or 6 byte instruction
cache or queue to
prefetch instructions
before they were
executed.

Microprocessor 32
 The 80286 Microprocessor
 16 bit architecture
microprocessor
 16 Mbyte memory
 4 MIPS

Microprocessor 33
 Intel 80386
 1986

 32 bit microprocessor,
(32 bit data bus, 32 bit
memory address)

 4 G bytes of memory

 275,000 transistors

Microprocessor 34
Pentium Pro Processor

Microprocessor 35
 Pentium pro
 21 million transistors
 3 integer units and a floating point unit
 Clock frequency 166 MHz
 16 K level 1 cache, 256 K level 2 cache.
 3 execution engines, 3 instructions at a time.
