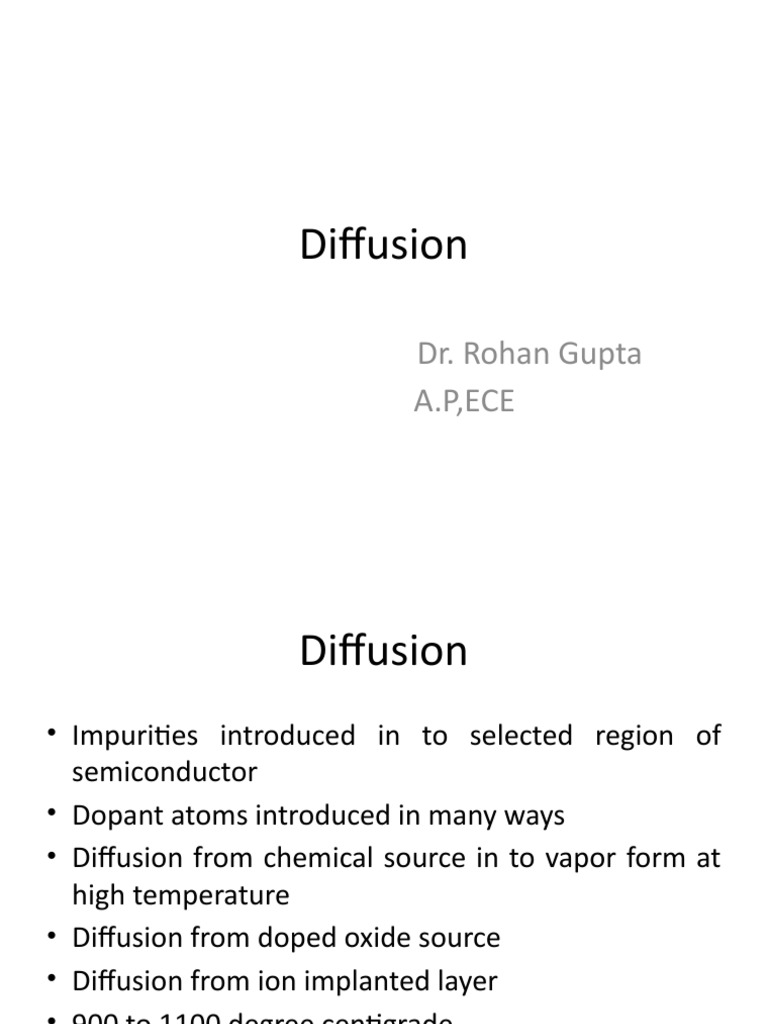

A.P,ECE Diffusion • Impurities introduced in to selected region of semiconductor • Dopant atoms introduced in many ways • Diffusion from chemical source in to vapor form at high temperature • Diffusion from doped oxide source • Diffusion from ion implanted layer • 900 to 1100 degree centigrade • Melting point of silicon is 1420 degree centigrade • Rate at which impurities diffuse is of order of 1 micrometer per hour • Penetration depth of order of 0.3 to 30 micrometer • Diffusion process slow at room temperature • Use of selective masking makes possible wide variety of devices available in form of ICs Diffusion in solids • Diffusion mechanisms • Crystal structure plays important role • Wandering of impurity takes place Substitutional Diffusion • At high temperature atoms move out of lattice site • Impurity occupies position in crystal after it is cooled • Replacing silicon atom by impurity atom • Applicable to diffusants such as boron, phosphorus and arsenic Substitutional Diffusion • Impurity atom has to overcome energy barrier • Jump rate is very slow at ordinary temperature • Diffusion rate can be speeded up by increase in temperature • 1000 degree centigrade Interstitial Diffusion • Impurity atoms do not replace but moves • Gold, copper and silver • Gold is used to increase speed of digital ICs • Void is big enough to contain impurity atom • Impurity atom located in one void can move to neighboring void Interstitial Diffusion • Diffusion rate slow at room temperature • 1000 degree centigrade • Diffusion rate greater than substitutional diffusion • Long term stability can not be achieved with Lithium Interstitial-substitutional Diffusion • Impurity atoms occupy substitutional as well as interstitial sites • Move at significant rate • Dissociative mechanism by which substitutional impurity atom can become interstitial leaving behind vacancy can be controlling factor for this process • Copper and Nickel Interstitial-substitutional Diffusion Kick out Mechanism Interstitialcy Diffusion • Modified version of substitutional diffusion • Pushing substituionally located impurity atom in to interstitial sites • Diffuse to adjacent substitutional sites and create new self interstitials • Boron and phosphorous Interstitialcy Diffusion Combinational Diffusion • Fraction diffuse substantially and rest interstitially • Movement of impurities and not ultimate destination • It is possible that some may end in substitutional sites and others in interstitial sites
