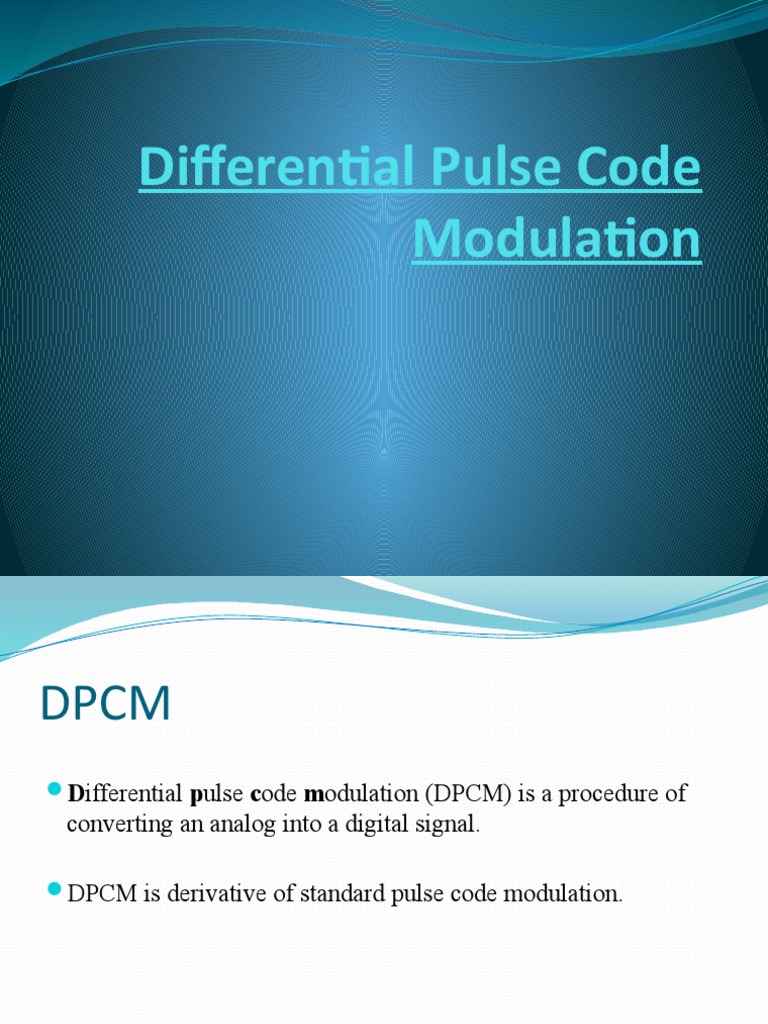

    Differential Pulse Code

    Modulation
    DPCM
    Differential pulse code modulation (DPCM) is a procedure of
    converting an analog into a digital signal.

    DPCM is derivative of standard pulse code modulation.


    WHY WE NEED DPCM?
    It uses the fact that range of differences in amplitudes between
    successive samples of the audio waveform is less than the
    range of actual sample amplitudes.

    There is a lot of redundancy in the signal samples, the


    bandwidth and the dynamic range of a PCM system are wasted.
    Continued..
    A simple scheme where instead of transmitting the sample
    values, we transmit the difference between the successive
    sample values.

    Difference between the successive samples is generally


    much smaller than the sample values.
    :

    BLOCK DIAGRAM:
    AT TRANSMITTER END

    • If x(t) is the original signal sampled at Nyquist rate,the


    difference between current and previous sample is,
    d[k]=x[k]-x[k-1]
    • difference is then quantized and encoded
    AT RECEIVER END:
    The present sample value is regenerated by using past
    value plus the differential value that is received over
    the differential system.

    The present value can be estimated from past values


    by using a prediction filter.
    Continued…

    At receiver end, reverse of the transmitter process will


    occur after decoding.
    X^[k]=dq [k]+x^[k-1]
    DPCM SYSTEM:
    ADVANTAGES:
    Instead of quantizing the original signal, we are
    quantizing the differences, this will result in reducing
    quantization interval thus reduces quantization noise.

    With decrease in noise we can increase the SNR


    DISADVANTAGES:
    ERROR PROPAGATION:
    If an error is detected this error is added
    into all future samples as current detected sample
    depends on previous ones.
    DIFFERENCE BETWEEN PCM AND DPCM:
    PCM:
    original samples are quantized and encoded.
    DPCM:
    difference between present and previous samples
    is quantized and encoded.
    CONTINUED…
    S.N Parameter PCM DPCM
    1 Number of bits It can use 4,8 or 16 Bits can be more than 1 but
    bits/sample less than PCM
    2 Levels No. of levels depend Fixed number of levels are
    on number of bits used
    3 B.W of transmission Highest B.W is B.W is less than PCM
    channel required since bits
    are high
    4 feedback No feedback in Feedback exists
    transmitter or
    receiver
    5 Area of application Audio and video Speech and video
    telephony
