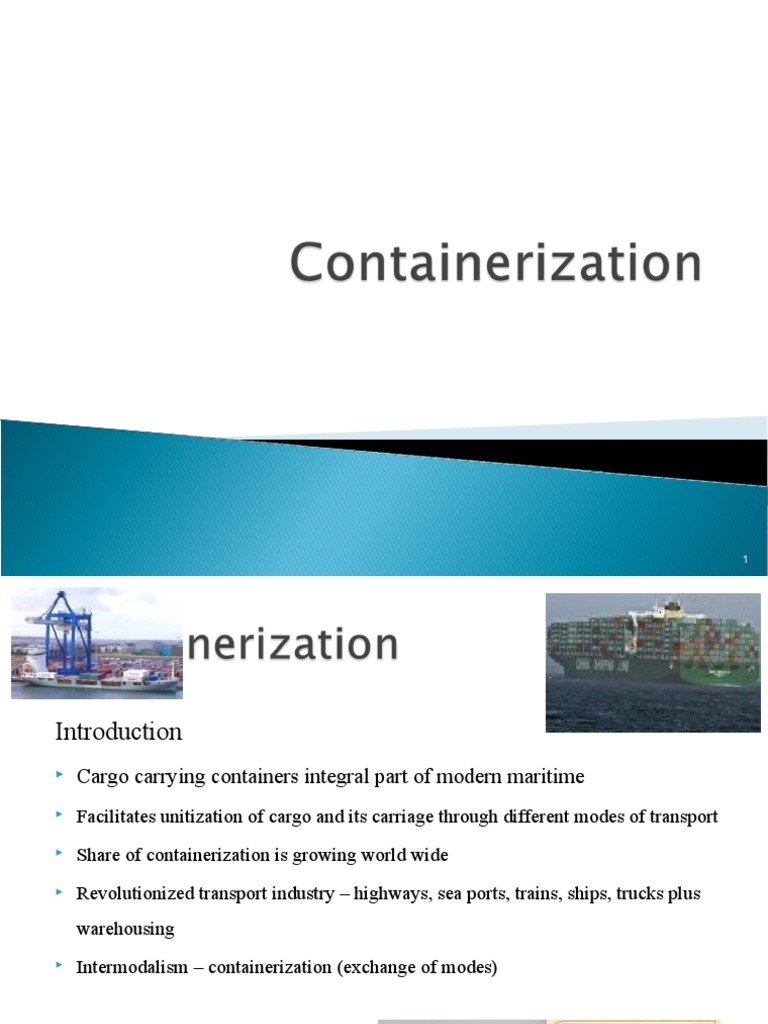

Introduction
Cargo carrying containers integral part of modern maritime
Facilitates unitization of cargo and its carriage through different modes of transport
Share of containerization is growing world wide
Revolutionized transport industry – highways, sea ports, trains, ships, trucks plus
warehousing
Intermodalism – containerization (exchange of modes)
2
Containerization – Concept & Operation
Shipping system based on large cargo carrying containers that can be easily interchanged
between trucks, trains and ships without re-handling content
Is a single rigid sealed, reusable metal box in which merchandise is shipped – vessel, truck
or rail
Characteristics are:
Strong, good for repeated use
Specially designed to facilitate carriage of goods by one or more mode
No intermediate reloading required, fitted with devices
Designed for easy filling and emptying
Rectangular shaped, weather proof
3
Container material
Steel, Aluminum, plywood, fibre glass, etc..
Steel – Steel frame, steel cladding – rusted in 4 to 5 years
Aluminum – Steel frame and aluminum cladding
◦ Light weight and rust free, short life – corrosion with salt water
Non metallic containers – plywood and fibre glass – steel frame, walls, roof,
doors – plywood with fibre glass coating.
◦ Good insulation properties, but difficult to repair and expensive to manufacture
4
History
Unit load for cargo – improve efficiency of transport operations
Cargo protection from nature, pilferage, damage, and easy of handling
1956 – Malcolm Mclean – direct transfer of containerized cargo
Multi modal co – Sea Land Corporation
1961 – regular services between NY, LA and SF
1966 – first Trans Atlantic Container Service – USA and European Ports
Capacity of 1000 to 1500 TEUs. Speed of 20 to 30 knots
1970 – Panamax Ships – 1500 – 3000 TEUs
1980–Panamax Ships – 4000 TEUs: 1990 – 4400 TEUs; Today – 6000 TEUs
5
History
Ports modernized, depth of draft 52 feet – for 8000 or bigger TEUs ships
Indian Ports handled approx 3 million TEUs out of which 50% by JNPT
Developed countries improved infrastructure like roads, ports, material handling – USA,
UK Japan, Germany
Singapore, Dubai, Hong Kong created highly efficient ports – hubs of regional traffic
Containerization plus IT made JIT possible for Toyota and Honda
Containerization most advanced form of unitization
Container sizes – 20’, 40’, 45’ and 53’
Ship capacity – TEU – Twenty Foot equivalent
6
Types of Container
General Purpose Containers – Dry Container
Typical dimensions:
20 foot and 40 foot
Height 8’6” and 9’,6”
Container weight:20’ – 1800 kgs approx; 40’ – 3500 kgs approx
Max Loading weight: 20’ – 20 tons; 40’ – 28 tons
Characteristics:
Suitable for general cargo
Fork lift pockets provided on containers
Lashing devices provided on top, bottom, longitudinal rails on corner post
7
Types of Container
Open Top Containers
Typical dimensions:
20 foot and 40 foot
Height 8’6” and 9’,6”
Container weight:20’ – 2200 kgs approx; 40’ – 3750 kgs approx
Max Loading weight: 20’ – 20 tons; 40’ – 26 tons
Characteristics:
Suitable for cargo with extra height, can be loaded topside with crane
Top can be covered with tarpulin if required
Suitable forklift pockets, lashing devices and corner posts are provided
Agricultural and construction machinery, ingots, logs, scrap, project cargo, marble slabs,
castings, etc..
8
Types of Container
Reefer Container
Typical dimensions:
20 foot and 40 foot and Height 8’6” and 9’,6”
Container weight:20’ – 3000 kgs approx; 40’ – 4500 kgs approx
Max Loading weight: 20’ – 17 tons; 40’ – 25 tons
Characteristics:
Suitable for cargo that need constant temperature above and below freezing point- fruits, vegetables
and other perishables
Fresh air supply inside container possible in the quantity to keeps inside products safe
Insulating material polyurethane foam sandwiched between two walls of container
Temperature can be set from +25 degrees C to – 25 degree C
9
Types of Container
Flat Rack Container
Typical dimensions:
20 foot and 40 foot and Height 8’6” and 9’,6”
Container weight:20’ – 2500 kgs approx; 40’ – 4500 kgs approx
Max Loading weight: 20’ – 17 tons; 40’ – 25 tons
Characteristics:
Suitable for heavy loads and extra wide cargo
Bottom has strong construction
Fixed end walls allow bracing, lashing and stacking
Cargo – air conditioners, Boilers, Construction machinery, Electric generators, etc..
10
Types of Container
Platform
Typical dimensions:
20 foot x 8 foot and height 1’ 1 ¼” and 40 foot by 8 foot height 2’
Platform weight:20’ – 2000 kgs approx; 40’ – 4200 kgs approx
Max Loading weight: 20’ – 22 tons; 40’ – 40 tons
Characteristics:
Most suitable for heavy loads and oversized cargo
Bottom has strong construction
Cargo – over length, over height items, pipes, rods, plywood sheets, large
irregular shape items, steel beams, etc..
11
Types of Container
Half Height Containers
Characteristics:
Similar to open top but are only half height i.e 4’3” instead of 8’6”
Used for extremely heavy and dense cargo as steel beams, coils of tinplate
12
Types of Container
Side door Containers
Characteristics:
Have side doors.
Cargo that fir inside dimensions of container, but still wide to fit through the end
door.
In all other respects, it is a general purpose container type
13
Types of Container
Ventilated Containers
Characteristics:
Suitable for cargo that need ventilation like coffee or cocoa
Small opening at each corner to let fresh air into/ out
Does not allow rainwater or sea water to enter
14
Types of Container
Bulk Containers
Characteristics:
Suitable for carriage of dry bulk cargo
Three equivalent manholes provided for top loading
Forklift pockets and lashing devices provided
Cargo – grains, granules, sand nuts, beans, malt, sugar, dry chemicals, etc..
15
Types of Container
Insulated Container
Characteristics:
Normal box containers with insulating material - walls, top, bottom
Minimum temperature fluctuation inside
Insulated containers attached to separate temperature control device (Temperature
Control Containers)
16
Types of Container
Collapsible Container
Characteristics:
Normal box container, but box can be collapsed completely
Used on routes which have very little return cargo, container return empty
4 x 20’ collapsible containers in their collapsed form have exactly same dimensions
as 1 x 20’ regular box
There is a substantial space savings on returning empties
17
Types of Container
Tank Container
Characteristics:
For CHEMICAL PRODUCTS, as
Flammables
Oxidizing agents
Toxic substances
Corrosives
18
Benefits of Containerization
Benefits to Shippers
Reduction in transportation cost
Saving in Port Charges
Reduction in warehousing and inventory costs
Reduction in Packaging cost
Reduction in Insurance Premium
More convenience
Better acceptance in developed countries
Emergence of new markets
19
Benefits of Containerization
Benefits to Ship owners
Reduction in “turn around time”
More cargo carrying capacity
Higher return on investment
Global contracts
Higher Profitability
Inland Operations
20
Benefits of Containerization
Benefits to Port Authorities
Less Port congestion
Time saving
Fast and convenient loading and unloading
Less marketing effort
Rationalization of cargo handling charges
21
Benefits of Containerization
Benefits to Freight Forwarder
Helped to consolidate cargo and operate as NVOCC
22
Container Leasing Practices
Largely owned by shipping lines, leading freight forwarding organizations
Leasing practice important – constant fluctuations
Containers – expensive hence not owned beyond certain no.
Leased to meet temporary demand
Trans Atlantic route – 3 set for each vessel – one in Europe, one in US and
one in high seas
23
Container Leasing Practices – Types of Lease
One – Way Lease
Container leased only for outward journey
Ex: Leased from Chennai to Dubai, returned empty and clean to leaser’s
depot at Dubai
Round Trip
Container leased for both outward as well inward journeys
Used when shipper has both ways movement of cargo, or no return depot at
port of destination
24
Container Leasing Practices – Types of Lease
Short Lease
• Container leased for 60 or 90 days
Long Lease
• Container leased for 2,3 or more years
Master Lease
• Shipping lines enter into master lease contract with leasing companies
• Leased Container returned, owner makes receipt of EIR (Equipment
Interchange Receipt) with following info:
• Date/ place of pick-up; name and other detail of lessee; full identification of
container; condition when leased and when returned
Most leased containers covered by DPP - Damage Protection Plan
However cost of normal wear and tear; i.e. Rust holes etc.. Need to be
borne by lessee
25
Advantages of Leasing
Possible to lease container for short notice, for sudden surge in demand
Containers can be returned by shipping lines when need over – storage
issues
Avoid blocking of capital in owning containers. Policy of % containers
owned
New shipping line – zero capital investment into containers, quick start
Waiver of pick-up and drop-off charges – during slump in demand
Entire business of NVOCC’s built on leased equipments
26
Inland Container Depot (ICD)
Import container – sea port to importer factory/ warehouse – de-stuffing –
empty return to sea port
For export – container from sea port – factory/ ware house – stuffing – move
to sea port – wasteful duplication
Provide transportation logistics services for export – import as well as
domestic cargo in containers
Facilitate trade – industries based in hinterland
Reduce bottlenecks at sea ports – free storage space
Development of rural areas
Performs all functions of port – except stevedoring operations
Bypass of port Container Depot – processed near consignee
ICD – also known as Dry port
27
Inland Container Depot (ICD)
Large enclosed/ secure area – containers stored– customs bond
Sea port by rail/road (or both)–movement customs bond
Also store empty containers before sent for stuffing
Excise and customs clearance at shipper’s premises or ICD
Freight forwarders help in handling ICD related work
28
Duties of ICD
Gate check –in
Gate check-out – damaged not sent for stuffing
Documentation
◦ Issue of EIR
Reporting
◦ Movement of containers from ICD informed to container owners
◦ Communication through email, fax, EDI etc.. IT connectivity
Repair and maintenance
◦ Maintenance as per customs approval standards (IICL, USA)
◦ Reefer containers – routine maintenance essential (thermostat calibration)
Storage
◦ Safe storage of containers
◦ Suitable material handling equipment
◦ Arrange rail, road dispatch to port
◦ De-stuffing and stuffing operation undertaken, if required
◦ Sealing, lashing, securing, bracing, container survey, etc..
29
CONCOR
Estd in 1988 – Ministry of Railways –
Objective
◦ catalyst for promoting containerization, and
◦ Boost to Indian – international and internal trade with multi modal logistics
CONCOR provides logistics services and support – shippers may obtain
containerized freight transportation by rail (only)
As CFS Operator
30
CONCOR’s core Business operations
As a Carrier
31
CONCOR’s core Business operations
As Terminal and Warehouse operator
32
CONCOR’s core Business operations
As CFS Operator
33
CONCOR’s Terminal Networks
Provide single window facility for shipper – coordination with customs,
34
End of Topic
35
