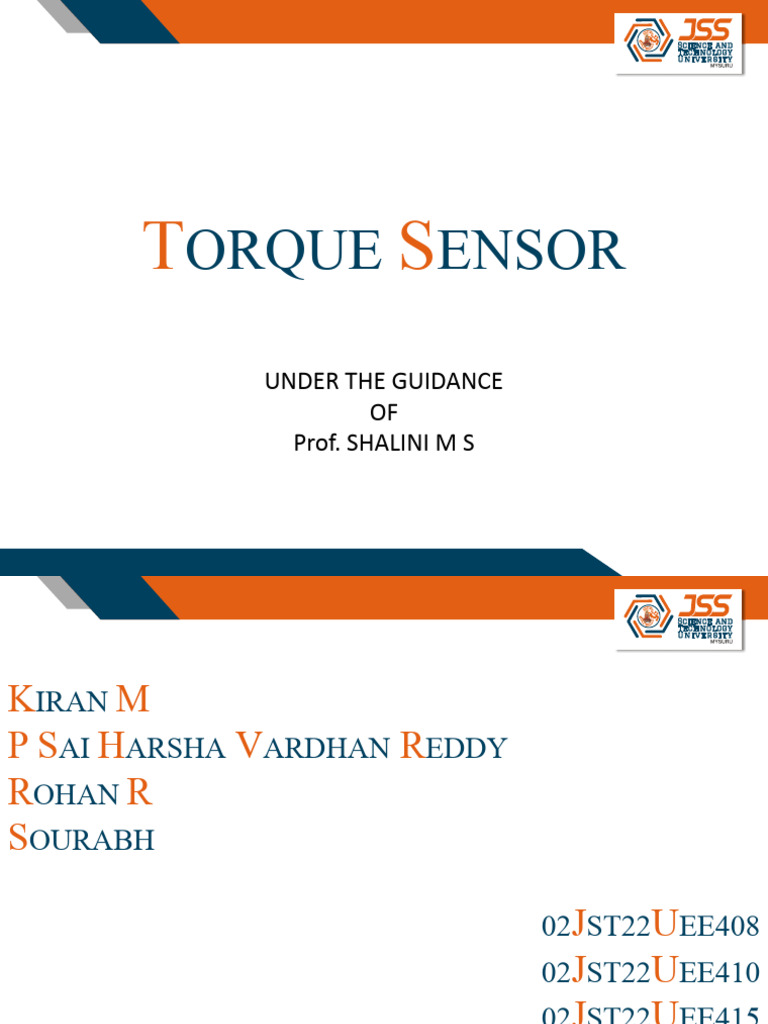

TORQUE SENSOR

UNDER THE GUIDANCE

OF
Prof. SHALINI M S
KIRAN M
P SAI HARSHA VARDHAN REDDY
ROHAN R
SOURABH

02JST22UEE408
02JST22UEE410
02JST22UEE415
02JST22UEE419
 WHAT IS TORQUE ?

 Torque is the measure of the force that can cause an object to rotate about an axis. It
is also known as the moment of force.
 Torque is the rotational equivalent of linear force.
 WHAT IS SENSOR ?

A sensor is a device that detects and responds to some type of input from the physical
environment. The input can be light, heat, motion, moisture, pressure or any number of
other environmental phenomena. The output is generally a signal that is converted to a
human-readable display at the sensor location or transmitted electronically over a
network for reading or further processing.
 TORQUE SENSOR

Torque sensors are devices for measuring and recording the torque on rotating
systems such as Motor, Generator and Machines. These are often used in
industrial and technical application
TYPES OF TORQUE SENSOR ?
Piezoelectric
Strain Gauges
Surface Magnetoelastic reaction torque
Based on Twist
Acoustic Wave sensors Measurement

Based on Tension Measurement Optical Inductive

 Tension Measurement

To measure a material's deflection or strain when a torque is applied to it.

 Twist Measurement

The output is directly dependent upon the rotor rotation

 STRAIN GAUGE

A strain gauge is a small electrical ‘element’ printed on a non-conductive substrate. The

pattern of the element is arranged so that if the gauge is stretched (or compressed) in
one direction (along an operating axis of the gauge), the resistance of the element
increases (or decreases) in relation to that stretch. A stretch perpendicular to the axis of
the strain gauge has little effect on the resistance of the element.
Evironmental

Maintainance

Lifetime

Cost

Installation

Accuracy

0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5

 SURFACE ACOUSTIC WAVE

SAW sensors work by converting an input electrical signal into a mechanical wave. The
wave can then be easily influenced by physical phenomena. The device then converts
the wave back into an electrical signal. This is also called as TMR Technology Tunnel
Magnetoresistance
Evironmental

Maintainance

Lifetime

Cost

Installation

Accuracy

0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5

 MAGNETOELASTIC

When torque is applied, the magnetic moments inside the shaft are reoriented, causing a
magnetic flux to develop around outside circumference of the shaft. The strength of the
magnetic field flux is linearly proportional to the stress and therefore, the torque on the
shaft, and the polarity of the magnetic field indicates the direction of torque. Magnetic field
sensors positioned around the shaft determine the amount and direction of torque based on
this flux.
Evironmental

Maintainance

Lifetime

Cost

Installation

Accuracy

0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5

 OPTICAL SENSOR

These sensors use light to measure Torque. A beam of light is sent through a fiber
optic cable wrapped around the shaft. The light’s polarization changes as the shaft
twists, which can be measured and converted into a torque reading.
The angle of twist on the shaft between its ends is measured by using optical means.
The angular deflection of light rays is proportional to twist and hence the torque.
Evironmental

Maintainance

Lifetime

Cost

Installation

Accuracy

0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5

 INDUCTIVE SENSOR

An inductive sensor is a device that uses the principle of electromagnetic induction to

detect or measure objects. An inductor develops a magnetic field when an electric
current flows through it; alternatively, a current will flow through a circuit containing
an inductor when the magnetic field through it changes. This effect can be used to
detect metallic objects that interact with a magnetic field.
Evironmental

Maintainance

Lifetime

Cost

Installation

Accuracy

0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5

 ADVANTAGES

REAL-TIME MONITORING
PRECISE
MEASUREMENTS
COST
EFFECTIVE
VERSATILE
CUSTOMIZABLE
 APPLICATIONS
Aerospace industry to track an aircraft engine's torque

the automobile sector has one of the most widespread uses of

torque sensors.

The engine's performance is tracked using this data, and fuel economy is
optimized.

including the medical, robotics, and renewable energy

sectors.
 FUTURE SOPE

With technological improvements and a rising need for accuracy and precision in
industrial processes, the future of torque sensors in the industry seems bright. Due to
the increasing demand for sensors that can fit in small spaces and offer precise
readings, miniature torque sensors that can be incorporated into smaller gadgets and
components may become more prevalent.
