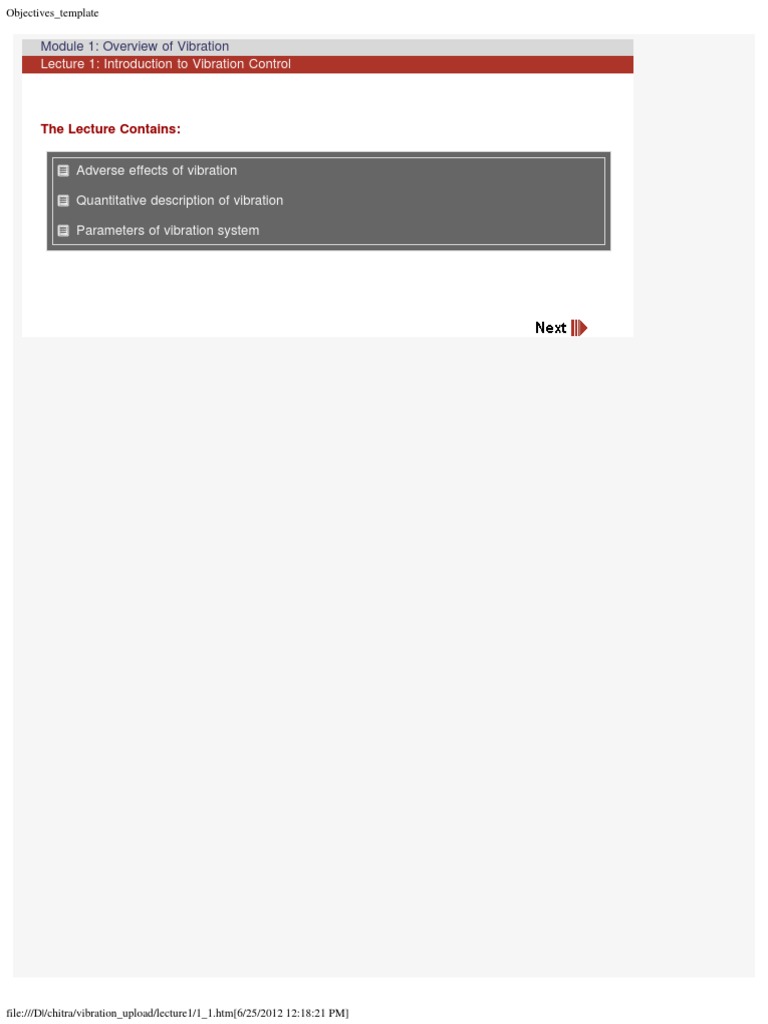

Module 1: Overview of Vibration Lecture 1: Introduction to Vibration Control
The Lecture Contains: Adverse effects of vibration Quantitative description of vibration Parameters of vibration system
Objectives_template file:///D|/chitra/vibration_upload/lecture1/1_2.htm[6/25/2012 12:18:21 PM] Module 1: Overview of Vibration Lecture 1: Introduction to Vibration Control
Vibration signifies to and fro motion about some equilibrium configuration This is undesirable in most engineering systems. The ill effects of vibration include:
Fatigue failure Structures like aircraft fuselage Machine components like crankshaft.
Severe damages due to resonance collapsing of bridges, damages in transmission lines damages to offshore structures.
Malfunctioning of sensitive Instruments/ systems payloads from vibration of launching rockets. high precision machining micromachines & microassembly
Loss of accuracy of work-piece due to vibration of machine tools.
Objectives_template file:///D|/chitra/vibration_upload/lecture1/1_3.htm[6/25/2012 12:18:21 PM] Module 1: Overview of Vibration Lecture 1: Introduction to Vibration Control
Loss of accuracy of work-piece: Shifting of tool position due to vibration of cutting tool This phenomenon is generally referred as 'chatter vibration'. There are two types of chatter: Forced chatter : Force chatter originates in the driving system ( for eg. from a motor) and gets transmitted to the cutting zone. Self excited chatter : Self excited chatter is generated due to uneven surface of the work piece, fractures of metal swarf etc.
Objectives_template file:///D|/chitra/vibration_upload/lecture1/1_4.htm[6/25/2012 12:18:21 PM] Module 1: Overview of Vibration Control Lecture 1: Introduction to Vibration Control
Typical fatigue failure in a shaft due to torsional oscillation Camshaft assembly of a 6.5 MW diesel engine
Broken camshaft (apparently due to malfunctioning of torsional damper) Such torsional oscillations are caused either due to the periodic accelerations of the pistons, rods and cranks or due to the periodic variation in gas pressure inside the engine cylinder.
Objectives_template file:///D|/chitra/vibration_upload/lecture1/1_5.htm[6/25/2012 12:18:21 PM] Module 1: Overview of Vibration Control Lecture 1: Introduction to Vibration Control
Vibration isolation of spacecraft from the launching vehicle The challenge is to isolate the payload such that at three different sinusoidal excitations of frequencies 5Hz, 25Hz and 100 Hz, the vibration amplitude is to be reduced by 20 dB. The isolation is achieved by the hexapod assembly by using stiff piezoelectric actuators that extend and contract in response to the vibration originating at the base. This hexapod assembly is commonly known as Active Stewart Platform.
Objectives_template file:///D|/chitra/vibration_upload/lecture1/1_6.htm[6/25/2012 12:18:21 PM] Module 1: Overview of vibration Control Lecture 1: Introduction to Vibration Control
Quantitative Description of Vibration Vibration is defined as the response of an elastic system subjected to dynamic disturbance. Complete description of a vibration problem involves three components:, Vibrating system Excitation and Response
Objectives_template file:///D|/chitra/vibration_upload/lecture1/1_7.htm[6/25/2012 12:18:21 PM] Module 1: Overview of Vibration Control Lecture 1: Introduction to Vibration Control
Parameters of Vibration System Every vibrating system, in general, comprises of three parameters, these are Inertia, Stiffness, and Damping. Inertia and Stiffness are generally modelled as simple elements like: Parameters Rectilinear Angular Inertia Mass Moment of Inertia Stiffness Linear Spring Torsional Spring
Spring element Spring constants D - Coil diameter d - wire diameter n - no. of turns G - shear modulus E: modulus of elasticity I: area moment l: length of candilever beam E: modulus of elasticity I: area moment l: length of candilever beam E: modulus of elasticity I: area moment l: length of candilever beam
l: length of the fixed beam k 1 , k 2 : spring constants of springs in series k 1 , k 2 : spring constants of springs in parallel
Torsional Spring Element Spring Constants D - Coil diameter d - wire diameter n - turns E - Elastic modulus
E - Elastic modulus I: area moment l: length of cantilever beam E - Elastic modulus I: area moment l: length of cantilever beam
Objectives_template file:///D|/chitra/vibration_upload/lecture1/1_8.htm[6/25/2012 12:18:22 PM] Module 1: Overview of Vibration Control Lecture 1: Introduction to Vibration Control
Damping Damping is the most difficult parameter among the three parameters. Various mechanisms, indeices and measures are used to model damping. Some of the simple damping models are: Viscous damping, Coulomb Friction and Material damping model.
Objectives_template file:///D|/chitra/vibration_upload/lecture1/1_9.htm[6/25/2012 12:18:22 PM] Module 1: Overview of Vibration Control Lecture 1: Introduction to Vibration Control
Consider a single degree of freedom (SDOF ) model Figure 1.1: Spring-Mass- Dashpot system m = mass k = spring constant c = viscous damping coefficient Here, Excitation is the applied dynamic force and Response is Monitored in terms of displacement or velocity . The excitation and response of a system are often characterized by the physical variables, such as: Displacement, Velocity, Acceleration, Stress and Noise etc. The selection of these variables depends on various factors, such as the nature of the problem and the objective of the analysis. A typical example will clarify this issue.
Objectives_template file:///D|/chitra/vibration_upload/lecture1/1_10.htm[6/25/2012 12:18:22 PM] Module 1: Overview of Vibration Control Lecture 1: Introduction to Vibration Control
Analysis of ride-comfort Here excitation is described in terms of displacement and response is described in term of acceleration of the vehicle.
