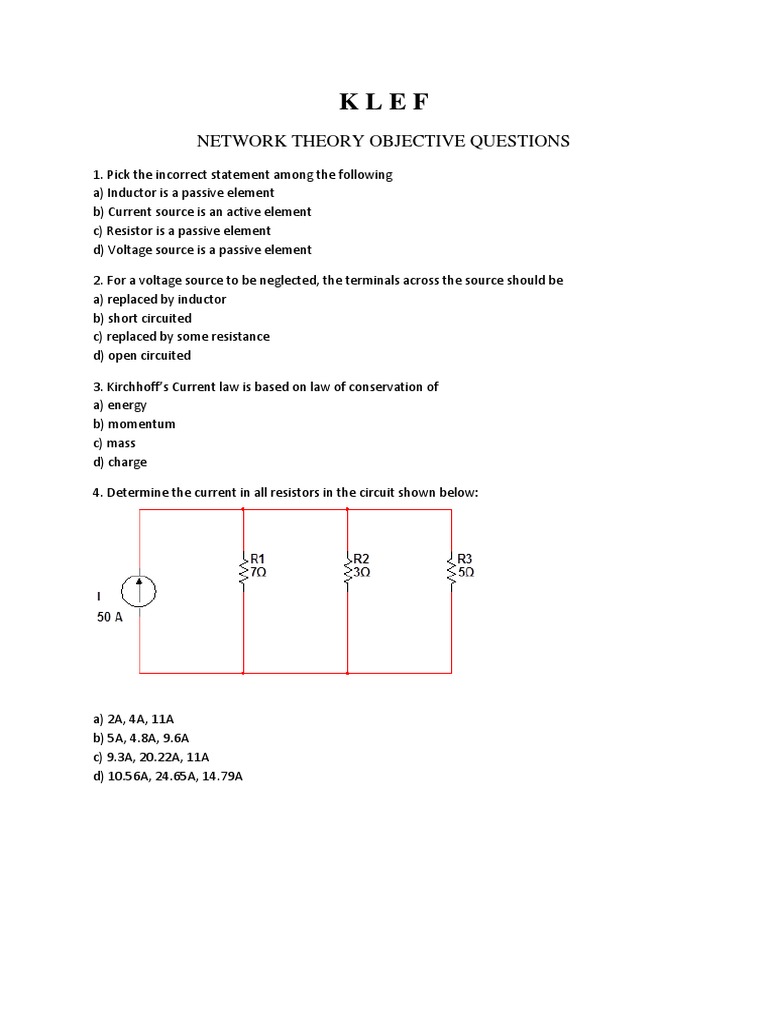

KLEF

NETWORK THEORY OBJECTIVE QUESTIONS

1. Pick the incorrect statement among the following
a) Inductor is a passive element
b) Current source is an active element
c) Resistor is a passive element
d) Voltage source is a passive element

2. For a voltage source to be neglected, the terminals across the source should be
a) replaced by inductor
b) short circuited
c) replaced by some resistance
d) open circuited

3. Kirchhoff’s Current law is based on law of conservation of

a) energy
b) momentum
c) mass
d) charge

4. Determine the current in all resistors in the circuit shown below:

a) 2A, 4A, 11A

b) 5A, 4.8A, 9.6A
c) 9.3A, 20.22A, 11A
d) 10.56A, 24.65A, 14.79A
5.Find the current i3 in the circuit shown below

a) 2A
b) 1A
c) 3A
d) 0.5A

6. Determine the current if a 20 coulomb charge passes a point in 0.25 seconds

a) 10 A
b) 20 A
c) 2 A
d) 80 A

7. If a resistor Rx is connected between nodes X and Y, Ry between X and Y, Rz between Y and Z to

form a delta connection, then after transformation to star, the resistor at node X is?
a) RxRy/( Rx+Ry+Rz)
b) RxRz/(Rx+Ry+Rz)
c) RzRy/(Rx+Ry+Rz)
d) (Rx+Ry)/(Rx+Ry+Rz)

8.Consider the graph given below. Which of the following is a not a tree to the graph?

a. b. c. d.
9.If a graph consists of 5 nodes, then the number of twigs in the tree are?
a) 1
b) 2
c) 3
d) 4

10.Determine the equivalent thevenin’s voltage between terminals A and B in the circuit shown
below.

a) 0.333
b) 3.33
c) 33.3
d) 333

11. The maximum power is delivered from a source to its load when the load resistance is ______
the source resistance.
a) greater than
b) less than
c) equal to
d) less than or equal to

12. Consider a circuit with two unequal resistances in parallel, then

a) large current flows in large resistor
b) current is same in both
c) potential difference across each is same
d) smaller resistance has smaller conductance

13. In which of the following cases is Ohm’s law not applicable?

a) Electrolytes
b) Arc lamps
c) Insulators
d) Vacuum ratio values

14. The circuit which satisfies Reciprocity Theorem is called?

a) Short circuit
b) Open circuit
c) Linear circuit
d) Non-linear circuit
15. The circuit consists of a 1kΩ resistor connected in series with a 50mH coil, a 10V rms, 10 KHz
signal is applied. Find impedance Z in rectangular form.

a) (1000+j0.05) Ω
b) (100+j0.5) Ω
c) (1000+j3140) Ω
d) (100+j3140) Ω

16. Determine the source voltage if voltage across resistance is 70V and the voltage across inductor
is 20V as shown in the figure.

a) 71
b) 72
c) 74
d) 73

17. As XL = XC in a series resonance circuit, the impedance is_________

a) purely capacitive
b) purely resistive
c) purely inductive
d) capacitive and inductive

18. For the circuit shown in figure determine the capacitive reactance at resonance.

a) 15
b) 20
c) 25
d) 30
19. Determine the resonant frequency (kHz) for the circuit shown below.

a) 2.25
b) 22.5
c) 225
d) 2250

20. The expression of current in R- L circuit is?

a) i=(V/R)(1+exp⁡((R/L)t))
b) i=-(V/R)(1-exp⁡((R/L)t))
c) i=-(V/R)(1+exp⁡((R/L)t))
d) i=(V/R)(1-exp⁡((R/L)t))

KEY:
1 2 3 4 5 6 7 8 9 10

B C D D C D A D D C
11 12 13 14 15 16 17 18 19 20
