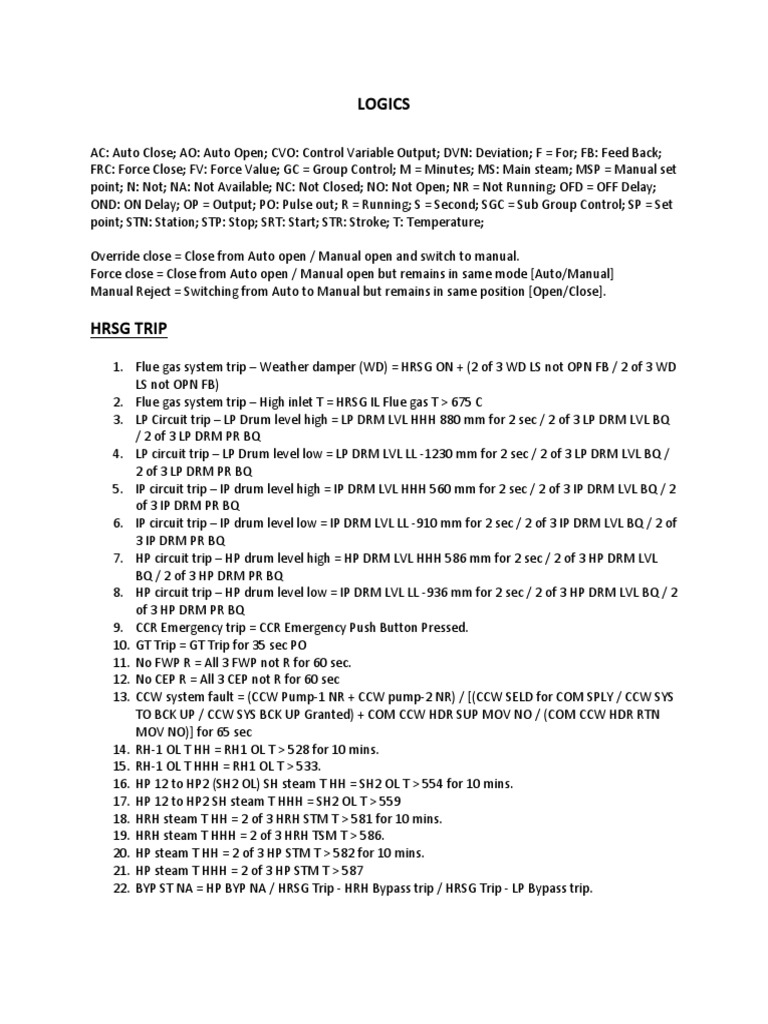

LOGICS

AC: Auto Close; AO: Auto Open; CVO: Control Variable Output; DVN: Deviation; F = For; FB: Feed Back;
FRC: Force Close; FV: Force Value; GC = Group Control; M = Minutes; MS: Main steam; MSP = Manual set
point; N: Not; NA: Not Available; NC: Not Closed; NO: Not Open; NR = Not Running; OFD = OFF Delay;
OND: ON Delay; OP = Output; PO: Pulse out; R = Running; S = Second; SGC = Sub Group Control; SP = Set
point; STN: Station; STP: Stop; SRT: Start; STR: Stroke; T: Temperature;

Override close = Close from Auto open / Manual open and switch to manual.
Force close = Close from Auto open / Manual open but remains in same mode [Auto/Manual]
Manual Reject = Switching from Auto to Manual but remains in same position [Open/Close].

HRSG TRIP

1. Flue gas system trip – Weather damper (WD) = HRSG ON + (2 of 3 WD LS not OPN FB / 2 of 3 WD
LS not OPN FB)
2. Flue gas system trip – High inlet T = HRSG IL Flue gas T > 675 C
3. LP Circuit trip – LP Drum level high = LP DRM LVL HHH 880 mm for 2 sec / 2 of 3 LP DRM LVL BQ
/ 2 of 3 LP DRM PR BQ
4. LP circuit trip – LP Drum level low = LP DRM LVL LL -1230 mm for 2 sec / 2 of 3 LP DRM LVL BQ /
2 of 3 LP DRM PR BQ
5. IP circuit trip – IP drum level high = IP DRM LVL HHH 560 mm for 2 sec / 2 of 3 IP DRM LVL BQ / 2
of 3 IP DRM PR BQ
6. IP circuit trip – IP drum level low = IP DRM LVL LL -910 mm for 2 sec / 2 of 3 IP DRM LVL BQ / 2 of
3 IP DRM PR BQ
7. HP circuit trip – HP drum level high = HP DRM LVL HHH 586 mm for 2 sec / 2 of 3 HP DRM LVL
BQ / 2 of 3 HP DRM PR BQ
8. HP circuit trip – HP drum level low = IP DRM LVL LL -936 mm for 2 sec / 2 of 3 HP DRM LVL BQ / 2
of 3 HP DRM PR BQ
9. CCR Emergency trip = CCR Emergency Push Button Pressed.
10. GT Trip = GT Trip for 35 sec PO
11. No FWP R = All 3 FWP not R for 60 sec.
12. No CEP R = All 3 CEP not R for 60 sec
13. CCW system fault = (CCW Pump-1 NR + CCW pump-2 NR) / [(CCW SELD for COM SPLY / CCW SYS
TO BCK UP / CCW SYS BCK UP Granted) + COM CCW HDR SUP MOV NO / (COM CCW HDR RTN
MOV NO)] for 65 sec
14. RH-1 OL T HH = RH1 OL T > 528 for 10 mins.
15. RH-1 OL T HHH = RH1 OL T > 533.
16. HP 12 to HP2 (SH2 OL) SH steam T HH = SH2 OL T > 554 for 10 mins.
17. HP 12 to HP2 SH steam T HHH = SH2 OL T > 559
18. HRH steam T HH = 2 of 3 HRH STM T > 581 for 10 mins.
19. HRH steam T HHH = 2 of 3 HRH TSM T > 586.
20. HP steam T HH = 2 of 3 HP STM T > 582 for 10 mins.
21. HP steam T HHH = 2 of 3 HP STM T > 587
22. BYP ST NA = HP BYP NA / HRSG Trip - HRH Bypass trip / HRSG Trip - LP Bypass trip.
  HP BYP Available = HP BYP OL T not > 437 + HPU in Auto (from HPU PLC) + HPU no FLT
(from HPU PLC)+ (HPU Pump -1 R / HPU Pump-2 R)
 HRSG Trip - HRH BYP Trip = (HRH BYP PCV PSN > 5 + HRH BYP HPU FLT) / (HRH BYP HPU
FLT (from HPU PLC) / HRH BYP PCV QCK CLS)
 HRSG Trip – LP BYP trip = (LP BYP PCV PSN > 5 + LP BYP HPU FLT) / (LP BYP HPU FLT
(from HPU PLC) / LP BYP PCV QCK CLS)
 [HRH & LP bypass will trip if condenser vacuum 400 mbar [<0.6 bar] whereby HRSG will
trip].
23. Inlet fumes pressure set point = HRSG IL Flue gas PR > 450 MMWC (GT Trip = HRSG IL flue gas PR
> 470 MMWC).
24. CWP SYSTEM HRSG Trip = CWP-A not R + CW Pump-B not R.
25. ST Trip and ST values not closed = [2 of 3 ST Trip FB + (IV-1 PSN not <5 / IV-2 PSN not <5 / RSV-1
PSN not <5 / RSV-2 PSN not <5 / MSV-1 PSN not <5 / MSV-2 PSN not <5 / CV-1 PSN not <5 / CV-2
PSN not <5 / ASV PSN not <5 / ASV not CLSD)] for 2.5 mins
26. FWP Load Run back – DD CLS = [FWP >= 2 R for 95 sec + (FWP-A OVR TRP / FWB-B OVR TRP /
FWP-C OVR TRP / FWP-A FLT / FWP-B FLT / FWP-C FLT) + FWP <= 1 R for 90 sec + GT Load > 50]
for 30 sec

HRSG AIR PURGE MEMORY ON – C63HHS01AT002XY17

Memory ON = CC mode SELD + [(GT Flame not ON / DD CLSD) + [(CC Purge not complete PO + DD CLSD) / (GT flame
ON + DD not CLSD)]

HRSG ON (R)
GT flame ON + HRSG CC SELD + DD not CLSD

WEATHER DAMPER:
Auto close [PO]: DD close FB / GT released to close WD (GT speed <0.5%)
Auto Open: GT release (GT speed >0.5%) + DD not close FB
Close Permit: GT release to close (GT speed <0.5%) + Open cycle selected

HRSG DUCT DRAIN VALVE

AUTO CLOSE: No Auto close
AUTO OPEN [PO]: HRSG Not ON for 30 mins.
CLOSE PERMIT: No close permit.
OPEN PERMIT: HRSG Not ON for 30 mins.
FRC CLOSE: HRSG ON
NO Open & Close OVR

FEED WATER

FWP GC
ON PMT = FWP-A SRT PMT + FWP-B SRT PMT + FWP-C SRT PMT
OFF PMT = HRSG N ON

FWP SGC
ON PMT = FWP Auto + FWP HP DIS MOV Auto + HP DIS BYP MOV Auto + IP DIS MOV Auto

FWP AUX LO PUMP – C63LAB45AP012

C1 = FWP OVR TRP / FWP SG SRT / FWP SG STP PO / FWP SB / FWP LO PR L / FWP RRS ACT
C2 = FWP SG STP F 305 S / FWP R F 305 S / (FWP- STP + FWP-B STP + FWP-C STP) F 305 S
Auto SRT = C1-T
Auto STP = C1-F + C2-T
SRT PMT = LO LVL N L

FWP # A – C63LAC45AP001
Auto Start = From SGC step-2
Auto Stop = From SGC step-2
Start PMT = LP DRM LVL not LL + FWP-A SUC MAN ISO VLV OPN + (HP DIS MOV CLSD + HP DIS BYP MOV
CLSD) / HP COM DIS HDR PR > 120 + IP DIS MOV CLSD + ACW SYS IN SER (F) + CCW SYS IN SER + FWP-A
LO PR L + FWP-A LO T not H + FWP AUX LO Pump R + FWP DE / NDE BRG T not HI + FWP MTR DE / NDE
BRG T not HI + FWP VIB not H + (MTR WDG 1 of 2 R PH T not H >= 130 / MTR WDG 1 of 2 Y PH T not H >=
130 / MTR WDG 1 of 2 B PH T not H >= 130) + FWP PRS not ACT + FWP SUC PR N < 1.5 + LO LVL N L

 ACW SYS IN SER = [(ACW Pump-1 R / ACW pump-2 R) + (ACW Pump DIS MOV OPN + ACW PUMP
DIS HDR PR not HI + ACW PUMP DIS HDR PR not L)] for 15 sec
 CCW SYS IN SER = [(CCW Pump-A R / CCW Pump-B R) + CCW HDR PR not H > 9.3I + CCW HDR PR
not L < 4.75] for 15 sec

OVR TRP = LP DRM LVL LL -1230 / FWP VIB HH / HP FW TRP / IP FW TRP / (FWP R + FWP LO PR LL) / FWP
DE or NDE BRG T HH / FWP MTR BRG T HH / (MTR WDG 1 of 2 R PH T HH >= 135 / MTR WDG 1 of 2 Y PH
T HH >= 135 / MTR WDG 1 of 2 B PH T HH >= 135) / FWP SUC PR LL < 1

 HP FW TRP = HP FW ECO FIL MOV NC F 50 S + HP FW ECO FIL BYP MOV NC F 50 S + HP DRM LVL
HH
 IP FW TRP = IP FW ECO FIL MOV NC F 50 S + IP FW ECO FIL BYP MOV NC F 50 S + IP DRM LVL HH

CONDENSATE SYSTEM

CEP GT LOAD RUN BACK

1 CEP R + Flow >560 TPH + Other 2 CEP not available for 15 sec = GT Load run back to 90 MW.

COND REFIL BYP ISO MOV – C63LCA90AA002

Auto CLS = COND RETN ISO MON OPN / No CEP R
Auto OPN = GT R in CC mode / At least 2 CEP R
OPN PMT = CEP DIS PR > 19.5 + At least 2 CEP R
FRC CLS = LP Drum level HH 780 mm

COND RETN ISO MOV – C63LCA90AA001

Auto CLS = (HRSG ON + LP Drum LCV CLS for 15 mins) Pulse out / No CEP R
Auto OPN = GT R in CC mode / At least 2 CEP R
OPN PMT = DP BET [CEP DIS PR & CPH IL PR] < 2 + CEP DIS PR > 19.5 + COND REFIL BYP MOV OPN + LP
DRUM LCV IL ISO MOV CLS + At least 2 CEP R
FRC CLS = LP Drum level HH 780 mm

CPH IL 3 WAY CV – C63LCA90AA081

C6*LCA90AA081TC
PV = CPH OL T
RSP is LP Drum SAT T – 8 = CEP DIS DO < 20 for 15 mins
RSP is LP Drum SAT T – 4 = CEP DIS DO > 20
TV = C63LCA90AA081 AO

C63LCA90AA081
RSP is LP Drum SAT T – 8 = CEP DIS DO < 20 for 15 mins
RSP is LP Drum SAT T – 4 = CEP DIS DO > 20
FRC CLS = GT R in Liquid Fuel

CPH PUMP DIS CV – C63LCA94AA081

C63LCA94AA081TC
PV = CPH IL T CALCULATED
CPH IL T CALCULATED = R9
R1 (Result-1) = max [1 & DT bet (PH OL T & COND RET T)
R2 = max [0 & DT bet (CPH OL T & COND RET T)
R3 = min [1 & (R1/R2)]
R4 = R3 x COND RTN FLOW
R5 = R4 x COND RTN T
R6 = R4 + CPH RC Flow
R7 = PH OL T x CPH RC Flow
R8 = R5 x R7
R9 = R8/R6
RSP is 70 C
TV = C63LCA94AA081 AO

C63LCA94AA081
CVI = IP out of C63LCA94AA081TC CVO
RSP = 70 C
FRC CLS = Both CPH pumps OFF

CPH PUMP – C63LCA92AP001

Auto Start = HRSG ON for 30 mins
Auto Stop = HRSG not ON for 30 mins / No CEP pump R / GT on Liquid Fuel
Start PMT = COND RTN ISO MOV OPN

LP SYSTEM
LP FW DRUM LCV IL ISO MOV - C63LCA91AA002
Auto CLS = No CEP R + COND RTN ISO MOV CLS
Auto OPN = GT R in CC + At least 2 CEP R + LP Drum Level not HH
OPN PMT = LP Drum LCV CLS + COND RTN ISO MOV OPN
OVR CLS = LP Drum Level HH
OVR OPN = CPH IL PR > 36

LP DRUM LEVEL CV – C63LCA91AA081

C1 = HRSG ON + LP STM FL > 1.25 KG/S for 2 mins
RSP is 300 mm [Normal operation set point] = C1-T; RAT INC & DEC = 2
RSP is -300 mm [Startup operation set point] = C1-F; RAT INC & DEC = 2
RSP is IP output of LP drum PR = GT on LF [1200 mm if LP drum PR = 5.5 bar]

C63LCA91AA081LC1
PV = LP Drum LVL
TV = CVO
TK = 3 ELE CTRL

C63LCA91AA081LC2
FRC CLS = LP Drum LVL > Set point = Pulse out
TK = LP Drum LVL CTRL 1 element selected

C63LCA91AA081FC
PV = Sum [COND RTN WTR FL & IP Pegging STM FL]
RSP is Sum [CVO LC1 & (Sum [LP STM FL, IP FW FL & HP FW FL])]
TV = CVO FC
TK = LP Drum LVL CTRL 1 element selected

LP DRM min startup LVL = -300 + -50 = -350 mm at 0 bar

LP DRM max startup LVL = -300 + 1380 = 1080 at 10 bar
LP DRM LVL set point changes from startup LVL to 300 mm if LP MS FL > 1.25 kg/s.
1 to 3 element changes = [LP MS FL + IP FW FL + HP FW FL] > 13.3 kg/s + LP DRM no error [DRM error =
FW FL, PR, T + STM FL, PR, T FB are ok]

C63LCA91AA081PC
PV = CEP DIS PR
TV = CVO
CVO = 100 if CEP GRP OFF
CVO = min [100 & PC CVO] if CEP GRP ON

C63LCA91AA081
MR = LP Drum LVL DVN > 10%
CVI = [LC1 OP / 1 ELE SELD / FC1 OP / 3 ELE SELD]
FRC CLS = [CV CLS + [COND RTN MOV CLS + CV IL ISO MOV CLS]] + LP Drum LVL HH + [HRSG ON + (COND
RTN MOV CLS / CV IL ISO MOV CLS)]
C1 = CPH IL PR > 36
R1 is 8% = C1-T
R1 is 0% = C1-F
R2 = R1 + CVO
R3 = min [R2 & LP Drum PR CTRLR OP]
AO is LP Drum LCV CMD = R3

LP DRUM LCV IL BYP MOV – C63LCA91AA001

OPN PMT = LP Drum level controller not in Auto
FRC CLS = LP Drum LVL HH + (LP Drum LVL Controller Auto + GT R in CC)

DEAERATRO VENT ISO MOV – C63HAD97AA001

AUTO CLS = HRSG not ON / Conservation ON
AUTO OPN = HRSG ON + Conservation not ON

LP DRUM VENT ISO MOV – C63HAH97AA001

Auto CLS = LP Drum PR > 1 / Conservation ON
Auto OPN = LP Drum PR < 0.5 + Conservation not ON

LP DRM IBD ISO MOV – C63HAD98AA002

Auto CLS = LP DRM IBD MOV CLSD + LP DRM LVL not HI < 730 + HRSG ON for 30 mins
Auto OPN = HRSG ON for 30 mins + LP DRM LVL HI > 730
CLS PMT = LP DRM IBD MOV CLSD
OPN PMT = LP DRM IBD MOV CLSD
OVR CLS = LP DRM IBD MOV CLSD + HRSG ON + LP DRM LVL L < -1130

LP DRM IBD MOV – C63HAD98AA001

Auto CLS = LP DRM LVL not HI < 730 + HRSG ON for 30 mins
Auto OPN = LP DRM IBD ISO MOV Auto OPN + LP DRM IBD ISO MOV OPN
OPN PMT = LP DRM IBD ISO MOV OPN
FRC CLS = LP DRM IBD ISO MOV not OPN + HRSG ON + LP DRM LVL L < -1130

LP DRUM PEGGING PCV ISO MOV – C63LBA96AA001

Auto CLS = HRSG not ON / LP Drum PR > 3.5 = Pulse out
Auto OPN = LP Drum PR < 3.5 + COND RTN WTR FL > 12
OPN PMT = HRSG ON + IP STM PR > 2 + IP Drum Pegging PCV CLS FB
FRC CLS = COND RTN WTR FL < 12 PO + LP Drum LVL HH + LP Drum PR > 7.5

LP DRUM PEGGING PCV – C63LBA96AA081

PV = LP Drum PR
RSP = 3 bar
FRC CLS = [[LP Drum LVL < -1230 / LP Drum LVL > 780 / IP Drum Pegging PCV ISO MOV CLS] + IP Drum
pegging PCV CLS] / LP Drum PR > 7.5 / IP Drum Pegging PCV ISO MOV CLS / LP Drum LVL HH

C63LBA96AA081GC
PV = LP Drum SAT T
RSP = LP Drum SAT T [RATE INC / DEC = 0.06]
AO Input = Min [CVO & CVOGC]

LP DRUM TO LP SH DRN ISO MOV – C63HAH97AA005

Auto CLS = [(HRSG ON for 10 mins + DRN POT LVL < 150) / (HRSG not ON + DRN POT LVL < 150)] + LP
DRUM TO LP SH DRN MOV CLS for 2 mins
Auto OPN = HRSG ON PO / DRN POT LVL > 850
CLS PMT = LP DRUM TO LP SH DRN MOV CLS
OPN PMT = LP DRUM TO LP SH DRN MOV CLS

LP DRUM TO LP SH DRN MOV – C63HAH97AA004

Auto CLS = [(HRSG ON for 10 mins + DRN POT LVL < 150) / (HRSG not ON + DRN POT LVL < 150)]
Auto OPN = LP DRUM TO LP SH DRN ISO MOV Auto OPN + LP DRUM TO LP SH DRN ISO MOV OPN
CLS PMT = DRN POT LVL < 150
OPN PMT = LP DRUM TO LP SH DRN ISO MOV OPN
FRC CLS = LP DRUM TO LP SH DRN ISO MOV NOT OPN

LP START UP VENT STOP MOV – C63LBD90AA001

C1 = LP STM PR > 7 / [HRSG ON + [LP BYP STN not available + LP BYP PCV POS < 5 + (LP STM STOP MOV
not OPN / ST Trip FB / ST Admission CV CLSD)]
Auto CLS = LP Startup vent CV CLS FB + [Conservation ON / C1-F
Auto OPN = C1-T
CLS PMT = LP startup vent CLS FB / [LP STM PR < 7 + [HRSG not ON / [LP BYP STN available / LP BYP PCV
POS > 5 / [LP STM STOP MOV OPN + ST no Trip FB + ST Admission CV not CLS]]]
OPN PMT = LP startup vent CLS FB

LP STARTUP VENT VALVE – C63LBD90AA081

LP STM DRN ISO VLV – C63LBD90AA005

Auto CLS = LP STM DRN MOV CLS for 2 mins + [HRSG not ON + DRN POT LVL < 150 mm] / [HRSG ON +
DRN POT LVL < 150 mm + LP STM T > SAT T + 20C]
Auto OPN = HRSG ON / DRN POT LVL > 1060 mm / [HRSG ON + LP STM T < SAT T + 20C]
CLS PMT = DRN MOV CLSD
OPN PMT = DRN MOV CLSD

LP STM DRN MOV – C63LBD90AA004

Auto CLS = [HRSG not ON + DRN POT LVL < 150 mm] / [HRSG ON + DRN POT LVL < 150 mm + LP STM T >
SAT T + 20C]
Auto OPN = LP STM DRN ISO MOV Auto OPN + LP STM DRN ISO MON OPN
CLS PMT = DRN POT LVL < 150 mm
OPN PMT = STM DRN ISO MOV OPN
FRC CLS = STM DRN ISO MOV NOT OPN

LP BYP PCV ISO MOV – C63LBD26AA001

Auto CLS = LP STM PR < 4 + LP BYP PCV POS < 5% + [(HRSG TRP / LP STM PR N > 4 B / GT 18 TRP / GT 18
Flame N ON) + (GT 18 Flame N ON / GCB NC F 30 M / HSRG 63 DD CLSD) + LP STM STP MOV CLSD]
Auto OPN = LP STM PR N < 4 B / HSRG ON
CLS PMT = LP STM PR < 4 B + HRSG N ON

LP STM BYP PCV – C63LBD26AA081

MR = LP Main STM PR TR DVN > 10%
PV = LP MS PR
RSP
Rate INC & DEC = 0.005
RSP-1 = MIN [LP STM MAX PR SP 5.59 B & RSP-2]
C1 = (HRSG TRP / LP STM PR N > 4 B / GT 18 TRP / GT 18 Flame N ON) + (GT 18 Flame N ON / GCB NC F
30 M / HSRG 63 DD CLSD) + LP STM STP MOV CLSD
RSP-2 = STP LP FLR PR SP 5.5 B if C1-F
RSP-2 = LP STM MAX PR SP 5.59 B if C1-T
TK = LP BYP PCV QCK OPN / LP BYP PCV QCK CLS / INI Operation
C2 = (HRSG ON / LP MS PR N < 4 B) + LP MS PR > 0.5 B + COND PR < 500 MB) PO
INI Operation set = PCV CMD 10% if C2 - T
INI Operation Reset = INI Operation OND F 5 M
RSP-3 = CVO if INI Operation Reset
C3 = LP BYP OUT T HH / COND PR 400 MB / COND T HH 85 C / NO CEP R
LP BYP PCV QCK CLS = C3-T
C4 = HRSG ON + LP BYP PCV QCK OPN REQ due to STG TRP PO F 3 S (Pulse duration = 3 S if STG on 200
MW load) [Pulse duration will be decided based on STG load]
LP BYP PCV QCK OPN = C3-F + C4-T
LP BYP PCV STR = CAL (LP STM FL & PR & T) [STR = 8% if LP STM FL = 3.8 KG/S, PR = 5.5 B & T = 170 C]
AO = LP BYP PCV STR if QCK OPN is TRUE
AO = RSP-3 if QCK OPN is False

LP STM SMALL STP MOV – C63LBD90AA003

Auto CLS = HRSG not ON / LP STM STP MOV OPN
C1 = (HRSG-1 LP STM SMALL STP MOV CLSD + HRSG-1 LP STM STP MOV CLSD + HRSG-2 LP STM SMALL
STP MOV CLSD + HRSG-2 LP STM STP MOV CLSD) + LP STM PR > 1 bar
C2 = HRSG-1 ON + (HRSG-1 LP STM SMALL STP MOV OPN + HRSG-1 LP STM STP MOV OPN)
C3 = HRSG-2 ON + (HRSG-2 LP STM SMALL STP MOV OPN + HRSG-2 LP STM STP MOV OPN)
C4 = DT BET (LP STM T & LP ADM T) < 25 C + DP BET (LP STM PR & LP ADM PR) < 0.3
C5 = (C2 / C3) + C4
C6 = C1 / C5
Auto OPN = HRSG-1 ON + C6
OPN PMT = C1 / C5
FRC CLS = HRSG Trip

C63LBD90AA002 – LP STM STP MOV

Auto CLS = HRSG Not ON
C1 = (HRSG-1 LP STM SMALL STP MOV CLSD + HRSG-1 LP STM STP MOV CLSD + HRSG-2 LP STM SMALL
STP MOV CLSD + HRSG-2 LP STM STP MOV CLSD)
C2 = HRSG-1 ON + (HRSG-1 LP STM SMALL STP MOV OPN + HRSG-1 LP STM STP MOV OPN)
C3 = HRSG-2 ON + (HRSG-2 LP STM SMALL STP MOV OPN + HRSG-2 LP STM STP MOV OPN)
C4 = DT BET (LP STM T & LP ADM T) < 25 C + DP BET (LP STM PR & LP ADM PR) < 0.3
C5 = (C2 / C3) + C4
Auto OPN = C1 / C5
OPN PMT = LP STM Small STP MOV OPN / [C1 / C5]
FRC CLS = HRSG Trip

LP STM DRN MOVS [in Pipe rack] – C61LBD46AA12 / 13 [BD] 10, 11, 14 [ATM]
AUTO OPN: ST MW < 40 (15%) / LP STM DRN LVL H > 300 mm.
AUTO CLS: ST MW > 40 (15%) + LP STM DRN LVL L < 50 mm
OVR OPN: LP STM DRN LVL HH > 350 mm.
NO: Auto permit, Open permit, Close permits, MR, FRC CL, FRC OPN, OVR CLS.

LP STM COM HDR DRN – C60LBD46AA010

C1 = DRN POT LVL > 300 / ASV CLS
C2 = DRN POT LVL < 50 + (ST MW > 40 + ASV OPN)
Auto CLS = C1-F + C2-T
Auto OPN = C1-T
OVR OPN = DRN POT LVL > 400 / ST Trip
IP SYSTEM

IP FW ECO FIL BYP MOV – C63LAB94AA002

Auto CLS = IP FW ECO FIL MOV OPN / FW GRP OFF
Auto OPN = GT-18 R in CC mode + Main FW GRP ON
OPN PMT = IP FW PR > 57 bar + HRH ATTEM CV CLS FB + Main FW GRP ON
FRC CLS = IP DRM LVL HH > 460

IP FW ECO FIL MOV – C63LAB94AA001

Auto CLS = [HRSG not ON + IP FW CV CLS FB] for 15 mins / Main FW GRP STP
Auto OPN = GT18 R in CC mode + Main FW GRP ON
OPN PMT = DP across the MOV < 2 + IP FW PR > 57 + IP FW ECO FIL BYP MOV OPN + RH ATTEM CV CLS
FB + IP FW CV IL MOV CLSD + Main FWP GRP ON
FRC CLS = IP DRM LVL HH > 460

IP FW CV IL MOV – C63HAC94AA002
C1 = [(IP DRM PR < 2 + IP FW CV CLSD for 2 mins) / (IP DRM PR > 2 + IP FW CV CLSD for 30 mins)] + GT18
not R in CC mode.
Auto CLS = C1-T / FW GRP OFF / IP FW ECO FIL MOV CLSD
Auto OPN = GT18 R in CC mode + Main FW GRP ON + IP DRM LVL < HH 460
OPN PMT = IP FW ECO FIL MOV OPN + IP FW CV CLS
FRC CLS = IP DRM LVL HH > 460
FRC OPN = IP ECO IL PR > 71 bar

IP FW CV BYP MOV – C63HAC94AA001

OPN PMT = IP FW CV not available (not auto)
FRC CLS = IP DRM LVL H > 410 + [GT18 R in CC mode + IP FW CV available]

IP DRM LVL CV – C63HAC94AA081

AO = C63HAC94AA081 CVO + 8% if IP FW ECO IL PR > 71
IP drum min startup LVL = -760 + -50 = -810 mm at 0 bar
IP drum max startup LVL = -760 + 760 = 0 at 46 bar
IP drum LVL set point changes from startup LVL to 0 mm if IP MS flow > 1.6 kg/s.
C1= IP MS flow > 1.6 kg/s +IP drum no error + IP drum LVL < 100.
1 Element control = C1-F
3 Element control = C1-T

C63HAC94AA081LC1
PV = IP DRM LVL
RSP = 0 if IP STM FL > 1.6 KG/S for 2 mins
RSP = -760 if IP STM FL < 1.6 + HRSG not ON for 10 mins
Rate INC/DEC = 2.5
TV = CV Position

C63HAC94AA081LC2
PV = IP DRM LVL
RSP = IP DRM LVL SP
FRC CLS = DRM LVL > DRM LVL SP

C63HAC94AA081FC
PV = IP FW FL – HP BYP SPR WTR FL – RH ATTEM WTR FL
RSP = IP STM FL + C63HAC94AA081LC2 OP
TV = CV PSN

C63HAC94AA081PC
PV = IP FW HDR PR
RSP = 48 bar (safety limit)
TV = CV PSN

C63HAC94AA081
MR = IP DRM LVL DVN > 10%
PV = DRM LVL SP
CVI = LC1 OP / FC OP / 1 ELE / 3 ELE
RSP = DRM LV SP
FRC CLS = [IP FW ECO FIL MOV NOT OPN + IP FW CV IL MOV NOT OPN + IP FW CV CLS] + IP DRM LVL HI
>410 + [IP FW ECO FIL MOV CLSD + IP FW CV IL MOV CLS + HRSG ON]

IP DRM VENT MOV – C63HAH94AA001

Auto CLS = IP DRM PR > 1 / Conservation ON
Auto OPN = IP DRM PR < 0.5 + Conservation not ON

IP DRM CBD MOV – C63HAD95AA002

Auto CLS = HRSG not ON
Auto OPN = HRSG ON

IB DRM IBD ISO MOV – C63HAD95AA003

Auto CLS = IP DRM IBD MOV CLSD + IP DRM LVL not HI + HRSG ON for 30 mins
Auto OPN = IP DRM LVL HI > 410 + HRSG ON
CLS PMT = IP DRM IBD MOV CLSD
OPN PMT = IP DRM IBD MOV CLSD
FRC CLS = IP DRM IBD MOV CLSD + HRSG ON + IP DRM LVL < min1 -810

IP DRM IBD MOV – C63HAD95AA001

Auto CLS = IP DRM LVL not HI + HRSG ON for 30 mins / Diff bet (Inter plot OP IP DRM PR & IP DRM IBD
MOV PSN) > -6%
Auto OPN = IB DRM IBD ISO MOV Auto OPN + IB DRM IBD ISO MOV OPN + Diff bet (Inter plot OP IP DRM
PR & IP DRM IBD MOV PSN) < -6%
OPN PMT = IB DRM IBD ISO MOV OPN
FRC CLS = IB DRM IBD ISO MOV not OPN + HRSG ON + IP DRM LVL < min1 -810

IP SH STM DRN ISO MOV – C63LBA95AA004

C1 = {HSRG ON + DRN POT LVL < 150 + IP SH STM T > (SAT T + 40 C)} / (HRSG not ON + DRN POT LVL <
150)
C2 = IP STM PR > 2 + HRSG Air Purge Memory ON
Auto CLS = C1-T + C2-F + IP SH STM DRN MOV CLSD
Auto OPN = C2-T / HRSG ON / DRN LVL > 850 / [HRSG ON + IP SH STM T < (SAT T + 40 C)]
OPN PMT = IP SH STM DRN MOV CLSD
CLS PMT = IP SH STM DRN MOV CLSD

IP SH STM DRN MOV – C63LBA95AA003

Auto CLS = (C1-T + C2-F) / Diff bet (Inter plot OP IP DRM PR & IP DRM IBD MOV PSN) > -6%
Auto OPN = IP SH STM DRN ISO MOV Auto OPN + IP SH STM DRN ISO MOV OPN + Diff bet (Inter plot OP
IP DRM PR & IP DRM IBD MOV PSN) < -6%
CLS PMT = DRN LVL < 150
OPN PMT = IP SH STM DRN ISO MOV OPN
FRC CLS = IP SH STM DRN ISO MOV not OPN

IP STM STP MOV – C63LBA95AA002

Auto OPN = HRSG ON + IP STM PR > 1

IP STM PCV – C63LBA95AA081

PV = IP DRM PR
RSP = 15 bar
FRC CLS = DP bet (IP DRM & CRH) > 2 / ST not R / IV # 1 & 2 POS < 95% / MSV # 1 & 2 POS < 95% / HRSG
not ON
L (PID Lower Limit) = 25%
SF = 50

C63LBA95AA081FC
PV = IP STM FL
SF = 8.3

AO = Min (C63LBA95AA081 CVO & C63LBA95AA081FC CVO)

Rate INC & DEC = 5%

HP SYSTEM

HP FW ECO FIL BYP MOV – C63LAB90AA002

Auto close: HP FW ISO MOV open / FWP GRP OFF
Auto Open: GT R + FWP GRP ON
Open Permit: HP FWP DIS PR > 162 + HP DS ISO valve closed + HP FW CV 100% IL MOV closed + HP FW
30% CV IL MOV closed + FWP GRP on.
FRC close: HP drum level HH >486.
NO MR, Close permit, FRC open, CLS OVR & Open OVR.

HP FW ECO FIL MOV – C63LAB90AA001

Auto close: [HRSG not ON + HP FW 100% CV close FB + HP FW 30% CV close FB] for 15 mins / FWP GRP
off.
Auto Open: FWP GRP on + GT R in CC mode
Open permit: DP across the HP FW ISO MOV < 5 bar + HP FW out PR > 162 bar + HP FW ECO FIL BYP
MOV OPN + HP DS ISO valve closed + HP FW CV 100% IL MOV closed + HP FW 30% CV IL MOV closed +
FWP GRP on.
FRC close: HP drum level HH >486
No MR, close permit, FRC open, OVR close & OVR open.

HP FW 100% CV IL MOV – C63HAC90AA001

Auto close: [[[HP drum PR <2 bar + HP 100% CV close FB for 2 mins] / [HP drum PR >2 bar + 100% CV
close FB for 30 mins]] + [Combined CV command <23% + 100% CV close FB] + GT is not R on CC] / HP or
IP FW GRP off / HP FW ECO FIL MOV CLSD.
Auto open: GT R in CC + FWP GRP on + HP drum level <486 mm + Combined CV command >28%.
Open permit: 100% CV close FB + HP FW ECO FIL MOV open
FRC close: HP drum level HH >486
FRC open: HP ECO IL PR > 189 bar
NO MR, close permit, OVR close, OVR open
Note: 100% & 30% ISO MOV will open and 30% CV will open 8% if HP ECO IL PR >189 bar.

HP FW 30% CV IL MOV – C63HAC90AA002

Auto CLS = {[(HP drum PR <2 bar + HP FW 30% CV close FB for 2 mins) / (HP drum PR >2 bar + HP FW
30% CV close FB for 30 mins)] + (Combined CV command >32% + 30% CV close FB) + GT is not R on CC} /
HP or IP FW GRP off / HP FW ECO FIL MOV CLSD.
Auto open: GT R in CC + FWP GRP on + HP drum level <486 mm + Combined CV command <27%.
Open permit: 30% CV close FB + HP FW ECO FIL MOV open
FRC close: HP drum level HH >486
FRC open: HP ECO IL PR > 189 bar

HP DRM LVL 100% CV – C63HAC90AA081

C63HAC90AA081
MR = HP DRM LVL DVN > 10%
PV = 0
CVI = IP OP of HP DRM LVL CV Combined PID OP [SEL of (LC1 CVO / FC1 CVO / 1 ELE SELD / 3 ELE SELD)]
RSP = 0 mm if HP BYP VLV US STM FL > 10.5
RSP = -786 mm if (HP BYP VLV US STM FL < 10.5 / HRSG not ON for 10 mins)
Rate INC / DEC = 2.62
FRC CLS = HP DRM LVL HI > 436 / [HRSG ON + (HP FW ECO FIL MOV CLSD / HP FW 100% MOV CLSD)] /
[HP FW 100% CV CLSD + (HP FW ECO FIL MOV not OPN / HP FW 100% MOV not OPN)]
CVO = CVO + 8% if HP ECO IL FW PR > 189
AO = MIN [CVO & PC CVO]

C63HAC90AA081PC
PV = FWP HP DIS HDR PR
RSP = 125 bar
TV = MAST CVO

C63HAC90AA081FC
PV = HP FW FL
RSP = SUM (LC2 CVO + HP STM FL US BYP VLV)
C63HAC90AA081LC2
PV = HP DRM LVL
RSP = HP DRM LVL SP
TV = HP FW FL – HP STM FL US BYP
FRC = HP DRM LVL > 0 mm = PO for 1 sec

C63HAC90AA081LC1
PV = HP DRM LVL
RSP = HP DRM LVL SP
TV = HP DRM LVL CV Combined PID OP [SEL of (LC1 CVO / FC1 CVO / 1 ELE SELD / 3 ELE SELD)] / HP DRM
LVL CTRL when both CVs are manual / FC1 CVO / 3 ELE SELD

HP STM FL CALCU = HP STM FL + HP STM FL US BYP

HP drum min startup LVL = -786 + -50 = -836 mm at 0 bar
HP drum max startup LVL = -786 + 786 = 0 at 153 bar
1 ELE SELD = HP BYP upstream flow < 10.5 kg/s / HP drum error
3 ELE SELD = HP BYP upstream flow > 10.5 kg/s for 2 mins +HP drum no error.

HP DRM LVL 30% CV – C63HAC90AA082

MR = HP DRM LVL DVN > 10%
PV = 0
CVI = IP OP of HP DRM LVL CV Combined PID OP [SEL of (LC1 CVO / FC1 CVO / 1 ELE SELD / 3 ELE SELD)]
RSP = HP DRM LVL SP
CVO = CVO + 8% if HP ECO IL FW PR > 189
AO = MIN [CVO & PC CVO]

HP DRM CBD MOV – C63HAD91AA002

Auto CLS = HRSG not ON for 10 mins
Auto OPN = HRSG ON

HP DRM IBD ISO MOV – C63HAD91AA003

Auto CLS = HRSG ON for 30 mins + HP DRM LVL not HI <436 + HP DRM IBD MOV CLSD
Auto OPN = HRSG ON for 30 mins + HP DRM LVL HI > 436
CLS PMT = HP DRM IBD MOV CLSD
OPN PMT = HP DRM IBD MOV CLSD
OVR CLS = HP DRM IBD MOV CLSD + HRSG ON + HP DRM LVL < -836

HP DRM IBD MOV – C63HAD91AA001

Auto CLS = (HRSG ON for 30 mins + HP DRM LVL not HI <436) / Diff bet [IBD MOV PSN & IP OP of HP
DRM PR] > 15
Auto OPN = [HRSG ON for 30 mins + HP DRM LVL HI > 436] + HP DRM IBD ISO MOV OPN + Diff bet [IBD
MOV PSN & IP OP of HP DRM PR] < 15
OPN PMT = HP DRM IBD ISO MOV OPN
FRC CLS = HP DRM IBD ISO MOV not OPN / [HRSG ON + HP DRM LVL < -836]

HP MS ATTEM ISO SOV – C62LAE90AA051

AUTO CLS: CALC HP STM FL < 8.1 kg/s / HP FW ECO FIL MOV not OPN / HP ATTEM CV CLS for 2 mins /
AUTO OPN: HP STM T > 566 C
OPN PERMIT: HRSG ON + HP ATTEM CV CMD > 3 + Cal HP STM flow > 8.1 kg/s.
FRC CLS: HP STM SH3 IL STM T LL [< HP DRM SAT T + 25 C]

HP MS ATEMP – C63LAE90AA081
PV = HP STM T
RSP: Min [SP from ST & 567 C]
FRC CLS = HP STM FL < 8.1 / HP STM SH-3 IL T L (HP DRM SAT T + 25 C)
AO = IP OP of min (CVO & TC CVO)

C63LAE90AA081TC
PV = HP STM SH-3 IL T
RSP = HP STM SAT T + 50 C
TV = ATTEM CVO

HP MS ATEMP BYP MOV – C63LAE90AA002

Auto CLS = HRSG in Auto
OPN PMT: HP MS ATEM not in Auto + Cal HP STM flow > 8.1 kg/s.
FRC CLS: HRSG ON + HP MS in auto + Cal HP STM flow < min 1 + HP STM SH3 IL T L [SH3 IL T < (HP drum
sat T + 25 C)]
NO: Auto CLS, Auto open, MR, Auto permit, CLS permit, FRC open, OVR CLS, OVR open.

HP SH-3 IL DRAIN ISO MOV – C63HAH90AA002

Auto CLS = [(1 of 2 STM DRN T > SAT T + 60 C + SH-3 IL T > SAT T + 60 C) / (HRSG not ON + SH3 IL T < HP
STM SAT T + 60 C + HRSG ON)] + DRN MOV CLSD for 2 mins
Auto OPN = HRSG ON (PO) / [(SH3 IL DRN T < SAT T + 25 C / SH3 IL DRN T BQ) + (HRSG ON / SH3 IL T >
SAT T + 60 C)] / [HRSG ON + SH3 IL T < SAT T + 60 C] / HRSG NOT ON for 2 mins until 1 hour
CLS PMT = DRN MOV CLSD
OPN PMT = DRN MOV CLSD

HP SH-3 IL DRAIN MOV – C63HAH90AA001

Auto CLS = [(SH-3 IL STM DRN T > SAT T + 60 C + SH-3 IL T > SAT T + 60 C) / (HRSG not ON + SH3 IL T < HP
STM SAT T + 60 C + HRSG ON)] / Diff bet (DRN MOV PSN & IP OP of HP STM PR) > 6
Auto OPN = {HRSG ON (PO) / [(SH3 IL DRN T < SAT T + 25 C / SH3 IL DRN T BQ) + (HRSG ON / SH3 IL T >
SAT T + 60 C)] / [HRSG ON + SH3 IL T < SAT T + 60 C] / HRSG NOT ON for 2 mins until 1 hour} + HP SH3 IL
STM DRN ISO MOV OPN + Diff bet (DRN MOV PSN & IP OP of HP STM PR) < -6
CLS PMT = SH-3 IL STM DRN T > SAT T + 60 C
OPN PMT = HP SH3 IL STM DRN ISO MOV OPN
FRC CLS = HP SH3 IL STM DRN ISO MOV not OPN
PSN CMD = 100% at HP STM PR = 10 bar
PSN CMD = 0% at HP STM PR = 140 bar

HP SH3 OL DRN ISO MOV – C63LBA90AA006

Auto CLS = [(1 of 2 DRN T > HP STM SAT T + 60 C+ SH3 OL HP STM T > SAT T + 60 C) / (HRSG not ON + SH3
IL T < HP STM SAT T + 60 C + HRSG ON)] + DRN MOV CLSD + (HP STM PR < 2 / Air purge memory not ON)
Auto OPN = (HP STM PR > 2 + Air purge memory ON) / HRSG ON PO / [(DRN T < SAT T + 25 C / DRN T BQ)
+ (HRSG ON / SH3 OL T > SAT T + 60 C)] / [HRSG ON + SH3 OL T < SAT T + 60 C] / HRSG NOT ON for 2 mins
until 1 hour
CLS PMT = DRN MOV CLSD
OPN PMT = DRN MOV CLSD

HP SH3 OL DRN MOV – C63LBA90AA001

Auto CLS = [(1 of 2 DRN T > HP STM SAT T + 60 C+ SH3 OL HP STM T > SAT T + 60 C) / (HRSG not ON + SH3
IL T < HP STM SAT T + 60 C + HRSG ON)] / Diff bet (DRN MOV PSN & IP OP of HP STM PR) > 6
Auto OPN = {(HP STM PR > 2 + Air purge memory ON) / HRSG ON PO / [(DRN T < SAT T + 25 C / DRN T
BQ) + (HRSG ON / SH3 OL T > SAT T + 60 C)] / [HRSG ON + SH3 OL T < SAT T + 60 C] / HRSG NOT ON for 2
mins until 1 hour} + HP SH3 OL DRN ISO MOV OPN + Diff bet (DRN MOV PSN & IP OP of HP STM PR) < -6
CLS PMT = 1 of 2 DRN T > HP STM SAT T + 60 C
OPN PMT = HP SH3 OL DRN ISO MOV OPN
FRC CLS = HP SH3 OL DRN ISO MOV not OPN

HP STARTUP VENT MOV – C63LBA90AA002

C1 = {HRSG ON + [(HRH BYP NA + HRH BYP PCV POS < 5) + (HP STM STP MOV not OPN / ST Trip / ST MSV
CLSD)]} + HP DRM PR < 10
Auto CLS = HP Startup vent CV CLSD + (Conservation ON / C1-F)
Auto OPN = C1-T

CLS PMT = HP Startup vent CV CLSD + C1-F

OPN PMT = HP Startup vent CV CLSD

HP STARTUP VENT CV – C63LBA90AA081

PV = HP STM PR
CVI = IP OP of HP STM PR [CVI = 0 at 120 bar; CVI = 100 at 15 bar]
C1 = {HRSG ON + [(HRH BYP NA + HRH BYP PCV POS < 5) + (HP STM STP MOV not OPN / ST Trip / ST MSV
CLSD)]} + HP DRM PR < 10
FRC CLS = C1-F / HRSG Conservation ON / HP Startup vent MOV CLSD

HP STM ERV – C63LBA90AA191

Auto CLS = HP STM PR < 141
Auto OPN = HP STM PR > 141
CLS PMT = HP STM PR < 141

HP MS DRN ISO MOV – C63LBA90AA007

Auto CLS = HRSG ON + HP STM T > SAT T + 60 C + DRN MOV CLSD for 2 mins.
Auto OPN = HRSG ON + HP STM T < SAT T + 60 C
OPN PMT = DRN MOV CLSD
CLS PMT = DRN MOV CLSD

HP MS DRN MOV – C63LBA90AA005

Auto CLS = (HRSG ON + HP STM T > SAT T + 60 C) / Diff bet (DRN MOV PSN & IP OP of HP STM PR) > 6
Auto OPN = (HRSG ON + HP STM T < SAT T + 60 C) + DRN ISO MOV OPN + Diff bet (DRN MOV PSN & IP
OP of HP STM PR) <-6
OPN PMT = DRN ISO MOV OPN
FRC CLS = DRN ISO MOV not OPN

HP STM SMALL STP MOV – C63LBA90AA004

Auto CLS = HRSG not ON / HP STM STP MOV OPN
C1 = (HRSG 61 HP STM SML STP MOV CLSD + HRSG 61 HP STM STP MOV CLSD + HRSG 62 HP STM SML
STP MOV CLSD + HRSG 62 HP STM STP MOV CLSD) + HP STM PR > 1
C2 = {[HRSG-1 ON + (HRSG-1 HP STM STP MOV OPN / HRSG-1 HP STM SML STP MOV OPN)] / [HRSG-2
ON + (HRSG-2 HP STM STP MOV OPN / HRSG-2 HP STM SML STP MOV OPN)]} + [DB (HP STM T & ST T) <
25 + DB (HP STM PR & ST HP STM HDR PR) < 8]
Auto OPN = [HRSG ON + (C1-T / C2-T)] PO
OPN PMT = (C1-T / C2-T)
FRC CLS = HRSG Trip

HP STM STP MOV – C63LBA90AA003

Auto CLS = HRSG not ON
C1 = (HRSG 61 HP STM SML STP MOV CLSD + HRSG 61 HP STM STP MOV CLSD + HRSG 62 HP STM SML
STP MOV CLSD + HRSG 62 HP STM STP MOV CLSD)
C2 = {[HRSG-1 ON + (HRSG-1 HP STM STP MOV OPN / HRSG-1 HP STM SML STP MOV OPN)] / [HRSG-2
ON + (HRSG-2 HP STM STP MOV OPN / HRSG-2 HP STM SML STP MOV OPN)]} + [DB (HP STM T & ST T) <
25 + DB (HP STM PR & ST HP STM HDR PR) < 8]
Auto OPN = C1-T / C2-T
OPN PMT = (C1-T / C2-T) + HP STM SML STP MOV OPN
FRC CLS = HRSG Trip

HP BYP MOV – C63LBA25AA002

OVERRIDE OPEN: HP BYP STN available
 HP BYP STM Available = HP STM BYP T N > 437 + HP BYP HPU Auto mode + HP BYP HPU FLT +
[HPU Pump-1 R / Pump-2 R]].
NO Auto close; Auto open; MR; Auto permit; Close permit; Open permit; FRC close; FRC open; Close
OVR.

HP BYP PCV – C63LBA25AA081

MR = HP MS T DVN > 10% + HP MS PR DVN > 10%
PV = HP STM PR
PCV Rate DEC = 0.033 = HRSG N R
PCV Rate INC = 0.0083 to 0.1 based on drum PR.
PRESET = HRSG N ON F 5 M; PRESET VALUE = HP STM PR
QCK OPN = HP STM PR LAG 5 S
C1 = (HRSG R + HP LEAD) / ST N in IPC
C2 = (HRSG R + HP LAG) + HP STM STP MOV CLSD
C3 = ST IPC + HRSG R + HP STM STP MOV OPN
C4 = (ST ASD / ST MIN LD) + ST N IPC
C5 = QCK OPN
C6 = (HRSG N ON / HRSG TRP / HRSG TRP Due to GT TRP) + DD CLSD + HP STM STP MOV CLSD
RSP1 = 65 if C1-T
RSP1 = HP MS PR if C1-F
RSP2 = HP COM HDR PR + 2 bar if C2-T
RSP2 = RSP1 if C2-F
RSP3 = HP MS PR + 3 Bar if C3-T
RSP3 = RSP2 if C3-F
RSP4 = 65 Bar if C4-T
RSP4 = RSP3 if C4-F
RSP5 = HP STM PR LAG 5 S if C5-T
RSP5 = RSP4 if C5-F
RSP6 = 120 Bar if C6-T
RSP6 = RSP5 if C6-F
RSP7 = MIN (130 Bar & RSP6)
RSP8 = CVO if QCK OPN-F
RSP8 = QCK OPN PCV STR if QCK OPN-T
TK = QCK OPN / QCK CLS
QCK OPN = {HRSG ON + [[ST Trip / (ST GCB CLS + 52L OPN) / (ST GCB OPN + 52L CLS)]} PO F 3 S
QCK CLS = (HP BYP OL T > 437 / HP STM BYP OL T BQ) / HP BYP STN EBP ACTD
QCK OPN PCV STR % = CAL (HP STM PR & HP STM T & HP STM FL) 5 S LAG
C7 = HRSG R + HP BYP PCV CVO < 10 + HP STM STP MOV CLSD
AO = 10 if C7-T
AO = RSP8 if C7-F

HP BYP TCV ISO MOV – C63LAB25AA002

Auto close = HP BYP PCV CMD <1% for 30 mins.
Auto Open = HP BYP PCV CMD >7%.
Open permit = HRSG ON
OVR CLS = [HP STM BYP OL T < HP STM BYP OL SAT T + 25 C] / BYP PCV QCK CLS CMD
OVR OPN = HP BYP STN Available.
NO = MR; Close permit; FRC close; FRC open.

HP BYP TCV ISO HOV – C63LAB25AA051

Auto CLS = HP BYP PCV CMD <1% for 30 mins.
Auto OPN = HP BYP PCV CMD >7%.
OPN PMT = HRSG ON + HP BYP PCV PSN > 5%.
OVR CLS = [HP STM BYP OL T < HP STM BYP OL SAT T + 25 C] + BYP PCV QCK CLS CMD.
NO = Auto permit; close permit; MR; FRC close; FRC open; OVR open.

HP STM BYP TCV – C63LAB25AA081

MR = HP STM PR DVN > 10% / HP STM T DVN > 10%
PV = HP STM BYP OL T
RSP = 388 C
C1 = (HP STM BYP OL T > 388 + HP STM BYP PCV PSN > 20) F 30 S
TCV STR = IP OP (TCV FL & PSN) 1 S LAG
FV = TCV STR if C1-T
FV = 0 if C1-F
FRC CLS = (HP STM BYP TCV IL HOV N OPN + HP STM BYP TCV CLSD) + HP STM BYP TCV IL HOV CLSD +
[HP STM BYP OL T < HP STM BYP OL SAT T + 25 C] + (HP STM BYP OL T > 388 + HP STM BYP PCV PSN > 20)
F 30 S + HP STM BYP PCV QCK CLS CMD
C63LAB25AA081B
PV = HP STM BYP OL T
RSP = HP STM BYP OL SAT T + 50 C
TV = CVO

C1 = HP STM BYP OL T > 390 + [ST Trip / (ST GCB CLS + 52L OPN) / (ST GCB OPN + 52L CLS)]
AO-1 = IP OP (TCV FL & PSN) 1 S LAG if C1-T
AO-1 = MIN (CVO & CVO-B) if C1-F
AO-1 Rate INC & DEC = 10
C2 = HP STM BYP TCV QCK OPN CMD + HP STM BYP PCV NC + HP STM BYP PCV POS > 10
AO-2 = 100 if C2-T
AO-2 = AO-1 if C2-F
AO = IP OP of AO-2

HP STM DRN MOVS [Pipe rack] – C61LBA46AA007 / 8 [COM BD TANK] & 005 / 15 / 10 [ATM TANK]
C1 = [HP STM PR > 1 bar + HP STM PR < 15 bar] / [HP STM PR > 15 bar + ΔT bet STM & SAT < 30 C]
C2 = [ΔT bet STM T & SAT T > 30 C + HP STM PR > 15 bar] OND 20 S
AO = C1-T
AC = C1-F + C2-T
OVR OPN: DRN MOV N in Auto + HP STM PR >1 bar + ΔT bet STM & SAT <28 C
NO: Auto permit, Open permit, Close permits, MR, FRC CL, FRC OPN, OVR CLS.

HP STM DRN MOVS [In common HDR before MSV – 1 & 2] - C60LBA46AA005/6
AUTO OPN: MSV CLSD / [HP STM PR > 1 bar + HP STM PR < 15 bar] / [HP STM PR > 15 bar + ΔT bet STM
& sat <35 C]
AUTO CLS: [ST MSV open + ST MW > 40 + ST FWD flow FB] + [HP STM PR > 15 bar + ΔT bet STM & sat
>35 C]
OVR OPN: ST Trip FB + [Drain MOV manual + HP STM HDR PR > 1 bar + ΔT bet STM & sat <33 C]
NO: Auto permit, Open permit, Close permits, MR, FRC CL, FRC OPN, OVR CLS.

CRH SYSTEM
CRH STM STP MOV – C63LBC90AA001
Auto CLS = HRSG not ON
Auto OPN = (HRSG-1 CRH STM STP MOV CLSD + HRSG-2 CRH STM STP MOV CLSD + HRSG-3 ON) /
{[(HRSG-1 CRH STM STP MOV OPN + HRSG-1 ON) / (HRSG-2 CRH STM STP MOV OPN + HRSG-2 ON)] +
HRSG-3 HRH STM STP MOV OPN}
OPN PMT = (HRSG-1 CRH STM STP MOV CLSD + HRSG-2 CRH STM STP MOV CLSD + HRSG-3 ON) /
{[(HRSG-1 CRH STM STP MOV OPN + HRSG-1 ON) / (HRSG-2 CRH STM STP MOV OPN + HRSG-2 ON)] +
HRSG-3 HRH STM STP MOV OPN}
FRC CLS = HRSG Trip / ST Trip PO

RH STEAM
RH-1 IL STM DRN ISO MOV – C63LBC90AA003
Auto CLS = DRN MOV CLSD for 2 mins + [(HRSG ON + DRN LVL < 150 + CRH STM T > SAT T + 40 C) / (HRSG
not ON + DRN LVL < 150)]
Auto OPN = HRSG ON PO / DRN LVL > 850 / (HRSG ON + CRH STM T < SAT T + 40 C)
CLS PMT = DRN MOV CLSD
OPN PMT = DRN MOV CLSD

RH-1 IL DRN MOV – C63LBC90AA002

Auto CLS = [(HRSG ON + DRN LVL < 150 + CRH STM T > SAT T + 40 C) / (HRSG not ON + DRN LVL < 150)] /
Diff bet (DRN MOV PSN & IP OP of CRH STM PR) >6
Auto OPN = [HRSG ON PO / DRN LVL > 850 / (HRSG ON + CRH STM T < SAT T + 40 C)] + DRN ISO MOV
OPN + Diff bet (DRN MOV PSN & IP OP of CRH STM PR) < -6
CLS PMT = DRN LVL < 150
OPN PMT = DRN ISO MOV OPN
FRC CLS = DRN ISO MOV not OPN

RH ATTEM ISO POV – C63LAF90AA051

Auto CLS = HP STM FL < 8.2 / IP FW ECO FIL MOV not OPN / RH ATTEM CV CLS for 2 mins PO
Auto OPN = HRH MS T > T SP from ST
OPN PMT = HRSG ON + RH ATTEM CV PSN > 3 + HP STM FL > 8.2
FRC CLS = RH-2 IL T < CRH SAT T + 25 C

RH ATTEM CV – C63LAF90AA081
PV = HRH STM T
RSP = Min (MSP & SP from ST)
EV = Min (CVO & CVO TC)
FRC CLS = HP STM FL < 8.2 / RH-2 IL T < CRH SAT T + 25 C
AO = IP OP of Min (MSP & SP from ST)

C63LAF90AA081TC
PV = RH-2 IL T
RSP = HRH STM SAT T + 50 C

RH ATTEM CV BYP MOV – C63LAF90AA002

Auto CLS = HRSG in Auto
OPN PMT = RH ATTEM CV not in Auto + HP STM FL > 8.2
FRC CLS = HP STM FL < 8.2 / RH-2 IL T < CPH STM SAT T + 25 C / (HRSG ON + RH ATTEM CV Auto)

RH2 IL STM DRN ISO MOV – C63HAJ90AA002

Auto CLS = {[1 or 2 DRN T > HRH STM SAT T + 60 C + RH2 IL T > HRH STM SAT T + 60 C] / [HRSG not ON +
RH2 IL T < HRH STM SAT T + 60 C + (HRSG not ON 2 mins to 1 hour-F)]} + DRN MOV CLSD for 2 mins
Auto OPN = HRSG ON PO / [(DRN T > HRH STM SAT T + 25 C / DRN T BQ) + (HRSG ON / RH2 IL STM T >
HRH STM SAT T + 60 C)] / [HRSG ON + RH2 IL STM T < HRH STM SAT T + 60 C / HRSG not ON 2 mins to 1
hour]
CLS PMT = DRN MOV CLSD
OPN PMT = DRN MOV CLSD

RH2 IL STM DRN MOV – C63HAJ90AA001

Auto CLS = {[1 or 2 DRN T > HRH STM SAT T + 60 C + RH2 IL T > HRH STM SAT T + 60 C] / [HRSG not ON +
RH2 IL T < HRH STM SAT T + 60 C + (HRSG not ON 2 mins to 1 hour-F)]} / Diff bet (DRN MOV PSN & IP OP
of HRH STM PR) >6
Auto OPN = {HRSG ON PO / [(DRN T > HRH STM SAT T + 25 C / DRN T BQ) + (HRSG ON / RH2 IL STM T >
HRH STM SAT T + 60 C)] / [HRSG ON + RH2 IL STM T < HRH STM SAT T + 60 C / HRSG not ON 2 mins to 1
hour]} + RH2 IL DRN ISO MOV OPN + Diff bet (DRN MOV PSN & IP OP of HRH STM PR) <-6
CLS PMT = 1 or 2 DRN T > HRH STM SAT T + 60 C
OPN PMT = RH2 IL DRN ISO MOV OPN
FRC CLS = RH2 IL DRN ISO MOV not OPN

HRH STM DRN ISO MOV – C63LBB90AA003

Auto CLS = [(1 or 2 DRN T > HRH STM SAT T + 60 C + HRH STM T > HRH STM SAT T + 60 C) / (HRSG not ON
+ HRH STM T < HRH STM SAT T + 60 C + HRSG not ON 2 mins to 1 hour-F)] + DRN MOV VLSD for 2 mins +
(HRH STM PR < 2 / Air purge memory not ON)
Auto OPN = (HRH STM PR > 2 + Air purge memory ON) / HRSG ON PO / [(DRN T < HRH STM SAT T + 25 C
/ DRN T BQ) + (HRSG ON / HRH STM T > SAT T + 60 C)] / (HRSG ON + HRH STM T > SAT T + 60 C) / HRSG
not ON 2 mins to 1 hour
CLS PMT = DRN MOV CLSD
OPN PMT = DRN MOV CLSD

HRH STM DRN MOV – C63LBB90AA002

Auto CLS = [(1 or 2 DRN T > HRH STM SAT T + 60 C + HRH STM T > HRH STM SAT T + 60 C) / (HRSG not ON
+ HRH STM T < HRH STM SAT T + 60 C + HRSG not ON 2 mins to 1 hour-F)] / Diff bet (DRN MOV PSN & IP
OP of HRH STM PR) >6
Auto OPN = {(HRH STM PR > 2 + Air purge memory ON) / HRSG ON PO / [(DRN T < HRH STM SAT T + 25 C
/ DRN T BQ) + (HRSG ON / HRH STM T > SAT T + 60 C)] / (HRSG ON + HRH STM T > SAT T + 60 C) / HRSG
not ON 2 mins to 1 hour} + DRN ISO MOV OPN + Diff bet (DRN MOV PSN & IP OP of HRH STM PR) <-6
CLS PMT = 1 or 2 DRN T > HRH STM SAT T + 60 C
OPN PMT = DRN ISO MOV OPN
FRC CLS = DRN ISO MOV not OPN

HRH STARTUP VENT ISO MOV – C63LBB90AA001

C1 = {[(HRH BYP PCV PSN < 5 + HRH BYP NA) + (HRH STP MOV not OPN / ST Trip / ST ASV CLSD)] + HRSG
ON} / HRH STM PR > 38.5
Auto CLS = HRH startup vent CV CLSD + (Conservation ON / C1-F)
Auto OPN = C1-T
CLS PMT = C1-F
FRC CLS = HRSG NOT ON

HRH STARTUP VENT CV – C63LBB90AA081

PV = HRH STM PR
CVI = MAX (CVO PC & CVO GC)
RSP = 8.3 bar
FRC CLS = HRSG not ON / HRH startup vent CV CLSD
AO = IP OP of HRH PR [CV PSN = 100% at HRH PR 2 bar; CV PSN = 0% at HRH PR 30 bar]

C63LBB90AA081PC
PV = HRH STM PR
TV = AO of CVO

C63LBB90AA081GC
MR = HRH startup vent not Auto
PV = HRH PR
RSP = HRH PR
FV = AO IP of CVO
FRC CLS = HRH Startup vent not Auto
FRC: Vent Valve Not in Auto / HRSG NOT ON / VENT ISO MOV CLOSE FB

HRH SMALL STOP MOV – C63LBB29AA008

Auto CLS = HRSG not ON / HRH STOP MOV OPN
C1 = (HRSG 61 HRH SML STP MOV CLSD + HRSG 61 HRH STP MOV CLSD + HRSG 62 HRH SML STP MOV
CLSD + HRSG 62 HRH STP MOV CLSD) + Derivative OP of HRH PR > 0.5
C2 = {[HRSG-1 ON + (HRSG-1 HRH STP MOV OPN / HRSG-1 HRH SML STP MOV OPN)] / [HRSG-2 ON +
(HRSG-2 HRH STP MOV OPN / HRSG-2 HRH SML STP MOV OPN)]} + [DB (HRH T & ST T) < 25 + DB (HP
STM PR & ST HP STM HDR PR) < 3]
Auto OPN = [HRSG ON + (C1-T / C2-T)] PO
OPN PMT = (C1-T / C2-T)
FRC CLS = HRSG Trip

HRH STOP MOV – C63LBB29AA001

Auto CLS = HRSG not ON
C1 = (HRSG 61 HRH SML STP MOV CLSD + HRSG 61 HRH STP MOV CLSD + HRSG 62 HRH SML STP MOV
CLSD + HRSG 62 HRH STP MOV CLSD)
C2 = {[HRSG-1 ON + (HRSG-1 HRH STP MOV OPN / HRSG-1 HRH SML STP MOV OPN)] / [HRSG-2 ON +
(HRSG-2 HRH STP MOV OPN / HRSG-2 HRH SML STP MOV OPN)]} + [DB (HRH T & ST T) < 25 + DB (HP
STM PR & ST HP STM HDR PR) < 3]
Auto OPN = C1-T / C2-T
OPN PMT = (C1-T / C2-T) + HRH SML STP MOV OPN
FRC CLS = HRSG Trip

CRH STM DRN MOVS [in common HDR] - C60LBC46AA005/6/7/8

AUTO OPN: STM DRN LVL H > 400 mm / ST MW < 40 / STM T < 350 C
AUTO CLS: STM DRN LVL L < 50 mm + ST MW > 40 + STM T > 350 C
OVR OPN: STM DRN LVL HH > 500 mm.
NO: Auto permit, Open permit, Close permits, MR, FRC CL, FRC OPN, OVR CLS.

HRH STM DRN MOVS [in Pipe rack] – C6*LBB46AA11, 10, 8, 4, 7

AUTO OPN: ST MW < 40 (15%) / [HRH STM PR > 8 bar + ΔT bet STM & sat <35 C] / [HRH STM PR > 1 bar +
HRH STM PR < 8 bar]
AUTO CLS: ST MW > 40 + [HRH STM PR > 8 bar + ΔT bet STM & sat >35 C]
OVR OPN: Drain MOV manual + ΔT bet STM & sat <30 C + HRH STM PR > 1 bar.
NO: Auto permit, Open permit, Close permits, MR, FRC CL, FRC OPN, OVR CLS.

HRH STM DRN MOVS [in common hdr before RSV] - C60LBB46AA004/5
AUTO OPN: Any one HRSG ON + STM PR > 6 bar.
AUTO CLS: 52 G Relay / [HRH STM PR > 8 bar + ΔT bet STM & sat >35 C]
OVR OPN: ST Trip + [Drain MOV manual + STM PR > 1 bar + ΔT bet STM & sat <30 C]
NO: Auto permit, Open permit, Close permits, MR, FRC CL, FRC OPN, OVR CLS.

HRH BYPASS PCV – C6*LBB29AA081

MR: Steam system Group Manual / HRH STM BYP OUT PR DVN > 10% / HRH MS PR DVN > 10% / HRH MS
T DVN > 10%

RSP
 PCV Rate INC = 0.025 = 0.075 if ST ASD / Min load
 PCV Rate DEC = 0.025; = 0.075 if ST ASD / Min load
 QCK OPEN = PCV Rate INC / DEC will Pass
 RSP is min (37 bar / Input value from Logic)
 Condition-1 = HRH MS ISO MOV CLSD + [DD CLS FB / GT GCB Open for 30 mins / GT Flame not
ON] + [GT Flame not ON / GT Trip / (HRSG not ON / HRH MS PR < 25 bar) / HRSG Trip]
 RSP is 37 bar = C1-T [Condition-1 True]
 Condition-2 = QCK OPN REQ
 QCK Open REQ = HRSG ON + [[ST Trip / (ST GCB CLS + 52L OPN) / (ST GCB OPN + 52L CLS)] =
Pulse out for 10 sec]
 QCK Open Set point = HRH MS PR 1 Sec Lag = QCK OPN duration based on ST Load [3 sec if STG
load is 232 MW]
 RSP is QCK OPN set point = C1-F + C2-T
 Condition-3 = ST IPC Out + (ST ASD / ST MIN Load)
 RSP is Max (HRH FLR PR / ST NAT PR) = C1-F + C2-F + C3-T
 ST NAT PR = Calculation (ST HP PR, ST Speed, ST Load, Rated HP IL PR & Rated HRH IL PR) Min /
Max Range = 8.3 / 34 bar
 Condition-4 = (HRSG HP Lag mode + HRH ISO MOV OPN) + HRH BYP PCV POS > 5%
 RSP is ST NAT PR = C1-F + C2-F + C3-F + C4-T
 Condition-5 = HRH MS MOV OPN + (HRSG ON / HRH MS PR > 25 bar) + IPC IN
 RSP is HRH PR + 2 bar = C1-F + C2-F + C3-F + C4-F + C5-T
 Condition-6= HRH MS MOV CLS FB + [HRH Lag + (HRSG ON / HRH MS PR > 25 bar)]
 RSP is HRH PR + 1 bar = C1-F + C2-F + C3-F + C4-F + C5-F + C6-T
 Condition-7 = (HRSG ON / HRH PR > 25 bar) + HRH Lead
 RSP is Max (HRH FLR PR / ST NAT PR) = C1-F + C2-F + C3-F + C4-F + C5-F + C6-F + C7-T
 RSP is HRH PR = C1-F + C2-F + C3-F + C4-F + C5-F + C6-F + C7-F

INI OPN 10% = (HRSG ON / HRH MS PR > 25 bar) + HRH MS PR > 1 bar+ COND PR <= 500 mbar. Pulse out
and SET for 5 mins.

QCK CLS = HRH BYP OL T HH >215 C/ COND PR >= 400 mbar / COND T HH > 85 C / No CEP R.

TRACK = QCK OPN / QCK CLS / INI OPN

SF (Scale Factor)
Condition-1 = [(HRSG ON / HRH PR > 25) + HRH Lead] / [(ST ASD/MIN Load) + IPC Out] / [(HP Lag + HRH
ISO MOV OPN) + HP BYP PCV POS > 5%]
1.44 = C1-T
2 = C1-F
CONGURANCY = HRH BYP PCV OPN FB + CLS FB

HRH BYP Available = 1 of 2 HYD OIL pump Run FB + No PCV QCK CLS + HPU in Auto + HPU No fault

HRH BYP PCV ISO MOV – C6*LBB29AA005

AUTO CLS = HRH STM PR < 25 + HRH BYP PCV POS < 5% + [HRH MS ISO MOV CLSD + [DD CLS FB / GT GCB
Open for 30 mins / GT Flame not ON] + [GT Flame not ON / GT Trip / (HRSG not ON / HRH MS PR < 25
bar) / HRSG Trip]]

AUTO OPN = HRSG ON / HRH STM PR > 25

CLS PMT = HRSG Not ON + HRH STM PR < 25

HRH BYP TCV – C6*LCE29AA081

MR = GRP Manual + HRH MS T DVN > 10% + HRH MS PR DVN > 10% + HRH HDR PR DVN > 10%
FR CLS = HRH BYP PCV POS < 5%
TCV is 100% = HRH BYP PCV QCK OPN
Condition-1 = HRH BYP OL T > 140 C + HRH BYP PCV > 5%
TCV is max of (40% / CVO) = C1-T
TCV is CVO = C1-F

HRH BYP TCV – C6*LCE29AA081 – ENTHALPY

RSP
Condition-1 = Cal [IP of HRH BYP PCV POS & IP of (HRH MS PR + 1) & HRH MS T]
Condition-2 = Cal [C1 & Enthalpy of CEP Spray water & Enthalpy of HRH MS & Enthalpy of HRH BYP out
STM
Enthalpy of CEP Spray water = Enthalpy of [CEP PR & CEP T]
Enthalpy of HRH MS = Enthalpy of [HRH MS PR & HRH MS T]
Enthalpy of HRH BYP out Spray = Enthalpy of [HRH BYP PCV OUT PR & [HRH BYP PCV OUT STM SAT T +
15 C]]
Enthalpy of HRH BYP out STM = Enthalpy of [HRH BYP PCV OUT PR & HRH BYP PCV out T]
RSP = C2/1000
PV = Cal [HRH BYP Spray flow &CEP DIS HDR PR & CEP DIS HDR T]
TV = HRH BYP PCV POS FB
TK = HRH BYP PCV QCK CLS

HRH BYP TCV – C6*LCE29AA081 – T

RSP – T
RSP = Enthalpy of HRH BYP Out STM [Enthalpy of [HRH BYP PCV OUT PR & [HRH BYP PCV OUT STM SAT T
+ 15 C]]]; RAT INC = 0.5; RAT DEC = 100
PV = HRH BYP OUT T
TV = HRH BYP PCV POS FB
FV = TCV CVO
FRC CLS = HRH TCV not Auto
TK = HRH TCV not Auto

HRH BYP TCV ISO MOV – C6*LCE29AA002

Auto Open = HRSG ON

Auto CLS = HRH BYP PCV ISO MOV Auto CLS Order
CLS PMT = HRSG not ON

AUX STEAM

AUX CRH PRDS PCV ISO MOV – C60LBC30AA002

AC =ST TRP / ST LD < 150 MW / AUX PRDS CLS / AUX CRH PRDS OL VLV NO
AUX PRDS CLS = [AUX STM N SELD F COM SUPLY + HP PR L < 10 B + (HRSG # 1 N R + HRSG # 2 N R + HRSG
# 3 N R)] / (HRSG # 1 NO FWP R + HRSG # 2 NO FWP R + HRSG # 3 NO FWP R)
AO = AUX CRH PRDS ENABLE PO / (AUX CRH PRDS PCV IL MOV POS >=20 + AUX CRH PRDS PCV IL MOV
POS <=25 + AUX CRH PRDS ENABLE OND 60 S PO)
Auto STP = AUX CRH PRDS PCV IL MOV POS >=20 + AUX CRH PRDS PCV IL MOV POS <=25 + AUX CRH
PRDS ENABLE OND 60 S PO
OPN PMT = AUX CRH PRDS ENABLE
AUX CRH PRDS ENABLE = ST IPC MODE + AUX CRH PRDS OL VLV OPN + ST LD > 150 MW + ANY HRSG >=2
FWP R

AUX CRH PRDS PCV – C60LBC30AA082

PV = COM AUX STM HDR PR
RSP = RSP

CW PUMP # A – C60PAC55AP001
SRT PMT = CW SPLY COM HDR MAN ISO VLV OPN + DS DL N H + TR DL N H + HOV CLSD + MTR DE OR
NDE T N H + 2 of 3 MTR WDG R or Y or B T N H + CWP VIB N H + CWP RRS N ACTD + Fore bay LVL N LL
4575 + CW HDR PR N L 0.4
OVR TRP = VIB HH after 60 S of HOV OPN CMD / (CWP R + HOV N OPN + HOV POS >90%) F 85 S / CWP
DIS PR <= 0.1 Bar for 45 S / MTR DE or NDE BRG T HH / 2 of 3 MTR WDG R or Y or B T HH / Chamber LVL
LL F 45 S + [(CWP R F 45 S + HOV CLSD) / (CWP R F 45 S + HOV POS < 15%)]

CWP DIS HOV – C60PAB55AA051

Auto CLS = Auto CLS CMD from SGC / VFD STP
Auto OPN = (CWP R + VFD R) / HOV OPN CMD from SGC
CLS PMT = VFD STP + HOV HPU RDY + HOV HPU PWR SPLY N Fail
OPN PMT = HOV HPU RDY + HOV HPU PWR SPLY N Fail

CWP RUN BACK

C1 = [CW INTERCON MOV NO + Single mode Operation + (CWP-A VFD FLT / CWP-B VFD FLT) OND 3 S] /
BLK 6 GRP mode Load Rejection / CWP-A OVR TRP / CWP-B OVR TRP
CWP RUN BACK = C1-T
CWP RUN BACK RESET = C1-F + CWP LD RUN BACK RESET CMD
GT-16 RUN BACK RESET = GT-16 LD < 95 MW / HRSG-61 DD CLSD / (HRSG-61 NR / HRSG-62 NR / HRSG-
63 NR)

CCW PUMP # B – C60PGC36AP002

C1 = Auto STP / SRT SEQ FLT STP
C2 = CCW Pump 1 REQ / CCW Pump 2 REQ / Main GRP Auto SRT
0 Pump REQ = C1-T
0 Pump N REQ = C1-F + C2-T
C3 = [(CCWP-1 R / CCWP-2 R) + (CCWP-1 N TRP / CCWP-2 N TRP) + C4-F] / GC Auto SRT
1 Pump REQ = C3-T
1 Pump N REQ = C3-F + C1-T
C4 = [(CCWP-1 R + CCW HDR PR L) / (CCWP-2 R + CCW HDR PR L) / CCW SYS TO BCK UP]
C5 = (CCWP-1 R / CCWP-2 R) / C1-F
2 Pump REQ = C4-T
2 Pump N REQ = C4-F + C5-T
Auto SRT = {(N 0 CCWP REQ + CCWP-2 Main SELD) / [(CCWP-1 R / CCWP-1 ON REQ) + CCWP-1 Main SELD
+ CCWP 2 REQ] / (CCWP N ON + CCWP 1 REQ + CCWP-1 SELD + CCWP-1 FLT)} + CCWP-B N FLT or N TRP /
CCWP-B N R
Auto STP = OFF REQ CCWP-2 + GRP ON
SRT PMT = CCWP DE or NDE T N H <100 C + MTR DE or NDE BRG T N H < 100 C + CCWP VIB N H + 1 of 2 R
or Y or B PH MTR WDG T N H < 130 C + CCW EXP TNK OL MOV OPN + (MIN RCV Auto / MIN RCV CLSD
<5%) + CCW EXP TNK LVL N L < 200 mm
STP PMT = CCWP-1 N Main SELD + CCWP 2 N 2 REQ
OVR TRP = CCWP DE or NDE T HH >= 105 C + MTR DE or NDE BRG T HH >= 105 C + CCWP VIB HH F 5 S + 1
of 2 R or Y or B PH MTR WDG T HH > 135 C + CCW EXP TNK LVL LL < 100 mm

CCW EXP TNK OL MOV – C60PGF36AA002

Auto CLS = CCW SYS BCKUP Granted / Auto CLS CMD
Auto OPN = Auto OPN from SG
CLS PMT = (CCWP-A N R + CCWP-B N R) OND 5 S

CCW HRSG SUP MOV – C60PGA36AA005

Auto OPN = from SG
Auto CLS = from SG

CCW STG SUP MOV – C60PGA36AA002

Auto OPN = from SG
Auto CLS = from SG

CONDENSER VACUUM PUMP # A – C60MAJ47AP001

SRT PMT = COND VCM BKR MOV CLSD + (COLD HP TUR / SEAM STM PR > 1.22 BARA)
Auto SRT = CVP-A N in SER + (CVP-A N FLT / CVP-A RC PMP N FLT / CVP-A SUC SOV N FLT) + [(CVP SRT
SEQ 123 SELD + CVP N 0 REQ) / [CVP SRT SEQ 312 SELD + (CVP-C R / CVP 3 REQ) +

ON REQ 3 = (CVP SRT SEQ 312 SELD + N 0 REQ) / [CVP SRT SEQ 231 + (CVP-B R / CVP ON REQ 2) + (REQ 2
/ REQ 3)] / [(CVP SRT SEQ 123 SELD + (CVP-B R / CVP ON REQ 2) + REQ 3]

REQ 0 = CVP GRG OFF

CVP ON REQ 2 =

CVP RC PUMP-A – C60MAJ47AP004

SRT PMT = ANY 1 CEP R
FRC OFF = VCM SEP LVL LL F 15 S

CVP GRP – C60MAJ47

N0 (0 CVP REQ) = CVP GRP OFF
N2 (2 CVP REQ) = CVP GRP ON + (CVP-A SUC VCM H + CVP-B SUC VCM H + CVP-C SUC VCM H)
N2 Reset = CVP GRP OFF / (CVP-A SUC VCM L / CVP-B SUC VCM L / CVP-C SUC VCM L)
N3 (3 CVP REQ) = CVP GRP ON + [CVP GRP ON PO / (CVP-A SUC VCM L / CVP-B SUC VCM L / CVP-C SUC
VCM L)]
N3 Reset = CVP GRP OFF / (CVP-A SUC VCM H + CVP-B SUC VCM H + CVP-C SUC VCM H)

WBVP – C60MAJ55AP011
Auto SRT = WB VCM COND TNK VCM N HH
Auto STP = WB VCM COND TNK VCM HH

WBVP GRP – C60MAJ55

N0 REQ = WBVP GRP OFF / (WBVP GRP ON + WB VCM COND TNK VCM HH)
N0 Reset = N1 REQ / N2 REQ
N1 REQ = WBVP GRP ON + WB VCM COND TNK VCM N HH
N2 REQ = WBVP GRP ON + WB VCM COND TNK VCM N H

CEP # 2 – C60LCB46AP002
Auto SRT = SG Auto SRT
Auto STP = SG Auto STP
SRT PMT = (CEP DIS MOV CLSD / CEP DIS PR N LL < 16.5) + COND HW LVL N L < 150 + (MIN RC FCV Auto /
FCV PSN H > 95%) + CEP DIS VENT SOV OPN + SUC ISO VLV OPN + MTR BEG DE or NDE TEMP N H < 100 +
1 of 2 MTR WDG R or Y or B PH T N H < 130 + VIB N H

OVR TRP = [(1 CEP R + GSC OL FL L < 168) / (2 CEP R + GSC OL F < 336 TPH) F 30 S] / MTR BRG DE or NDE
T HH > 105 + 1 of 2 MTR WDG R or Y or B PH T HH > 135 + (CEP R + DIS MOV NO) F 125 S + VIB HH F 10 S
+ COND HW LVL LL < 75 + (CEP R + DIS MOV CLSD F 7 S)

CEP GRP – C60LCB46

N0 REQ = GRP STP
N1 REQ = 1 CEP REQ FRM SRT SEQ
N2 REQ = 2 CEP REQ FRM SRT SEQ
N3 REQ = (ANY 2 CEP R + CEP DIS HDR PR L <17.7 F 15 S PO) / [STG LD > 200 OFD 5 S + (GCP NC / ST TRP /
(GCB CLSD + 52L OPN))]
N3 Reset =STP 1 PMP Manually (N0 / N1/ N2 REQ)

CEP RUN BACK

C1 = (CEP-A R + CEP-B R) OFD 15 S + (CEP-A F + CEP-B F) OND 10 S + CEP-C NR
C2 = (CEP-B R + CEP-C R) OFD 15 S + (CEP-B F + CEP-C F) OND 10 S + CEP-A NR
C2 = (CEP-A R + CEP-C R) OFD 15 S + (CEP-A F + CEP-C F) OND 10 S + CEP-B NR
C4 = C1 / C2 / C3
CEP RUN BACK = Any One CEP R + C4-T + CEP GSC OL FL > 560 TPH
GT-16 RUN BACK RESET = GT-16 LD < 55 MW / HRSG-61 DD CLSD / ONLY ONE HRSG ON

CEP # B DIS MOV – C60LCA46AA002

Auto CLS = CEP-A STP = CEP-B STP + CEP-C STP
Auto OPN = {[(CEP-A R + CEP-A DIS MOV OPN) / CEP-C R + CEP-C DIS MOV OPN)] + CEP DIS HDR PR N L} /
CEP-B R / CEP-B DIS MOV Auto SRT from SG
CLS PMT = CEP-B STP
OVR CLS = CEP-B STP + (CEP-B NA / CEP-B OVR TRP)

CEP # B DIS VENT SOLENOID VLV SOV – C60LCA46AA052

Auto CLS = (CEP DIS HDR PR NOR + CEP-B R) OND 10 S / CEP-B DIS SOV Auto CLS from SG
Auto OPN = Auto OPN from SG

CEP MIN RC FCV – C60LCA46AA083

MR = CEP-A or B or C SG Manual Order
PV = GSC OL FL
RSP = 350 TPH if 1 CEP R
RSP = 425 TPH if 2 CEP R
RSP = 525 TPH if 3 CEP R

CEP MIN RC FCV BYP MOV – C60LCA46AA004

No Auto Operation, Only Manual Operation

COND CURTAIN SPRAY AOV – C60LCA46AA051

C1 = (Any 1 of 6 HRSG-1, 2 & 3 HRH & LP BYP PCV PSN > 10% / COND T > 70 C) + ST IV-1 PSN < 5% + IV-2
PSN < 5% + ACV PSN < 5%
Auto CLS = C1-F
Auto OPN = C1-T
CLS OVR = COND HW LVL HH >= 1165 mm

ST GLAND SEAL STM DRN MOV – C60MAW48AA001

Auto CLS = GLD SEAL STM LVL L
Auto OPN = GLD SEAL STM LVL H
OVR OPN = ST TRP / GLD SEAL STM LVL HH

COND FILLING AOV – C60GCK46AA082

MR = CEP-A or B or C SG Manual Order / COND HW LVL DVN HH 10%

PV = HW LVL
RSP = SP 915 mm
OVR CLS = HW LVL HH 1165 mm

COND FILL LINE BYP MOV – C60GCK46AA013

No Auto Operation, Only Manual Operation

ACWP – C60PGP56AP002
SRT PMT = (DIS HDR PR N LL < 1.8 / DIS MOV CLSD) + BYP MOV CLSD + SUC PR N L < 0.4
OVR TRP = (ACWP R + DIS MOV CLSD) OND 50 S / SUC HDR PR LL < 0.08

ACWP GRP – C60PGP56

N0 REQ = GRP STP / GRP SRT SEQ STP
N1 REQ = GRP SRT
N2 REQ = (GRP ON + Any 1 ACWP R + ACW DIS HDR PR L) OND 15 S
STEAM TURBINE
CCBV - Cooling Steam Block Valve
Auto CLS = RPM > 300 + [Not in FWD FL / TUR Not Reset / (CVS & MSVs CLSD + IV-1 CLS + IV-2 CLS)]

RHCV – Re Heat Cooling Valve

Auto CLS = [IL STM PR > 1585 PSI HYS 15 + (CV-1 OPN / CV-2 OPN)] / ST Not in Reset / ST not in FWD FL
