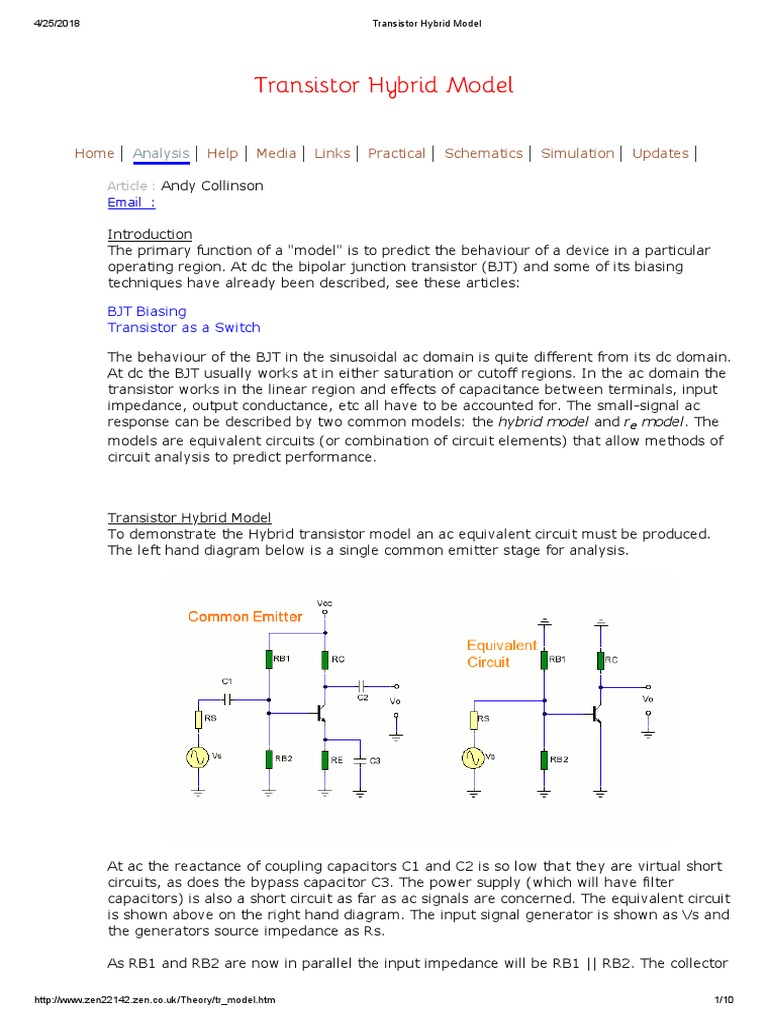

Powered by AIThe Transistor Hybrid Model uses four h-parameters in a common emitter configuration: hie (input impedance), hre (reverse voltage ratio), hfe (forward current gain), and hoe (output admittance). The model represents the BJT action by forming equations like vbe = hie ib + hre vce and ic = hfe ib + hoe vce. These equations help in calculating how input and output currents and voltages interact, providing a predictive model for the BJT's behavior under small-signal conditions .
In a common emitter configuration with an unbypassed emitter resistor, the input impedance (Zi) is the parallel combination of the bias resistors (RBB) and the effective base impedance (Zb), the latter being hie + hfeRE, the domination by hfeRE due to hfe >> 1. The output impedance (Zo) is determined with input voltage Vi set to zero, with Zo equating to the load resistor RC, since hfeIb becomes an open circuit under these conditions. This setup provides insights into how the transistor will respond to both input and output interactions .
When calculating current gain (Ai) in a common emitter stage using the Transistor Hybrid Model, it is important to consider the impact of bias resistors and base impedance on input current distribution. Ai is derived from the ratio Io/Ii considering the parallel network formed by RBB and the base impedance Zb. Variations in these parameters affect how input current is divided, thereby altering the calculated current gain. Accurate measurement of h-parameters and careful consideration of bias resistor interactions are crucial for precise Ai calculations .
In the DC domain, a BJT typically operates in the saturation or cutoff regions, which are used for switching and biasing techniques. In contrast, in the AC domain, the BJT operates in the linear region where factors such as capacitance between terminals, input impedance, and output conductance must be considered. AC operation is analyzed using small-signal models like the hybrid model and the re model .
H-parameters are derived using expressions like hre = vbe/vce | ib = 0, hoe = ic/vce | ib = 0, hie = vbe/ib | vce = 0, and hfe = ic/ib | vce = 0, as well as from transistor datasheets. Their values affect key aspects like input/output impedance and current/voltage transfer characteristics, influencing design constraints and suitability for applications, such as amplification or switching, where specific stability and performance are required .
In a single bias resistor CE stage, the input impedance Zi can be approximated with bias resistor RBB ≈ RB, in parallel with (hie + hfeRE). Using the hybrid model, voltage gain Av is calculated as Av = −hfeRC/Zb, and current gain Ai as Ai = RBB hfe / (RBB + Zb). Accurate determination requires known hybrid parameters and consideration of the resistance configuration's effect on signal transference .
When hfeRE is much larger than hie, the input base impedance Zb can often be approximated as hfeRE, simplifying analysis. This reduction in complexity allows designers to focus on the dominant components, facilitating easier calculations for input impedance (Zi) and voltage gain (Av), and thereby making it simpler to predict circuit behavior without the need for exhaustive calculations involving smaller negligible values .
H-parameters vary due to changes in temperature, collector current, and collector-emitter voltage. This variability necessitates that circuit designers measure these parameters under the actual operating conditions of their specific applications to ensure accuracy and reliability. If these parameters are not consistent with the environmental conditions of the circuit, the predicted performance may not match the actual operation, potentially leading to circuit instability or suboptimal performance .
The phase inversion signifies that the output signal is 180 degrees out of phase with the input. In the common emitter configuration using the hybrid model, the voltage gain Av is defined as Av = -hfeRC/Zb, where the negative sign indicates this phase inversion. The presence of this inversion is crucial as it impacts how the amplified signal is perceived and processed in the circuit design, affecting how subsequent stages must handle the signal .
Temperature variation impacts h-parameters, altering values like hie, hre, hfe, and hoe, as shown by characteristic graphs. Such changes can affect a BJT's performance by altering its input/output impedance and gain, potentially leading to instability if these factors push the transistor's operation beyond its intended range. Designing circuits to ensure consistent operation across expected temperature ranges involves accommodating these variations in the choice of components and thermal management strategies .
