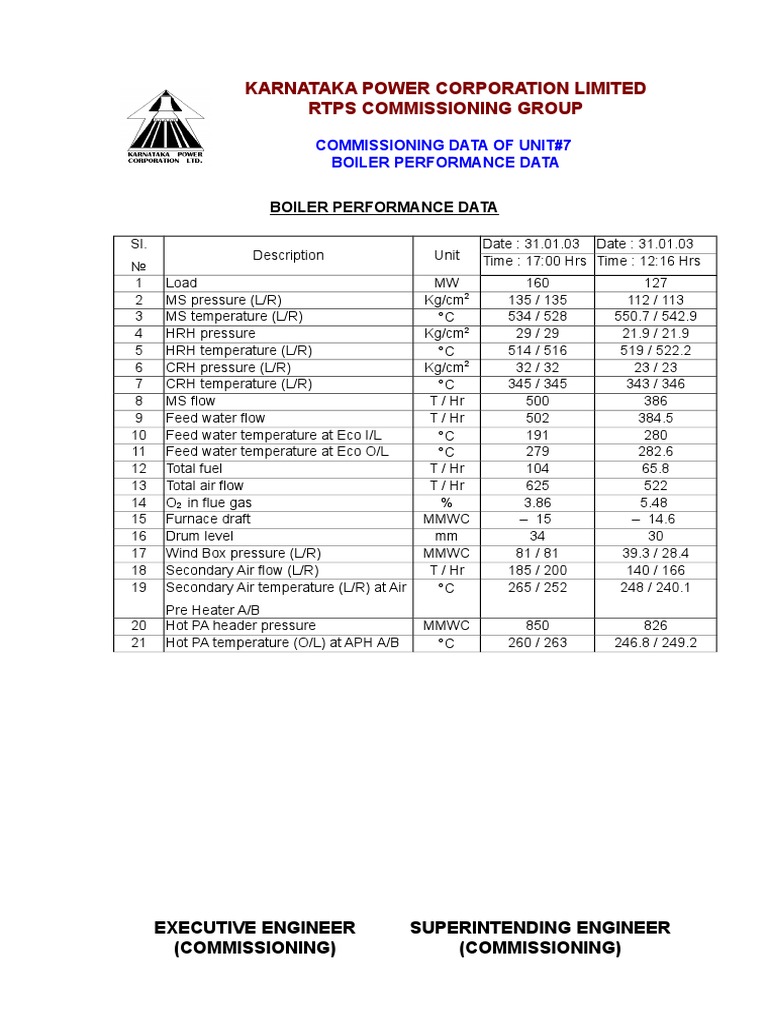

KARNATAKA POWER CORPORATION LIMITED

RTPS COMMISSIONING GROUP

COMMISSIONING DATA OF UNIT#7


BOILER PERFORMANCE DATA

BOILER PERFORMANCE DATA

Sl. Date : 31.01.03 Date : 31.01.03


Description Unit Time : 17:00 Hrs Time : 12:16 Hrs
№
1 Load MW 160 127
2 MS pressure (L/R) Kg/cm2 135 / 135 112 / 113
3 MS temperature (L/R) C 534 / 528 550.7 / 542.9
4 HRH pressure Kg/cm2 29 / 29 21.9 / 21.9
5 HRH temperature (L/R) C 514 / 516 519 / 522.2
6 CRH pressure (L/R) Kg/cm2 32 / 32 23 / 23
7 CRH temperature (L/R) C 345 / 345 343 / 346
8 MS flow T / Hr 500 386
9 Feed water flow T / Hr 502 384.5
10 Feed water temperature at Eco I/L C 191 280
11 Feed water temperature at Eco O/L C 279 282.6
12 Total fuel T / Hr 104 65.8
13 Total air flow T / Hr 625 522
14 O2 in flue gas % 3.86 5.48
15 Furnace draft MMWC – 15 – 14.6
16 Drum level mm 34 30
17 Wind Box pressure (L/R) MMWC 81 / 81 39.3 / 28.4
18 Secondary Air flow (L/R) T / Hr 185 / 200 140 / 166
19 Secondary Air temperature (L/R) at Air C 265 / 252 248 / 240.1
Pre Heater A/B
20 Hot PA header pressure MMWC 850 826
21 Hot PA temperature (O/L) at APH A/B C 260 / 263 246.8 / 249.2

EXECUTIVE ENGINEER SUPERINTENDING ENGINEER


(COMMISSIONING) (COMMISSIONING)
KARNATAKA POWER CORPORATION LIMITED
RTPS COMMISSIONING GROUP

COMMISSIONING DATA OF UNIT#7


BOILER PERFORMANCE DATA

Sl. Description UnitDate : 31.01.03 Date : 31.01.03


№ Time : 17:00 Hrs Time : 12:16 Hrs
22 Seal air fan discharge pressure MMWC 1390 1322
23 Burner Tilt % 20 20.4
24 Flue Gas temperature (O/L) C
 at Air Pre Heater A/B 120 / 130 113.6 / 105.3
 at ECO O/L 295 258

 after PSH (L/R) 718 / 714 668 / 719

 after FSH (L/R) 527 / 522 514 / 503


621 / 597 592 / 592
 after RH (L/R)
423 / 441 432 / 436
 after LTSH
25 SH spray flow (L/R) T / Hr 0/0 0.3 / 0.6
26 RH spray flow L/R T / Hr 0/0 0/0
27 APRDS pressure Ksc 11 11.1
28 APRDS temperature C 189 185.7
29 DESH inlet temperature (L/R) C 391 / 388 395.6 / 398.7
30 DESH outlet temperature (L/R) C 390 / 378 379.6 / 384.8
31 RH DESH inlet temperature (L/R) C 340 / 339 345 / 346
32 RH DESH outlet temperature (L/R) C 337 / 340 350 / 347
33 a) FD fan current A/B AMPS 30 / 30 30.3 / 29.4
b) Blade pitch position A/B % 30 / 32 22 / 25
34 ID fan current A / B AMPS 96 / 93 90.7 / 87.4
35 a) PA fan current A/B AMPS 100 / 100 89.7 / 93.5
b) IGV position A/B % 16 / 27
36 Flue Gas DP Across APH A/B MMWC 54 / 58 69.7 / 67.9

EXECUTIVE ENGINEER SUPERINTENDING ENGINEER


(COMMISSIONING) (COMMISSIONING)
