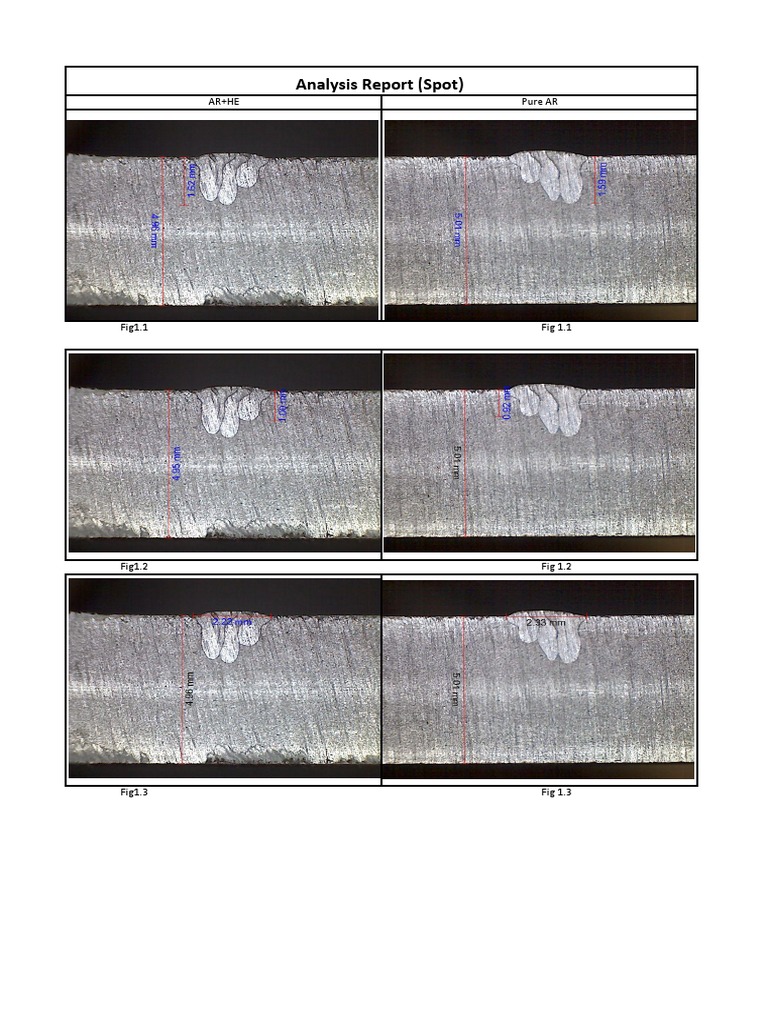

Analysis Report (Spot)

AR+HE Pure AR

Fig1.1 Fig 1.1

Fig1.2 Fig 1.2

Fig1.3 Fig 1.3

 fig 1.4 fig 1.4

fig 1.5 fig 1.5

Both Samples are Tested & Below are the observations

Sr. No Contents Ar & He Mixture Pure Argon Remark
1 Max. Weld Peneteration 1.62 mm 1.59mm
2 Min. Weld Peneteration 1.0 mm 0.92 mm
3 Bead Width at Joint 2.22 mm 2.33 mm
4 Weld Peneteration from Crest 1.73 mm 1.72 mm
Bead Width at Mid of
5 1.71 mm 1.74 mm
peneteration
6 Power 50% 50%
7 Speed 5500 Rpm 5500 Rpm
