    Service Information

    Document Title: Function Group: Information Type: Date:


    Wiring diagram A01 370 Service Information 1/7/2013 1
    Profile:
    ART, A40E [GB]

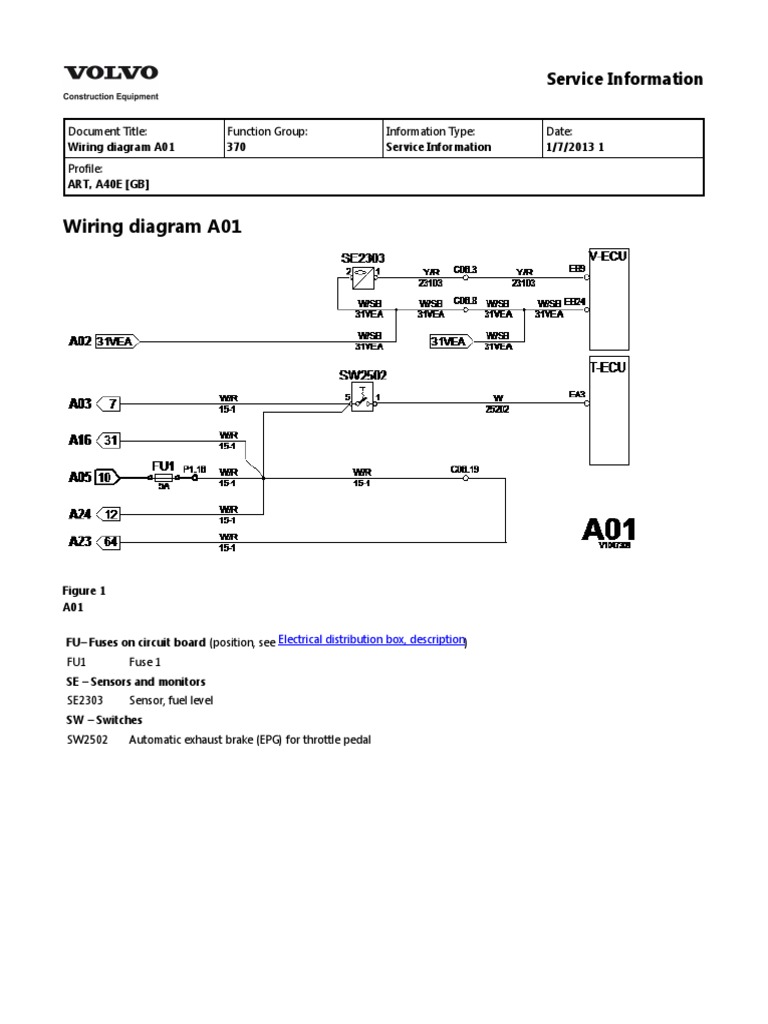

    Wiring diagram A01

    Figure 1
    A01

    FU– Fuses on circuit board (position, see Electrical distribution box, description)
    FU1 Fuse 1
    SE – Sensors and monitors
    SE2303 Sensor, fuel level
    SW – Switches
    SW2502 Automatic exhaust brake (EPG) for throttle pedal
    Figure 2
    Component position
