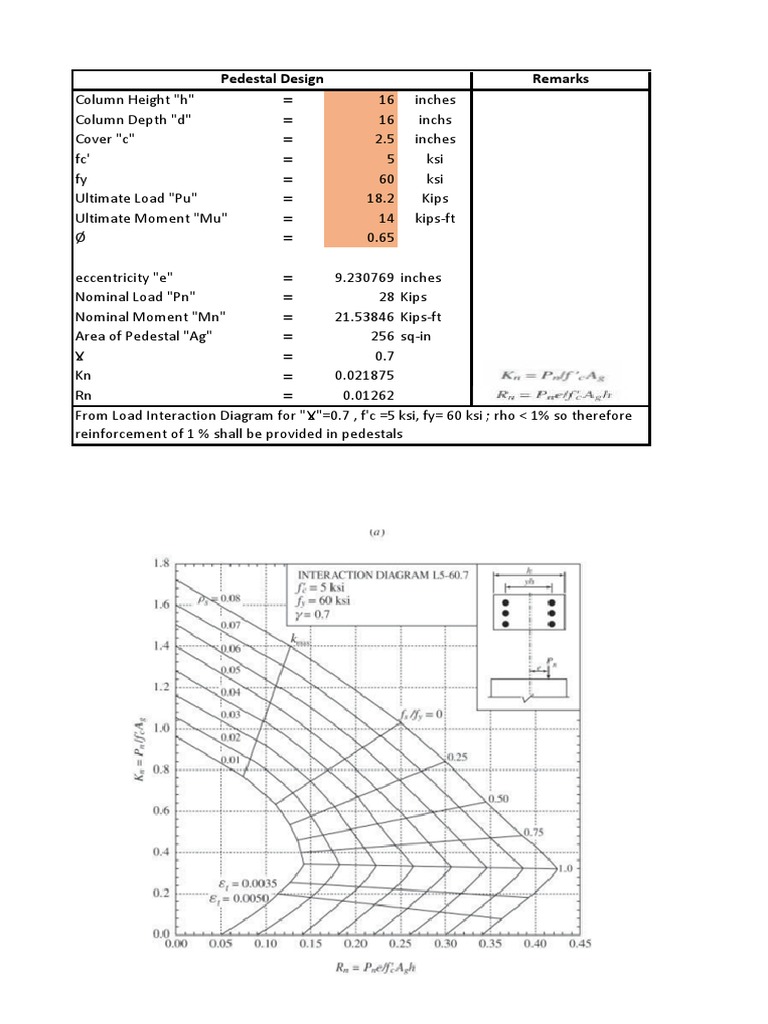

    Pedestal Design Remarks

    Column Height "h" = 16 inches


    Column Depth "d" = 16 inchs
    Cover "c" = 2.5 inches
    fc' = 5 ksi
    fy = 60 ksi
    Ultimate Load "Pu" = 18.2 Kips
    Ultimate Moment "Mu" = 14 kips-ft
    Ø = 0.65

    eccentricity "e" = 9.230769 inches


    Nominal Load "Pn" = 28 Kips
    Nominal Moment "Mn" = 21.53846 Kips-ft
    Area of Pedestal "Ag" = 256 sq-in
    Ɣ = 0.7
    Kn = 0.021875
    Rn = 0.01262
    From Load Interaction Diagram for "Ɣ"=0.7 , f'c =5 ksi, fy= 60 ksi ; rho < 1% so therefore
    reinforcement of 1 % shall be provided in pedestals
