Smart Objects

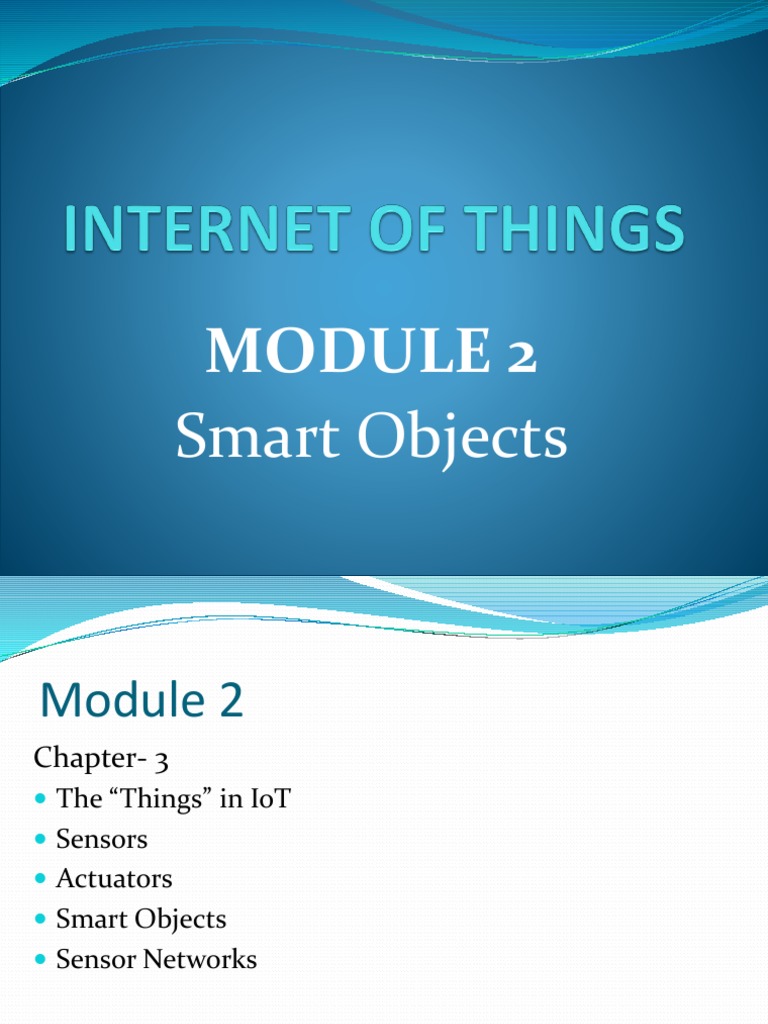

Module 2
Chapter- 3
The “Things” in IoT
Sensors
Actuators
Smart Objects
Sensor Networks
Chapter 4
Connecting Smart Objects
Communications Criteria
IoT Access Technologies.
IEEE 802.15.4
IEEE 802.15.4g and 802.155.4e
IEEE 1901.2a
IEEE 802.11ah
LoRaWAN
Sensor categories ➢Produce energy output
➢Require external power supply
Active or Passive ➢Receive energy
➢Require NO external power supply
External to it
Has physical contact with what they measure
Contact or no contact
No physical contact
Absolute or relative
Area of Application
How sensors measure
What sensors measure
Sensor Types
Actuators
Complements of sensors
Receives control signals that triggers a physical effect
Actuators can be classified based on the
Type of motion
Power
Binary or continuous
Area of application
Type of Energy
Smart Objects
Building of blocks of IoT
Transform everyday objects to network of
intelligent objects
Object learn & Interact with environment in
a meaningful way
Standalone object → no use
Sensor + actuator → good
(sensor+actuator) + (sensor+actuator) →
power of IoT
Characteristics
Processing unit:
Receives data from sensors (acts as sink)
Analyzes it
Sends control information to actuators (acts as
source)
Controls other functions like communication &
power system
Commonly used→ microcontroller
Small form factor
Flexibility
Programming is simple
Ubiquity
Low power consumption
Low cost
Sensor(s)/Actuator(s)
➢smart objects interact with physical world using
sensor/actuator
➢Smart object need not contain both sensor/
actuators
➢May contain one or multiple sensor/actuator
pair depending on application
Communication Device
➢Connects smart object with other smart objects
and outside world
➢Can be wired or wireless
➢ Cost
➢ Limited infrastructure available
➢ Ease of deployment
➢ Different communication protocols exists
Power source
Requirement varies from application to
application
Power efficiency, judicial power management,
sleep modes, ultra low power consumption
hardware etc..
Solar, wind, battery, mains etc.
Trends in smart objects
Size is decreasing:
some are not visible to naked eye
Power consumption is decreasing:
some sensors lasts even for 10 years without battery
replacement
Processing power is increasing:
more powerful and smaller
Communication capabilities are improving
Speeds and range
Communication is being increasingly standardized
Open standards for IoT communication protocols
Sensor Networks
Sensor/Actuator network (SANET)
The sensors/ actuators in SANET are capable of
communicating and cooperating in a productive
manner
Coordination is a challenge because of heterogeneity
and resource constrained
Of wireless
Wireless Sensor Networks (WSNs)
Limitations of WSN
Limited processing power
Limited memory
Lossy communication
Limited transmission speeds
Limited power
Two communication patterns
Event- driven: Transmission of sensory
information is triggered only when a smart
object detects a particular event or
predetermined threshold.
Periodic: Transmission of sensory information
occurs only at periodic intervals
Example: temperature and blood pressure readings
Connecting Smart Objects
Communications Criteria
Range
Frequency Bands
Power Consumption
Topology
Constrained Devices
Constrained – Node Networks
Range
How far the signal needs to be propagated
Area of coverage for the selected wireless technology
Indoor versus outdoor deployment differentiation
Short Range
Tens of meters between two devices
wired using serial cable
Bluetooth and VLC
Medium Range
Range: tens to hundreds of meters
Distance between two devices is less than a mile
Many specification and implementation are available
Example: Wifi,
Long Range
Distance between two devices is greater than mile
Example: cellular (2G, 3G, 4G), LPWA
Frequency Bands
Radio spectrum is managed by International
Telecommunication Union (ITU) and Federal
communications Commission (FCC)
They define regulations and transmission
requirements for various frequency bands
Portion of the spectrum are allocated to types of
communications such as radio, television, military etc.
Wireless communications are split between licensed
and unlicensed bands
Licensed spectrum
User must subscribe to services
Network operator can guarantee service
Example: Cisco Jasper control Centre: automating the
provisioning, deployment and management of large
numbers of devices
Unlicensed spectrum
Use for industrial, scientific and medical portions of the
radio band
Used in communication technologies for short range
devices
No guarantee or protection is offered
Example: Bluetooth, 2.4 GHz band etc
Unlicensed band is not regulated (national & regional)
These regulations mandate device compliance on
parameters such as
Transmit power
Duty cycle
Channel bandwidth etc
Simpler to deploy because it does not require a service
provider
Suffer from interference: many devices may be
competing for the same frequency in a specific area.
Power Consumption
Important in both powered nodes and battery-
powered nodes
Battery powered are classified by the required lifetimes
of their batteries
Whether it needsd
10 to 15 years of life: water or gas meter
5 to 7 years: smart parking sensor
2 to 3 years: Regular maintenance
Topology
Star
Mesh
Peer – to -peer
Constrained Devices
Constrained node networks
Data rate and Throughput
Latency and Determinism
Overhead and payload
