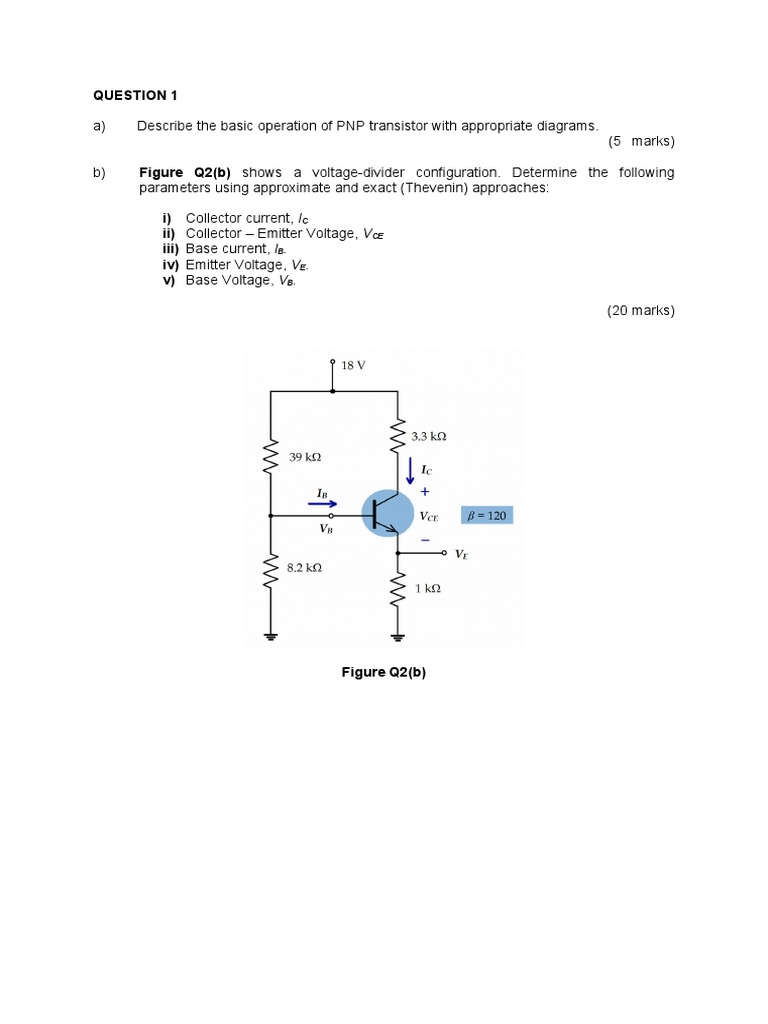

i) Collector current, IC
ii) Collector – Emitter Voltage, VCE
iii) Base current, IB.
iv) Emitter Voltage, VE.
v) Base Voltage, VB.
(20 marks)
Figure Q2(b)
QUESTION 2
i) 8710
ii) A27.116
(5 marks)
b) Figure Q3(b) shows a logic circuit of combinations logic gates: - ANDs, OR and
INVERTERs.
Figure Q3(b)
c) Figure Q3(c) shows how a full-adder may be constructed from two half-adders.
Figure Q3(c)
QUESTION 3
(a) With the aid of a diagram, show the operating regions for a Bipolar Junction
Transistor (BJT). Briefly describe each of them.
CO1/PO1/C2
(5 marks)
(b) Figure Q2(b) shows a Bipolar Junction Transistor circuit. Given that VBE = 0.7 V,
current gain β = 90, ro =∞ and the capacitance for each capacitor is 10 𝜇F.
Figure Q2(b)
i) Base current IB, collector current IC, and emitter current, IE.
ii) Determine its transresistance value re,input impedance Zi, output impedance
Zo and voltage gain AV.
(10 marks)
QUESTION 4
CO1/PO1/C2
(5 marks)
( A+ A Ć + B́ C ) ( AB Ć ¿
i) Based on the Boolean function, draw the logic gate diagram using AND, OR
and NOT gate only.
(c) Figure Q3(c) shows a logic circuit which has four inputs A, B, C, D and two outputs X
and Y.
i) Obtain the simplified sum of product (SOP) logic expression for the output X
and Y.
ii) Implement the full logic circuit using only 4-to-16 decoder and OR gates.
CO2/PO2/C4
(10 marks)
Figure Q3(c)
