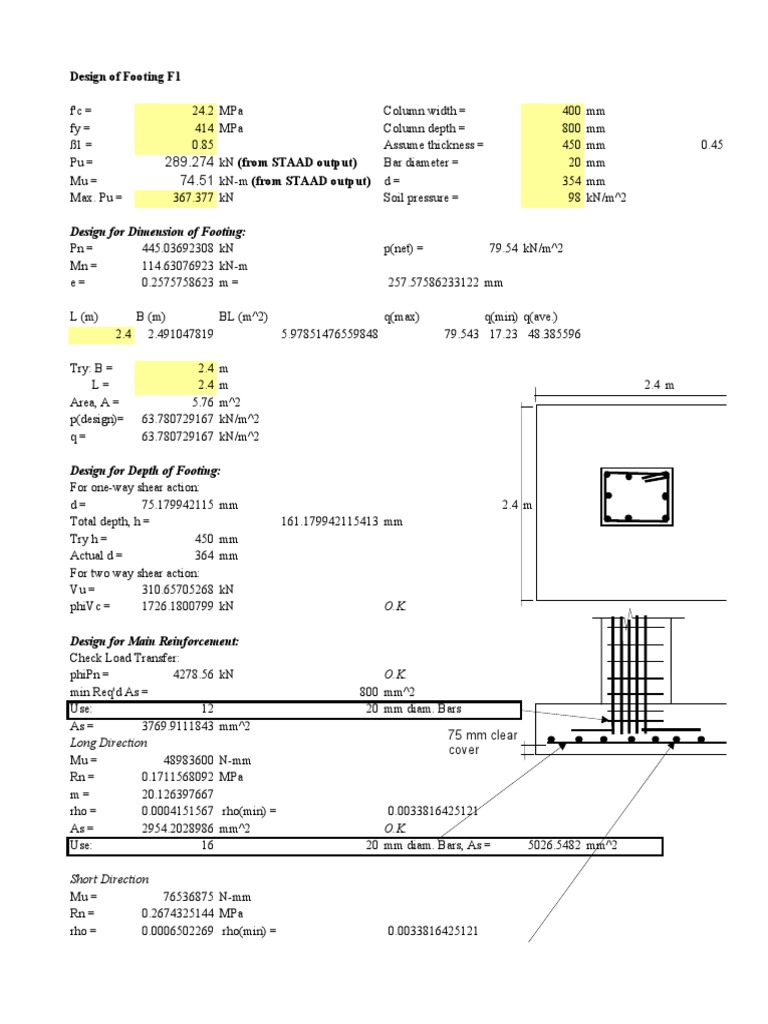

Design of Footing F1

f'c = 24.2 MPa Column width = 400 mm

fy = 414 MPa Column depth = 800 mm
ß1 = 0.85 Assume thickness = 450 mm 0.45
Pu = 289.274 kN (from STAAD output) Bar diameter = 20 mm
Mu = 74.51 kN-m (from STAAD output) d= 354 mm
Max. Pu = 367.377 kN Soil pressure = 98 kN/m^2

Design for Dimension of Footing:

Pn = 445.03692308 kN p(net) = 79.54 kN/m^2
Mn = 114.63076923 kN-m
e= 0.2575758623 m = 257.57586233122 mm

L (m) B (m) BL (m^2) q(max) q(min) q(ave.)

2.4 2.491047819 5.97851476559848 79.543 17.23 48.385596

Try: B = 2.4 m
L= 2.4 m 2.4 m
Area, A = 5.76 m^2
p(design)= 63.780729167 kN/m^2
q= 63.780729167 kN/m^2

Design for Depth of Footing:

For one-way shear action:
d= 75.179942115 mm 2.4 m
Total depth, h = 161.179942115413 mm
Try h = 450 mm
Actual d = 364 mm
For two way shear action:
Vu = 310.65705268 kN
phiVc = 1726.1800799 kN O.K.

Design for Main Reinforcement:

Check Load Transfer:
phiPn = 4278.56 kN O.K.
min Req'd As = 800 mm^2
Use: 12 20 mm diam. Bars
As = 3769.9111843 mm^2
75 mm clear
Long Direction
cover
Mu = 48983600 N-mm
Rn = 0.1711568092 MPa
m= 20.126397667
rho = 0.0004151567 rho(min) = 0.0033816425121
As = 2954.2028986 mm^2 O.K.
Use: 16 20 mm diam. Bars, As = 5026.5482 mm^2

Short Direction
Mu = 76536875 N-mm
Rn = 0.2674325144 MPa
rho = 0.0006502269 rho(min) = 0.0033816425121
As = 2954.2028986 mm^2 O.K.
Use: 16 20 mm diam. bars, As = 5026.5482 mm^2
wt of footing

98

450
