: c 2001-08-13

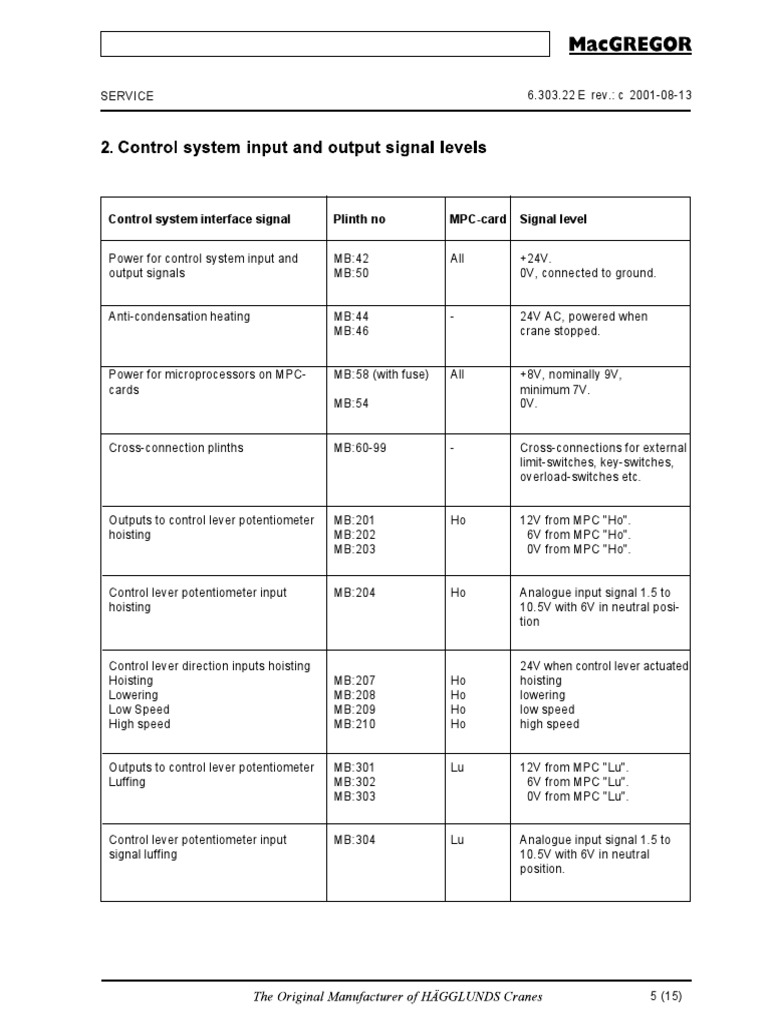

Power for microprocessors on MPC- MB:58 (with fuse) All +8V, nominally 9V,
cards minimum 7V.
MB:54 0V.
Control lever direction inputs hoisting 24V when control lever actuated
Hoisting MB:207 Ho hoisting
Lowering MB:208 Ho lowering
Low Speed MB:209 Ho low speed
High speed MB:210 Ho high speed
5 (15)
SERVICE 6.303.22 E rev.: c 2001-08-13
Control lever direction inputs slewing 24V when control lever actu-
Luffing In MB:307 Lu ated
Luffing Out MB:308 Lu luffing in
luffing out
Hoisting displacement low speed output MB:231 Ho 24V, max. 2A, open and short
circuit gives error message.
6 (15)
SERVICE 6.303.22 E rev.: c 2001-08-13
7 (15)
SERVICE 6.303.22 E rev.: c 2001-08-13
Pressure switch input for low feed MB:219 Ho 24V at normal operation,
pressure MB:319 Lu 0V at low feed pressure.
MB:419 SL
Output "Error in control system MB" MB:128 All 24V outputs wired together to
MB:228 error lamp in drivers cabin.
MB:328
MB:428
Output for "Speed dependent" MB:229 Ho 24V when the hoisting speed
overload function (if fitted). is less than approx. 3 rpm.
Speed reduction, input signal ext. 1 MB:217 Ho 24V input from cabin seitch,
(bit 0) to reduce normal operation MB:317 Lu such as Grab operation,
speed (utilization). MB:417 SL Parking Lock Slewing, Power
Limiter, Twin operation, etc.
Speed reduction, input signal ext. 2 MB:218 Ho 24V input from cabin switch,
(bit 1) to reduce normal operation MB:318 Lu same as above.
speed (utilization). Same as above, MB:418 SL
but could be used with different
utilization.
8 (15)
