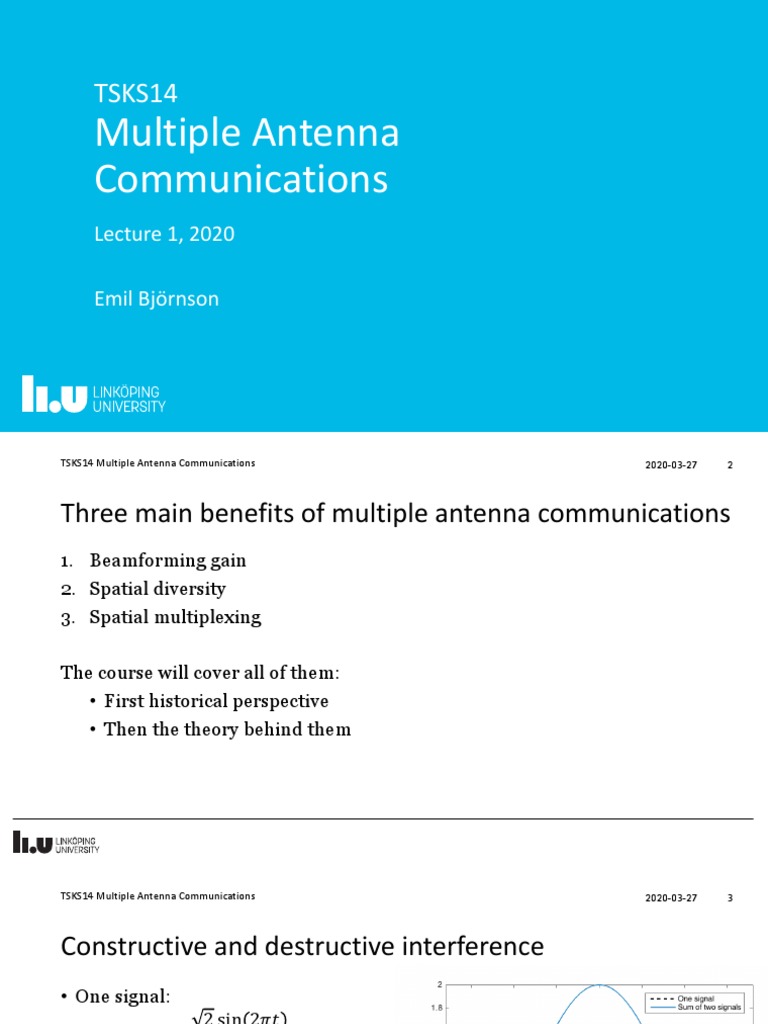

TSKS14

Multiple Antenna
Communications
Lecture 1, 2020

Emil Björnson
TSKS14 Multiple Antenna Communications 2020-03-27 2

Three main benefits of multiple antenna communications

1. Beamforming gain
2. Spatial diversity
3. Spatial multiplexing

The course will cover all of them:

• First historical perspective
• Then the theory behind them
TSKS14 Multiple Antenna Communications 2020-03-27 3

Constructive and destructive interference

• One signal:
2 sin 2𝜋𝑡
4 5
(Normalization: ∫3 2 sin 2𝜋𝑡 𝑑𝑡 = 1)

• Two signals:
sin 2𝜋𝑡 + sin(2𝜋𝑡 − 𝜃)
Power depends on the phase difference 𝜃
(time delay)
TSKS14 Multiple Antenna Communications 2020-03-27 4

Omni-directional radiation
𝑀 = 1 antenna

Powers spread out as a sphere

• Received power decays as
1/distance2
TSKS14 Multiple Antenna Communications 2020-03-27 5

Directive radiation – Beamforming gain

𝑀 = 6 antennas

Power directed towards receiver

• Constructive interference Beamforming
• Send signals with time delays
• Needs to know “direction”
Two options:
• 6 times larger received power
• Use 1/6 of power to achieve
same received power
TSKS14 Multiple Antenna Communications 2020-03-27 6

History: Beamforming
• Directional communication
• E.F.W. Alexanderson, ”Transatlantic Radio Communication”,
Trans. AIEE, 1919.

• Directive radiation pattern

• Constructive/destructive interference patterns
• Energy savings or better performance

Called beamforming gain

 TSKS14 Multiple Antenna Communications 2020-03-27 7

Multipath Propagation
sin(2𝜋𝑡 − 𝜃)

Transmitter sin 2𝜋𝑡 Receiver

Multipath fading:
Received signal: sin 2𝜋𝑡 + sin(2𝜋𝑡 − 𝜃) Add construtively or
destructively depending on 𝜃
TSKS14 Multiple Antenna Communications 2020-03-27 8

History: Spatial diversity

• Diversity combining
• D.G. Brennan, “Linear diversity combining
techniques,” Proc. IRE, 1959

• Protect against fading/noise

• Multiple antennas with independent
observations
• Small risk that multiple observations are all bad
• Improve reliability

Called diversity gain

TSKS14 Multiple Antenna Communications 2020-03-27 9

Cellular networks
• Designed for mobile telephone systems
• Bullington, K. (1953). “Frequency economy
in mobile radio bands”. The Bell System
Technical Journal.
• Schulte, H. J. and W. A. Cornell (1960).
“Multi-area mobile telephone system”. IEEE
Trans. Veh. Technol.

• Reuse of spectrum in space:

• Densify as usage increases
• Control interference by fractional
spectrum reuse, power control
TSKS14 Multiple Antenna Communications 2020-03-27 10

History: Space division multiple access (SDMA)

• Multiple user communication
• S. C. Swales et al., “The Performance Enhancement of
Multibeam Adaptive Base-Station Antennas for Cellular
Land Mobile Radio Systems” Trans. on Vehicular
Technology, 1990.

• Spatial multiplexing of users

• Serve multiple users on same time and frequency
• Handle more users per base station
• Exists in 4G/5G and Wi-Fi

Called multiplexing gain

TSKS14 Multiple Antenna Communications 2020-03-27 11

History: Point-to-point multi-antenna links

• Point-to-point multiple-input
multiple-output (MIMO)
• G. G. Raleigh and J. M. Cioffi, “Spatio-
temporal coding for wireless
communications,” Globecom 1996.

• Multiple streams per user

• Increase capacity (bit/s) per user
• Requires multiple paths
• Exists in 4G/5G and Wi-Fi

Also called multiplexing gain

TSKS14 Multiple Antenna Communications 2020-03-27 12

Outline of the course

• Lecture 1:
• History of multiple antenna communications
• Channel capacity for single-antenna channels Based on lecture note document:
“Introduction to Multiple Antenna
• Basic multi–antenna channels (Lecture 2) Communications”
• Diversity and ergodic capacity (Lecture 3)
• Point-to-point MIMO (Lecture 4)

• Multi-user MIMO (Lectures 5-12) Based on the book

• Capacity bounds, Channel estimation, “Fundamentals of Massive MIMO”
Power control, etc.
TSKS14 Multiple Antenna Communications 2020-03-27 13

Example: Additive White Gaussian Noise (AWGN) Channel

𝑥 + 𝑦 =𝑥+𝑛

• Noise: 𝑛 ∼ 𝑁(0, 𝑁3/2)

• Energy per symbol: 𝐸 𝑥 5 ≤𝑞
• 𝑥, 𝑦, 𝑛 real valued
TSKS14 Multiple Antenna Communications 2020-03-27 14

How to measure performance?

• Data packet:

Information symbols

• Characterized by
• How many symbols the packet contains
• How many information bits these symbols represent
(determined by the modulation and coding scheme)
• Probability of incorrect decoding at the receiver
TSKS14 Multiple Antenna Communications 2020-03-27 15

Channel capacity
• Channel capacity
• Random variables 𝑋 and 𝑌 𝑥 Channel 𝑦
• Channel described by conditional distribution
𝑝P|R 𝑦|𝑥

• Channel coding theorem

• 𝐶 [bit/channel use] is the capacity of the channel if:
For any given 𝛿 > 0 and 𝛾 > 0,
there exist a channel coding codebook of a finite length 𝑁 that has rate
𝑅 = 𝐶 − 𝛿 and offers an error probability 𝑃 error ≤ 𝛾
TSKS14 Multiple Antenna Communications 2020-03-27 16

Passband and baseband signals

• Bandwidth: Distance from smallest to largest frequency

𝑓 𝑓
𝐵 𝑓_ 𝐵 𝐵 0 𝐵
𝑓_ − 𝑓_ + − +
2 2 2 2
^
Bandwidth (passband): 𝐵 Bandwidth (baseband):
5
Real-valued signal Complex-valued signal

Described by 2𝐵 real samples/s Described by 𝐵 complex samples/s

These samples are used to convey information

TSKS14 Multiple Antenna Communications 2020-03-27 17

Gaussian Distribution
• 𝑥 is zero-mean Gaussian distributed, 𝑥 ∼ 𝑁(0, 𝜎 5)

• Probability density function (PDF): 0.4

1 cd 0.35
b d
𝑝R 𝑥 = 𝑒 5e
2𝜋𝜎 5 0.3

0.25

0.2

0.15

0.1

Properties: 𝐸 𝑥 = 0, 𝐸 𝑥 5 = 𝜎 5 0.05

0
-5 0 5
TSKS14 Multiple Antenna Communications 2020-03-27 18

Complex Gaussian Distribution

• Consider independent 𝑥f , 𝑥g ∼ 𝑁(0, 𝜎 5/2)
• 𝑥 = 𝑥f + 𝑗𝑥g is circularly symmetric complex
Gaussian distributed,
𝑥 ∼ 𝐶𝑁(0, 𝜎 5), with
d d
1 c i 1 cj
b d b
𝑝R 𝑥 = 𝑒 e 𝑒 ed
𝜋𝜎 5 d 𝜋𝜎 5
1 b cd
= 5 𝑒 e
𝜋𝜎

Properties: 𝐸 𝑥 = 0, 𝐸 𝑥 5 = 𝜎5
TSKS14 Multiple Antenna Communications 2020-03-27 19

Capacity and mutual information

• Channel capacity
𝐶 = max 𝐼(𝑥; 𝑦) 𝑥 Channel 𝑦
lm (c)

• Mutual information: 𝐼 𝑥; 𝑦 = ℎ 𝑦 − ℎ(𝑦|𝑥)

• Differential entropy:
ℎ 𝑦 = −𝐸 log 5 𝑝P 𝑦 ≤ log 5 𝜋𝑒Var 𝑦
• Conditional diff. entropy:
ℎ 𝑦|𝑥 = −𝐸 log 5 𝑝P|R (𝑦|𝑥) Equality if
Complex Gaussian
TSKS14 Multiple Antenna Communications 2020-03-27 20

Differential entropy ℎ 𝑥 of 𝑥 ∼ 𝐶𝑁(0, 𝑝)

• Direct computation
1 b cd 1 b cd
ℎ 𝑥 = −r 𝑒 l log 5 𝑒 l 𝑑𝑥
c∈ℂ 𝜋𝑝 𝜋𝑝
1 b cd 𝑥5
=r 𝑒 l
log 5 𝜋𝑝 + log 5 𝑒 𝑑𝑥
c∈ℂ 𝜋𝑝 𝑝
d cd
1 b cl log 5 𝑒 𝑥5 b l
= log 5 𝜋𝑝 r 𝑒 𝑑𝑥 + r 𝑒 𝑑𝑥
c∈ℂ 𝜋𝑝 𝑝 c∈ℂ 𝜋𝑝
log 5 𝑒
= log 5 𝜋𝑝 ⋅ 1 + 𝐸 𝑥 5 = log 5 𝜋𝑒𝑝
𝑝
TSKS14 Multiple Antenna Communications 2020-03-27 21

Capacity of complex AWGN channel

𝑛 ∼ 𝐶𝑁(0, 𝑁3)

𝑥 + 𝑦 =𝑥+𝑛

• Recall: 𝐼 𝑥; 𝑦 = ℎ 𝑦 − ℎ(𝑦|𝑥)
ℎ 𝑦 𝑥 = 𝑦|𝑥 ∼ 𝐶𝑁(𝑥, 𝑁3) = log 5 𝜋𝑒𝑁3
• Mutual information maximized by 𝑥 ∼ 𝐶𝑁(0, 𝑞)
ℎ 𝑦 ≤ 𝑦 = 𝑥 + 𝑛 ∼ 𝐶𝑁(0, 𝑞 + 𝑁3) = log 5 𝜋𝑒(𝑞 + 𝑁3 )

• Capacity:
𝑞
𝐶 = ℎ 𝑦 − ℎ 𝑦 𝑥 = log 5 1+
𝑁3
TSKS14 Multiple Antenna Communications 2020-03-27 22

Point-to-point scalar channel

• Continuous-time AWGN channel with channel response 𝑔 ∈ ℂ
• Bandwidth 𝐵 (Hz)
• Power 𝑃 (Watt)
• Noise power spectral density 𝑁3 (Watt/Hz)
• Sampling: 2𝐵 real samples/s, 𝐵 complex samples/s:
𝑦 𝑙 =𝑔⋅𝑥 𝑙 +𝑛 𝑙 , 𝑙 = sample index
• Energy per sample: 𝑞 = 𝑃/𝐵
• 𝑥 𝑙 ∼ 𝐶𝑁(0, 𝑃/𝐵)
• 𝑛 𝑙 ∼ 𝐶𝑁(0, 𝑁3) Complex Gaussian signals are capacity achieving
TSKS14 Multiple Antenna Communications 2020-03-27 23

Point-to-point scalar channel: Capacity

• Sampling: 2𝐵 real samples/s, 𝐵 complex samples/s:
𝑦 𝑙 = 𝑔 ⋅ 𝑥 𝑙 + 𝑛[𝑙]
• 𝑥 𝑙 ∼ 𝐶𝑁(0, 𝑃/𝐵)
• 𝑛 𝑙 ∼ 𝐶𝑁(0, 𝑁3)

• Capacity:
• Depends on 𝑃 and 𝐵
|}d
C = log 5 1 + ^~ bits per complex sample
•
|}d
𝐶 = 𝐵 ⋅ log 5 1 + bits per second
^~•
TSKS14 Multiple Antenna Communications 2020-03-27 24

𝑃
Capacity behaviors 𝑁3
log 5 𝑒
8
• SNR:
𝑃 7
𝐵𝑁3 6
Power limited region

5
• log 5 1 + SNR
• Linear for small SNR 4

• Almost flat for large SNR 3 Bandwidth

2 limited
region
1
|}d
Assumption: = 5 ⋅ 10ƒ Hz
~•
0
0 20 40 60 80 100
TSKS14 Multiple Antenna Communications 2020-03-27 25

Summary
• Capacity of point-to-point channel:
𝑃
𝐶 = 𝐵 ⋅ log 5 1+ bits per second
𝐵𝑁3

|
• SNR per degree of freedom (symbol): ^~•
• Behaviors
• Low SNR: 𝐶 grows linearly with power 𝑃
• High SNR: 𝐶 grows linearly with bandwidth 𝐵
 End of Lecture 1

TSKS14 Multiple Antenna

Communications
