Logic system design

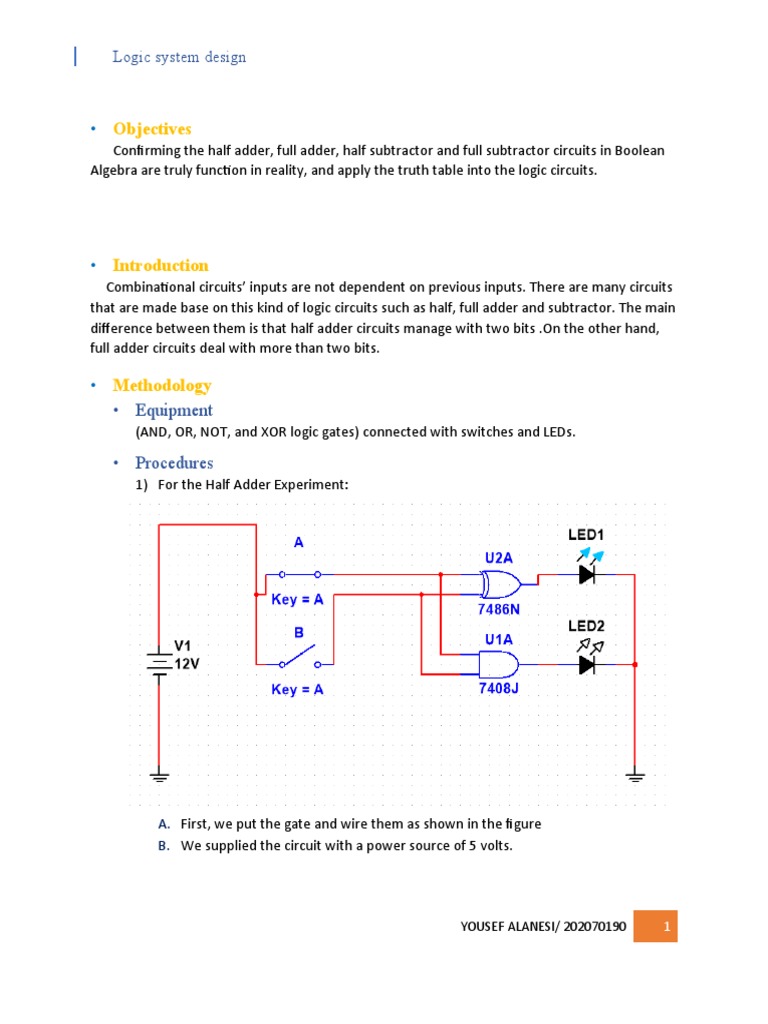

• Objectives
Confirming the half adder, full adder, half subtractor and full subtractor circuits in Boolean
Algebra are truly function in reality, and apply the truth table into the logic circuits.

• Introduction
Combinational circuits’ inputs are not dependent on previous inputs. There are many circuits
that are made base on this kind of logic circuits such as half, full adder and subtractor. The main
difference between them is that half adder circuits manage with two bits .On the other hand,
full adder circuits deal with more than two bits.

• Methodology
• Equipment
(AND, OR, NOT, and XOR logic gates) connected with switches and LEDs.

• Procedures
1) For the Half Adder Experiment:

A. First, we put the gate and wire them as shown in the figure
B. We supplied the circuit with a power source of 5 volts.

YOUSEF ALANESI/ 202070190 1


Logic system design

2) For the Full Adder Experiment:

A. First, we put the gate and wire them as shown in the figure
B. We supplied the circuit with a power source of 5 volts.

3) For the Half Subtractor Experiment:

A. First, we put the gate and wire them as shown in the figure
B. We supplied the circuit with a power source of 5 volts.
YOUSEF ALANESI/ 202070190 2
Logic system design

4) Full Subtractor Experiment:

A. First, we put the gate and wire them as shown in the figure
We supplied the circuit with a power source of 5 volts.

Results
We got the following output as we change the inputs state.

Half Adder
A B A+B (S) Cout
0 0 0 0
0 1 1 0
1 0 1 0
1 1 0 1

Full Adder

YOUSEF ALANESI/ 202070190 3


Logic system design

A B Cin A+B+Cin (S) Cout


0 0 0 0 0
0 0 1 1 0
0 1 0 1 0
0 1 1 0 1
1 0 0 1 0
1 0 1 0 1
1 1 0 0 1
1 1 1 1 1

Half Subtractor
A B A-B (D) C
0 0 0 0
0 1 1 1
1 0 1 0
1 1 0 0

Full Subtractor
A B Cin A-B-Cin C
0 0 0 0 0
0 0 1 1 1
0 1 0 1 1
0 1 1 0 1
1 0 0 1 0
1 0 1 0 0
1 1 0 0 0
1 1 1 1 1

• Discussion and analysis


All experiments worked perfectly as we want them to do for example when we add 1 + 0 in the half
adder we get 1 as a result, and when we add 1 + 1 + 1 in the full adder we get 11 in binary system as

YOUSEF ALANESI/ 202070190 4


Logic system design

expected. With similarity, when we use the half subtractor to subtract 0 form 1 we get 1 and 1
borrowed. Moreover, all the values in all the tables work as they meant to work.

• Conclusion
The main purpose of this experiment is achieved fully. As a result, the theorems of the Boolean
algebra work.

• Recommendation
Throughout the experiment we struggled in some cases therefore, I listed some advice to whom
willing to conduct the experiment.

1. Begin with outlining your work.


2. Clear the framework of the circuit while you’re putting the components.
3. after you put all the component turn on the power supply not the reverse.

• References
The instructor has fully taught us the function of the circuits so I did not need any references.

YOUSEF ALANESI/ 202070190 5
