Solidworks Project

ABDULLAH 17JZMEC0176
SOLIDWORKS PROJECT
ENGINE

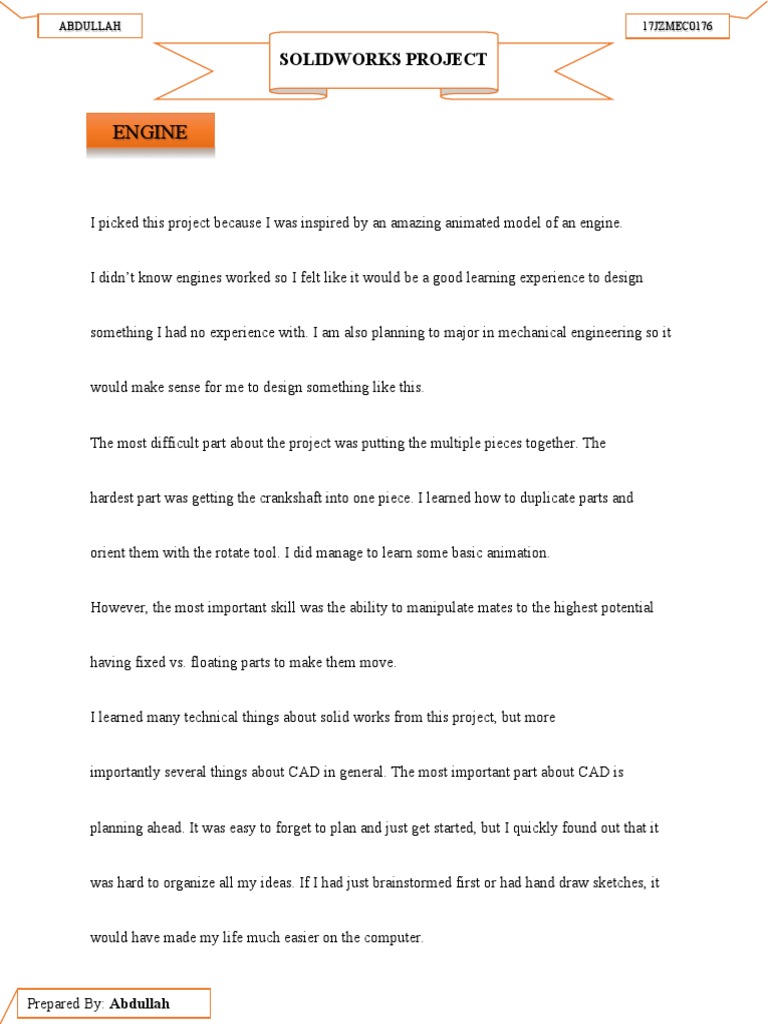

I picked this project because I was inspired by an amazing animated model of an engine.
I didn’t know engines worked so I felt like it would be a good learning experience to design
something I had no experience with. I am also planning to major in mechanical engineering so it
would make sense for me to design something like this.
The most difficult part about the project was putting the multiple pieces together. The
hardest part was getting the crankshaft into one piece. I learned how to duplicate parts and
orient them with the rotate tool. I did manage to learn some basic animation.
However, the most important skill was the ability to manipulate mates to the highest potential
having fixed vs. floating parts to make them move.
I learned many technical things about solid works from this project, but more
importantly several things about CAD in general. The most important part about CAD is
planning ahead. It was easy to forget to plan and just get started, but I quickly found out that it
was hard to organize all my ideas. If I had just brainstormed first or had hand draw sketches, it
would have made my life much easier on the computer.
Prepared By: Abdullah

1.PISTON
1.Selecte front plan and create a section view of piston with the help of line and three-point arc
2. with the help of revolve command make the piston body.

3.seclect front plane draw a circle and three-point are with the given dimension
4. Make a mid-plane extrude cut of 95.00mm to cut both the side of piston.

5.Selecte front plan and create two circles at the center point of hole with a diameter of 12.50mm
and 14.50mm
6.create a up to surface extrude boss with the offset of 12.00mm

7.selecte front plane and make the Mirror of the last extrude boss.

2.PISTON PIN
1.draw a circle with the diameter of 12.50mm
2. Create a Mid plane extrusion to a depth of 49mm.also Appling thin feature of 2.50mm.

3. Make a chamfer of 1.00mm on the outer face.

3.CONNECTING ROD
1.Selecte front plan and create a section view of connecting Rod with the help of line and spline
2. Create a Mid plane extrusion to a depth of 20.00mm. In selected

contours only select mid region of the both circles

3.Again Create a Mid plane extrusion to a depth of 10.00mm. In selected contours select the
remaining region which is not extrude in the previous extrude boss. Here also check the merge
result option
4.Selecte Right plan and create a straight slot

5.create a Through All extrude cut with the offset of 6.00mm.
6.selecte Right plane and make the Mirror of the last extrude cut.

4.CRACKSHAF
1.Selecte front plan and create two circles with diameter of 34.00mm and 38.00mm
2. Create a Blind extrusion to a depth of 25.00mm. In selected contours

only select the smaller circle

3. Create a Blind extrusion to a depth of 8.00mm. In selected contours

only select the 38.0mm diameter circle
4.Selecte face of current extrude and make the following dewing with help of three-point arc

5. Create a Blind extrusion to a depth of 15.00mm.
6.Selecte face of current extrude and create circle with diameter of 32.00mm. make concentric
relation with the upper smaller arc

8.selecte face of last extrude and make the Mirror of the total body.

relation with the Centre of the body.

11.Selecte face of current extrude and make the following dewing with help of convert entities of
second sketch

relation with the upper smaller arc

15.Selecte face of current extrude and make the following dewing with help of convert entities of the
previous sketch

relation with the Centre of the body.

19.selecte face of last extrude and make the Mirror of the total body.

5.UPPER BLOCK
1.Selecte top plane and create a top view of upper block with the help of rectangle and three-point arc
2. Create a Bind extrusion to a depth of 110.00 mm.

3.select the bottom face of upper block. With help of convert entities convert the edges of the
block into sketch and with help of offset entities make offset of 5.00mm also make the sketch
close with the help of line.
4. Create a Bind extrusion to a depth of 3.00mm with check merge result

5.With the help of linear pattern make 15 number of the boss-extrude3 with distance between 7.0mm.

6.LOWER BLOCK
1.Selecte front plane and create the following sketch with help of circle and trim entities commands
2. Create a Bind extrusion to a depth of 20.00mm.

3.Selecte front plane and create the following sketch with help of circle and line commands
4. Create a Bind extrusion to a depth of 5.00 mm.

5. Create plane1 of 140.50mm for front plane.
6.selecte plane1 and make the Mirror of a body.

7.select the face of lower block. With help of convert entities convert the edges of the block into
sketch and with help of offset entities make offset of 5.00mm also make the sketch close with the
help of line.
8.create a up to surface extrude boss by selecting the face of mirror body.

FINAL VIEW OF All PARTS
1.PISTON
2.PISTON PIN

3.CONNECTING ROD
4.CRACKSHAFT

5.UPPER BLOCK
6.LOWER BLOCK

SOLIDWORKS PROJECT

Project animated video
