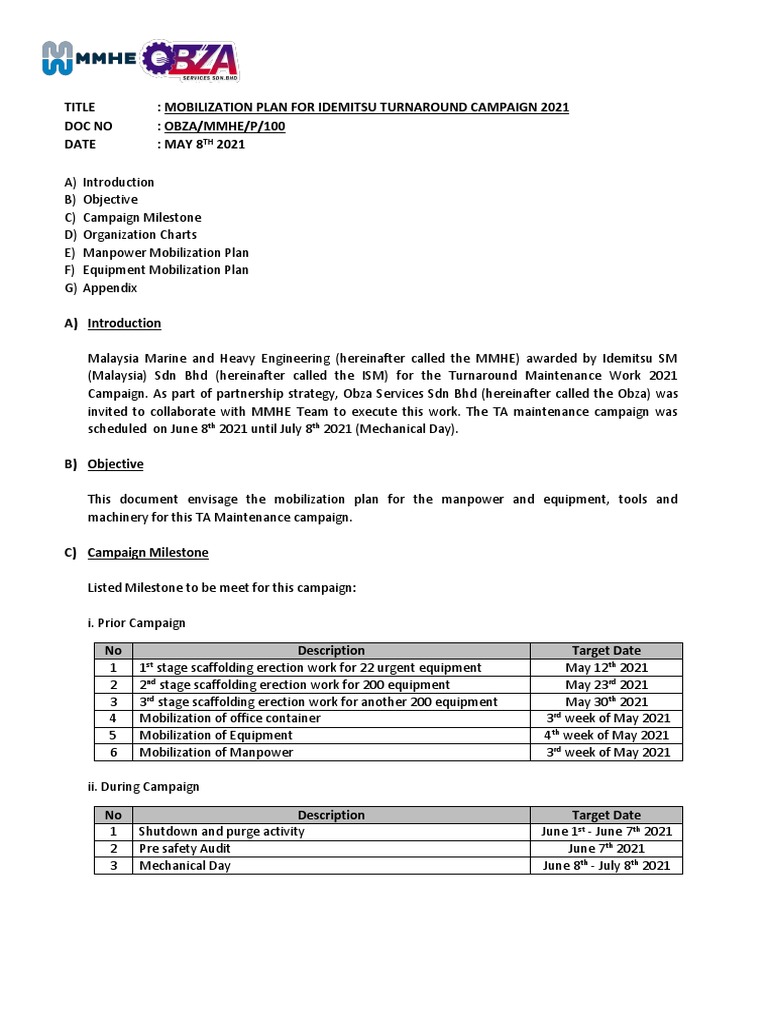

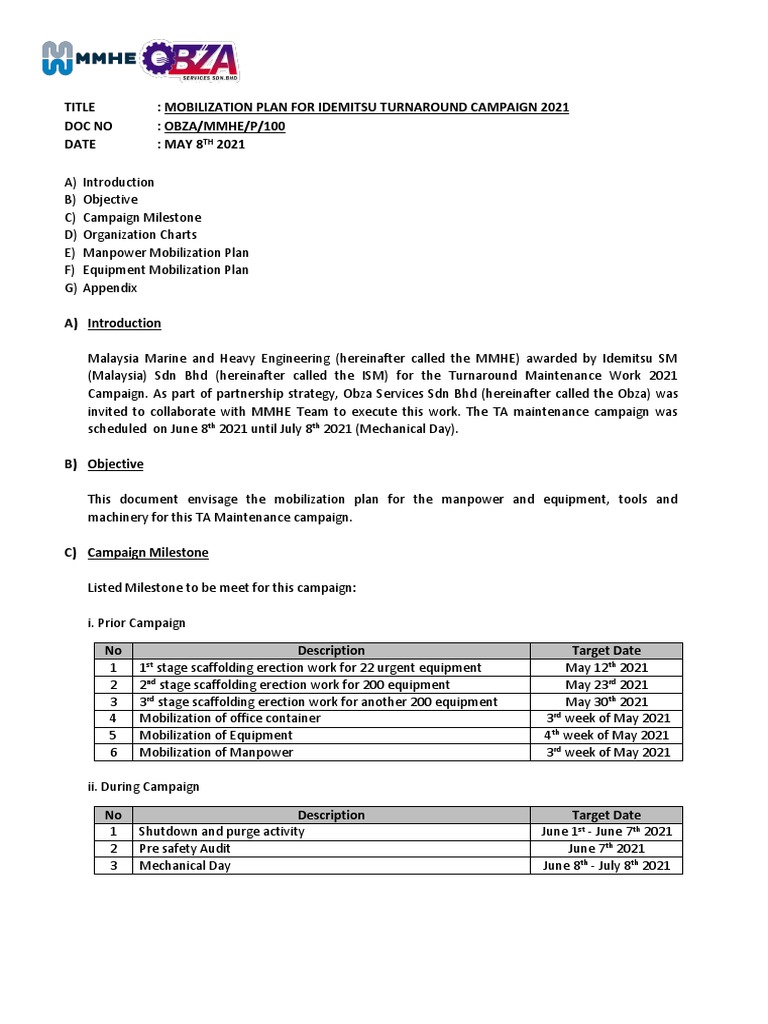

TITLE : MOBILIZATION PLAN FOR IDEMITSU TURNAROUND CAMPAIGN 2021
DOC NO : OBZA/MMHE/P/100
DATE : MAY 8TH 2021
A) Introduction
B) Objective
C) Campaign Milestone
D) Organization Charts
E) Manpower Mobilization Plan
F) Equipment Mobilization Plan
G) Appendix
A) Introduction
Malaysia Marine and Heavy Engineering (hereinafter called the MMHE) awarded by Idemitsu SM
(Malaysia) Sdn Bhd (hereinafter called the ISM) for the Turnaround Maintenance Work 2021
Campaign. As part of partnership strategy, Obza Services Sdn Bhd (hereinafter called the Obza) was
invited to collaborate with MMHE Team to execute this work. The TA maintenance campaign was
scheduled on June 8th 2021 until July 8th 2021 (Mechanical Day).
B) Objective
This document envisage the mobilization plan for the manpower and equipment, tools and
machinery for this TA Maintenance campaign.
C) Campaign Milestone
Listed Milestone to be meet for this campaign:
i. Prior Campaign
No Description Target Date
1 1 stage scaffolding erection work for 22 urgent equipment
st
May 12th 2021
2 2nd stage scaffolding erection work for 200 equipment May 23rd 2021
3 3rd stage scaffolding erection work for another 200 equipment May 30th 2021
4 Mobilization of office container 3 week of May 2021
rd
5 Mobilization of Equipment 4th week of May 2021
6 Mobilization of Manpower 3rd week of May 2021
ii. During Campaign
No Description Target Date
1 Shutdown and purge activity June 1st - June 7th 2021
2 Pre safety Audit June 7th 2021
3 Mechanical Day June 8th - July 8th 2021
iii. After Campaign
No Description Target Date
1 Post Safety Audit July 8th 2021
2 Start-up activity July 9th - July 14th 2021
D) Organization Chart
To execute the campaign smoothly, Obza already established Project Management Team (PMT) and
Supervisor Team. Refer to Appendix I for detail of organization chart.
E) Manpower Mobilization Plan
Direct manpower for this campaign shall be mobilized early for preparation work and for attend ISM’s
induction course. Briefly, total estimated manpower for this campaign are as follow:
i. PMT Team : 17 pax
ii. Scaffolder : 20 pax
iii. HPWJ Team : 20 pax
iv. Mechanical Team : 30 pax
v. Heat Exchanger Team : 16 pax
vi. Insulation Team : 20 pax
vii. Rigger Team : 8 pax
viii. Fabrication Team : 12 pax
ix. Catalyst Team : 30 pax
TOTAL : 173 pax
Details mobilization plan for manpower refer to Appendix II.
F) Equipment Mobilization Plan
Details mobilization plan for manpower refer to Appendix III. All equipment shall be mobilized to site
prior Shutdown & Purge Activity (June 1st - June 7th 2021) for inspection work.
G) Appendix
Appendix I : Organization Chart
Appendix II : Manpower Mobilization Plan
Appendix III: Equipment Mobilization Plant
Prepared By : ________________________
Signature : ________________________
Designation : ________________________
Date : ________________________
Approved By : ________________________
Signature : ________________________
Designation : ________________________
Date : ________________________
APPENDIX I
APPENDIX II
MOBILIZATION PLAN FOR MANPOWER (DIRECT & INDIRECT)
Mobilization Date
No Equipment List Qty UOM 17-May-21 18-May-21 19-May-21 20-May-21 21-May-21 22-May-21 23-May-21 24-May-21 25-May-21 26-May-21 27-May-21 28-May-21 29-May-21 30-May-21 31-May-21
Mon Tue Wed Thu Fri Sat Sun Mon Tue Wed Thu Fri Sat Sun Mon
A PMT
1 Project Manager 1 pax Induction (1) Mobilize (1)
2 Project Engineer 1 pax Induction (1) Mobilize (1)
3 Secretary 1 pax Induction (1) Mobilize (1)
4 Safety 1 pax Induction (1) Mobilize (1)
5 Superintencent (Cleaning) 1 pax Already mobilized to site
6 Superintencent (Mechanical) 1 pax Induction (1) Mobilize (1)
7 QA/QC 1 pax Induction (1) Mobilize (1)
8 Lead Cat B1 1 pax Already mobilized to site
9 Lead Cat B2 1 pax Induction (1) Mobilize (1)
10 Lead Cat C 1 pax Induction (1) Mobilize (1)
11 Lead Cat D 1 pax Already mobilized to site
12 Lead Cat E 1 pax Induction (1) Mobilize (1)
13 Lead Cat F 1 pax Already mobilized to site
14 Lead Insulation 1 pax Induction (1) Mobilize (1)
15 Lead Painting 1 pax Induction (1) Mobilize (1)
16 Lead Scaffolding 1 pax Already mobilized to site
17 Logistic 1 pax Already mobilized to site
Subtotal 17 pax
B Direct Manpower
1 Scaffolder 20 pax Induction (11) Mobilize (11) Additional manpower. 9 pax of scaffolder already mobilized to site.
2 HPWJ Team 20 pax Additional manpower. 16 pax of HPWJ already attended induction course Induction (4) Mobilize (20)
3 Mechanical Team 30 pax Induction (10) Induction (10) Induction (10) Mobilize (30)
4 Heat Exchanger Team - Pulling Bundle 16 pax Induction Induction Mobilize (16)
5 Insulation Team 20 pax Induction Induction Mobilize (20)
6 Rigger Team 8 pax Induction (2) Mobilize (2) Induction (6) Mobilize (2)
7 Fabrication Team 12 pax Induction (12) Mobilize (12)
8 Catalyst Team 30 pax Induction (30) Mobilize (30)
Subtotal 156 pax
APPENDIX III
MOBILIZATION PLAN FOR EQUIPMENT, TOOLS AND MACHINERY
Mobilization Date
No Equipment List Qty UOM 17-May-21 18-May-21 19-May-21 20-May-21 21-May-21 22-May-21 23-May-21 24-May-21 25-May-21 26-May-21 27-May-21 28-May-21 29-May-21 30-May-21 31-May-21
Mon Tue Wed Thu Fri Sat Sun Mon Tue Wed Thu Fri Sat Sun Mon
1 Forklift 3 MT 1 no
2 Forklift 5 MT 1 no
3 Crane 45 MT 3 nos
4 Crane 20 MT 1 no
5 Crane 160 MT 1 no During Operation (On call Basis)
6 Trailer 40 Footer 1 no
7 Lorry 5 MT 1 no
8 Bunder Puller 45 MT 1 set
9 Container (Store) 1 no
10 Container (Office) 1 no
11 HPWJ 15,000 psi 3 set
12 HPWJ 40,000 psi 3 set
13 Water Jet Machine 3,000 psi 2 set
14 Rotofan 1 set
15 Gen Set 60 kVa c/w DB 3 nos 1 unit 2 unit
16 Compressor 185 cfm 3 nos
17 Welding Set (Portable) 3 nos
18 Chain Block 5 MT 10 nos
19 Chain Block 3 MT 10 nos
20 Chain Block 1 MT 10 nos
21 Level Block 1.5 MT 10 nos
22 Level Block 1.0 MT 10 nos
23 Lifting Belt 1MT x 3m 12 length
24 Lifting Belt 2MT x 3m 12 length
25 Lifting Belt 3MT x 3m 12 length
26 Lifting Belt 5MT x 3m 12 length
27 Lifting Belt 3MT x 6m 12 length
28 Lifting Belt 5MT x 6m 12 length
29 Sling Wire 15 MT x 6m 4 pcs
30 Shackle 2 MT 8 pcs
31 Shackle 3.25 MT 8 pcs
32 Shackle 6.5 MT 8 pcs
33 Shackle 17 MT 4 pcs
34 Fire Extinguisher 12 nos
35 Grinding Machine 4" 8 nos
36 Pnumatic Power Tools 4 nos
37 12" Blower 12 set
38 Spanner Set Common Ring size 17mm - 60mm 10 set
39 Spanner Set Hammer Ring size 17mm - 60mm 10 set
40 Hammer 7lb 10 nos
41 Manual Torque Wrench 800 N.m 1 set
42 Manual Torque Wrench 500 N.m 1 set
43 Manual Torque Wrench 350 N.m 1 set
44 Pnumatic Impact Wrench 1" 3 set
45 Hydraulic Torque Wrench c/w accessories 2 set
46 Socket box size 30mm - 60mm 3 set
47 Power Cable c/w industrial socket 20 roll
48 Spot Light 5 set
49 Ex Proof Hand Lamp 12 set
50 Walkie Talkie 20 set
51 Hydraulic Jack 10 MT 2 set
52 Beam Clamp 3 set
53 Equipment for Catalyst Handling 1 set
54 Pilot Jack 3 MT 3 set
55 Cutting Torch and Gases 3 set
