5.4.2 - Protective conductor types

Earthing

chapter 6

Circuits

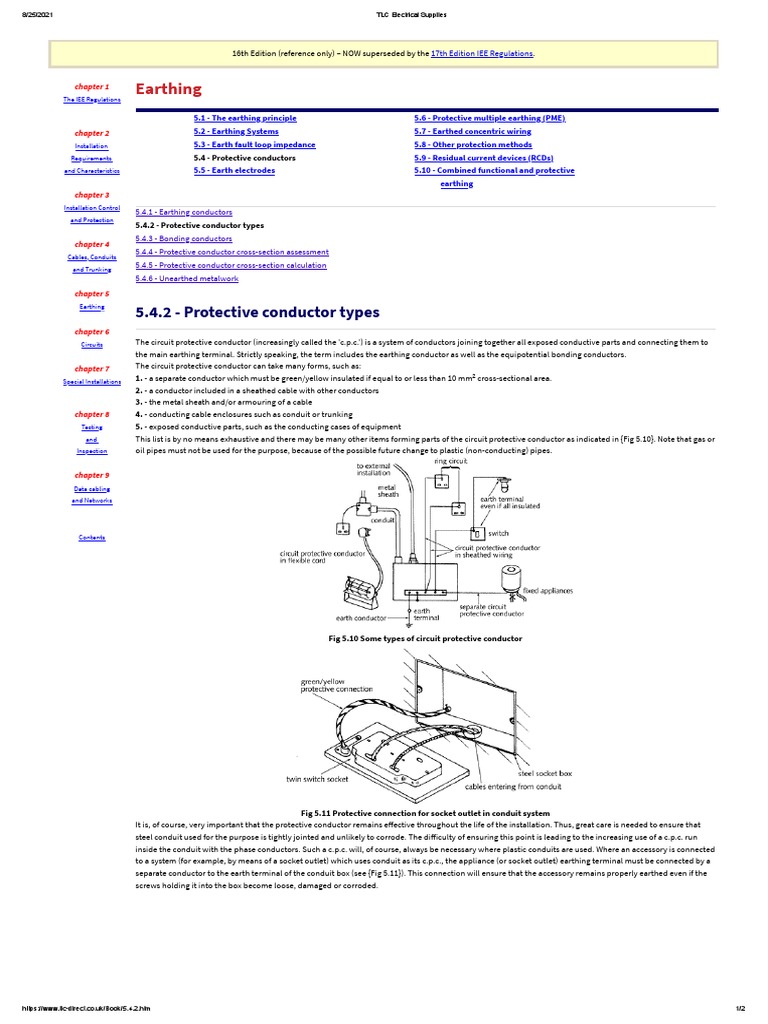

The circuit protective conductor (increasingly called the 'c.p.c.') is a system of conductors joining together all exposed conductive parts and connecting them to
the main earthing terminal. Strictly speaking, the term includes the earthing conductor as well as the equipotential bonding conductors.
chapter 7
The circuit protective conductor can take many forms, such as:
Special Installations
1. - a separate conductor which must be green/yellow insulated if equal to or less than 10 mm2 cross-sectional area.
2. - a conductor included in a sheathed cable with other conductors
3. - the metal sheath and/or armouring of a cable
chapter 8
4. - conducting cable enclosures such as conduit or trunking
Testing
5. - exposed conductive parts, such as the conducting cases of equipment
and
This list is by no means exhaustive and there may be many other items forming parts of the circuit protective conductor as indicated in {Fig 5.10}. Note that gas or
Inspection
oil pipes must not be used for the purpose, because of the possible future change to plastic (non-conducting) pipes.

chapter 9

Data cabling

and Networks

Contents

Fig 5.10 Some types of circuit protective conductor

Fig 5.11 Protective connection for socket outlet in conduit system

It is, of course, very important that the protective conductor remains effective throughout the life of the installation. Thus, great care is needed to ensure that
steel conduit used for the purpose is tightly jointed and unlikely to corrode. The difficulty of ensuring this point is leading to the increasing use of a c.p.c. run
inside the conduit with the phase conductors. Such a c.p.c. will, of course, always be necessary where plastic conduits are used. Where an accessory is connected
to a system (for example, by means of a socket outlet) which uses conduit as its c.p.c., the appliance (or socket outlet) earthing terminal must be connected by a
separate conductor to the earth terminal of the conduit box (see {Fig 5.11}). This connection will ensure that the accessory remains properly earthed even if the
screws holding it into the box become loose, damaged or corroded.

https://www.tlc-direct.co.uk/Book/5.4.2.htm 1/2
8/25/2021 TLC Electrical Supplies

Fig 5.12 Separate additional protective conductor with flexible conduit

A separate protective conductor will be needed where flexible conduit is used, since this type of conduit cannot be relied upon to maintain a low resistance
conducting path (see {Fig 5.12}).
