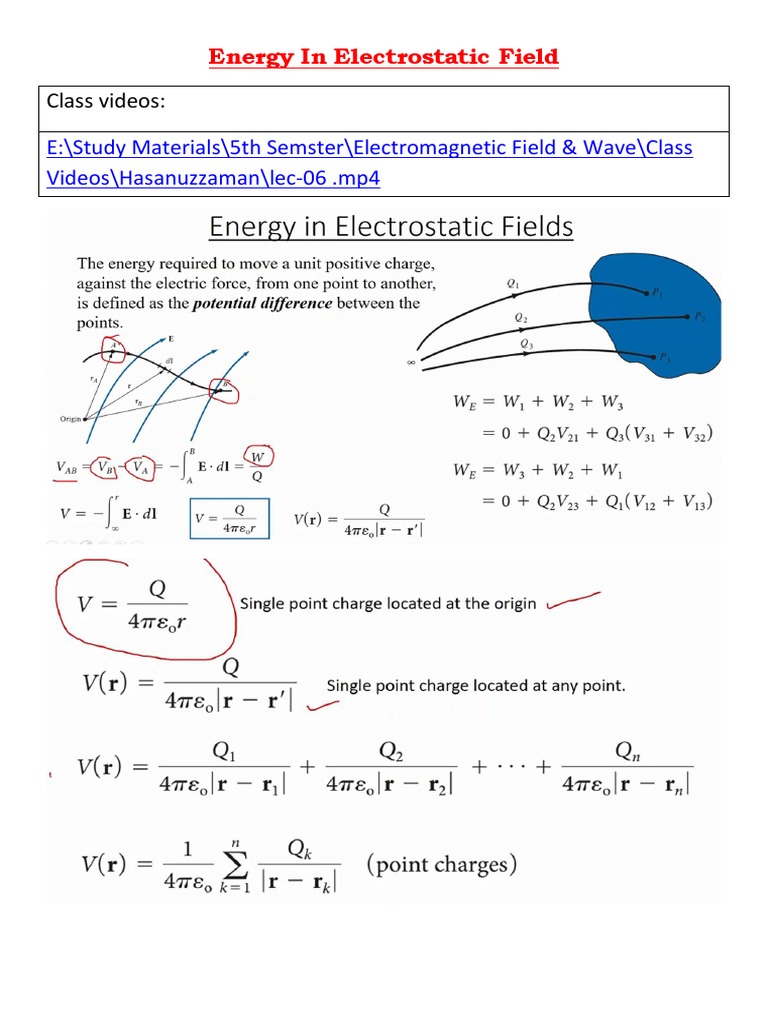

    Energy In Electrostatic Field

    Class videos:

    E:\Study Materials\5th Semster\Electromagnetic Field & Wave\Class


    Videos\Hasanuzzaman\lec-06 .mp4
    Drive the energy Equation

    Energy Equation at a glance


    Formulae
    Name formulae

    Energy /Work W=QV


    W=work; Q=charge; V=voltage
    Energy /Work W=1/2(Q1V1 +Q2V2+Q3V3+……)

    Energy /Work 1
    WE= ∫𝐿 𝜌𝐿 𝑉𝑑𝑙 ; 𝜌𝐿 = line charge density
    2
    1
    WE= ∫𝑆 𝜌𝑠 𝑉𝑑𝑆 ; 𝜌𝑆 = Surface charge density
    2
    1
    WE= ∫𝑉 𝜌𝑉 𝑉𝑑𝑉 ; 𝜌𝑣 = Volume charge density
    2
    Energy/Work 1 1 1 𝐷2
    E= 𝐷. 𝐸 = 𝜀0 𝐸 2 =
    2 2 2 𝜀0

    Energy /Work E= −∇𝑉


    V=voltage
    Voltage 𝐵
    V=− ∫𝐴 𝐸. 𝑑𝑙
    Charge move A to B
    Voltage 𝑄 𝑄
    V= ; V= )
    4𝜋𝜀0 𝑟 4𝜋𝜀0 (𝑟−𝑟′

    ∇. 𝐷 = 𝜌𝑉
    D= flux density ;
    Flux density D=𝜀0 𝐸
    E= electric Field
    ∇. 𝐸 = 𝜌𝑣 /𝜀0

    Math Problem

    01

    02
    03

    04
