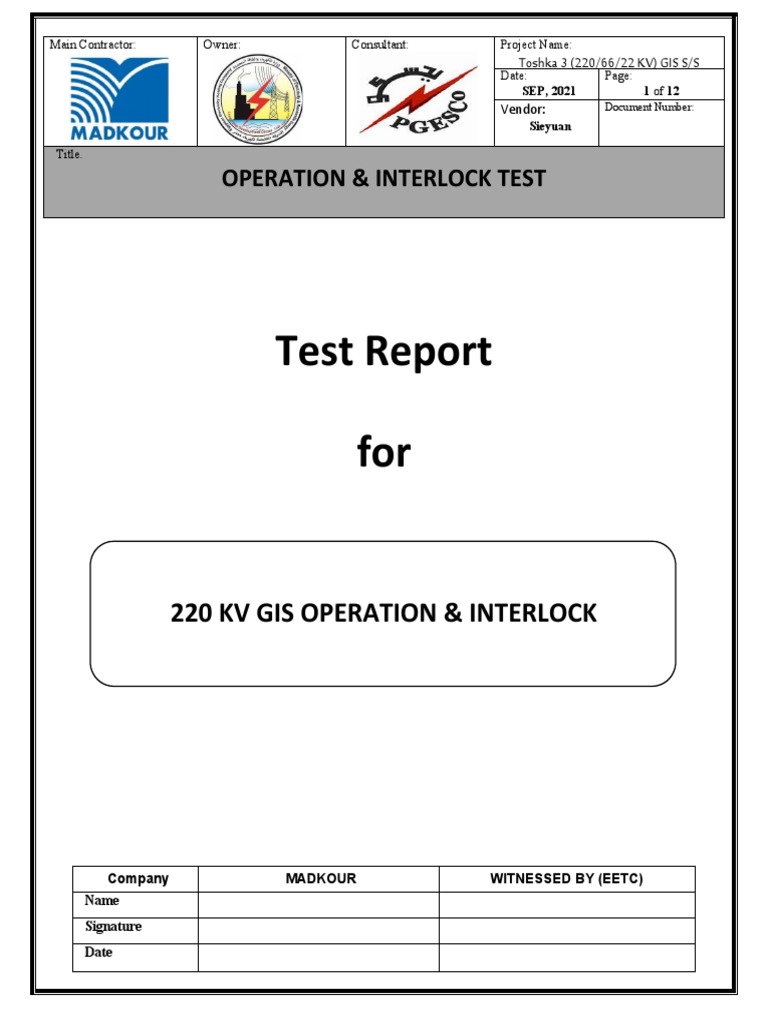

Main Contractor: Owner: Consultant: Project Name:

Toshka 3 (220/66/22 KV) GIS S/S

Date: Page:
SEP, 2021 1 of 12
Vendor: Document Number:
Sieyuan

Title.

OPERATION & INTERLOCK TEST

Test Report

for

220 KV GIS OPERATION & INTERLOCK

Company MADKOUR WITNESSED BY (EETC)

Name
Signature
Date
Main Contractor: Owner: Consultant: Project Name:
Toshka 3 (220/66/22 KV) GIS S/S
Date: Page:
SEP, 2021 2 of 12
Vendor: Document Number:
Sieyuan

Title.

OPERATION & INTERLOCK TEST

W502 (AL ALMAIN-1)

 Test procedure
-Achieve all conditions mentioned in oreder to release the interlock.
-opposite one condition by one to check that the switch is interlocked.

1- CIRCUIT BREAKER (Q0) CLOSE

MAINTENANCE

- Q1 OPEN
- Q2 OPEN
- Q9 OPEN
- Selector Switch (SF01) Local
- CB SF6 gas pressure stage 1 normal
- CB Spring Charged
- All DS/ES in normal position (No incomplete position)
- No double operation from bay itself
- No double operation from other bays
- Lockout Reset
- TCS Healthy

SERVICE
- Q1 CLOSE
- BB-1 PT1 Q11 CLOSED (W505A)
- BB-1 PT1 MCB CLOSED (W505A)
- Line VT MCB CLOSED
- Q9 CLOSE
- Selector Switch (SF01) Local
- CB SF6 gas pressure stage 1 normal
- CB Spring Charged
- All DS/ES in normal position (No incomplete position)
Company MADKOUR WITNESSED BY (EETC)
Name
Signature
Date
Main Contractor: Owner: Consultant: Project Name:
Toshka 3 (220/66/22 KV) GIS S/S
Date: Page:
SEP, 2021 3 of 12
Vendor: Document Number:
Sieyuan

Title.

OPERATION & INTERLOCK TEST

- No double operation from bay itself

- No double operation from other bays
- Lockout Reset
- TCS Healthy
OR
- Q2 CLOSE
- BB-2 PT2 Q21 CLOSED (W505A)
- BB-2 PT2 MCB CLOSED (W505A)
- Line VT MCB CLOSED
- Q9 CLOSE
- Selector Switch (SF01) Local
- CB SF6 gas pressure stage 1 normal
- CB Spring Charged
- All DS/ES in normal position (No incomplete position)
- No double operation from bay itself
- No double operation from other bays
- Lockout Reset
- TCS Healthy

2- CIRCUIT BREAKER (Q0) OPEN

- Selector Switch (SF01) Local

- CB SF6 gas pressure stage 2 normal

Company MADKOUR WITNESSED BY (EETC)

Name
Signature
Date
Main Contractor: Owner: Consultant: Project Name:
Toshka 3 (220/66/22 KV) GIS S/S
Date: Page:
SEP, 2021 4 of 12
Vendor: Document Number:
Sieyuan

Title.

OPERATION & INTERLOCK TEST

3- BUS BAR DISCONNECTOR (Q1) CLOSE/OPEN

MAINTENANCE

- Q31 CLOSE (W505A)

- Q52 CLOSE
- Q0 CLOSE
- Selector Switch (SF01) Local
- DS/ES Motor power supply MCB Closed
- DC Supervision for DS/ES Motor circuit OK
- All DS/ES in normal position (No incomplete position)
- No double operation from bay itself
- No double operation from other bays
- No Run time Exceeded for DS/ES

SERVICE

- Q31 OPEN (W505A)

- Q52 OPEN
- Q51 OPEN
- Q0 OPEN
- Q2 OPEN
- Selector Switch (SF01) Local
- DS/ES Motor power supply MCB Closed
- DC Supervision for DS/ES Motor circuit OK
- All DS/ES in normal position (No incomplete position)
- No double operation from bay itself
- No double operation from other bays
- No Run time Exceeded for DS/ES

Company MADKOUR WITNESSED BY (EETC)

Name
Signature
Date
Main Contractor: Owner: Consultant: Project Name:
Toshka 3 (220/66/22 KV) GIS S/S
Date: Page:
SEP, 2021 5 of 12
Vendor: Document Number:
Sieyuan

Title.

OPERATION & INTERLOCK TEST

BUS TRANSFER

- Q31 OPEN (W505A)

- Q52 OPEN
- Q51 OPEN
- Q0 CLOSED
- Q2 CLOSED
- Q35 CLOSED (W505)
- Q45 CLOSED (W505)
- Q10 CLOSED (W505)
- Q20 CLOSED (W505)
- Q0 CLOSED (W505)
- Selector Switch (SF01) Local
- DS/ES Motor power supply MCB Closed
- DC Supervision for DS/ES Motor circuit OK
- All DS/ES in normal position (No incomplete position)
- No double operation from bay itself
- No double operation from other bays
- No Run time Exceeded for DS/ES

Company MADKOUR WITNESSED BY (EETC)

Name
Signature
Date
Main Contractor: Owner: Consultant: Project Name:
Toshka 3 (220/66/22 KV) GIS S/S
Date: Page:
SEP, 2021 6 of 12
Vendor: Document Number:
Sieyuan

Title.

OPERATION & INTERLOCK TEST

4- BUS BAR DISCONNECTOR (Q2) CLOSE/OPEN

MAINTENANCE

- Q41 CLOSE (W505A)

- Q51 CLOSE
- Selector Switch (SF01) Local
- DS/ES Motor power supply MCB Closed
- DC Supervision for DS/ES Motor circuit OK
- All DS/ES in normal position (No incomplete position)
- No double operation from bay itself
- No double operation from other bays
- No Run time Exceeded for DS/ES

SERVICE

- Q41 OPEN (W505A)

- Q52 OPEN
- Q51 OPEN
- Q0 OPEN
- Q1 OPEN
- Selector Switch (SF01) Local
- DS/ES Motor power supply MCB Closed
- DC Supervision for DS/ES Motor circuit OK
- All DS/ES in normal position (No incomplete position)
- No double operation from bay itself
- No double operation from other bays
- No Run time Exceeded for DS/ES

Company MADKOUR WITNESSED BY (EETC)

Name
Signature
Date
Main Contractor: Owner: Consultant: Project Name:
Toshka 3 (220/66/22 KV) GIS S/S
Date: Page:
SEP, 2021 7 of 12
Vendor: Document Number:
Sieyuan

Title.

OPERATION & INTERLOCK TEST

BUS TRANSFER

- Q41 OPEN (W505A)

- Q52 OPEN
- Q51 OPEN
- Q0 CLOSED
- Q1 CLOSED
- Q35 CLOSED (W505)
- Q45 CLOSED (W505)
- Q10 CLOSED (W505)
- Q20 CLOSED (W505)
- Q0 CLOSED (W505)
- Selector Switch (SF01) Local
- DS/ES Motor power supply MCB Closed
- DC Supervision for DS/ES Motor circuit OK
- All DS/ES in normal position (No incomplete position)
- No double operation from bay itself
- No double operation from other bays
- No Run time Exceeded for DS/ES

Company MADKOUR WITNESSED BY (EETC)

Name
Signature
Date
Main Contractor: Owner: Consultant: Project Name:
Toshka 3 (220/66/22 KV) GIS S/S
Date: Page:
SEP, 2021 8 of 12
Vendor: Document Number:
Sieyuan

Title.

OPERATION & INTERLOCK TEST

5- LINE DISCONNECTOR (Q9) CLOSE/OPEN

MAINTENANCE

- Q8 CLOSE
- Q51 CLOSE
- Selector Switch (SF01) Local
- DS/ES Motor power supply MCB Closed
- DC Supervision for DS/ES Motor circuit OK
- All DS/ES in normal position (No incomplete position)
- No double operation from bay itself
- No double operation from other bays
- No Run time Exceeded for DS/ES

SERVICE

- Q8 OPEN
- Q51 OPEN
- Q52 OPEN
- Q0 OPEN
- Selector Switch (SF01) Local
- DS/ES Motor power supply MCB Closed
- DC Supervision for DS/ES Motor circuit OK
- All DS/ES in normal position (No incomplete position)
- No double operation from bay itself
- No double operation from other bays
- No Run time Exceeded for DS/ES

Company MADKOUR WITNESSED BY (EETC)

Name
Signature
Date
Main Contractor: Owner: Consultant: Project Name:
Toshka 3 (220/66/22 KV) GIS S/S
Date: Page:
SEP, 2021 9 of 12
Vendor: Document Number:
Sieyuan

Title.

OPERATION & INTERLOCK TEST

6- EARTH SWITCH (Q51) CLOSE/OPEN

- Q1 OPEN
- Q2 OPEN
- Q9 OPEN
- Selector Switch (SF01) Local
- DS/ES Motor power supply MCB Closed
- DC Supervision for DS/ES Motor circuit OK
- All DS/ES in normal position (No incomplete position)
- No double operation from bay itself
- No double operation from other bays
- No Run time Exceeded for DS/ES

7- EARTH SWITCH (Q52) CLOSE/OPEN

- Q1 OPEN
- Q2 OPEN
- Q9 OPEN
- Selector Switch (SF01) Local
- DS/ES Motor power supply MCB Closed
- DC Supervision for DS/ES Motor circuit OK
- All DS/ES in normal position (No incomplete position)
- No double operation from bay itself
- No double operation from other bays

Company MADKOUR WITNESSED BY (EETC)

Name
Signature
Date
Main Contractor: Owner: Consultant: Project Name:
Toshka 3 (220/66/22 KV) GIS S/S
Date: Page:
SEP, 2021 10 of 12
Vendor: Document Number:
Sieyuan

Title.

OPERATION & INTERLOCK TEST

- No Run time Exceeded for DS/ES

8- HIGH SPEED EARTH SWITCH (Q8) CLOSE/OPEN

- Q9 OPEN
- LINE VT MCB OK
- NO Voltage in Line
- Selector Switch (SF01) Local
- DS/ES Motor power supply MCB Closed
- DC Supervision for DS/ES Motor circuit OK
- All DS/ES in normal position (No incomplete position)
- No double operation from bay itself
- No double operation from other bays
- No Run time Exceeded for DS/ES

9- DISCONNECTOR (Q37) CLOSE/OPEN

- Q1 OPEN (W502)
- Q1 OPEN (W503)
- Q1 OPEN (W504)
- Q35 OPEN (W505)
- Q31 OPEN (W505A)
- Q61 OPEN
- Selector Switch (SF01) Local
- DS/ES Motor power supply MCB Closed
- DC Supervision for DS/ES Motor circuit OK
- All DS/ES in normal position (No incomplete position)

Company MADKOUR WITNESSED BY (EETC)

Name
Signature
Date
Main Contractor: Owner: Consultant: Project Name:
Toshka 3 (220/66/22 KV) GIS S/S
Date: Page:
SEP, 2021 11 of 12
Vendor: Document Number:
Sieyuan

Title.

OPERATION & INTERLOCK TEST

- No double operation from bay itself

- No double operation from other bays
- No Run time Exceeded for DS/ES

10- DISCONNECTOR (Q47) CLOSE/OPEN

- Q2 OPEN (W502)
- Q2 OPEN (W503)
- Q2 OPEN (W504)
- Q45 OPEN (W505)
- Q41 OPEN (W505A)
- Q71 OPEN
- Selector Switch (SF01) Local
- DS/ES Motor power supply MCB Closed
- DC Supervision for DS/ES Motor circuit OK
- All DS/ES in normal position (No incomplete position)
- No double operation from bay itself
- No double operation from other bays
- No Run time Exceeded for DS/ES

11- EARTH SWITCH (Q61) CLOSE/OPEN

- Q37 OPEN
- Selector Switch (SF01) Local
- DS/ES Motor power supply MCB Closed
- DC Supervision for DS/ES Motor circuit OK

Company MADKOUR WITNESSED BY (EETC)

Name
Signature
Date
Main Contractor: Owner: Consultant: Project Name:
Toshka 3 (220/66/22 KV) GIS S/S
Date: Page:
SEP, 2021 12 of 12
Vendor: Document Number:
Sieyuan

Title.

OPERATION & INTERLOCK TEST

- All DS/ES in normal position (No incomplete position)

- No double operation from bay itself
- No double operation from other bays
- No Run time Exceeded for DS/ES

12- EARTH SWITCH (Q71) CLOSE/OPEN

- Q47 OPEN
- Selector Switch (SF01) Local
- DS/ES Motor power supply MCB Closed
- DC Supervision for DS/ES Motor circuit OK
- All DS/ES in normal position (No incomplete position)
- No double operation from bay itself
- No double operation from other bays
- No Run time Exceeded for DS/ES

Company MADKOUR WITNESSED BY (EETC)

Name
Signature
Date
