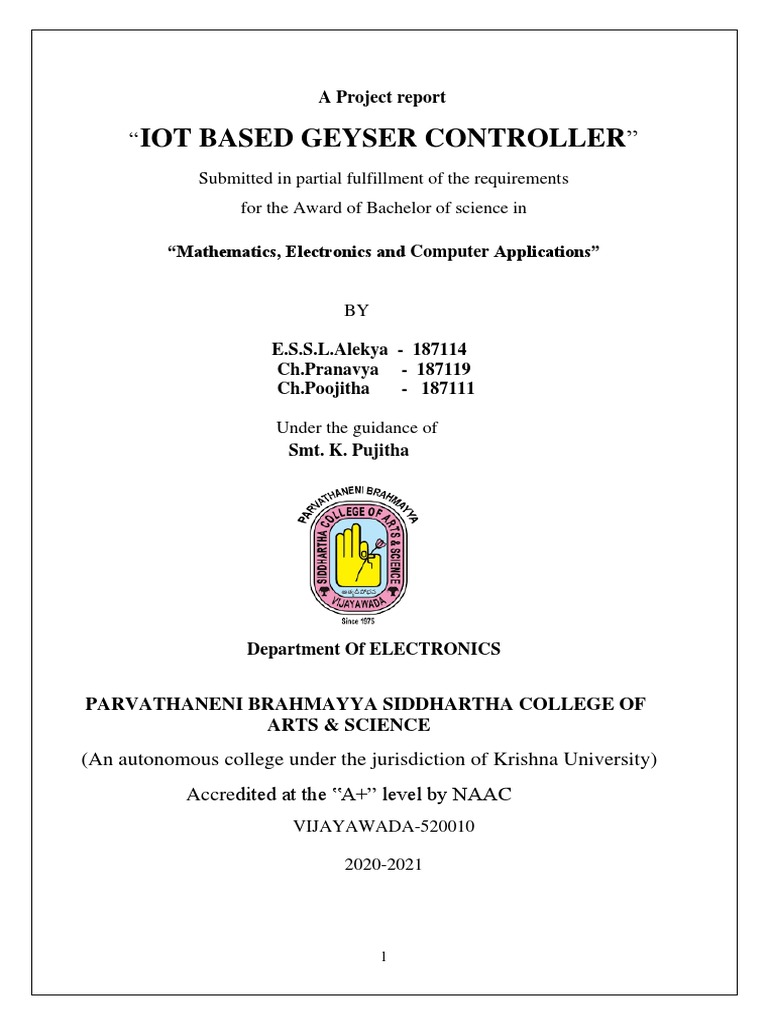

A Project report

“IOT BASED GEYSER CONTROLLER”

Submitted in partial fulfillment of the requirements
for the Award of Bachelor of science in

“Mathematics, Electronics and Computer Applications”

BY

E.S.S.L.Alekya - 187114
Ch.Pranavya - 187119
Ch.Poojitha - 187111

Under the guidance of

Smt. K. Pujitha

Department Of ELECTRONICS

PARVATHANENI BRAHMAYYA SIDDHARTHA COLLEGE OF

ARTS & SCIENCE
(An autonomous college under the jurisdiction of Krishna University)
Accredited at the ‟A+” level by NAAC
VIJAYAWADA-520010

2020-2021

1
PARVATHANENI BRAHMAYYA SIDDHARTHA COLLEGE OF
ARTS & SCIENCE
(An autonomous college under the jurisdiction of Krishna University)
Accredited at the “A+‟ level by NAAC

VIJAYAWADA-520010

2020-2021

DEPARTMENT OF ELECTRONICS

CERTIFICATION

This is to certify that the project entitled

“IOT BASED GEYSER CONTROLLER”

is the benefited work carried by

E.S.S.L.Alekya - 187114
Ch. Pranavya - 187119
Ch.poojitha - 187111

In partial fulfillment for the award of Bachelor of Science in

“Mathematics, Electronics and Computer Applications”

Under the supervision and guidance of Smt. K. Pujitha

(Head of the Department)

2
 CERTIFICATION OF EXAMINATION

This is to certify that we had examined the project title

“IoT based geyser controller”

Carried by

E.S.S.L. Alekya (187114), Ch. Pranavya (187119), Ch. poojitha (187111) are

here by accord our approval of it case a study carried out and presented in a

manner required for its acceptance in partial fulfillment for the award of the

degree of bachelor of sciences for which it has been submitted. This approval

does not necessarily enclose or accept every statement made, opinion

expressed our conclusion drawn as it in report, it only signifies the acceptance

of the report for the purpose for which it is submitted.

INTERNAL EXAMINER EXTERNAL EXAMINER

3
 Acknowledgement

I express my sincere gratitude to our respected SRI D.SRINIVASA REDDY for

his invaluable outstanding guidance and suggestions for this project work. I am
especially thankful to our honorable head of the department
(K.S.V.SAMBA SIVA RAO) for his advice and encouragement.

I also express my heartful sincere thanks to our beloved principal

Dr. K. Bhargavi for her kind co-operation. At last but not least, I would like to
thank all my friends and staff members for their constructive suggestions.

E.S.S.L.ALEKYA - 187114
CH.PRANAVYA - 187119
CH.POOJITHA - 187111

4
 CONTENTS
PAGE NO
Chapter-1 6-10
• Project Title
• Abstract
• Introduction
• Block Diagram

Chapter-2 11-13
• Circuit Diagram
• Components
• Circuit Description

Chapter-3 14-30
• Project Explanation
• Hardware description

Chapter-4 31-36
• Software description
• Sample code

Chapter-5 37-39
• Result
• Conclusion

Appendix 40
• References

5
IOT BASED GEYSER
CONTROLLER

6
ABSTRACT:

o Internet of things (Iot) conceptualizes the idea of remotely connecting and

monitoring real world objects through theinternet.
o When it comes tour house, this concept can be aptly incorporated to make
it smarter , safer andautomated.
o One of the many house hold appliances that consumes quite an amount of
electricity in households, is the electrical geysersystem.
o It forms about 30% to 50% of residential electricity consumption and as a
result,good geyser management can reduce household energy
consumption of about 16%to21%,and this eventually lead to overall load
reduction, nationally and in urban distribution networks.
o Some institutions and scholars have recommended that geysers to be
switched off when household members or owners are travelling on
holiday or going on an extendedtrip.
o To overcome the challenge of some household members forgetting to
switch off their electricalgeysers.
o This IOT project focusses on building a smart geyser controller which
can directly controlled with the mobileapplication.
o This paper presents a novel way to interact with water heater,in which
automated on/off is provided.
o That is accessible through a Wi-Fi hotspotinterface.
o The timer switch presented in this report can be used to start and stop the
electric water heater from the app in your smartphone.
o Node MCU is used as the microcontroller.
o However, IOT based projects prime focus is to provide smart and
seamless services at the user end without any interruption
o so, with this project, you can schedule your water heater to automatically
to switch on/off for a relaxed and personalized bathing experience.
o Thus ,using this household owners are able to remotely switch their
geysers on and off through their mobilephones.

7
INTRODUCTION:

Anyone who says that the Internet has fundamentally changed society may be
right, but at the same time, the greatest transformation actually still lies ahead
of us. With the growing presence of Wi-Fi and 4G-LTE wireless Internet
access, the evolution towards ubiquitous information and communication
networks is already evident.

The problem is, people have limited time, attention and accuracy all of which
means they are not very good at capturing data about things in the real world.
And that's a big deal. If we had controller that knew everything there was to
know about things using data, they gathered without any help from us we
would be able to track and count everything, and greatly reduce waste, loss
and cost. real world.

In this busy world ,the perfect remedy of fatigue, freshness and cleanliness is a
warm water. This project provides a range of automatic smart geyser/heater
that would relax you in seconds by providing warm water with a simple, auto
on/off.

A water heaters and geyser are necessities, especially with the changing
weather conditions. An electric water heater is used in bathrooms during the
cold season for bathing with hot water. A common problem is that when you
wake up in the morning, you need to wait, say 20 minutes, for the electric
heater to sufficiently heat the cold water. One possible solution to this problem
is using a timerswitch.

An IOT based smart geyser is best. In this project, we propose a geyser

connected with IOT where we make use of blynk app.

8
In this project, we have a geyser which is connected to IOT, where we can set
the time in advance, once the value is attained, the relay switches OFF the
geyser & we can control via blynk application. when connected with a blynk
application presented in the user’s mobile can be operated from any part of the
world by the user.

Schedule your water heater to automatically switch on and off every day.
once the time is set, the advanced water heater will operate automatically.

However, this project helps with the time, energy, less power
consumption. As it is safe , you need not worry about it .

9
 BLOCK DIAGRAM:

Cold
water

Powe Heate
r Node Rela
MCU r
Suppl y
Suppl
y y

Hot
water

Blynk App

Wi-Fi

Mobile

10
CIRCUIT DIAGRAM:

11
COMPONENTS:

HARDWARE:

Node MCU ESP8266 Wi-Fi

module Relay module
Power supply
Capacitor
Inductor
Heater
Bread board
Connecting
wires Cables

SOFTWARE:

Blynk application

12
CIRCUIT DESCRIPTION:

The above circuit diagram shows the circuit for IOT based geyser switch
controller.it comprises of Node MCU, relay , heater supply, as main
components. Miscellaneous components like 5v power supply, a 10uf
capacitor, a coil, cable, connectors, and some wires. Node MCU is used as a
microcontroller (MCU). The circuit also has 5V voltage regulator for powering
Node MCU. A 5V relay module is used to switch on and off the water heater. A
capacitor 10 UF is taken for blocking direct current while allowing alternating
current to pass. In analog circuit, they smooth out the power supplies. A coil is
placed in the circuit to produce magnetic field or to provide electrical resistance
or inductance. Node MCU is an open source IOT platform that includes
firmware that runs on ESP8266 Wi fiModule.
First, the positive terminal of source is connected to Vin of the Node MCU.
The negative terminal of the source is connected to the negative terminal/
ground terminal of the relay and Node MCU. The VCC terminal of relay is
connected to the positive terminal of source. one side of capacitor that is, the
anode of the capacitor is connected to the source positive terminal and relay
VCC terminal. The other side of capacitor, that is, the cathode terminal of the
capacitor is connected to the node MCU negative pin and relay negative pin.
Next, the IN terminal of the relay is connected to the D4 pin in the node MCU.
The one side of the coil is connected to the NO terminal of the relay and the
other side of the coil is connected to the heater supply. The COM terminal of
the relay is connected to the heatersupply.
The above circuit description is all about thehardware.
Coming to software, the IOT platform can be accessed using blynk app on
iOS and android devices. The total hardware is connected to the mobile using
connectors and cable.
In the blynk app there are widgets in which we can set timer to the
particular time. This will be done with the help of internet.

13
PROJECT EXPLANATION:

Even though we still have no flying cars, some of the fantasies people used
to have about life in the XXI century has already become a reality. One of
the examples is smart homes that are full of devices automatizing our
everyday routine. It is estimated that 10% of households all over the world
will be smart by 2025 — all with the help of IoT. The home can be called
smart when it has a range of smart devices that you can control remotely
by setting them the way you like to automatize house maintenance. They
can also be united into one network. Using this smart technology, we are
designing our project that is, iot based geyser controller. This project can
help mostly the old people, sick people and disabled people who have
difficult in walking and wish to have controller in their hand. Not only for
these types of people , but also for
today’s busy people it will be helpful.
As already seen in the circuit description how components are connected,
here we see its working process. This circuit will not only switch it on and
off but also it will send you a status notification. Today, we are going to
build a IoT based Timer Switch for geyser using Blynk and Node MCU
which switches ON/OFF at times which we set in blynk App. You can build
this project on a breadboard to connect it . The relay module will switch
on/off the devices connected to it. Relay are connected to D4 pin of Node
MCU.
Setting up a Blynk Project
Download the Blynk App from below links as per the platform you are using
• Android
• iOS
Widgets and theiruses
Notification Widget: This widget is used to send notifications as
per the execution ofaction.
Eventor Widget: This widget is used to schedule event or actions. Here you
have to mention date, time and day. Along with action need to be taken.
This is a kind ofscheduler.
LED Widget: This is used to indicate the current status of devices i.e.
switched on or off.
Button Widget: For switching the devices manually.
ForsOFTWAre:
Now let’s setup a Blynk project,

14
 Tap on NewProject

 Enter the name of the project as you like. Choose the device node MCU.
Tap on create.

15
 Auth token will be sent on your registered email address.

 Tap on the highlighted icon below to get the widgetlist.

 Select 2 Button widget. You can choose Styled Button aswell

16
 Now scroll down and select 2 LED widget.

 Now add a notification widget.

 Tap on Event or widget. This widget will work as a timer.

17
 Now place the widgets properly by selecting and dragging them.

 Now Tap on Event or widget to configure it. Tap on ADD NEW

EVENT

 Tap on Time and select the time at which it will trigger.

18
  The time is in 24Hrs format. You can select the time zone
accordingly. Tap on Set theTime.

 Now we are going to select the action. So here we will be turning onthe pin.
Tap on turn ON pin.

 Select the pin. This refers to the pin connected to relay with Node MCU.

19
 Now we will set send notification message. This message will trigger
when action is taken as per scheduledtime.

D4

 Here we have added a message Device 1ON

D4

 We have added on event and in similar way we can add event to turn off the
Device1

20
 Configure as shown below to turn off Device1

 For LED widget select V1 as virtual pin

 For buttons below are the configurations

21
Coding the Node MCU

Before uploading the code, make sure you have pasted the Auth Token. Also
make sure to update your WIFI network details. After connecting all the
components and setting up the blynk project, it’s time to test the project. Once
your hardware is connected with internet, it will also reflect in blynk app. Now
you can use button widget to control device manually. You can also schedule
repetitive task and get notified on switching on or off. When you click on Play
in Blynk app, the timer will start. When the timer reaches the pre-determined or
set time, as defined in the app, it will automatically start. The relay will get
energized, and the heater will be switched on. And after the stop time, the relay
will get de-energized and the heater will be switched off. Now, the project is
ready to use.

22
HARDWARE DESCRIPTION:

NODE MCU: It is very popular in home Automation. Its Wi-Fi capabilities

and Arduino IDE support making it easier for IoT Applications. It is very tiny
and has many digital I/O pins, Serial Communication and 12c Communication.
Node MCU has a micro-USB port to program it using your existing mobile
cable (no additional programmer needed). There is a successor called ESP32
Development board which has more Analog pins and digital pins. You can use
any one of them for this project according to your requirements. Here we will
be using Node MCU.

23
Power Pins:There are four power pins. VIN pin and three 3.3V pins.
▪ VIN can be used to directly supply the Node MCU /
ESP8266 and its peripherals. Powerdelivered
on VIN is regulated through the onboard regulator on the
Node MCU module – you can also supply 5V regulated to
the VIN pin
▪ 3.3V pins are the output of the onboard voltage regulator
and can be used to supply power to external components.

Gnd:The ground pins of Node MCU/ESP8266

I2C Pins:are
used to connect I2C sensors and peripherals. Both I2C Master and
I2C Slave are supported. I2C interface functionality can be realized
programmatically, and the clock frequency is 100 kHz at a maximum. It should
be noted that I2C clock frequency should be higher than the slowest clock
frequency of the slave device.
GPIO Pins:Node MCU/ESP8266 has 17 GPIO pins which can be assigned to
functions such as I2C, I2S, UART, PWM, IR Remote Control, LED Light and
Button programmatically. Each digital enabled GPIO can be configured to
internal pull-up or pull-down, or set to high impedance.
When configured as an input, it can also be set to edge-trigger or level- trigger
to generate CPU interrupts.

ADC Channel:The Node MCU is embedded with a 10-bit precision SAR ADC.
The two functions can be implemented using ADC. Testing power supply
voltage of VDD3P3 pin and testing input voltage of TOUT pin.
However, they cannot be implemented at the same time.

UART Pins:Node MCU/ESP8266 has 2 UART interfaces (UART0 and UART1)

which provide asynchronous communication (RS232 and RS485), and can
communicate at up to 4.5 Mbps. UART0 (TXD0, RXD0, RST0 & CTS0 pins)
can be used for communication. However, UART1 (TXD1 pin) features only
data transmit signal so, it is usually used for printing log.

24
SPI Pins:Node
MCU/ESP8266 features two SPIs (SPI and HSPI) in slave and
master modes. These SPIs also support the following general- purpose SPI
features:
▪ 4 timing modes of the SPI formattransfer
▪ Up to 80 MHz and the divided clocks of 80MHz
▪ Up to 64-ByteFIFO

SDIO Pins:Node MCU/ESP8266 features Secure Digital Input/Output

Interface (SDIO) which is used to directly interface SD cards. 4-bit 25 MHz
SDIO v1.1 and 4-bit 50 MHz SDIO v2.0 are supported.

PWM Pins:The board has 4 channels of Pulse Width Modulation (PWM). The
PWM output can be implemented programmatically and used for driving
digital motors and LEDs. PWM frequency range is adjustable from 1000 μs
to 10000 μs (100 Hz and 1kHz).

Control Pins:are
used to control the Node MCU/ESP8266. These pins
include Chip Enable pin (EN), Reset pin (RST) and WAKE pin.
▪ EN: The ESP8266 chip is enabled when EN pin is
pulled HIGH. When pulled LOW the chip works at
minimumpower.
▪ RST: RST pin is used to reset the ESP8266chip.
▪ WAKE: Wake pin is used to wake the chip from deep-
sleep.

Control Pins are used to control the Node MCU/ESP8266. These pins
include Chip Enable pin (EN), Reset pin (RST) and WAKE pin.
▪ EN: The ESP8266 chip is enabled when EN pin is
pulled HIGH. When pulled LOW the chip works at
minimumpower.
▪ RST: RST pin is used to reset the ESP8266chip.
▪ WAKE: Wake pin is used to wake the chip from deep-
sleep.
RELAY: A relay is an electrically operated switch. It consists of a set
of input terminals for a single or multiple control signals, and a set of
operating contact terminals. The switch may have any number of contacts in
multiple contact forms, such as make contacts, break

25
contacts, or combinations thereof. This is a channel 5V relay module. It
operates on 5 VDC. This relay module is not opto-isolated. so, the relay and
signal both operate from a single power source. The input of relay comprises
of vin, gnd, vcc. The output of relay comprises of NC, COM, NO. Relays are
simple devices that allow an easy way for logic-level power to control very
high-powered devices. Adding some relays to items in your home can quickly
automate an entire room full of lamps and lights and bring excitement to your
Internet of Everything connected home!

ELECTRIC BATTERY:A battery is a power source consisting of one or more

electro chemical cells with external connections for powering electrical devices
such as flashlights, mobile phones, and electric cars. When a battery is
supplying electric power, its positive terminal is the cathode and its negative
terminal is the anode. Although the term battery, in strict usage, designates an
assembly of two or more galvanic cells capable of such energy conversion, it is
commonly applied to a single cell of this kind.

26
 CAPACITOR:
The capacitor is a device in which electrical energy can be stored. It is an
arrangement of two-conductor generally carrying charges of equal magnitudes
and opposite sign and separated by an insulating medium. The non-conductive
region can either be an electric insulator or vacuum such as glass, paper, air or
semi-conductor called as a dielectric.
Capacitor vary in shape and size, they have many important applications in
electronics.
Capacitors are used for
• Storing electric potential energy such as batteries.
• Filtering out unwanted frequency signals
• Delaying voltage changes when coupled with resistors.
• Used as a sensing device.
• Used in the audio system of the vehicle.
• Used to separate AC and DC.

Coil: Coil, in an electric circuit, one or more turns, usually roughly circular
or cylindrical, of current-carrying wire designed to produce a magnetic
field or to provide electrical resistance or inductance; in the latter case, a coil is
also called a choke coil (see also inductance). A soft iron core placed within a coil
produces an electromagnet. A cylindrical coil that moves a plunger within it by
variations in the current through the coil is known as a solenoid.

27
A coil may refer to any of the following:
1. Short for electromagnetic coil, a coil is conducting wire such as copper
shaped in a helical form around an iron core. The coil creates an inductor or
electromagnet to store magnetic energy. Coils are often used to remove power
spikes and dips frompower.
2. A coil can also refer to a spring.

BREAD BOARD:
A breadboard is a widely used too l to design and test circuit.You do not need
to solder wires and components to make a circuit while using a bread board.It is
easier to mount components & reuse them. Since, components are not soldered
you can change your circuit design at any point without any hassle. It consists of
an array of conductive metal clips encased in a box made of white ABS plastic,
where each clip is insulated with another clips. There are a number of holes on
the plastic box, arranged in a particular fashion. A typical bread board layout
consists of two types of regional so called strips. Bus strips and socket strips.
Bus strips are usually used to provide power supply to the circuit. It consists of
two columns, one for power voltage and other for ground.
Socket strips are used to hold most of the components in a circuit. Generally
it consists of two sections each with 5 rows and 64 columns. Every column is
electrically connected from inside.
A breadboard is a circuit which if of a temporary nature used for the
purpose of testing and prototyping circuits. It is easy to prototype circuits
with the help of breadboards because it is fast and easy.

28
Breadboards are generally used to test circuits. As this device have holes in it.

CABLES, CONNECTING WIRES: An electrical cable is an assembly of one or

more wires running side by side or bundled, which is used to carry electric
current. A cable assembly is the composition ofone or more electrical cables
and their corresponding connectors. Electrical cables are used to connect two or
more devices, enabling the transfer of electrical signals or power from one
device to the other. Cables are used for a wide range of purposes, and each must
be tailored for that purpose.

Connectors plays a very important role in electronics equipment and projects.

Usage of right connector for right application is paramount. Not only it plays an
important role in safety, but also in PCB and product manufacturing to produce
efficient and cost effective products.

29
Electronics wire is a type of wire is
normally thought of as being a single
wire covered in some form of
insulation. It is normally used for point
to point connections, or a variety of
wires may be used for different
connections. Under these
circumstances the wires may be
bundled together in a wiring loom.

30
SOFTWARE DESCRIPTION:

BLYNKAPP: Blynk is an “Internet of Things”(IoT) platform that allows you

to build your own apps to control certain devices over the internet. Blynk has
clearly established itself as the leading player for building IoT apps, so yes –
if you’re interested in this area and have a compatible device you should
absolutely download the app and give it whirl.

Blynk was designed for the Internet of Things. It can control hardware
remotely, it can display sensor data, it can store data, visualize it and do many
other cool things.

There are three major components in the platform:

• Blynk App - allows to you create amazing interfaces for your projects
using various widgets we provide.

31
 Blynk Server - responsible for all the communications between the smart
phone and hardware. You can use our Blynk Cloud or run your private
Blynk server locally. It’s open-source, could easily handle thousands of
devices and can even be launched on a RaspberryPi.
• Blynk Libraries - for all the popular hardware platforms - enable
communication with the server and process all the incoming and outcoming
commands whirl.

Features
Similar API & UI for all supported hardware & devices
Connection to the cloud using:
Wi-Fi
Bluetooth and
BLE Ethernet
USB
(Serial)
GSM
…
Set of easy-to-use Widgets

32
Direct pin manipulation with no code writing
Easy to integrate and add new functionality using virtual pins History
data monitoring via Super Chart widget Device-to-Device
communication using Bridge Widget
Sending emails, tweets, push notifications, etc.
… new features are constantly added!

Control of multiple devices

Blynk app has support of multiple devices. That means you can assign any
widget to specific device with own auth token.

33
SAMPLE CODE:
/* Comment this out to disable prints and save space */
#define BLYNK_PRINT Serial
#include <ESP8266WiFi.h>
#include <BlynkSimpleEsp8266.h>
#include <Servo.h>

int pill1, pill2, pill3, pill4;

#define sensPin1 D1 //D1

#define sensPin2 D2 //D2
#define sensPin3 D5 //D5
#define sensPin4 D6 //D6

const int buz = 3; //RX

int flag = 1;
int state1 = 0;

// You should get Auth Token in the Blynk App.

// Go to the Project Settings (nut icon).
char auth[] = "Q1gXZGPcpJQIIlW--lXyZ8hdh3ExlTw9";

// Your WiFi credentials.

// Set password to "" for open networks.
char ssid[] = "JagaJeeth Reddy";
char pass[] = "143256123465";

Servo myservo1;
Servo myservo2;
Servo myservo3;
Servo myservo4;

BLYNK_WRITE(V1) {
pill1 = param[0].asInt();
}

BLYNK_WRITE(V2) {
pill2 = param[0].asInt();
}

BLYNK_WRITE(V3) {
pill3 = param[0].asInt();
}

BLYNK_WRITE(V4) {
pill4 = param[0].asInt();
}
34
void setup()
{
// Debug console
Serial.begin(9600);
Blynk.begin(auth, ssid, pass);

pinMode(sensPin1, INPUT_PULLUP);
pinMode(buz, OUTPUT);
digitalWrite(buz, LOW);

myservo1.attach(16); //D0
myservo2.attach(0); //D3
myservo3.attach(2); //D4
myservo4.attach(13); //D7

myservo1.write(0);
}

void loop()
{
Blynk.run();
if (pill1 == 1 && flag == 1)
{
flag = 0;
Serial.println("Recev..");
myservo1.write(90);
digitalWrite(buz, HIGH);
}
if (digitalRead(sensPin1) == LOW && flag == 0)
{
Blynk.virtualWrite(V1, 0);
Blynk.syncVirtual(V1);
flag = 1;
myservo1.write(0);
digitalWrite(buz, LOW);
Serial.println("End..");
}
//sensPin2
if (pill2 == 1 && flag == 1)
{
flag = 0;
Serial.println("Recev..");
myservo2.write(90);
digitalWrite(buz, HIGH);
}
if (digitalRead(sensPin2) == LOW && flag == 0)
{

35
 Blynk.virtualWrite(V2, 0);
Blynk.syncVirtual(V2);
flag = 1;
myservo2.write(0);
digitalWrite(buz, LOW);
Serial.println("End..");
}
//sensPin3
if (pill3 == 1 && flag == 1)
{
flag = 0;
Serial.println("Recev..");
myservo3.write(90);
digitalWrite(buz, HIGH);
}
if (digitalRead(sensPin3) == LOW && flag == 0)
{
Blynk.virtualWrite(V3, 0);
Blynk.syncVirtual(V3);
flag = 1;
myservo3.write(0);
digitalWrite(buz, LOW);
Serial.println("End..");
}
//sensPin4
if (pill4 == 1 && flag == 1)
{
flag = 0;
Serial.println("Recev..");
myservo4.write(90);
digitalWrite(buz, HIGH);
}
if (digitalRead(sensPin4) == LOW && flag == 0)
{
Blynk.virtualWrite(V4, 0);
Blynk.syncVirtual(V4);
flag = 1;
myservo4.write(0);
digitalWrite(buz, LOW);
Serial.println("End..");
}
}

36
RESULT:

According to the picture geyser starts working when the timer starts by
indicating with led light and water starts heating and the system stops
automatically after completion of time.

37
From the above figure system got stopped after completion of time. In this
way the ‘IOT BASED GEYSER CONTROLLER’ works.

38
CONCLUSION:

In this project, we have successfully designed and implemented a “IOT BASED

GEYSER CONTROLLER”. This project is implemented by interfacing the
geyser with the user’s mobile phone by using blynk application to operate the
geyser and set the threshold point that the water needed to be heated according to
the user’s need. The main objective of our project is to save electricity and to
make exact heating of water has been done successfully. When compared to the
existing, this is way far better because the older one has only approximation
ON/OFF. The cost is efficient and the IOT is an easily accesible one and it widely
used one around the globe, so we preferred IOT for this project.

The future enhancement of this project is that we can use this concept of reading
the temperature for industrial purposes mainly in power plants so that we can save
a huge amount of money, work , production if there is a damage of power plant
equipments due overheating. This can be as a cause for major revolution in the
household appliance because of the fast moving world as people want everything
as automated and done quickly this can be a best suited one for all users and for
their needs.

39
REFERENCES:

For the Components Google webpage

References for the Project Electronicsforu
www.ijisert.com

40
