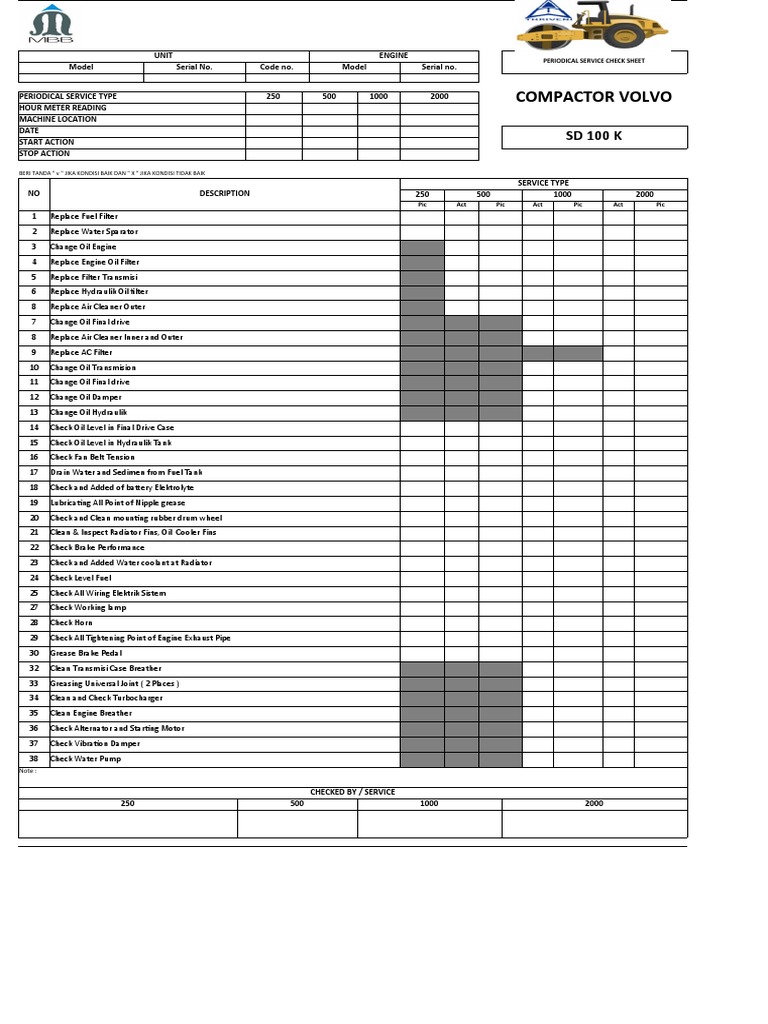

PSCS

UNIT ENGINE
PERIODICAL SERVICE CHECK SHEET
Model Serial No. Code no. Model Serial no.

PERIODICAL SERVICE TYPE

HOUR METER READING
250 500 1000 2000 COMPACTOR VOLVO
MACHINE LOCATION
DATE
START ACTION SD 100 K
STOP ACTION

BERI TANDA " v " JIKA KONDISI BAIK DAN " X " JIKA KONDISI TIDAK BAIK
SERVICE TYPE
NO DESCRIPTION 250 500 1000 2000
Pic Act Pic Act Pic Act Pic
1 Replace Fuel Filter
2 Replace Water Sparator
3 Change Oil Engine
4 Replace Engine Oil Filter
5 Replace Filter Transmisi
6 Replace Hydraulik Oil filter
8 Replace Air Cleaner Outer
7 Change Oil Final drive
8 Replace Air Cleaner Inner and Outer
9 Replace AC Filter
10 Change Oil Transmision
11 Change Oil Final drive
12 Change Oil Damper
13 Change Oil Hydraulik
14 Check Oil Level in Final Drive Case
15 Check Oil Level in Hydraulik Tank
16 Check Fan Belt Tension
17 Drain Water and Sedimen from Fuel Tank
18 Check and Added of battery Elektrolyte
19 Lubricating All Point of Nipple grease
20 Check and Clean mounting rubber drum wheel
21 Clean & Inspect Radiator Fins, Oil Cooler Fins
22 Check Brake Performance
23 Check and Added Water coolant at Radiator
24 Check Level Fuel
25 Check All Wiring Elektrik Sistem
27 Check Working lamp
28 Check Horn
29 Check All Tightening Point of Engine Exhaust Pipe
30 Grease Brake Pedal
32 Clean Transmisi Case Breather
33 Greasing Universal Joint ( 2 Places )
34 Clean and Check Turbocharger
35 Clean Engine Breather
36 Check Alternator and Starting Motor
37 Check Vibration Damper
38 Check Water Pump
Note :

CHECKED BY / SERVICE
250 500 1000 2000
 INSPECTION SHEET COMPACTOR

SD 100 K

UNIT NO MODEL SMU DATE

CONDITION
Job Description OK NOT OK
ENGINE
Periksa kebocoran air (Check for water leaks)
Periksa kebocoran oli sekitar engine (Check for oil leaks around engine)
Periksa kebocoran sistem fuel (Check for fuel system leaks)
Periksa kondisi hose dan clamp (Check for conditions of hoses and clamps, replace when required)
Periksa ketegangan kondisi V-belt (Check tension and condtion of v-belt)
Periksa core radiator (Inspect radiator core)
Periksa bearing kipas dan pulley yang longgar (Inspect fan and pulley bearings for looseness)
Periksa kekencangan baut kedudukan mesin (Check engine mount bolts are tight)
Periksa sambungan sistem knalpot yang bocor (Inspect exhaust system joints for leaks)
Periksa sistem udara masuk yang bocor (Inspect air induction system for leaks)
Periksa level indikator saringan udara (Check air filter indicator level)
POWER TRAIN
Periksa transmisi untuk bocor oli (Check transmission for oil leaks)
Periksa kebocoran pada differential depan dan belakang (Inspect diff front and rear under machine for leaks)
Periksa kondisi propeler shaft & universal depan (Check condition front driveline)
Periksa kondisi propeler shaft & universal belakang (Check condition rear driveline)
Periksa wheel hubs untuk bocor oli (Check wheel hubs for oil leaks)
BRAKES, HYDRAULIC,STEERING & FRAME
Periksa kebocoran sistem rem (Check brake system for leaks)
Periksa rem service/parking berfungsi (Check service/parking brake working properly)
Periksa kebocoran hidrolik sistem (Inspect the hyd system for leaks )
Periksa kondisi hose dan clamp hidrolik ( Check for hoses and clamps of hydraulic)
Periksa kondisi hidrolic silinder dan rod (Check for hydraulic cylinder and rod condition)
Periksa dan bersihkan kotoran di sekitar articulation (Inspect and remove dirty and trash in the articulation area)
Periksa bearing dan pin articulation (Check articulations bearing and pins)
Periksa kerusakan & keausan pada compactor drum (Inspect the compactor drum for damage or excessive wear)
Periksa system kemudi bekerja normal (Check streering system working properly)
Periksa kondisi penghubung kemudi (Check condition of steering linkages)
Periksa kondisi kontrol hidrolik (Check condition of hydraulic control linkages)
Periksa rangka utama yang retak (Check main frame for cracks)
Periksa kebocoran air system (Check air system for leaks)*If equipped
CABIN AND GENERAL
Periksa kerusakan secara umum pada kabin (Check any defects generally on the cabin)
Perisa kondisi tempat duduk operator (Check condition operator seat)
Pastikan tali sabuk pengaman dalam kondisi bagus (Ensure seatbelt starps in good order)
Periksa Kondisi Kursi Operator (Check condition of operator seat)
Periksa Kondisi Lampu (Check condition of the lights)
SAFETY CHECK AND GENERAL
Periksa semua petunjuk safety tersedia & jelas (Check if safety sign are fitted & clear)
Periksa kondisi dan isi pemadam api (Check condition and insert of fire extinguisher)
Periksa tangga untuk naik operator (Inspect ladder for damaged)
Periksa mesin/transmissi yang panas untuk sampah (Inspect engine/transmission hot areas for rags)
Periksa semua tutup & pengaman ada dan lengkap (Check that all guards and covers are in place and secure)
Periksa kondisi ROPS (Inspect condition of ROPS)

STATUS
ITEM DEFECT
OK KWB
Mechanics Name/Signature: Mech. Sup'v
Date: Date:
 FORM CHECK BATTERY

CODE UNIT CO - 01 BRAND VOLVO

TYPE UNIT VOLVO DS 100 K LOCATION

DATE HM / KM

MANUFACTURER PART NO / CODE AMPERE

TYPE BATTERY QTY BATTERY VOLTAGE

TERMINAL BATTERY 1 2 CONDITION ELECTROLYTE

+ - + -
GOOD / BAD
LOW LEVEL

CABLE BATTERY 1 2 OVER LITTER

ADD

+ - + -
GOOD / BAD
COVER BATTERY

CORRECTION ACTION :

DATE :

CHECK BY APPROVED BY APPROVED BY

( ___________________ ) ( ___________________ )

( ___________________ ) ( ___________________ )
MECHANIC / FOREMAN SUPERVISOR PLANT DEPT.HEAD PLANT
 WHEEL INSPECTION SHEET
UNIT NO. __________________ MODEL: _______________ DATE:_______________
SMU: KM :

PASANG 'OUT OF SERVICE' , 'DANGER TAG' DAN 'GANJAL BAN' ( Install 'out of service', 'Danger Tags' & 'Wheel Chock' )

RIM PRESSURE CONDITION VALVE CAP

TREAD
POS. TYRE SIZE /PLY BRAND Tyre SERIAL No. BRANDIN PATTERN TYPE ada P REMARKS
DEPTH ACTUAL ADJUST HOT COLD
G NO. kosong X

1 /
2 /
3 /
4 /
5 /
6 /
7 /
8 /
9 /
10 /
11 /
12 /
CONDITION P
JOB DESCRIPTION REMARKS
BAGUS JELEK
13 Periksa kondisi rim (Check condition rim)
R Base Rim
R Flange
R Lock Ring
14 Periksa kondisi valve dan valve cap (Check condition valve and and valve cap)
15 Periksa kondisi tempat pasangan valve (Check condition of valve bracket) Harus ada tulis LUAR dan DALAM de tempat bracket.
16 Periksa kondisi baut dan mur (Check condition bolt and nut)
17 Periksa kondisi rock ejector: lurus / bengkok / tipis (check rock ejector condition: straight / bended / worn out)
18 Periksa kondisi valve extension safety cover untuk ban posisi 4 dan 5 (kalau penyok harus di ganti)

Nama & Tanda Tangan Nama & Tanda Tangan

TYREMAN TYRE SUPERVISOR

 SCHEDULED BREAKDOWN UNITS

JOB DONE DESCRIBTION

BACK LOG AND PENDING JOB DESCRIBTION

REQUIRED PARTS

NO PART NUMBER DESCRIPTION QTY REMARKS

Service. Name/Signature Service. Sup'v

Mech. Name/Signature Mech. Sup'v

Elect. Name/Signature Elect. Sup'v

Note: Date :
KWB : Known Work Book
PRF : Part Recommended Form
N/A : Not Available
