2 System Specifications

SYSTEM SPECIFICATIONS

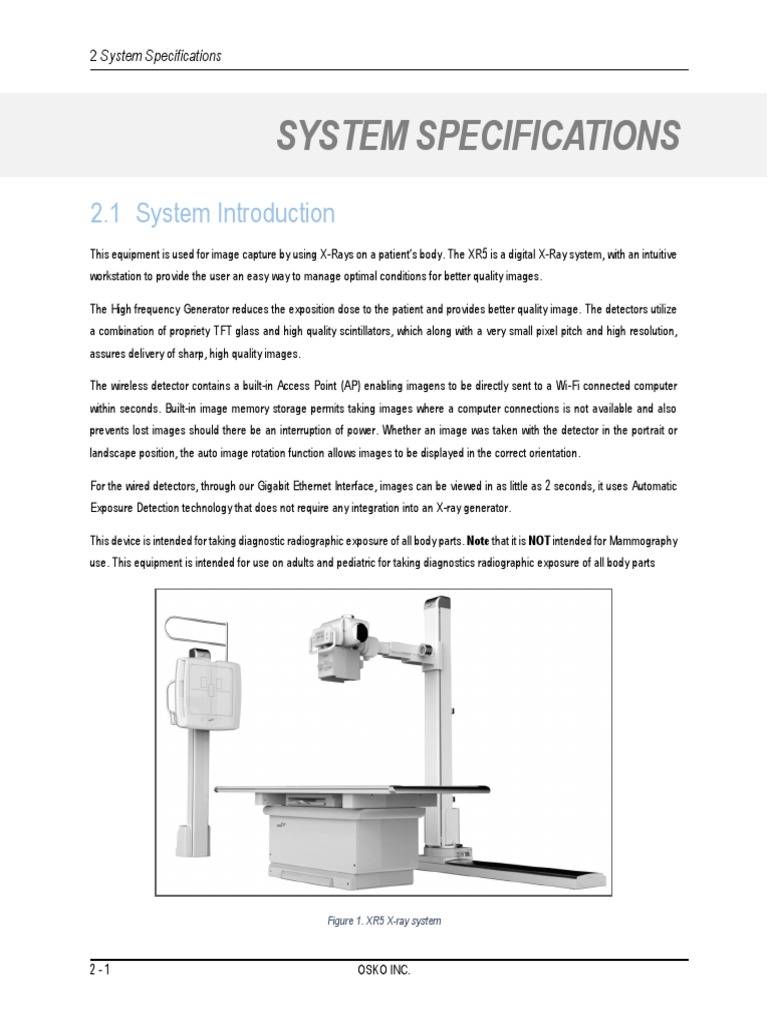

2.1 System Introduction
This equipment is used for image capture by using X-Rays on a patient’s body. The XR5 is a digital X-Ray system, with an intuitive
workstation to provide the user an easy way to manage optimal conditions for better quality images.

The High frequency Generator reduces the exposition dose to the patient and provides better quality image. The detectors utilize
a combination of propriety TFT glass and high quality scintillators, which along with a very small pixel pitch and high resolution,
assures delivery of sharp, high quality images.

The wireless detector contains a built-in Access Point (AP) enabling imagens to be directly sent to a Wi-Fi connected computer
within seconds. Built-in image memory storage permits taking images where a computer connections is not available and also
prevents lost images should there be an interruption of power. Whether an image was taken with the detector in the portrait or
landscape position, the auto image rotation function allows images to be displayed in the correct orientation.

For the wired detectors, through our Gigabit Ethernet Interface, images can be viewed in as little as 2 seconds, it uses Automatic
Exposure Detection technology that does not require any integration into an X-ray generator.

This device is intended for taking diagnostic radiographic exposure of all body parts. Note that it is NOT intended for Mammography
use. This equipment is intended for use on adults and pediatric for taking diagnostics radiographic exposure of all body parts

Figure 1. XR5 X-ray system

2-1 OSKO INC.

2 System Specifications

2.2 System Configuration

• X-ray room components

Generator Cabinet

Tube Head

Bucky (Detector)

Tube Stand
Wall Bucky Stand

Patient Table

Rail

Control Room

Bucky (Detector)

Figure 2. Room Components Distribution

OSKO INC. 2-2

2 System Specifications

• Control room components

Monitor
Workstation

Figure 3. Workstation

Mini Console

Hand Switch

Figure 4. Mini console

2-3 OSKO INC.

2.3 System Block Diagram

Figure 5. XR5 block Diagram

2 System Specifications

2.4 System Specifications

FLOOR MOUNTED TUBE STAND
Specification Value Units
Rail length 2316 (91”) mm (Inches)
Tube Stand L/R Travel 2000 (78.70”) mm (Inches)
Tube Head F/B Travel ±120 (± 4.72”) mm (Inches)
Tube U/D Travel 1480 (58.20”) mm (Inches)
Tube Head Rotation ±135° Degrees
Tube Stand Rotation ±90° Degrees
Movement Method Manual (Electromagnetic breakers) -
OP Panel Type LCD (Touch screen) -
OP Panel Size 108 (4.25”) mm (Inches)
Tube Head Min. Height 400 (15.75”) mm (Inches)
Tube Head Max. Height 1890 (74.40”) mm (Inches)
Tube Stand Height 1940 (76.30”) mm (Inches)
Input power 24 V (3 A) VAC

Figure 6. Rail & Tube Stand

2-5 OSKO INC.

2 System Specifications

Units: mm (Inch)

Figure 7. Rail & Tube stand Specifications

OSKO INC. 2-6

2 System Specifications

PATIENT TABLE
Specification Value Units
Type 4 Way Movement 6 Way Movement -
Dimensions 2200 X 806 2200 X 806 mm (L x W)
Vertical Movement Range 655 (25.80) fixed 515 – 815 (20.30 – 32) mm
Table Bucky Movement 700 (27.50) 700 (27.50) mm (Inches)
Longitudinal Movement 580 (22.80) 580 (22.80) mm (Inches)
Transversal Movement 210 (8.26) 210 (8.26) mm (Inches)
Load Capacity 250 (551) 300 (661) Kg (lb)
Input Power 110 V or 220 V 110 V or 220 V VAC

Figure 8. 4-Way Table

Figure 9. 6-Way Table

2-7 OSKO INC.

2 System Specifications

Units: mm (Inch)

Figure 10. 4-Way Table Specifications

Figure 11. 6-Way Table Specifications

OSKO INC. 2-8

2 System Specifications

WALL BUCKY STAND

Specification Value Units
Bucky Min. height 400 (15.74) mm (Inches)
Bucky Max. Height 1890 (74.40) mm (Inches)
Movement Range 1490 (58.66) mm (Inches)
Input Power 24 V, 1 A VDC
Movement Type Manual, Electromagnetic breakers -
Accessories Handgrip Support -

Figure 12. Wall Stand

2-9 OSKO INC.

2 System Specifications

Units: mm (Inch)

Figure 13. Wall Stand Specifications

OSKO INC. 2 - 10
2 System Specifications

X-RAY TUBE
Specification Value Units
Model Name E7242 E7252* E7254* -
Target Rhenium-Tungsten-Faced Rhenium-Tungsten-Faced Rhenium-Tungsten-
-
Construction molybdenum molybdenum Faced molybdenum
Tube Voltage 40 ~ 125 Max. 40 ~ 150 Max. 40 ~ 150 Max. kVp
Anode Heat
200 (142) 300 (210) 400 (285) KHU (KJ)
Storage Capacity
Target Angle 14° 12° 12° Degrees
Focal Spot 0.6 / 1.5 0.6 / 1.2 0.6 / 1.2 mm
Permanent 0.9 mm Al equivalent @ 75 0.9 mm Al equivalent @ 0.8 mm Al equivalent @
mmAl
Filtration kV 75 kV 75 kV
2700 @ 50 Hz 2700 @ 50 Hz
2700 @ 50 Hz
Anode Speed 3200 @ 60 Hz 3200 @ 60 Hz RPM
3200 @ 60 Hz
9700 @ 180 Hz (1) 9700 @ 180 Hz (1)

*NOTE: (1) To use the tube high speed anode rotation (9700 RPM) you must get the DSS board (optional item) on the generator.

Figure 14. E7242 X-ray tube

2 - 11 OSKO INC.
2 System Specifications

Figure 15. E7252 X-ray tube

Figure 16. E7254 X-ray tube

OSKO INC. 2 - 12
2 System Specifications

COLLIMATOR
Specification Value Units
Model Name M-38 R 225 ACS -
Type Manual Manual / Automatic -
Max. Operation Voltage 150 150 kVp
Max. Field Size 480 X 480 @ 100 cm SID 480 X 480 @ 100 cm SID mm
Light Projection > 160 @ 100 cm SID > 160 @ 100 cm SID Lux
Light Source LED Lamp LED Lamp -
Auto Lamp Timer Push button 30 Push button 30 Sec
Inherent Filtration 1.2 1.0 mmAl
Leakage Radiation < 30 @ 100 cm SID < 40 @ 100 cm SID mRh
Laser No Single Laser -
SID Measurement No Retractable Tape Measure -
Net Weight 6.0 11.0 Kg
Input Voltage 24 @ 1 A 24 @ 2 A V DC

Figure 17. E7254 X-ray tube Figure 18. E7254 X-ray tube

2 - 13 OSKO INC.
2 System Specifications

HF GENERATOR
Specification Value Units
Output Power 40 50 65 80 kW
Momentary Power
55 65 85 105 KVA
Consumption
Max. High Frequency
450 450 450 450 kHz
Output
1 Ø / 208-230
3 Ø / 208-230
Input Voltage 3 Ø / 208-230 3 Ø / 400-480 3 Ø / 400-480 VAC
3 Ø / 400-480
3 Ø / 400-480
kV Range 40 – 125 40 – 150 40 – 150 40 – 150 kVp
kV steps 1 kVp 1 kVp 1 kVp 1 kVp Steps
kV Accuracy ±5 % + 1 kV ±5 % + 1 kV ±5 % + 1 kV ±5 % + 1 kV -
Rise time (10 -90%) < 1.5 < 1.5 < 1.5 < 1.5 ms
Time Range 1 - 6300 1 - 6300 1 - 6300 1 - 6300 ms
mAs Range 0.1 – 500 0.1 – 630 0.1 – 800 0.1 – 1000 mAs
mAs Accuracy ±(10 % + 0.2) ±(10 % + 0.2) ±(10 % + 0.2) ±(10 % + 0.2) mAs
mA Range 10 – 500 10 – 630 10 – 800 10 – 1000 mA
0.05 station to 0.05 station to 0.05 station to 0.05 station to
Coefficient of linearity mAs
station station station station
Coefficient of
≤ 0.05 ≤ 0.05 ≤ 0.05 ≤ 0.05 kVp, mA
Reproducibility
Line Frequency 50/60 50/60 50/60 50/60 Hz
275 @ 208 VAC, 1Ø
154 @ 208 VAC, 3Ø 192 @ 208 VAC
250 @ 230 VAC, 1Ø 174 @ 230 VAC 125 @ 400 VAC 155 @ 400 VAC
Momentary Current 139 @ 230 VAC, 3Ø A / Phase
100 @ 400 VAC 105 @ 480 VAC 130 @ 480 VAC
80 @ 400 VAC, 3Ø
80 @ 480 VAC
65 @ 480 VAC, 3Ø
Nominal Current ≤5 ≤5 ≤5 ≤5 A

Figure 19. X-ray generator

OSKO INC. 2 - 14
2 System Specifications

ANTISCATERING GRID
Specification Value Units
Type Analog Digital -
Lines 103 230 Lines
Ratio 10:1 10:1 -
F.D. Table 100, wall 150 Table 100, wall 150 cm

FLAT PANEL DETECTOR

Specification Value Units
Model Name EDGE EDGE Air -
Detection Area 431.8 (17) X 431.8 (17) 431.8 (17) X 431.8 (17) mm (inches)
Dimensions 460 X 460 X 15.5 460 X 460 X 15.24 mm
Active Area 430.1 (16.9) X 430.1 (16.9) 430.1 (16.9) X 430.1 (16.9) mm (inches)
Sensor Type Amorphous Silicon With TFT Amorphous Silicon With TFT -
Scintillator Cesium-Iodide (cesium) Cesium-Iodide (cesium) -
Pixel Matrix 3012 X 3012 3012 X 3012 Pixels
Pixel Pitch 140 140 µm
A/D Conversion 14 / 16 14 / 16 bits
Resolution 3.9 3.9 Lp / mm
Energy Range 40 – 150 40 – 150 kVp
< 2.0 (wired)
Data Acquisition Time <3 Sec.
< 5.0 (wireless)
Weight 4.4 (9.7) 3.5 (7.7) Kg (lb)
Battery Operation Time N/A Typ. 4 Hours

Figure 21. EDGE Detector Figure 20. EDGE Air Detector

2 - 15 OSKO INC.
2 System Specifications

WORKSTATION
Specification Value Units
CPU Intel Core i5 -
Memory 16 DDR4, 2133 MHz GB
HDD SATA 6Gb/s 1 TB TB
OS Windows 10 -
Data Storage CD-R/W or DVD-ROM Drive" 16X DVD=/-RW SATA, Data Only -
Monitor 23’ TFT HD Monitor -

Figure 22. Standard Workstation

ACQUISITION SOFTWARE (FLUGEL)

Automatic acquisition of patient information and photo-taking when taking a shot through the DICOM Worklist.
Auto Query that searches the Worklist server at every designated interval, facilitating to handle newly added works rapidly
and efficiently.
Display an acquired image within a very short period of time after taking an image.
Reduce input time for patient information by automatically applying the preset Image Processing Parameter, ROI, Marker,
LUT etc. according to different body parts.
Enables a user to take images simultaneously while conducting a variety of functions, including DICOM image transmission,
printing, and Worklist search.
Provides a variety of image editing functions, including Contrast, Invert, Flip, Rotate, ROI, and Windowing.
Enable a user to edit images upon acquisition
Image management functions: test creation, modify and delete of information, move and delete of image, and image storage
management.
Supports DICOM 3.0 and image transmission to the PACS server, print and Worklist jobs.

OSKO INC. 2 - 16
2 System Specifications

2.5 Optional Items

- Floor mounted rail 3 m (10ft).
- Floor mounted rail 1.2 m (4 ft).
- AEC (Auto Exposure Control) set.
- DAP (Dose Area Product) set.
- DSS (Dual Speed Starter) board. Only compatible with X-ray tube E7252 and E7254.
- Auto-tracking set.

IMPORTANT

System specifications are subject to change without notice
