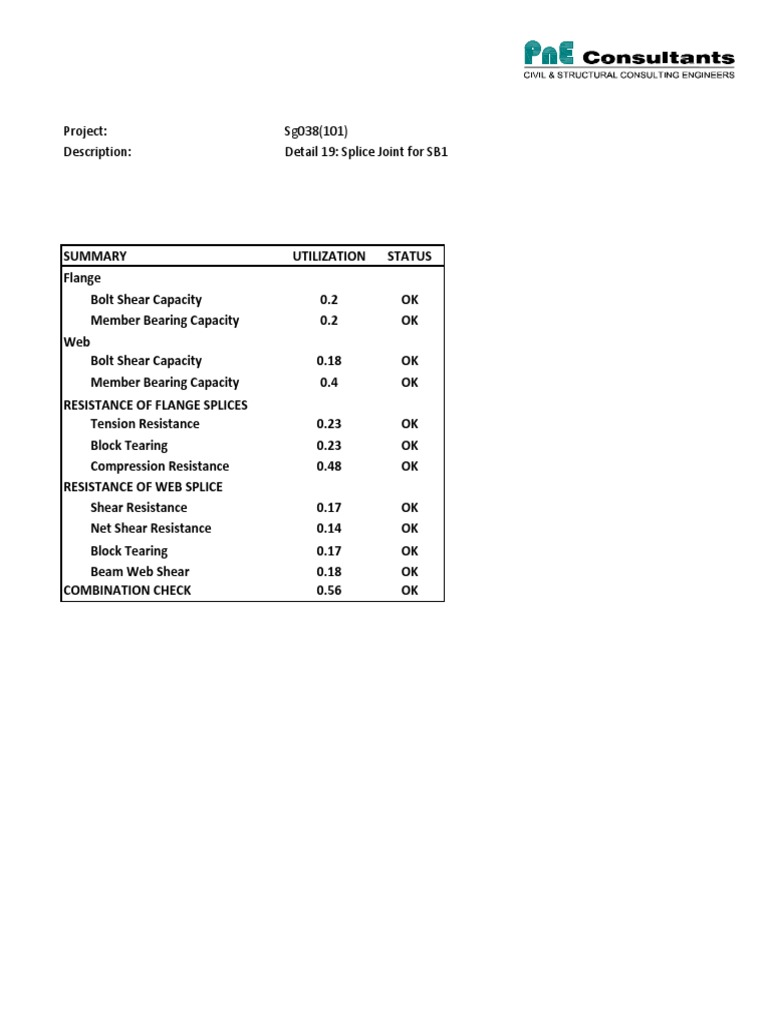

Project: Sg038(101)

Description: Detail 19: Splice Joint for SB1

SUMMARY UTILIZATION STATUS

Flange
Bolt Shear Capacity 0.2 OK
Member Bearing Capacity 0.2 OK
Web
Bolt Shear Capacity 0.18 OK
Member Bearing Capacity 0.4 OK
RESISTANCE OF FLANGE SPLICES
Tension Resistance 0.23 OK
Block Tearing 0.23 OK
Compression Resistance 0.48 OK
RESISTANCE OF WEB SPLICE
Shear Resistance 0.17 OK
Net Shear Resistance 0.14 OK
Block Tearing 0.17 OK
Beam Web Shear 0.18 OK
COMBINATION CHECK 0.56 OK
COVER PLATE DETAILS
Number Bolts per row np,row,f = 2
Number of row at one side of plate nrow,p,f = 6
gf 45 mm
e1,fl = 45 mm
p1,fl = 75 mm
e2,fl = 45 mm
p2,fl = 113.1 mm
Plate width bf,pl = 203.1 mm
Plate length lf,pl = 930 mm

WEB PLATE DETAILS

Number of Bolts per row np,row,wp = 3
Number of row nrow,p,wp = 3
Joint Distance gwp 75 mm
e1,wp = 45 mm
p1,wp = 75 mm
e2,wp = 45 mm
p2,wp = 75 mm
Web Splice Length (vertical) hw,web = 240 mm
Web Splice width (horizontal) bw,web = 540 mm

DESIGN VALUES OF FORCES ON BEAM AT SPLICE

Analysis Result
Values at ultiamte limit state
Shear Force VEd = 100 kN
Axial Force NEd = 30 kN
Moment Force MEd = 150 kN.m
 Values at Serviceability limit state
Shear Force VEd = 100 kN
Axial Force NEd = 30 kN
Moment Force MEd = 150 kN.m
.
Beam Dimension
Depth h = 347 mm
Width b = 203.1 mm
Web thickness tw = 7.8 mm
Flange Thickness tf = 13.4 mm
Root radius r = 15.2 mm
Depth between flange fillets db = 289.8 mm
4
Second moment of area, y-y axis Iy = 17770 cm
3
Plastic modulus, y-y axis Wpl,y = 1139 cm
Area A = 81.39 cm2
Connection Details
Cover Plates
Flange splice thickness tflange = 15 mm
Web splice thickness tweb = 10 mm

Bolts
M24
Diameter of bolt shank d = 24 mm
Diameter of hole d0 = 26 mm
2
Shear area As = 353 mm

Material Strengths
Beam fy,b = 275 N/mm2
Beam fu,b = 410 N/mm2
Plate fy,wp = 275 N/mm2
Plate fu,wp = 410 N/mm2
Bolts fyb = 640 N/mm2
Bolts fub = 800 N/mm2

PARTIAL FACTORS FOR RESISTANCE

Structural steel
γM0 = 1
γM1 = 1
γM2 = 1.1
Parts in connections
(bolts, welds, plates in bearing) γM2 = 1.25
(Slip resistance at ULS) γM3 = 1.25
(Slip resistance at SLS) γM3,ser = 1.1

INTERNAL FORCES AT SPLICE

4
Second moment of area of the web Iw = 2133.916 cm
Total percentage moment carry by web PMweb = Iw/Iy
= 12.01 %
2
Area of web Aw = 24.98 cm
Total Axial force carry be web PNweb = Aw/A
= 30.69 %

FORCES AT ULS
The force in each flange due to bending Ff,M,Ed = (1-PMweb/100)MEd/(h-tf)
= 395.65 kN
The force in each flange due to axial force Ff,N,Ed = (1-Pnweb/100)*NED/2
= 10.40 kN
Forces at top flange Ftf,ED = 385.25 kN
Force at bottom flange Fbf,ED = 406.04 kN

Moment in the web Mw,ED = 18.01 kN.m

Axial force in the web Nw,ED = 9.21 kN
shear force in the web Vw,ED = 100.00 kN

RESISTANCE OF BOLTS
Single shear resistance F1v,Rd = 135.552 kN
double shear resistance F2v,Rd = 271.104 kN
single shear slip resistance F1sv,Rd = 39.536 kN
double shear slip resistance F2sv,Rd = 44.92727 kN

FLANGE SPLICE
Bearing resistance cover plate Fb,max,RD = 170.3 kN
Bearing resistance beam flange Fb,max,RD = 172.9 kN
Design bearing resistange on the Flange Fb,max,RD = 170.3 kN
Total number of bolts No = 12
Forces on each bolts F = 33.8 kN
 bolts shear utilization 0.2
Bolts capacity check OK
Bearing capacity utilization 0.2
Beairing capacity check OK

WEB SPLICE
Bearing resistance web slice Fb,max,RD = 106.2 kN
Bearing resistance of beam web Fb,max,RD = 116.1 kN
Design bearing resistange on the Web Fb,max,RD = 106.2 kN
Total number of bolts No = 9

Additional moment due to eccentricity of bolt group Madd = 11.3 kN.m

Force/bolt due to vertical shear V1botls = 11.1 kN
Force/bolt due to axial compression N1botls = 1.0 kN
Force/bolt due to moment 195.1 kN
Polar moment inertia of the bolt group Ibolts = 67500 mm2
Fmoment = 21.7 kN

Horizontal component of the force on each top and bottom bolt

Fm, horiz = 36.6 kN
Fm, vertical = 18.2 kN

Resultant Force on the bolt Fv,ED = 47.7 kN

Bearing utilization 0.4
Bearing Check OK
Bolt shear capacity utilization 0.18
Single bolt shear check OK

RESISTANCE OF COVER PLATE TO TENSION FLANGE

Resisance of net section
A net,fp = 2266.5 mm
NU,Rd = 760.31 kN
Npl,Rd = 837.79 kN
Resistance of a flange over plate in tension Nt,fp,RD = 760.31 kN
Tension force on Flange NED = 385.25 kN
Flange tension resistance utilization 0.51
Flange tension resistance check OK

Block tearing resistance

 The resistance of block tearing (Nt,Rd,fp)
Case 1
2
Area subjected to tension Ant,fp = 960.00 mm
2
Area subjected to shear Anv,fp = 8310.00 mm
Nt,Rd,fp, case 1 = 1677.21 kN
Case 2
2
Area subjected to tension Ant,fp = 916.50 mm
2
Area subjected to shear Anv,fp = 8310.00 mm
Nt,Rd,fp, case 2 = 1660.99 kN
Hence : Nt,Rd,fp = 1660.99 kN
Block tearing resistance utilization 0.23
Block tearing check OK

RESISTANCE OF COVER PLATE TO COMPRESSION FLANGE

ε = 0.924416
p1/t = 7.54

Blucking resistance
2
Afp = 3046.5 mm

Lcr = 67.86 mm
λ1 = 86.80
Slenderness for buckling about the minor axis (z-z) iz = 4.33 mm
λz = 0.18
By using curve "C" α = 0.49
ϕ = 0.51
χ = 1.00
Nb,fp,Rd = 837.8 kN
Compression resistance utilization 0.48
Compression resistance check OK

RESISTANCE OF WEB SPLICE

Shear Resistance Check
hw = 240 mm
Vwp,g,RD = 600.08 kN
Shear Resistance of web splice utilization 0.17
Shear resistance of the web check OK
Net Shear Resistance Check
Vwp,net,Rd = 697.23 kN
 Net Shear Resistance of web splice utilization 0.14
Net Shear resistance of the web check OK

Resistance to Block Tearing

2
Ant = 320 mm
2
Anv = 1300 mm
Vb,Rd = 651.35 kN
VRd = 600.08 kN
Block Tearing Resistance of Web Splice Utilization 0.17
Block Tearing Resistance of Web Splice Check OK

RESISTANCE OF BEAM WEB

2
Av = 3207.8 mm
2
Av,net = 2599.4 mm
Vn,wRd = 559.38 kN
Beam Web Shear Resistance Utilization 0.18
Beam Web Shear Resistance Check OK

RESISTANCE OF WEB COVER PLATE TO COMBINED BENDING SHEAR AND AXIAL FORCE

Vwp,Rd = 1661.0 kN
Ved = 100 kN
2
Awp = 2400 mm
Modulus of the cover plate = 96000 mm3
Nwp,Rd = 660.00 kN
Therefore, for two web cover plates Mc,wp,Rd = 52.80 kN.m

For two web cover plates Npl,Rd = 1320 kN

Mwp,ED = 29.3 kN.m

Nwp, ED = 9.21 kN

Combination Check
(A) Nwp,ED/Nwp,RD = 0.01
(B) Mwp,ED/Mc,wp,RD = 0.55
Utilization of combination check A+B = 0.56
Combination Check OK
SPLICE PLATE DETAIL CHECK
4
Moment innertia of the Splice Plate Ixx, Splice = 18018.43 mm
4
Moment innertia of the SB1 Ixx, SB1 = 17770 mm
Since the Moment innertia of the splice plate is bigger than the SB1 section
therefore the plate is adequate to resist the moment force

Forces at top flange Ftf,ED = 385.25 kN

2
Top plate area Atop plate = 3720 mm

2
Top plate bearing resistance Fb, RD = 284 N/mm
2
Top plate bearing stress Fb,Ed = 103.5613 N/mm
Top plate is adequate to resist the top flange forces Ok

Welding check refer to next page
