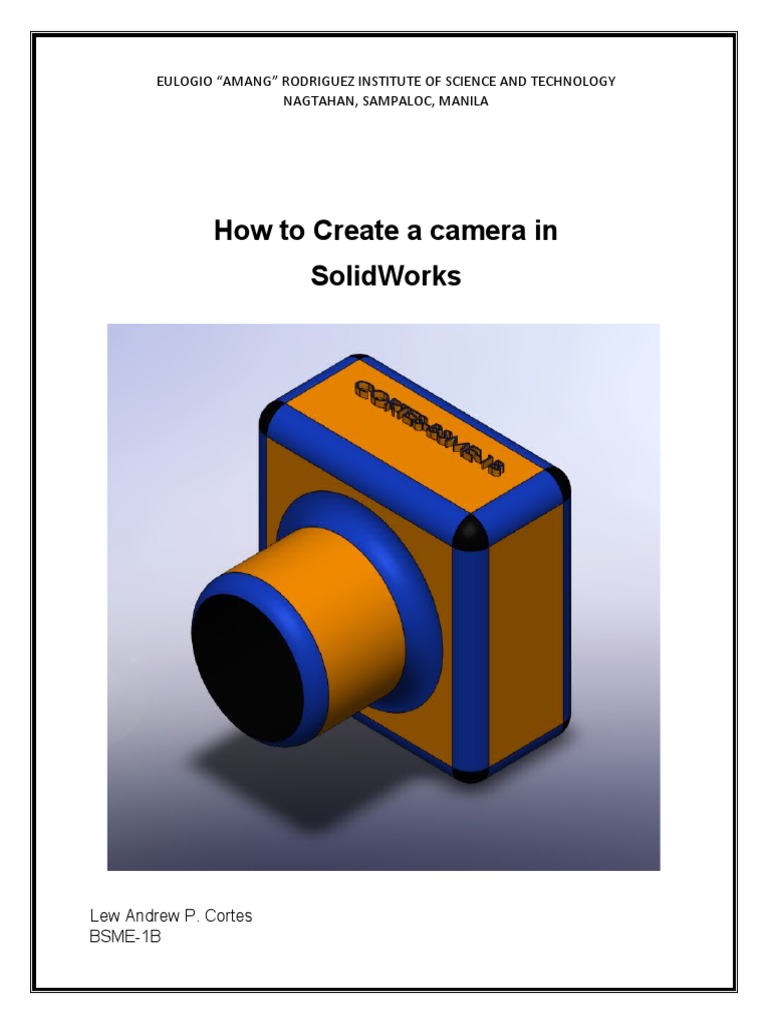

How to Create a camera in

SolidWorks

Lew Andrew P. Cortes

BSME-1B
 EULOGIO “AMANG” RODRIGUEZ INSTITUTE OF SCIENCE AND TECHNOLOGY
NAGTAHAN, SAMPALOC, MANILA

STEP 1. Open SolidWorks

STEP 2. Click Part and Click OK

STEP 3. Click Tools in the upper left then Click Options

 EULOGIO “AMANG” RODRIGUEZ INSTITUTE OF SCIENCE AND TECHNOLOGY
NAGTAHAN, SAMPALOC, MANILA

STEP 4. Click Document Properties and Click Units

 EULOGIO “AMANG” RODRIGUEZ INSTITUTE OF SCIENCE AND TECHNOLOGY
NAGTAHAN, SAMPALOC, MANILA

STEP 5. Click MMGS then Click OK.

STEP 6. Right Click on the Front plane and Click Normal to

 EULOGIO “AMANG” RODRIGUEZ INSTITUTE OF SCIENCE AND TECHNOLOGY
NAGTAHAN, SAMPALOC, MANILA

STEP 7. Click on Sketch and Click Corner Rectangle/Center Rectangle and create a
Rectangle in Sketch and Click Smart Dimension and Click all side of Rectangle and put
120mm in each side.

STEP 8. In sketch click fillet and click all side at radius of 10mm.

STEP 9. Click features and click Extruded Boss/Base and set the measures at 60mm
then enter and click the check button
 EULOGIO “AMANG” RODRIGUEZ INSTITUTE OF SCIENCE AND TECHNOLOGY
NAGTAHAN, SAMPALOC, MANILA

STEP 10. Click on the Front plane and click Sketch and Create a Circle at the middle
having a radius of 35mm and Click Features, Click Extruded Boss/Base with the depth of
65mm then Click the check button and then Enter.

Step 10a. Create a Cirle in the middle with Step 10b. Extruded Boss/Base the Circle at
35 mm radius the depth of 60 mm
 EULOGIO “AMANG” RODRIGUEZ INSTITUTE OF SCIENCE AND TECHNOLOGY
NAGTAHAN, SAMPALOC, MANILA

STEP 11. In the Front Plane Create another circle in the middle at the radius of 30mm
and click Extruded Cut at the depth of 60mm then click ok and hit Enter.

Step 11a. Create another Circle in the midle Step 11b. Click Extruded Cut at the depth of
of the Circle at the radius of 30mm 60mm

STEP 12. Click Features and Click Fillet and Click the Radius of the Circle you create in
the middle of the circle and in the outer at the radius of 10mm and press Enter or Click
Check

STEP 13. Press CTRL + 2 and create a Rectangle at the length of 100mm in the middle
and Click Extruded Cut at the Depth of 55mm and Press Enter and Click Ok
 EULOGIO “AMANG” RODRIGUEZ INSTITUTE OF SCIENCE AND TECHNOLOGY
NAGTAHAN, SAMPALOC, MANILA

DONE!

*Plain Four view

*With design Four view

 EULOGIO “AMANG” RODRIGUEZ INSTITUTE OF SCIENCE AND TECHNOLOGY
NAGTAHAN, SAMPALOC, MANILA

Optional Step. Fillet each edge of the body of the camera and apply colors desired.
