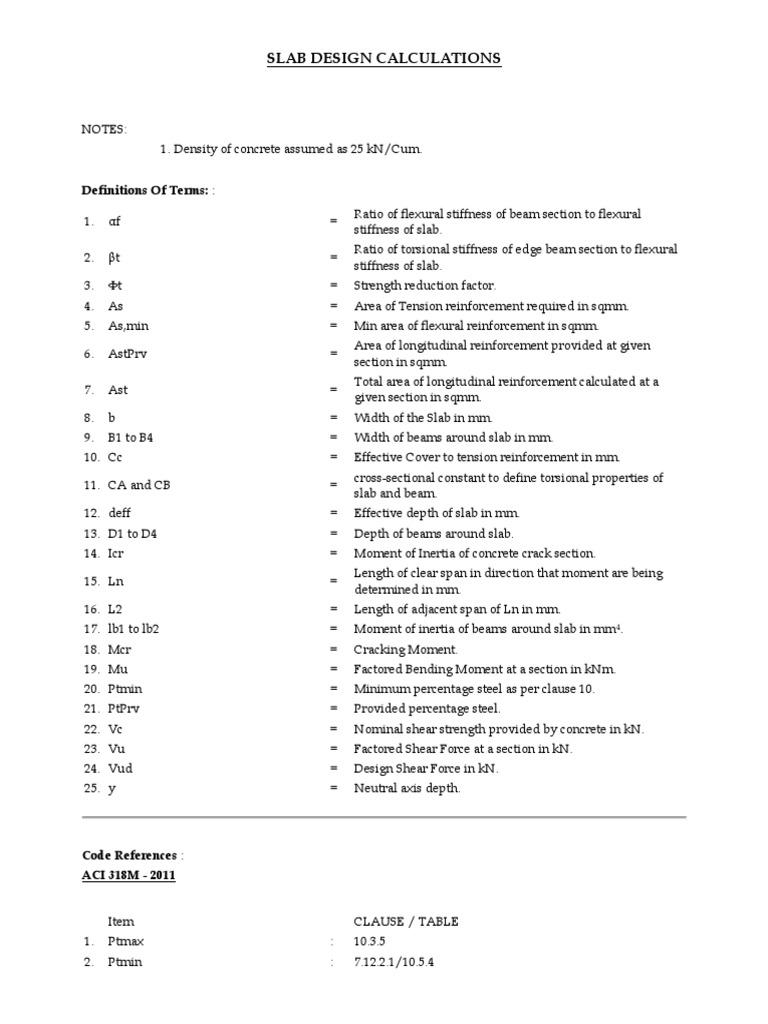

SLAB DESIGN CALCULATIONS

NOTES:
1. Density of concrete assumed as 25 kN/Cum.

Definitions Of Terms: :
Ratio of flexural stiffness of beam section to flexural
1. αf =
stiffness of slab.
Ratio of torsional stiffness of edge beam section to flexural
2. βt =
stiffness of slab.
3. Φt = Strength reduction factor.
4. As = Area of Tension reinforcement required in sqmm.
5. As,min = Min area of flexural reinforcement in sqmm.
Area of longitudinal reinforcement provided at given
6. AstPrv =
section in sqmm.
Total area of longitudinal reinforcement calculated at a
7. Ast =
given section in sqmm.
8. b = Width of the Slab in mm.
9. B1 to B4 = Width of beams around slab in mm.
10. Cc = Effective Cover to tension reinforcement in mm.
cross-sectional constant to define torsional properties of
11. CA and CB =
slab and beam.
12. deff = Effective depth of slab in mm.
13. D1 to D4 = Depth of beams around slab.
14. Icr = Moment of Inertia of concrete crack section.
Length of clear span in direction that moment are being
15. Ln =
determined in mm.
16. L2 = Length of adjacent span of Ln in mm.
17. lb1 to lb2 = Moment of inertia of beams around slab in mm4.
18. Mcr = Cracking Moment.
19. Mu = Factored Bending Moment at a section in kNm.
20. Ptmin = Minimum percentage steel as per clause 10.
21. PtPrv = Provided percentage steel.
22. Vc = Nominal shear strength provided by concrete in kN.
23. Vu = Factored Shear Force at a section in kN.
24. Vud = Design Shear Force in kN.
25. y = Neutral axis depth.

Code References :
ACI 318M - 2011

Item CLAUSE / TABLE

1. Ptmax : 10.3.5
2. Ptmin : 7.12.2.1/10.5.4
3. Vc : 11.11.2.1
4. Av : 11.4.7.2
5. Moment calculations : 13.6
6. spacing between main bars : 10.5.4
7. spacing between distribution bars : 7.12.2.2
8. Minimum reinforcement : 7.12.2.1
9. fs,perm : 10.6.4
10. fc,perm : 10.2.7.1
10. Wcr : Eq 4.2(a)

Slab No. : S1
Level = 6.1m
Design Code = ACI 318M - 2011
Grade Of Concrete = C20
Grade Of Steel = Fy276
Clear Cover = 20.000 mm
Long Span, Ly = 4.500 m
Short Span, Lx = 4.500 m
Imposed Load = 2.000 kN/sqm
Live Load, Qk = 1.900 kN/sqm
Slab Thickness = 120.000 mm
Effective Depth Along LX, Deffx = 95.000 mm
Effective Depth Along LY, Deffy = 85.000 mm
Self Weight = 3.000 kN/sqm
Total Load, TL (ultimate) = 9.040 kN/sqm
Span = 2-Way
Load Combination = 1.2 DL + 1.6 LL

Short Span Long Span

Side1 Side2 Side1 Side2
Beam
B (mm) 250 250 250 250
D (mm) 550 550 550 550
Ib (mm4) x106 3466.15 3466.15 3466.15 3466.15
Adjacent Slab
Thk (mm) 120 - - 120
Span (mm) 4500 - - 4500
Ib (mm4) x106 648 324 324 648
αf lx, αf ly 5.35 10.7 10.7 5.35
αf 8.02
Ln (mm) 4250 4250
L2 (mm) 2375 2375
Total BM (kNm) 48.48 48.48
Bottom
Moment Coefficent 0.57 0.57
 Distributed Moment (kNm) 27.63 27.63
CS Moment (kNm) 20.72 20.72
MS Moment (kNm) 6.91 6.91
Moment on Beam (kNm) 17.61 17.61
Design Moment M1, M3 (kNm) 3.11 3.11
Top
Moment Coefficent 0.7 0.7
Distributed Moment (kNm) 33.93 33.93
CS Moment (kNm) 25.45 25.45
MS Moment (kNm) 8.48 8.48
Moment on Beam (kNm) 21.63 21.63
Design Moment M2, M4 (kNm) 3.821 3.82

Design Moments:
Short Span Positive Moment At Midspan -
M1 = 3.108 kNm
Area Of Reinforcement = 133.243 sqmm/m
Required (BM)
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Short Span Negative Moment At Continuous Support -
M2 = 3.817 kNm
Area Of Reinforcement = 164.069 sqmm/m
Required (BM)
Additional Area Of
= 97.448 sqmm/m
Reinforcement Required
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Long Span Positive Moment At Midspan -
M3 = 3.108 kNm
Area Of Reinforcement = 149.354 sqmm/m
Required (BM)
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Long Span Negative Moment At Continuous Support -
M4 = 3.817 kNm
Area Of Reinforcement = 184.035 sqmm/m
Required (BM)
Additional Area Of = 109.358 sqmm/m
Reinforcement Required
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Distribution Reinforcement @ 0.18% -
Area Of Reinforcement = 171.000 sqmm/m
Required
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Shear Check :
Along Short Span
Vsx (TL(ultimate) x Lx / 4) = 10.170 kN
Nominal Shear, Vc = 72.225 kN
> 10.170 Slab Is Safe In Shear
Along Long Span
Vsy (TL(ultimate) x Lx / 2 x (1 = 10.170 kN
- (Lx / (2 x Ly))))
Nominal Shear, Vc = 64.622 kN
> 10.170 Slab Is Safe In Shear

Slab No. : S2
Level = 6.1m
Design Code = ACI 318M - 2011
Grade Of Concrete = C20
Grade Of Steel = Fy276
Clear Cover = 20.000 mm
Long Span, Ly = 4.500 m
Short Span, Lx = 4.500 m
Imposed Load = 2.000 kN/sqm
Live Load, Qk = 1.900 kN/sqm
Slab Thickness = 120.000 mm
Effective Depth Along LX, Deffx = 95.000 mm
Effective Depth Along LY, Deffy = 85.000 mm
Self Weight = 3.000 kN/sqm
Total Load, TL (ultimate) = 9.040 kN/sqm
Span = 2-Way
Load Combination = 1.2 DL + 1.6 LL

Short Span Long Span

Side1 Side2 Side1 Side2
Beam
B (mm) 250 250 250 250
D (mm) 550 550 550 550
Ib (mm4) x106 3466.15 3466.15 3466.15 3466.15
Adjacent Slab
Thk (mm) 120 120 - 120
Span (mm) 4500 4500 - 4500
Ib (mm4) x106 648 648 324 648
αf lx, αf ly 5.35 5.35 10.7 5.35
αf 6.69
Ln (mm) 4250 4250
L2 (mm) 2375 2375
Total BM (kNm) 48.48 48.48
Bottom
 Moment Coefficent 0.35 0.57
Distributed Moment (kNm) 16.97 27.63
CS Moment (kNm) 12.72 20.72
MS Moment (kNm) 4.24 6.91
Moment on Beam (kNm) 10.82 17.61
Design Moment M1, M3 (kNm) 1.91 3.11
Top
Moment Coefficent 0.65 0.7
Distributed Moment (kNm) 31.51 33.93
CS Moment (kNm) 23.63 25.45
MS Moment (kNm) 7.88 8.48
Moment on Beam (kNm) 20.09 21.63
Design Moment M2, M4 (kNm) 3.541 3.82

Design Moments:
Short Span Positive Moment At Midspan -
M1
Area Of Reinforcement
Required (BM)
Reinforcement Provided
Short Span Negative Moment At Continuous Support -
M2
Area Of Reinforcement
Required (BM)
Additional Area Of
Reinforcement Required
Reinforcement Provided
Long Span Positive Moment At Midspan -
M3
Area Of Reinforcement
Required (BM)
Reinforcement Provided
Long Span Negative Moment At Continuous Support -
M4
Area Of Reinforcement
Required (BM)
Additional Area Of
Reinforcement Required
Reinforcement Provided
Distribution Reinforcement @ 0.18% -
Area Of Reinforcement
Required
Reinforcement Provided
= 1.909 kNm
= 81.451 sqmm/m
= #12 @ 185 C/C
= 611.000 sqmm/m
= 3.545 kNm
= 152.193 sqmm/m
= 111.468 sqmm/m
= #12 @ 185 C/C
= 611.000 sqmm/m
= 3.108 kNm
= 149.354 sqmm/m
= #12 @ 185 C/C
= 611.000 sqmm/m
= 3.817 kNm
= 184.035 sqmm/m
= 109.358 sqmm/m
= #12 @ 185 C/C
= 611.000 sqmm/m
= 171.000 sqmm/m
= #12 @ 185 C/C
= 611.000 sqmm/m
Shear Check :
Along Short Span
Vsx (TL(ultimate) x Lx / 4) = 10.170 kN
Nominal Shear, Vc = 72.225 kN
> 10.170 Slab Is Safe In Shear
Along Long Span
Vsy (TL(ultimate) x Lx / 2 x (1 = 10.170 kN
- (Lx / (2 x Ly))))
Nominal Shear, Vc = 64.622 kN
> 10.170 Slab Is Safe In Shear

Slab No. : S3
Level = 6.1m
Design Code = ACI 318M - 2011
Grade Of Concrete = C20
Grade Of Steel = Fy276
Clear Cover = 20.000 mm
Long Span, Ly = 4.500 m
Short Span, Lx = 4.500 m
Imposed Load = 2.000 kN/sqm
Live Load, Qk = 1.900 kN/sqm
Slab Thickness = 120.000 mm
Effective Depth Along LX, Deffx = 95.000 mm
Effective Depth Along LY, Deffy = 85.000 mm
Self Weight = 3.000 kN/sqm
Total Load, TL (ultimate) = 9.040 kN/sqm
Span = 2-Way
Load Combination = 1.2 DL + 1.6 LL

Short Span Long Span

Side1 Side2 Side1 Side2
Beam
B (mm) 250 250 250 250
D (mm) 550 550 550 550
Ib (mm4) x106 3466.15 3466.15 3466.15 3466.15
Adjacent Slab
Thk (mm) 120 120 - 120
Span (mm) 4500 4500 - 4500
Ib (mm4) x106 648 648 324 648
αf lx, αf ly 5.35 5.35 10.7 5.35
αf 6.69
Ln (mm) 4250 4250
L2 (mm) 2375 2375
Total BM (kNm) 48.48 48.48
Bottom
Moment Coefficent 0.35 0.57
Distributed Moment (kNm) 16.97 27.63
CS Moment (kNm) 12.72 20.72
MS Moment (kNm) 4.24 6.91
Moment on Beam (kNm) 10.82 17.61
Design Moment M1, M3 (kNm) 1.91 3.11
Top
Moment Coefficent 0.65 0.7
Distributed Moment (kNm) 31.51 33.93
CS Moment (kNm) 23.63 25.45
MS Moment (kNm) 7.88 8.48
Moment on Beam (kNm) 20.09 21.63
Design Moment M2, M4 (kNm) 3.541 3.82

Design Moments:
Short Span Positive Moment At Midspan -
M1 = 1.909 kNm
Area Of Reinforcement = 81.451 sqmm/m
Required (BM)
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Short Span Negative Moment At Continuous Support -
M2 = 3.545 kNm
Area Of Reinforcement = 152.193 sqmm/m
Required (BM)
Additional Area Of
= 111.468 sqmm/m
Reinforcement Required
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Long Span Positive Moment At Midspan -
M3 = 3.108 kNm
Area Of Reinforcement = 149.354 sqmm/m
Required (BM)
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Long Span Negative Moment At Continuous Support -
M4 = 3.817 kNm
Area Of Reinforcement = 184.035 sqmm/m
Required (BM)
Additional Area Of = 109.358 sqmm/m
Reinforcement Required
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Distribution Reinforcement @ 0.18% -
Area Of Reinforcement = 171.000 sqmm/m
Required
Reinforcement Provided = #12 @ 185 C/C
 = 611.000 sqmm/m
Shear Check :
Along Short Span
Vsx (TL(ultimate) x Lx / 4) = 10.170 kN
Nominal Shear, Vc = 72.225 kN
> 10.170 Slab Is Safe In Shear
Along Long Span
Vsy (TL(ultimate) x Lx / 2 x (1 = 10.170 kN
- (Lx / (2 x Ly))))
Nominal Shear, Vc = 64.622 kN
> 10.170 Slab Is Safe In Shear

Slab No. : S4
Level = 6.1m
Design Code = ACI 318M - 2011
Grade Of Concrete = C20
Grade Of Steel = Fy276
Clear Cover = 20.000 mm
Long Span, Ly = 4.500 m
Short Span, Lx = 4.500 m
Imposed Load = 2.000 kN/sqm
Live Load, Qk = 1.900 kN/sqm
Slab Thickness = 120.000 mm
Effective Depth Along LX, Deffx = 95.000 mm
Effective Depth Along LY, Deffy = 85.000 mm
Self Weight = 3.000 kN/sqm
Total Load, TL (ultimate) = 9.040 kN/sqm
Span = 2-Way
Load Combination = 1.2 DL + 1.6 LL

Short Span Long Span

Side1 Side2 Side1 Side2
Beam
B (mm) 250 250 250 250
D (mm) 550 550 550 550
Ib (mm4) x106 3466.15 3466.15 3466.15 3466.15
Adjacent Slab
Thk (mm) 120 120 - 120
Span (mm) 4500 4500 - 4500
Ib (mm4) x106 648 648 324 648
αf lx, αf ly 5.35 5.35 10.7 5.35
αf 6.69
Ln (mm) 4250 4250
L2 (mm) 2375 2375
Total BM (kNm) 48.48 48.48
Bottom
Moment Coefficent 0.35 0.57
Distributed Moment (kNm) 16.97 27.63
CS Moment (kNm) 12.72 20.72
MS Moment (kNm) 4.24 6.91
Moment on Beam (kNm) 10.82 17.61
Design Moment M1, M3 (kNm) 1.91 3.11
Top
Moment Coefficent 0.65 0.7
Distributed Moment (kNm) 31.51 33.93
CS Moment (kNm) 23.63 25.45
MS Moment (kNm) 7.88 8.48
Moment on Beam (kNm) 20.09 21.63
Design Moment M2, M4 (kNm) 3.541 3.82

Design Moments:
Short Span Positive Moment At Midspan -
M1 = 1.909 kNm
Area Of Reinforcement = 81.451 sqmm/m
Required (BM)
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Short Span Negative Moment At Continuous Support -
M2 = 3.545 kNm
Area Of Reinforcement = 152.193 sqmm/m
Required (BM)
Additional Area Of
= 111.468 sqmm/m
Reinforcement Required
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Long Span Positive Moment At Midspan -
M3 = 3.108 kNm
Area Of Reinforcement = 149.354 sqmm/m
Required (BM)
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Long Span Negative Moment At Continuous Support -
M4 = 3.817 kNm
Area Of Reinforcement = 184.035 sqmm/m
Required (BM)
Additional Area Of = 109.358 sqmm/m
Reinforcement Required
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Distribution Reinforcement @ 0.18% -
 Area Of Reinforcement
Required
Reinforcement Provided
Shear Check :
Along Short Span
Vsx (TL(ultimate) x Lx / 4)
Nominal Shear, Vc
Along Long Span
Vsy (TL(ultimate) x Lx / 2 x (1 =
- (Lx / (2 x Ly))))
Nominal Shear, Vc
= 171.000 sqmm/m
= #12 @ 185 C/C
= 611.000 sqmm/m
= 10.170 kN
= 72.225 kN
> 10.170 Slab Is Safe In Shear
10.170 kN
= 64.622 kN
> 10.170 Slab Is Safe In Shear

Slab No. : S5
Level = 6.1m
Design Code = ACI 318M - 2011
Grade Of Concrete = C20
Grade Of Steel = Fy276
Clear Cover = 20.000 mm
Long Span, Ly = 4.500 m
Short Span, Lx = 4.500 m
Imposed Load = 2.000 kN/sqm
Live Load, Qk = 1.900 kN/sqm
Slab Thickness = 120.000 mm
Effective Depth Along LX, Deffx = 95.000 mm
Effective Depth Along LY, Deffy = 85.000 mm
Self Weight = 3.000 kN/sqm
Total Load, TL (ultimate) = 9.040 kN/sqm
Span = 2-Way
Load Combination = 1.2 DL + 1.6 LL

Short Span Long Span

Side1 Side2 Side1 Side2
Beam
B (mm) 250 250 250 250
D (mm) 550 550 550 550
Ib (mm4) x106 3466.15 3466.15 3466.15 3466.15
Adjacent Slab
Thk (mm) 120 120 - 120
Span (mm) 4500 4500 - 4500
Ib (mm4) x106 648 648 324 648
αf lx, αf ly 5.35 5.35 10.7 5.35
αf 6.69
Ln (mm) 4250 4250
L2 (mm) 2375 2375
Total BM (kNm) 48.48 48.48
Bottom
Moment Coefficent 0.35 0.57
Distributed Moment (kNm) 16.97 27.63
CS Moment (kNm) 12.72 20.72
MS Moment (kNm) 4.24 6.91
Moment on Beam (kNm) 10.82 17.61
Design Moment M1, M3 (kNm) 1.91 3.11
Top
Moment Coefficent 0.65 0.7
Distributed Moment (kNm) 31.51 33.93
CS Moment (kNm) 23.63 25.45
MS Moment (kNm) 7.88 8.48
Moment on Beam (kNm) 20.09 21.63
Design Moment M2, M4 (kNm) 3.541 3.82

Design Moments:
Short Span Positive Moment At Midspan -
M1 = 1.909 kNm
Area Of Reinforcement = 81.451 sqmm/m
Required (BM)
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Short Span Negative Moment At Continuous Support -
M2 = 3.545 kNm
Area Of Reinforcement = 152.193 sqmm/m
Required (BM)
Additional Area Of
= 111.468 sqmm/m
Reinforcement Required
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Long Span Positive Moment At Midspan -
M3 = 3.108 kNm
Area Of Reinforcement = 149.354 sqmm/m
Required (BM)
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Long Span Negative Moment At Continuous Support -
M4 = 3.817 kNm
Area Of Reinforcement = 184.035 sqmm/m
Required (BM)
Additional Area Of = 109.358 sqmm/m
Reinforcement Required
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Distribution Reinforcement @ 0.18% -
Area Of Reinforcement
Required
Reinforcement Provided
Shear Check :
Along Short Span
Vsx (TL(ultimate) x Lx / 4)
Nominal Shear, Vc
Along Long Span
Vsy (TL(ultimate) x Lx / 2 x (1 =
- (Lx / (2 x Ly))))
Nominal Shear, Vc
= 171.000 sqmm/m
= #12 @ 185 C/C
= 611.000 sqmm/m
= 10.170 kN
= 72.225 kN
> 10.170 Slab Is Safe In Shear
10.170 kN
= 64.622 kN
> 10.170 Slab Is Safe In Shear

Slab No. : S6
Level = 6.1m
Design Code = ACI 318M - 2011
Grade Of Concrete = C20
Grade Of Steel = Fy276
Clear Cover = 20.000 mm
Long Span, Ly = 4.500 m
Short Span, Lx = 4.500 m
Imposed Load = 2.000 kN/sqm
Live Load, Qk = 1.900 kN/sqm
Slab Thickness = 120.000 mm
Effective Depth Along LX, Deffx = 95.000 mm
Effective Depth Along LY, Deffy = 85.000 mm
Self Weight = 3.000 kN/sqm
Total Load, TL (ultimate) = 9.040 kN/sqm
Span = 2-Way
Load Combination = 1.2 DL + 1.6 LL

Short Span Long Span

Side1 Side2 Side1 Side2
Beam
B (mm) 250 250 250 250
D (mm) 550 550 550 550
Ib (mm4) x106 3466.15 3466.15 3466.15 3466.15
Adjacent Slab
Thk (mm) - 120 - 120
Span (mm) - 4500 - 1880
 Ib (mm4) x106 324 648 324 459.36
αf lx, αf ly 10.7 5.35 10.7 7.55
αf 8.57
Ln (mm) 4250 4250
L2 (mm) 2375 2375
Total BM (kNm) 48.48 48.48
Bottom
Moment Coefficent 0.57 0.84
Distributed Moment (kNm) 27.63 40.72
CS Moment (kNm) 20.72 30.54
MS Moment (kNm) 6.91 10.18
Moment on Beam (kNm) 17.61 25.96
Design Moment M1, M3 (kNm) 3.11 4.58
Top
Moment Coefficent 0.7 0.16
Distributed Moment (kNm) 33.93 7.76
CS Moment (kNm) 25.45 5.82
MS Moment (kNm) 8.48 1.94
Moment on Beam (kNm) 21.63 4.94
Design Moment M2, M4 (kNm) 3.821 0.87

Design Moments:
Short Span Positive Moment At Midspan -
M1 = 3.108 kNm
Area Of Reinforcement = 133.243 sqmm/m
Required (BM)
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Short Span Negative Moment At Continuous Support -
M2 = 3.817 kNm
Area Of Reinforcement = 164.069 sqmm/m
Required (BM)
Additional Area Of
= 97.448 sqmm/m
Reinforcement Required
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Long Span Positive Moment At Midspan -
M3 = 4.581 kNm
Area Of Reinforcement = 221.653 sqmm/m
Required (BM)
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Long Span Negative Moment At Continuous Support -
M4 = N.A. kNm
Area Of Reinforcement = N.A. sqmm/m
Required (BM)
Reinforcement Provided = N.A.
= N.A. sqmm/m
Distribution Reinforcement @ 0.18% -
Area Of Reinforcement
Required
Reinforcement Provided
Shear Check :
Along Short Span
Vsx (TL(ultimate) x Lx / 4)
Nominal Shear, Vc
Along Long Span
Vsy (TL(ultimate) x Lx / 2 x (1 =
- (Lx / (2 x Ly))))
Nominal Shear, Vc
= 171.000 sqmm/m
= #12 @ 185 C/C
= 611.000 sqmm/m
= 10.170 kN
= 72.225 kN
> 10.170 Slab Is Safe In Shear
10.170 kN
= 64.622 kN
> 10.170 Slab Is Safe In Shear

Slab No. : S7
Level = 6.1m
Design Code = ACI 318M - 2011
Grade Of Concrete = C20
Grade Of Steel = Fy276
Clear Cover = 20.000 mm
Long Span, Ly = 1.880 m
Short Span, Lx = 1.650 m
Imposed Load = 2.000 kN/sqm
Live Load, Qk = 1.900 kN/sqm
Slab Thickness = 120.000 mm
Effective Depth Along LX, Deffx = 95.000 mm
Effective Depth Along LY, Deffy = 85.000 mm
Self Weight = 3.000 kN/sqm
Total Load, TL (ultimate) = 9.040 kN/sqm
Span = 2-Way
Load Combination = 1.2 DL + 1.6 LL

Short Span Long Span

Side1 Side2 Side1 Side2
Beam
B (mm) 250 250 250 250
D (mm) 450 550 550 450
Ib (mm4) x106 1898.44 3466.15 3466.15 1898.44
Adjacent Slab
Thk (mm) - 120 120 -
Span (mm) - 4500 4500 -
 Ib (mm4) x106 118.8 442.8 459.36 135.36
αf lx, αf ly 15.98 7.83 7.55 14.03
αf 11.34
Ln (mm) 1400 1630
L2 (mm) 1065 950
Total BM (kNm) 2.36 2.85
Bottom
Moment Coefficent 0.57 0.57
Distributed Moment (kNm) 1.34 1.63
CS Moment (kNm) 0.95 1.15
MS Moment (kNm) 0.39 0.47
Moment on Beam (kNm) 0.81 0.98
Design Moment M1, M3 (kNm) 0.14 0.17
Top
Moment Coefficent 0.7 0.7
Distributed Moment (kNm) 1.65 2
CS Moment (kNm) 1.17 1.41
MS Moment (kNm) 0.48 0.58
Moment on Beam (kNm) 0.99 1.2
Design Moment M2, M4 (kNm) 0.181 0.21

Design Moments:
Short Span Positive Moment At Midspan -
M1 = 0.143 kNm
Area Of Reinforcement = 6.055 sqmm/m
Required (BM)
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Short Span Negative Moment At Continuous Support -
M2 = 0.175 kNm
Area Of Reinforcement = 7.437 sqmm/m
Required (BM)
Additional Area Of
= 4.410 sqmm/m
Reinforcement Required
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Long Span Positive Moment At Midspan -
M3 = 0.173 kNm
Area Of Reinforcement = 8.186 sqmm/m
Required (BM)
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Long Span Negative Moment At Continuous Support -
M4 = 0.212 kNm
Area Of Reinforcement = 10.054 sqmm/m
Required (BM)
Additional Area Of = 5.962 sqmm/m
Reinforcement Required
 Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Distribution Reinforcement @ 0.18% -
Area Of Reinforcement = 171.000 sqmm/m
Required
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Shear Check :
Along Short Span
Vsx (TL(ultimate) x Lx / 4) = 3.729 kN
Nominal Shear, Vc = 72.225 kN
> 3.729 Slab Is Safe In Shear
Along Long Span
Vsy (TL(ultimate) x Lx / 2 x (1 = 4.185 kN
- (Lx / (2 x Ly))))
Nominal Shear, Vc = 64.622 kN
> 4.185 Slab Is Safe In Shear

Slab No. : S8
Level = 6.1m
Design Code = ACI 318M - 2011
Grade Of Concrete = C20
Grade Of Steel = Fy276
Clear Cover = 20.000 mm
Long Span, Ly = 4.500 m
Short Span, Lx = 4.500 m
Imposed Load = 2.000 kN/sqm
Live Load, Qk = 1.900 kN/sqm
Slab Thickness = 120.000 mm
Effective Depth Along LX, Deffx = 95.000 mm
Effective Depth Along LY, Deffy = 85.000 mm
Self Weight = 3.000 kN/sqm
Total Load, TL (ultimate) = 9.040 kN/sqm
Span = 2-Way
Load Combination = 1.2 DL + 1.6 LL

Short Span Long Span

Side1 Side2 Side1 Side2
Beam
B (mm) 250 250 250 250
D (mm) 550 550 550 550
Ib (mm4) x106 3466.15 3466.15 3466.15 3466.15
Adjacent Slab
 Thk (mm) 120 - 120 120
Span (mm) 4500 - 4500 2530
Ib (mm4) x106 648 324 648 506.16
αf lx, αf ly 5.35 10.7 5.35 6.85
αf 7.06
Ln (mm) 4250 4250
L2 (mm) 2375 2375
Total BM (kNm) 48.48 48.48
Bottom
Moment Coefficent 0.35 0.35
Distributed Moment (kNm) 16.97 16.97
CS Moment (kNm) 12.72 12.72
MS Moment (kNm) 4.24 4.24
Moment on Beam (kNm) 10.82 10.82
Design Moment M1, M3 (kNm) 1.91 1.91
Top
Moment Coefficent 0.65 0.65
Distributed Moment (kNm) 31.51 31.51
CS Moment (kNm) 23.63 23.63
MS Moment (kNm) 7.88 7.88
Moment on Beam (kNm) 20.09 20.09
Design Moment M2, M4 (kNm) 3.541 3.54

Design Moments:
Short Span Positive Moment At Midspan -
M1 = 1.909 kNm
Area Of Reinforcement = 81.451 sqmm/m
Required (BM)
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Short Span Negative Moment At Continuous Support -
M2 = 3.545 kNm
Area Of Reinforcement = 152.193 sqmm/m
Required (BM)
Additional Area Of
= 111.468 sqmm/m
Reinforcement Required
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Long Span Positive Moment At Midspan -
M3 = 1.909 kNm
Area Of Reinforcement = 91.195 sqmm/m
Required (BM)
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Long Span Negative Moment At Continuous Support -
M4 = 3.545 kNm
Area Of Reinforcement = 170.668 sqmm/m
Required (BM)
 Additional Area Of
Reinforcement Required
Reinforcement Provided
Distribution Reinforcement @ 0.18% -
Area Of Reinforcement
Required
Reinforcement Provided
Shear Check :
Along Short Span
Vsx (TL(ultimate) x Lx / 4)
Nominal Shear, Vc
Along Long Span
Vsy (TL(ultimate) x Lx / 2 x (1 =
- (Lx / (2 x Ly))))
Nominal Shear, Vc
= 125.071 sqmm/m
= #12 @ 185 C/C
= 611.000 sqmm/m
= 171.000 sqmm/m
= #12 @ 185 C/C
= 611.000 sqmm/m
= 10.170 kN
= 72.225 kN
> 10.170 Slab Is Safe In Shear
10.170 kN
= 64.622 kN
> 10.170 Slab Is Safe In Shear

Slab No. : S9
Level = 6.1m
Design Code = ACI 318M - 2011
Grade Of Concrete = C20
Grade Of Steel = Fy276
Clear Cover = 20.000 mm
Long Span, Ly = 4.500 m
Short Span, Lx = 4.500 m
Imposed Load = 2.000 kN/sqm
Live Load, Qk = 1.900 kN/sqm
Slab Thickness = 120.000 mm
Effective Depth Along LX, Deffx = 95.000 mm
Effective Depth Along LY, Deffy = 85.000 mm
Self Weight = 3.000 kN/sqm
Total Load, TL (ultimate) = 9.040 kN/sqm
Span = 2-Way
Load Combination = 1.2 DL + 1.6 LL

Short Span Long Span

Side1 Side2 Side1 Side2
Beam
B (mm) 250 250 250 250
D (mm) 550 550 550 550
 Ib (mm4) x106 3466.15 3466.15 3466.15 3466.15
Adjacent Slab
Thk (mm) 120 120 120 -
Span (mm) 4500 4500 4500 -
Ib (mm4) x106 648 648 648 324
αf lx, αf ly 5.35 5.35 5.35 10.7
αf 6.69
Ln (mm) 4250 4250
L2 (mm) 2375 2375
Total BM (kNm) 48.48 48.48
Bottom
Moment Coefficent 0.35 0.57
Distributed Moment (kNm) 16.97 27.63
CS Moment (kNm) 12.72 20.72
MS Moment (kNm) 4.24 6.91
Moment on Beam (kNm) 10.82 17.61
Design Moment M1, M3 (kNm) 1.91 3.11
Top
Moment Coefficent 0.65 0.7
Distributed Moment (kNm) 31.51 33.93
CS Moment (kNm) 23.63 25.45
MS Moment (kNm) 7.88 8.48
Moment on Beam (kNm) 20.09 21.63
Design Moment M2, M4 (kNm) 3.541 3.82

Design Moments:
Short Span Positive Moment At Midspan -
M1 = 1.909 kNm
Area Of Reinforcement = 81.451 sqmm/m
Required (BM)
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Short Span Negative Moment At Continuous Support -
M2 = 3.545 kNm
Area Of Reinforcement = 152.193 sqmm/m
Required (BM)
Additional Area Of
= 111.468 sqmm/m
Reinforcement Required
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Long Span Positive Moment At Midspan -
M3 = 3.108 kNm
Area Of Reinforcement = 149.354 sqmm/m
Required (BM)
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Long Span Negative Moment At Continuous Support -
M4 = 3.817 kNm
 Area Of Reinforcement
Required (BM)
Additional Area Of
Reinforcement Required
Reinforcement Provided
Distribution Reinforcement @ 0.18% -
Area Of Reinforcement
Required
Reinforcement Provided
Shear Check :
Along Short Span
Vsx (TL(ultimate) x Lx / 4)
Nominal Shear, Vc
Along Long Span
Vsy (TL(ultimate) x Lx / 2 x (1 =
- (Lx / (2 x Ly))))
Nominal Shear, Vc
= 184.035 sqmm/m
= 109.358 sqmm/m
= #12 @ 185 C/C
= 611.000 sqmm/m
= 171.000 sqmm/m
= #12 @ 185 C/C
= 611.000 sqmm/m
= 10.170 kN
= 72.225 kN
> 10.170 Slab Is Safe In Shear
10.170 kN
= 64.622 kN
> 10.170 Slab Is Safe In Shear

Slab No. : S10

Level = 6.1m
Design Code = ACI 318M - 2011
Grade Of Concrete = C20
Grade Of Steel = Fy276
Clear Cover = 20.000 mm
Long Span, Ly = 4.500 m
Short Span, Lx = 4.500 m
Imposed Load = 2.000 kN/sqm
Live Load, Qk = 1.900 kN/sqm
Slab Thickness = 120.000 mm
Effective Depth Along LX, Deffx = 95.000 mm
Effective Depth Along LY, Deffy = 85.000 mm
Self Weight = 3.000 kN/sqm
Total Load, TL (ultimate) = 9.040 kN/sqm
Span = 2-Way
Load Combination = 1.2 DL + 1.6 LL

Short Span Long Span

Side1 Side2 Side1 Side2
Beam
B (mm) 250 250 250 250
 D (mm) 550 550 550 550
Ib (mm4) x106 3466.15 3466.15 3466.15 3466.15
Adjacent Slab
Thk (mm) 120 120 120 -
Span (mm) 4500 4500 4500 -
Ib (mm4) x106 648 648 648 324
αf lx, αf ly 5.35 5.35 5.35 10.7
αf 6.69
Ln (mm) 4250 4250
L2 (mm) 2375 2375
Total BM (kNm) 48.48 48.48
Bottom
Moment Coefficent 0.35 0.57
Distributed Moment (kNm) 16.97 27.63
CS Moment (kNm) 12.72 20.72
MS Moment (kNm) 4.24 6.91
Moment on Beam (kNm) 10.82 17.61
Design Moment M1, M3 (kNm) 1.91 3.11
Top
Moment Coefficent 0.65 0.7
Distributed Moment (kNm) 31.51 33.93
CS Moment (kNm) 23.63 25.45
MS Moment (kNm) 7.88 8.48
Moment on Beam (kNm) 20.09 21.63
Design Moment M2, M4 (kNm) 3.541 3.82

Design Moments:
Short Span Positive Moment At Midspan -
M1 = 1.909 kNm
Area Of Reinforcement = 81.451 sqmm/m
Required (BM)
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Short Span Negative Moment At Continuous Support -
M2 = 3.545 kNm
Area Of Reinforcement = 152.193 sqmm/m
Required (BM)
Additional Area Of
= 111.468 sqmm/m
Reinforcement Required
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Long Span Positive Moment At Midspan -
M3 = 3.108 kNm
Area Of Reinforcement = 149.354 sqmm/m
Required (BM)
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Long Span Negative Moment At Continuous Support -
 M4
Area Of Reinforcement
Required (BM)
Additional Area Of
Reinforcement Required
Reinforcement Provided
Distribution Reinforcement @ 0.18% -
Area Of Reinforcement
Required
Reinforcement Provided
Shear Check :
Along Short Span
Vsx (TL(ultimate) x Lx / 4)
Nominal Shear, Vc
Along Long Span
Vsy (TL(ultimate) x Lx / 2 x (1 =
- (Lx / (2 x Ly))))
Nominal Shear, Vc
= 3.817 kNm
= 184.035 sqmm/m
= 109.358 sqmm/m
= #12 @ 185 C/C
= 611.000 sqmm/m
= 171.000 sqmm/m
= #12 @ 185 C/C
= 611.000 sqmm/m
= 10.170 kN
= 72.225 kN
> 10.170 Slab Is Safe In Shear
10.170 kN
= 64.622 kN
> 10.170 Slab Is Safe In Shear

Slab No. : S11

Level = 6.1m
Design Code = ACI 318M - 2011
Grade Of Concrete = C20
Grade Of Steel = Fy276
Clear Cover = 20.000 mm
Long Span, Ly = 4.500 m
Short Span, Lx = 4.500 m
Imposed Load = 2.000 kN/sqm
Live Load, Qk = 1.900 kN/sqm
Slab Thickness = 120.000 mm
Effective Depth Along LX, Deffx = 95.000 mm
Effective Depth Along LY, Deffy = 85.000 mm
Self Weight = 3.000 kN/sqm
Total Load, TL (ultimate) = 9.040 kN/sqm
Span = 2-Way
Load Combination = 1.2 DL + 1.6 LL

Short Span Long Span

Side1 Side2 Side1 Side2
Beam
 B (mm) 250 250 250 250
D (mm) 550 550 550 550
Ib (mm4) x106 3466.15 3466.15 3466.15 3466.15
Adjacent Slab
Thk (mm) 120 120 120 -
Span (mm) 4500 4500 4500 -
Ib (mm4) x106 648 648 648 324
αf lx, αf ly 5.35 5.35 5.35 10.7
αf 6.69
Ln (mm) 4250 4250
L2 (mm) 2375 2375
Total BM (kNm) 48.48 48.48
Bottom
Moment Coefficent 0.35 0.57
Distributed Moment (kNm) 16.97 27.63
CS Moment (kNm) 12.72 20.72
MS Moment (kNm) 4.24 6.91
Moment on Beam (kNm) 10.82 17.61
Design Moment M1, M3 (kNm) 1.91 3.11
Top
Moment Coefficent 0.65 0.7
Distributed Moment (kNm) 31.51 33.93
CS Moment (kNm) 23.63 25.45
MS Moment (kNm) 7.88 8.48
Moment on Beam (kNm) 20.09 21.63
Design Moment M2, M4 (kNm) 3.541 3.82

Design Moments:
Short Span Positive Moment At Midspan -
M1 = 1.909 kNm
Area Of Reinforcement = 81.451 sqmm/m
Required (BM)
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Short Span Negative Moment At Continuous Support -
M2 = 3.545 kNm
Area Of Reinforcement = 152.193 sqmm/m
Required (BM)
Additional Area Of
= 111.468 sqmm/m
Reinforcement Required
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Long Span Positive Moment At Midspan -
M3 = 3.108 kNm
Area Of Reinforcement = 149.354 sqmm/m
Required (BM)
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Long Span Negative Moment At Continuous Support -
M4
Area Of Reinforcement
Required (BM)
Additional Area Of
Reinforcement Required
Reinforcement Provided
Distribution Reinforcement @ 0.18% -
Area Of Reinforcement
Required
Reinforcement Provided
Shear Check :
Along Short Span
Vsx (TL(ultimate) x Lx / 4)
Nominal Shear, Vc
Along Long Span
Vsy (TL(ultimate) x Lx / 2 x (1 =
- (Lx / (2 x Ly))))
Nominal Shear, Vc
= 3.817 kNm
= 184.035 sqmm/m
= 109.358 sqmm/m
= #12 @ 185 C/C
= 611.000 sqmm/m
= 171.000 sqmm/m
= #12 @ 185 C/C
= 611.000 sqmm/m
= 10.170 kN
= 72.225 kN
> 10.170 Slab Is Safe In Shear
10.170 kN
= 64.622 kN
> 10.170 Slab Is Safe In Shear

Slab No. : S12

Level = 6.1m
Design Code = ACI 318M - 2011
Grade Of Concrete = C20
Grade Of Steel = Fy276
Clear Cover = 20.000 mm
Long Span, Ly = 4.500 m
Short Span, Lx = 4.500 m
Imposed Load = 2.000 kN/sqm
Live Load, Qk = 1.900 kN/sqm
Slab Thickness = 120.000 mm
Effective Depth Along LX, Deffx = 95.000 mm
Effective Depth Along LY, Deffy = 85.000 mm
Self Weight = 3.000 kN/sqm
Total Load, TL (ultimate) = 9.040 kN/sqm
Span = 2-Way
Load Combination = 1.2 DL + 1.6 LL

Short Span Long Span

 Side1 Side2 Side1 Side2
Beam
B (mm) 250 250 250 250
D (mm) 550 550 550 550
Ib (mm4) x106 3466.15 3466.15 3466.15 3466.15
Adjacent Slab
Thk (mm) - 120 120 -
Span (mm) - 4500 4500 -
Ib (mm4) x106 324 648 648 324
αf lx, αf ly 10.7 5.35 5.35 10.7
αf 8.02
Ln (mm) 4250 4250
L2 (mm) 2375 2375
Total BM (kNm) 48.48 48.48
Bottom
Moment Coefficent 0.57 0.57
Distributed Moment (kNm) 27.63 27.63
CS Moment (kNm) 20.72 20.72
MS Moment (kNm) 6.91 6.91
Moment on Beam (kNm) 17.61 17.61
Design Moment M1, M3 (kNm) 3.11 3.11
Top
Moment Coefficent 0.7 0.7
Distributed Moment (kNm) 33.93 33.93
CS Moment (kNm) 25.45 25.45
MS Moment (kNm) 8.48 8.48
Moment on Beam (kNm) 21.63 21.63
Design Moment M2, M4 (kNm) 3.821 3.82

Design Moments:
Short Span Positive Moment At Midspan -
M1 = 3.108 kNm
Area Of Reinforcement = 133.243 sqmm/m
Required (BM)
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Short Span Negative Moment At Continuous Support -
M2 = 3.817 kNm
Area Of Reinforcement = 164.069 sqmm/m
Required (BM)
Additional Area Of
= 97.448 sqmm/m
Reinforcement Required
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Long Span Positive Moment At Midspan -
M3 = 3.108 kNm
Area Of Reinforcement = 149.354 sqmm/m
Required (BM)
 Reinforcement Provided
Long Span Negative Moment At Continuous Support -
M4
Area Of Reinforcement
Required (BM)
Additional Area Of
Reinforcement Required
Reinforcement Provided
Distribution Reinforcement @ 0.18% -
Area Of Reinforcement
Required
Reinforcement Provided
Shear Check :
Along Short Span
Vsx (TL(ultimate) x Lx / 4)
Nominal Shear, Vc
Along Long Span
Vsy (TL(ultimate) x Lx / 2 x (1 =
- (Lx / (2 x Ly))))
Nominal Shear, Vc
= #12 @ 185 C/C
= 611.000 sqmm/m
= 3.817 kNm
= 184.035 sqmm/m
= 109.358 sqmm/m
= #12 @ 185 C/C
= 611.000 sqmm/m
= 171.000 sqmm/m
= #12 @ 185 C/C
= 611.000 sqmm/m
= 10.170 kN
= 72.225 kN
> 10.170 Slab Is Safe In Shear
10.170 kN
= 64.622 kN
> 10.170 Slab Is Safe In Shear

Slab No. : S14

Level = 6.1m
Design Code = ACI 318M - 2011
Grade Of Concrete = C20
Grade Of Steel = Fy276
Clear Cover = 20.000 mm
Long Span, Ly = 2.530 m
Short Span, Lx = 2.530 m
Imposed Load = 2.000 kN/sqm
Live Load, Qk = 1.900 kN/sqm
Slab Thickness = 120.000 mm
Effective Depth Along LX, Deffx = 95.000 mm
Effective Depth Along LY, Deffy = 85.000 mm
Self Weight = 3.000 kN/sqm
Total Load, TL (ultimate) = 9.040 kN/sqm
Span = 2-Way
Load Combination = 1.2 DL + 1.6 LL
 Short Span Long Span
Side1 Side2 Side1 Side2
Beam
B (mm) 250 250 250 250
D (mm) 450 550 450 450
Ib (mm4) x106 1898.44 3466.15 1898.44 1898.44
Adjacent Slab
Thk (mm) - 120 - 120
Span (mm) - 4500 - 2530
Ib (mm4) x106 182.16 506.16 182.16 364.32
αf lx, αf ly 10.42 6.85 10.42 5.21
αf 8.23
Ln (mm) 2280 2280
L2 (mm) 1390 1390
Total BM (kNm) 8.17 8.17
Bottom
Moment Coefficent 0.85 0.84
Distributed Moment (kNm) 6.86 6.86
CS Moment (kNm) 5.14 5.14
MS Moment (kNm) 1.71 1.71
Moment on Beam (kNm) 4.37 4.37
Design Moment M1, M3 (kNm) 0.77 0.77
Top
Moment Coefficent 0.16 0.16
Distributed Moment (kNm) 1.31 1.31
CS Moment (kNm) 0.98 0.98
MS Moment (kNm) 0.33 0.33
Moment on Beam (kNm) 0.83 0.83
Design Moment M2, M4 (kNm) 0.151 0.15

Design Moments:
Short Span Positive Moment At Midspan -
M1 = 0.772 kNm
Area Of Reinforcement = 32.790 sqmm/m
Required (BM)
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Short Span Negative Moment At Continuous Support -
M2 = N.A. kNm
Area Of Reinforcement = N.A. sqmm/m
Required (BM)
Reinforcement Provided = N.A.
= N.A. sqmm/m
Long Span Positive Moment At Midspan -
M3 = 0.772 kNm
Area Of Reinforcement = 36.673 sqmm/m
Required (BM)
Reinforcement Provided = #12 @ 185 C/C
 = 611.000 sqmm/m
Long Span Negative Moment At Continuous Support -
M4 = N.A. kNm
Area Of Reinforcement = N.A. sqmm/m
Required (BM)
Reinforcement Provided = N.A.
= N.A. sqmm/m
Distribution Reinforcement @ 0.18% -
Area Of Reinforcement = 171.000 sqmm/m
Required
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Shear Check :
Along Short Span
Vsx (TL(ultimate) x Lx / 4) = 5.718 kN
Nominal Shear, Vc = 72.225 kN
> 5.718 Slab Is Safe In Shear
Along Long Span
Vsy (TL(ultimate) x Lx / 2 x (1 = 5.718 kN
- (Lx / (2 x Ly))))
Nominal Shear, Vc = 64.622 kN
> 5.718 Slab Is Safe In Shear

Slab No. : S15

Level = 6.1m
Design Code = ACI 318M - 2011
Grade Of Concrete = C20
Grade Of Steel = Fy276
Clear Cover = 20.000 mm
Long Span, Ly = 2.530 m
Short Span, Lx = 1.000 m
Imposed Load, Qk = 1.500 kN/sqm
Live Load = 1.900 kN/sqm
Slab Thickness = 120.000 mm
Effective Depth Along LX, = 95.000 mm
Deffx
Self Weight = 3.000 kN/sqm
Total Load, TL (ultimate) = 8.440 kN/sqm
Span = 1-Way
End Conditions = End Span
Load Combination = 1.2 DL + 1.6 LL

Design Moments:
Short Span Positive Moment at Mid Span -
 Moment Coefficient, M1 = 0.0710
Mu (M1 x TL(ultimate) x = 0.603 kNm
Lx x Lx)
Area Of Reinforcement = 25.603 sqmm/m
Required (BM)
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Short Span Negative Moment at Continuous Support -
Moment Coefficient, M2 = 0.1000
Mu (M2 x TL(ultimate) x = 0.844 kNm
Lx x Lx)
Area Of Reinforcement = 35.876 sqmm/m
Required (BM)
Additional Area Of
= 23.074 sqmm/m
Reinforcement Required
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
All Other Sections provide Minimum Steel @ 0.18% -
Area Of Reinforcement = 171.000 sqmm/m
Required
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Shear Check :
Shear Coefficient, SF1 = 0.500
Vsx (SF1 x TL(ultimate) x = 4.220 kN
Lx)
Nominal Shear, Vc = 72.225 kN
> 4.220 Slab Is Safe In Shear

Slab No. : S16

Level = 6.1m
Design Code = ACI 318M - 2011
Grade Of Concrete = C20
Grade Of Steel = Fy276
Clear Cover = 20.000 mm
Long Span, Ly = 2.530 m
Short Span, Lx = 2.530 m
Imposed Load = 1.500 kN/sqm
Live Load, Qk = 1.900 kN/sqm
Slab Thickness = 120.000 mm
Effective Depth Along LX, Deffx = 95.000 mm
Effective Depth Along LY, Deffy = 85.000 mm
Self Weight = 3.000 kN/sqm
Total Load, TL (ultimate) = 8.440 kN/sqm
Span = 2-Way
Load Combination = 1.2 DL + 1.6 LL
 Short Span Long Span
Side1 Side2 Side1 Side2
Beam
B (mm) 250 250 250 250
D (mm) 550 450 450 450
Ib (mm4) x106 3466.15 1898.44 1898.44 1898.44
Adjacent Slab
Thk (mm) 120 120 120 -
Span (mm) 4500 1000 1000 -
Ib (mm4) x106 506.16 254.16 254.16 182.16
αf lx, αf ly 6.85 7.47 7.47 10.42
αf 8.05
Ln (mm) 2280 2280
L2 (mm) 1390 1390
Total BM (kNm) 7.62 7.62
Bottom
Moment Coefficent 0.85 0.84
Distributed Moment (kNm) 6.4 6.4
CS Moment (kNm) 4.8 4.8
MS Moment (kNm) 1.6 1.6
Moment on Beam (kNm) 4.08 4.08
Design Moment M1, M3 (kNm) 0.72 0.72
Top
Moment Coefficent 0.16 0.16
Distributed Moment (kNm) 1.22 1.22
CS Moment (kNm) 0.91 0.91
MS Moment (kNm) 0.3 0.3
Moment on Beam (kNm) 0.78 0.78
Design Moment M2, M4 (kNm) 0.141 0.14

Design Moments:
Short Span Positive Moment At Midspan -
M1 = 0.720 kNm
Area Of Reinforcement = 30.608 sqmm/m
Required (BM)
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Short Span Negative Moment At Continuous Support -
M2 = N.A. kNm
Area Of Reinforcement = N.A. sqmm/m
Required (BM)
Reinforcement Provided = N.A.
= N.A. sqmm/m
Long Span Positive Moment At Midspan -
M3 = 0.720 kNm
Area Of Reinforcement = 34.231 sqmm/m
Required (BM)
 Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Long Span Negative Moment At Continuous Support -
M4 = N.A. kNm
Area Of Reinforcement = N.A. sqmm/m
Required (BM)
Reinforcement Provided = N.A.
= N.A. sqmm/m
Distribution Reinforcement @ 0.18% -
Area Of Reinforcement = 171.000 sqmm/m
Required
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Shear Check :
Along Short Span
Vsx (TL(ultimate) x Lx / 4) = 5.338 kN
Nominal Shear, Vc = 72.225 kN
> 5.338 Slab Is Safe In Shear
Along Long Span
Vsy (TL(ultimate) x Lx / 2 x (1 = 5.338 kN
- (Lx / (2 x Ly))))
Nominal Shear, Vc = 64.622 kN
> 5.338 Slab Is Safe In Shear

Slab No. : S17

Level = 6.1m
Design Code = ACI 318M - 2011
Grade Of Concrete = C20
Grade Of Steel = Fy276
Clear Cover = 20.000 mm
Long Span, Ly = 2.530 m
Short Span, Lx = 1.000 m
Imposed Load, Qk = 1.500 kN/sqm
Live Load = 1.900 kN/sqm
Slab Thickness = 120.000 mm
Effective Depth Along LX, = 95.000 mm
Deffx
Self Weight = 3.000 kN/sqm
Total Load, TL (ultimate) = 8.440 kN/sqm
Span = 1-Way
End Conditions = End Span
Load Combination = 1.2 DL + 1.6 LL

Design Moments:
Short Span Positive Moment at Mid Span -
Moment Coefficient, M1 = 0.0710
Mu (M1 x TL(ultimate) x = 0.603 kNm
Lx x Lx)
Area Of Reinforcement = 25.603 sqmm/m
Required (BM)
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Short Span Negative Moment at Continuous Support -
Moment Coefficient, M2 = 0.1000
Mu (M2 x TL(ultimate) x = 0.844 kNm
Lx x Lx)
Area Of Reinforcement = 35.876 sqmm/m
Required (BM)
Additional Area Of
= 23.074 sqmm/m
Reinforcement Required
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
All Other Sections provide Minimum Steel @ 0.18% -
Area Of Reinforcement = 171.000 sqmm/m
Required
Reinforcement Provided = #12 @ 185 C/C
= 611.000 sqmm/m
Shear Check :
Shear Coefficient, SF1 = 0.500
Vsx (SF1 x TL(ultimate) x = 4.220 kN
Lx)
Nominal Shear, Vc = 72.225 kN
> 4.220 Slab Is Safe In Shear
