03 Operation

Face Master 2.
3-1B
OPERATIONS

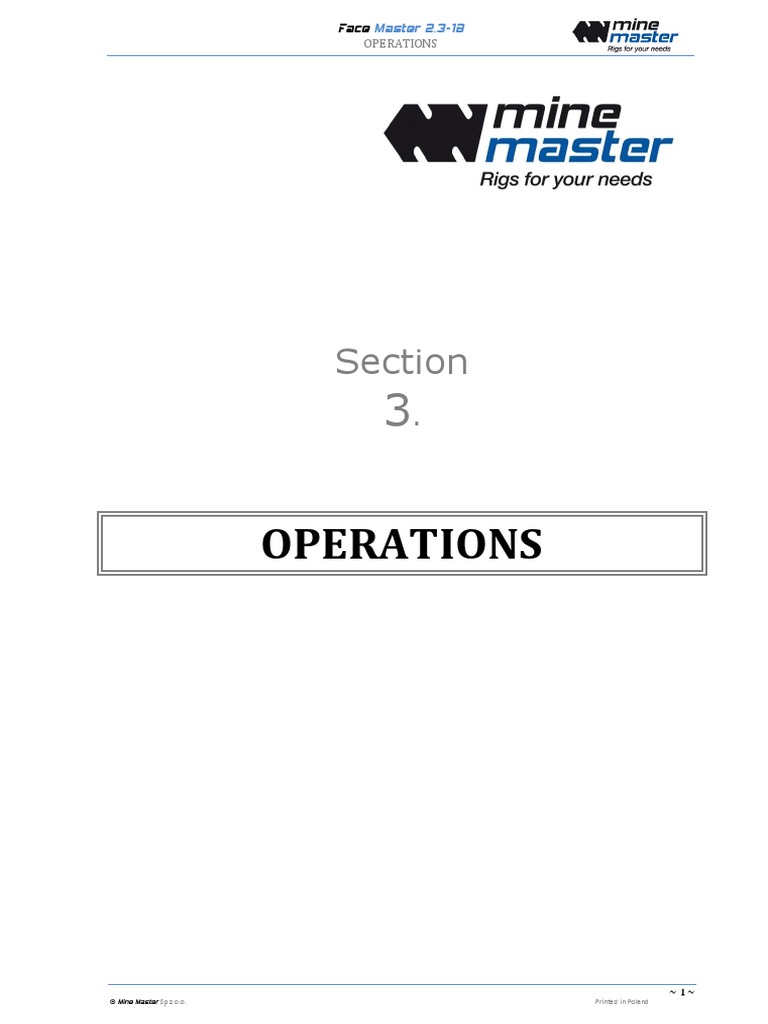

Section
3.
OPERATIONS
~1~
© Mine Master Sp z o.o. Printed in Poland
Face Master 2.3-1B
OPERATIONS
This page is intentionally blank
~2~
Face Master 2.3-1B
OPERATIONS
Table of Contents
3-1 INTRODUCTION .................................................................... 4
3-2 EQUIPMENT DESCRIPTION AND IDENTIFICATION ..................... 4
3-3 MAIN COMPONENT LOCATION ................................................ 5
3-4 CONTROL PANEL OPERATIONS ............................................... 6
3-5 DRILLING PANEL .................................................................. 7
3-5-1 BOOM CONTROL ................................................................................................................. 8
3-5-2 ELECTRIC CONTROL ............................................................................................................ 11
3-5-3 AIR/WATER PRESSURE GAUGES AT THE REAR OF RIG ............................................................... 11
3-6 DRIVING PANEL.................................................................. 12
3-6-1 GEAR LEVER ..................................................................................................................... 14
3-6-2 PRIOR TO START UP CHECK: ................................................................................................. 15
3-6-3 STARTING THE ENGINE ....................................................................................................... 16
3-7 DRIVING THE VEHICLE ........................................................ 17
3-8 DRILL RIG COMPONENTS ..................................................... 19
3-8-1 MAIN HYDRAULIC SYSTEM 9086600 ................................................................................... 19
3-8-2 MAJOR HYDRAULIC COMPONENTS ........................................................................................ 25
3-8-3 HYDRAULIC VALVE FOR AUTO-PARALLEL BOOM OVER-RIDE . 27
3-9 DRILLING SUB-SYSTEMS ..................................................... 28
3-9-1 PERCUSSION CONTROL CIRCUIT ............................................................................................ 29
3-9-2 DRILL ROTATION CONTROL CIRCUIT ...................................................................................... 29
3-9-3 FEED CONTROL CIRCUIT ...................................................................................................... 29
3-9-5 BOOM CONTROL SUB-SYSTEMS ........................................................................................... 30
3-10 CARRIER HYDRAULIC SYSTEM 9086601 ............................... 31
3-11 WATER AND AIR SYSTEM 9086602 ...................................... 36
3-11-1 WATER SYSTEM .............................................................................................................. 36
3-11-2 AIR SYSTEM ................................................................................................................... 37
3-11-3 WATER REEL PREVENTATIVE MAINTENANCE ........................................................................ 38
~3~
Face Master 2.3-1B
OPERATIONS
3-1 Introduction
The Face Master 2.3-1B is configured for the following drilling

operations:
• Blast holes for rock extraction
• Roof Bolting
Important – The personnel responsible for operating the Face Master Drill
Rig must be sufficiently trained and be aware of all the safety rules in this
manual. If there is anything they are not sure about, please contact the
equipment supplier or Mine Master Service Centre:
Contact information:
Service Manager
Mine Master Ltd
Wilków 59-500 Złotoryja
PO Box 25
Poland
Tel: +48 76 8783 511
Fax: +48 76 8748 101
3-2 Equipment description and identification
Rotary percussive Rockdrill – the rockdrill is ideally suitable for this

kind of work using threaded drill steels and screw on drill bits.
Feeder (fixed) – Hydraulic cylinder and rope driven with front

Guide/clamp and Moving Guide
Circuit testing – Pressure gauges monitor the system by measuring

main pressures at any time while the machine is running.
Hydraulic supply – taken from the on-board system.
The pictures on the following pages locate the main components of the
Face Master 2.3-1B.
Note: The hydraulic components of the Face Master Drill Rigs are
compatible with a wide range of oils. See the Oil Selection Chart to
determine the oil most suited to your conditions.
~4~
Face Master 2.3-1B
OPERATIONS
3-3 Main Component Location
Exhaust System Electrical System Operator Stand Boom and Drill

Feeder
Fire Extinguisher Chassis Braking System Main Hydraulic System
Water and Air System Air Inlet System
Steering System Transmission System Fire Extinguisher
Water Hose Reel Electric Cable Reel
~5~
Face Master 2.3-1B
OPERATIONS
3-4 Control Panel Operations
Panel’s placement
Drilling Panel Driving Control Panel
7
2
4
1
1. Brake Pedal 5. Parking Brake

2. Steering Wheel 6. Driving Panel
3. Operator seat 7. Gear and driving direction lever
4. Acceleration Pedal
~6~
Face Master 2.3-1B
OPERATIONS
3-5 Drilling Panel
1 3 2
1. Pressure Gauges
2. Electric controls
3. Boom controls
4. Air/Water valves
~7~
Face Master 2.3-1B
OPERATIONS
3-5-1 Boom control
1 2 3 4 5
11 6 7 9 8 10
1. Rockdrill Percussion Pressure 7. Rockdrill Rotation

2. Rockdrill Rotation Pressure 8. Working System Joysticks
3. Drill Feed Pressure 9. Rockdrill Feed
4. Water Pressure 10. Feed regulation
5. Air Pressure 11. Rotation regulation
6. Rockdrill Percussion
BOOM LIFT
~8~
Face Master 2.3-1B
OPERATIONS
TILT (with pressed button)
ORIENTATION (with pressed button)
BOOM SLEW
BOOM ROLLOVER
~9~
Face Master 2.3-1B
OPERATIONS
BOOM EXTENSION
FEED SWING
CROWD
FEED
~ 10 ~
Face Master 2.3-1B
OPERATIONS
3-5-2 Electric control
4 3 2 1 5 6 7 8 9 10
11 12 13 14
1. WATER FLOW – LIGHT 8. HYDRAULIC OIL LEVEL– LIGHT

2. BOOM AUTO PARALLEL SYS. – SWITCH 9. POWER ON/OFF SWITCH
3. BYPASS BUTTON 10. EMERGENCY STOP BUTTON
4. POWER PACK ON/OFF 11. POWER PACK ON/OFF (OPTION)
5. READY TO START LIGHT 12. INDICATOR TEST BUTTON
6. BATTERY CHARGING 13. AIR - LIGHT
7. HYDRAULIC OIL TEMPERATURE – LIGHT 14. ROCK DRILL GREASE LEVEL – LIGHT
3-5-3 Air/Water Pressure Gauges at the rear of rig
1. Air Pressure
2. Water Pressure before Pump
3. Water Pressure after Pump
~ 11 ~
Face Master 2.3-1B
OPERATIONS
3-6 Driving Panel
8 9 10
2
15
5
12
6
14
7 13
16 11
17
1. Parking lights 12. Diesel engine ignition button

2. Driving/road lights front 13. Ignition switch
3. Working lights 14. Cabin lighting switch
4. Driving/road lights rear 15. Fan switch
5. Dam light 16. Display
6. Warning signal (klaxon) button 17. USB socket
7. Turning off all lamps button
8. Alarm
9. Emergency stop button
10. Battery on/off switch
11. Bypass button
~ 12 ~
Face Master 2.3-1B
OPERATIONS
Parking brake
Parking brake Emergency release Hand plunger pump (to operate unscrew fully and
push up and down).
1 2 3 4 5 6 7
1. Front right hydraulic jack ↕↔* 5. Water hose reel ↕

2. Rear hydraulic jacks ↕ 6. Front left hydraulic jack ↕↔*
3. Canopy↕ 7. Gearbox clutches pressure
4. Electric cable reel ↕
After lifting the canopy, secure it with pin.
* Up – jack up / Down – jack down / Sideways: Extend/Retract
~ 13 ~
Face Master 2.3-1B
OPERATIONS
3-6-1 Gear lever
To change the driving direction, move this gear grip forward or backward.
To change the gear rotate this gear grip as shown on picture below.
3 2 1
1. Gear grip (gear 1,2,3)

2. Neutral
3. Forward (front platform direction)
4. Backward (carrier direction)
~ 14 ~
Face Master 2.3-1B
OPERATIONS
3-6-2 Prior to start up check:
1. Diesel fuel level.

2. 24V (DC) battery disconnector.
3. Hydraulic oil level.
Hydraulic oil Hydraulic oil

Battery level indicator temperature
disconnector (hydraulic tank) indicator
(hydraulic tank)
Fuel level
sight-glass
~ 15 ~
Face Master 2.3-1B
OPERATIONS
3-6-3 Starting the engine
Check that the emergency/park brake on the machine is in the ON position.

Check that the gear selector switch is in neutral position.
Turn the key switch on to position 2 to start the engine.
Push green button to start engine.
Should the engine not fire smoothly or should it expel grey-white smoke, do not use the
accelerator pedal. If the engine does not clear within a few minutes, switch off and call
maintenance personnel.
If the engine does not start, repeat the attempt with the key switch. Wait 1 minute between
trying, to save the battery.
If the engine still does not start after three or four attempts, switch off and call maintenance
personnel.
Once the engine runs smoothly, check that the amber alternator charge light goes out. Allow
the engine to warm up for a few minutes while checking that all pressure gauges read in the
green band and the temperature gauge needles are beginning to rise.
Check the function of the parking brake. The vehicle should remain stationary with the
accelerator fully depressed. If the vehicle moves, have the brake circuit checked.
~ 16 ~
Face Master 2.3-1B
OPERATIONS
3-7 Driving the vehicle
NOTICE!
Whenever possible, drive forwards when driving up an incline and backwards when driving
down an incline. The drill boom and feeders must be in the tramming position. The canopy
must be lowered 20cm minimum below the roof height.
Tramming position
Machine speed depends on the engine speed, the gear selected and the tractive
resistance.
Pressing the accelerator pedal increases speed; releasing the pedal decreases speed.
To drive, proceed as follows:-
Set the Gear selector direction to the FORWARD or REVERSE position as required.
Release the hand brake - pull knob out.
Select first gear.
Press the accelerator pedal down slowly until the required speed is reached. Hold the
accelerator pedal in this position.
Change gears as required. Note that the gears may be changed under full power.
To slow down, release the accelerator pedal slowly until the required speed is reached.
To stop, release the accelerator pedal completely and apply the foot brake.
• Driving Downhill
When driving downhill, the engine will act as a brake. Select the appropriate gear and let
out the accelerator pedal until the machine reaches the required steady speed.
DO NOT CHANGE THE DRIVE DIRECTION WHILE THE

VEHICLE IS MOVING
Change the drive direction as follows:
Stop the machine.

Move the Gear Change Control Switch through the centre (neutral) position to the new
drive direction position.
Drive off as described above.
~ 17 ~
Face Master 2.3-1B
OPERATIONS
• Stopping and Parking

1. Take your foot off the accelerator and apply the foot brake.
2. When the machine has stopped, apply the parking brake.
3. Rotate the gear selector switch to the centre position (neutral).
4. Turn the ignition key to stop the engine.
5. Set the battery switch to OFF position.
6. Do not switch off while the engine is running.
7. If parked on a slope, chock the wheels or lift the machine on jacks.
Moving the Boom
Normally the drill boom should be kept in the tramming position

while tramming. Move the boom to turn the machine around
corners. The drill boom can be powered by the auxiliary hydraulic
system when the Diesel engine is running and the boom control
valves are operated.
EXTREME CAUTION MUST BE EXERCISED WHEN THE

BOOMS ARE SLEWED TO THE SIDE WHILE THE FRONT
OUTRIGGERS ARE RAISED.
• Driving on a Cambered Roadway and Turning the Rig
EXTREME CAUTION MUST BE EXERCISED WHEN THE

VEHICLE IS DRIVEN ON A CAMBERED ROADWAY OR IS
TURNED WITH THE BOOMS SLEWED OR RAISED.
• Towing the Rig

• Connect a towbar between the vehicle and the recovery
vehicle.
• Release the failsafe brakes by fully turning “IN” the release
screws on the front and rear axles.
• Release the parking brake (if applied) by fully unscrewing the
knob and pumping up and down 15 to 20 times.
Ensure the rig is secured against running away.

• Steer the vehicle by turning the steering wheel in the
appropriate directions.
• Chock the wheels when the towing operation has been
completed. Do not disconnect the towbar before the chocks
have been placed under the wheels.
Reset the brake release screws before returning the vehicle to

service.
FAILURE TO DO SO WILL RENDER THE FAILSAFE AND
PARK BRAKES INOPERATIVE.
~ 18 ~
Face Master 2.3-1B
OPERATIONS
3-8 Drill Rig Components
3-8-1 Main Hydraulic System

9086600
This section describes the major components, functions, operation, installation, maintenance
and troubleshooting of the Main Hydraulic System.
The Main Hydraulic System is powered by Electric Motor which is controlled by the Main
Electric System described in section 6 of this manual.
The Main Hydraulic System circuit diagram is shown in drawing – see next page.
Each system has three sub-systems:

• Pump sub-system
• Boom control sub-system
• Drilling sub-system
Hydraulic power from the carrier hydraulic system provides a secondary power source to the
Boom Control Sub-System to enable the boom and feed rail to be moved when the main
electrical system is disconnected and the Diesel engine is running.
~ 19 ~
Face Master 2.3-1B
OPERATIONS
~ 20 ~
Face Master 2.3-1B
OPERATIONS
Main Hydraulic System 9086600
~ 21 ~
Face Master 2.3-1B
OPERATIONS
~ 22 ~
Face Master 2.3-1B
OPERATIONS
Components of Main Hydraulic System
ITEM DESCRIPTION PART NO QTY

1 HYDRAULIC DIVIDER 9064805 1
4 HYDRAULIC PUMP 9079965 1
5 HYDRAULIC PUMP 9024113 1
6 GRIP 9064818 1
7 DIVIDER LEVER 9064906 1
8 PRESSURE FILTER 9045946 3
8.1 PRESSURE FILTER INPUT 9023654 0
9 RETURN FILTER 9028854 2
9.1 RETURN FILTER INPUT 9028856 0
10 BREATHER FILTER 9024454 1
10.1 BRATHER FILTER INPUT 9024936 0
11 COOLER 9053953 1
12 VALVE 53111201 1
13 VALVE 53141098 2
15 OIL LEVEL INDICATOR 53191525 1
16 TEMPERATURE SENSOR 53198017 1
17 PRESSURE GAUGE 9052986 2
18 PRESSURE GAUGE 9052987 1
19 VALVE 9015942 1
20 ROCK DRILL HC95LM 9065998 1
21 VALVE 9024108 1
22 HOUSING 53111389 1
23 VALVE 9011386 4
25 MEASURING PORT 9020862 1
26 MEASURING PORT 9011899 5
27 VALVE 9021597 1
28 2-AXIS ROTARY ACTUATOR 9037399 1
29 HYDRAULIC CYLINDER 9085988 0
36 VALVE 9020854 1
37 MOUNTING PLATE 9018467 1
~ 23 ~
Face Master 2.3-1B
OPERATIONS

38 PRESOSTATE 9064815 1
39 VALVE 9039544 1
40 VALVE 9018404 2
41 VALVE 53111314 3
42 VALVE 9065963 1
44 VALVE 9029894 1
46 PLATE 9024102 1
48 VALVE 9016836 1
~ 24 ~
Face Master 2.3-1B
OPERATIONS
3-8-2 Major hydraulic components
This paragraph describes the main hydraulic system major components. The location of the major
components is presented on the Circuit Diagram.
➢ Axial piston hydraulic pump (100 cc) mounted on the 55 kW Electric Motor in pump
compartment
➢ Double hydraulic gear pump mounted on the back 100 cc pump
➢ Directional control valve 3 - section – Percussion, Rotation, Feed,
➢ Directional Control valve 4 - section – Rollover, Extension, Feed Swing, Feeder Crowd
mounted in the drilling panel
➢ Pressure Filters – Percussion, Rotation and Feed mounted on the carrier pivot
➢ Return line Filter mounted on the top of the tank
➢ Breather Filter mounted on the top of the tank
➢ Heat Exchangers mounted on rear platform above gear box
➢ Anti-jamming Valve mounted in the drilling panel
➢ Feed Relieve Valve mounted in the drilling panel
➢ Oil level indicator mounted on the front side of the hydraulic tank
➢ Pressure gauges mounted in the drilling panel
➢ Hydraulic Rock Drill HC-95LM mounted on the feeder
➢ Solenoid directional control valves of auto-parallel system mounted on the front platform
➢ Solenoid directional control valves of crowd/feeder stab mounted on the front platform
~ 25 ~
Face Master 2.3-1B
OPERATIONS
High Pressure Filter for

percussion
Hydraulic pumps Electric Motor

High Pressure Filter for High Pressure Filter for
feed rotation
Additional Elements On Oil Tank
Return Filter (8) Breather Filter (9)
Oil Level Gauge Oil Temperature Gauge
~ 26 ~
Face Master 2.3-1B
OPERATIONS
Boom with Hydraulic Rock Drill
Hydraulic Rock Drill Boom
3-8-3 Hydraulic valve for auto-parallel boom over-ride
Auto-Parallel Oil-Water
valve Coolers
~ 27 ~
Face Master 2.3-1B
OPERATIONS
FUNCTIONS
The following paragraphs describe the functions of the Major hydraulic components.
Item 1 – Directional control valve 3-section – controls: percussion, rotation, feed
Item 2 – Directional control valve 4-section – controls: boom rollover, feed swing, feeder
crowd, boom extension.
Item 3 - Joystick Controller. This two axis Joystick with electrical button switch on the top
of the grip provides manual control of the Auto-parallel boom functions lift and slew;
by the top switch; give separate control of the Tilt and Orientate functions.
Item 4 – Hydraulic pump – supply drill percussion.
Item 5 – Double hydraulic pump – supply.
Item 8 – High pressure filters. These filter the oil output from the three pumps to protect the
hydraulic drifter and hydraulic valves – percussion, rotation and feed.
Item 9 – Return line filters. The return line filters clean the oil before it is returned to the
tank.
Item 10 – Breather filter. The breather allows air out and filters oil going into the reservoir.
Item 11 – Heat exchanger (Oil-water plate cooler). The heat exchanger removes excess
heat from the oil returning to the hydraulic tank.
Item 12 – Anti-jamming Valve. This valve reacts to any rise in rotation pressure to control
feed and percussion pressure, and prevents the drill bit and steel jamming in the hole.
Item 13 – Feed pressure valve. The feed pressure valve provides manual control of feed
pressure during drilling, to accommodate varying rocks types.
Item 15 – Oil level indicator. It shows the hydraulic oil level in the tank.
Item 17 & 18 – Pressure gauges. They provide the operator with the pressures of
percussion circuit, rotation circuit and feed circuit during drilling.
Item 20 – Hydraulic rock drill HC-109. The Drifter converts the hydraulic input power to
percussive energy for drilling. An integrated hydraulic motor rotates the drill steel.
3-9 Drilling Sub-systems
Pumps, drilling control panel complete with control valves and the pressure gauges make up
the drilling sub-system.
Drilling control panel
~ 28 ~
Face Master 2.3-1B
OPERATIONS
3-9-1 Percussion control circuit
Fluid enters at standby pressure from the Hydraulic Pump (4) via the pressure filter (8) to the
normally closed Pressure Sensing Valve (20, 21) and then on to the percussion port of the
Drifter (20). When the Percussion section of control valve (1) is operated in forward or reverse
(Full Power or Half Power) a pilot opens valve (21, 20). This pilot also raises the load sensing
signal to the Pump (4) and allows it to supply the required pressure and flow to the percussion
element. When the control handle is in reverse position (Half Power Percussion) the Drifter is
connected with pump by port B of the directional valve and shuttle valve. Pressure is limited to
9 MPa by relief valve mounted in port B of the directional valve and load sensing line which
controls the pump pressure. When the control handle is in forward position (Full Power
Percussion) the Drifter is connected with pump by port A and shuttle valve. Pressure can reach
maximum system pressure of 15 MPa setting on the pump. The return line from the percussion
element is connected to the tank by Heat Exchanger (11) and a Return line Filter (8) mounted
on the top of the tank.
3-9-2 Drill Rotation Control Circuit
Fluid from Double gear pump passes through the High pressure filter and Shuttle Valve and
enters first to the Directional Control Valve and then to the to the Directional Control Valve for
rotation and passes back to the tank. When the control handle is pushed forward the
Directional Control Valve passes fluid from port A to port L of the rotation motor of the hydraulic
Drifter and the steel turns CCW direction (this is the working direction of rotation). When the
control handle is in the reverse position fluid flows through port B to port R of the rotation motor
in hydraulic Drifter and steel turns CW direction. Feed pressure in the A line also controls the
Anti-jamming Valve and to set number of rotation we use flow regulator.
3-9-3 Feed control circuit
Fluid enters from Gear Pump through High Pressure Filter and Shuttle Valve to the 3 section
Directional Control Valve. The middle section of this valve is for the control of the feed
cylinders. When the control handle is in the mid (neutral) position port P is open to tank and
pump must flow to tank. When the control handle is pushed forward, the fluid passes through
port A to drive the feed cylinders forward. When the control handle is pulled towards the
operator, the fluid passes through port B of the section to retract the feed cylinders. The feed
pressure valve is a relief valve which allows the operator to adjust the feed pressure to suit
local rock condition, thus enabling the fastest penetration rate and saving on steels and drill
bits. The Anti-jamming Valve is a pilot operated, relief valve piloted from rotation circuit. The
valve prevents jamming of the drill rod due to broken ground condition or clogging with rock
chippings. The Anti-jamming Valve is an automatic control device which links the Drifter’s
rotation supply pressure and the feed pressure. When the drill steel rotation resistance
increases, the rotation supply pressure will increase, the Anti-jamming Valve will open when
the pressure reaches the valve setting, and connect feed via supply line to the tank. This
causes the drill carriage to stop. The feed will remain stationary while the rotation pressure is
high but will automatically return to driving the feed forward when the rotation pressure drops
back to normal. The 22 MPa feed pressure gauge on port A of the anti-jamming valve is
mounted on the operator’s panel and displays the feed pressure. The Relief valve and Stop
Valve are for the sequence control and setting of the Telescopic Feeder - see next page.
~ 29 ~
Face Master 2.3-1B
OPERATIONS
3-9-5 Boom Control Sub-Systems
The RHS sections of the 3-section directional control valve and valves (2 L, 6 R), control boom
Lift/Tilt, Slew/Orientate Cylinders in auto-parallel mode. The top switch of the handle controller
activates the solenoid operated 2-position directional control valves to gain over-ride of the
front section of the Boom allowing for setting Look-out angles. Flow to the boom control sub-
system is supplied from the double gear hydraulic pump driven by the electric motor. When
the Diesel engine is running, flow to the directional boom control valves can be supplied from
the carrier hydraulic system. This is to allow the boom to be moved for driving round corners.
~ 30 ~
Face Master 2.3-1B
OPERATIONS
3-10 Carrier Hydraulic System

9086601
The carrier hydraulic system is driven by Diesel engine by two gear pumps installed on torque
converter on the gear box. The carrier hydraulic system has three sub systems:
1) Steering Hydraulic System
2) Braking Hydraulic System
3) Auxiliary Hydraulic System
The Steering Hydraulic System is powered by gear pump (1) which is installed on torque
converter on the gear box. The steering hydraulic system is based on Danfoss hydrostatic
steering components which consists of a steering unit with valve block (3), steering cylinders
(5) priority valve (4).
Steering System Hydraulic Valve
Braking Hydraulic System is powered by gear pump (31) and consists of the service brake
and emergency parking brake. Control of the service brake is by a brake pedal / braking valve
S6 (6). Pressing the pedal creates a braking effect on the machine. The braking force may be
applied gradually because it is proportional to the force applied on the braking pedal. The
service brake is designed with independent circuits. The hydraulic pump (31) feeds the braking
Valve S6 (6) with brake pedal, valve block, accumulator charging valves and the independent
circuits of the service brakes.
There are charging valves for the 3 accumulators (6); two are incorporated in the circuit of the
service brakes, and one in the circuit of the emergency-parking brake. During loss of power
the emergency parking brake is released by fully unscrewing the knob and pumping it up and
down approximately 15 to 20 times to apply release pressure on the brakes.
Ensure that the rig is secured from run away before releasing the parking brake.
The Auxiliary Hydraulic System is powered by the 16cc gear pump (31) installed on diesel
engine PTO. The auxiliary hydraulic system consists of an 8 section control directional valve
(9) which serves to operate: front jack cylinders (28) rear jack cylinders (17), Hose Reel
Hydraulic Motor (20), Cable Reel Hydraulic Motor (19) jack extension cylinders (15). This
system is protected by relief valve mounted inside 8-section directional control Valve.
~ 31 ~
Face Master 2.3-1B
OPERATIONS
Hydraulic Components of Carrier Hydraulic System – parts list

1. GEAR PUMP 53111277 1
2. STEERING UNIT 9049904 1
3. PRIORITY VALVE 53161055 1
4. STEERING CYLINDE 53161011 2
5. RELIEF VALVE 53161203 2
6. BRAKING UNIT 53161384 1
7. HAND BRAKE 9024142 1
8. ACCUMULATOR 9082963 3
9. DIRECTIONAL VALVE 9053957 1
10. FLOW DIVIDER 53161128 1
11. MINIMES CONNECTOR 9011899 6
12. MINIMES CONNECTOR 9015996 2
13. PRESSURE SWITCH 9064815 1
14. PRESSURE SWITCH 9064814 1
15. FRONT JACK EXTENTION CYLINDER 9012889 2
16. LEFT REAR JACK 9077760 1
17. RIGHT REAR JACK 9077759 1
18. CANOPY FILT CYLINDER 9014126 2
19. CABLEREELDRIVEMOTOR 9057733 0
20. WATER REEL DRIVE 9057733 0
21. RETURN FILTER 9028854 0
22. BREATHER FILTER 9024454 0
23. OIL LEVEL GAUGE 53142752 0
24. OIL TEMPERATURE SWITCH 53198017 0
25. DOUBLE CHECK VALVE 9029893 2
26. OIL PUMP 9024149 1
27. VALVE 53191186 2
28. FRONT JACKS 9079820 2
29. INLINE FILTER 9040913 2
30. MINIMES PLATE 9053501 1
31. GEAR PUMP 9029828 0
34. DIRECTIONAL VALVE 9046911 1
35. VALVE 53191202 1
~ 32 ~
Face Master 2.3-1B
OPERATIONS
~ 33 ~
Face Master 2.3-1B
OPERATIONS
Carrier Hydraulic System 9086601
~ 34 ~
Face Master 2.3-1B
OPERATIONS
~ 35 ~
Face Master 2.3-1B
OPERATIONS
3-11 Water and Air System

9086602
The machine is equipped with Water and Air system which is used for flushing a hole
during drilling.
3-11-1 Water System
Function
The function of the water system is to supply flushing system with a controlled flow of
water and for cooling the oil in the main hydraulic system.
The system has external water sources.
The water system includes a water filter (1), water pump (2), pressure overflow valve
(6).
The water system includes flow sensor protecting the system (especially water pump)
from dry running. The sensor will turn off pump electric motor automatically when there
is no water flow. In the case of lack of water the sensor will not allow operator to turn
on the power pack (in such a case turning on the powerpack is possible in manual
mode only).
If water system is supplied from external source and pressure in external water system
is higher than 1.5MPa relief valve will open to protect the pump and the water will be
released onto the mine floor.
If the water system is supplied with water from external source and pressure in external
water system is too high the check valve will open and water will go directly to the
system (pump is bypassed).
The water flushing system, is supplied by the mine water network. Water flows through
a water filter, to the pressure control valve.
Upon opening of the valve, the water stream flows through the pressure pump, to the
water-oil cooler – entering water cools the oil in Main hydraulic system (percussion sub-
system). Then it leaves the cooler flowing through cut-off valves that close and open
the water inflow to flashing heads or to the floor. The cut-off valves are placed on the
front of drilling panel.
Installation
The following general precaution must be observed during installation:
• Ensure that all components and fittings are clean before connecting up.
• Keep all open ports capped or plugged if they are disconnected.
• Do not exceed given pressure limit.
~ 36 ~
Face Master 2.3-1B
OPERATIONS
3-11-2 Air System
Function
The function of the air system is lubrication of the hydraulic Drifter and air flushing, with
minimum flow rate of water (max. 5 l/min).
Operation
The air system includes a compressor, a ball valve, water separator, lubricator set,
pressure reducing valve, pressure gauge, a check valve and pressure switch.
The compressor is equipped with a safety valve set at 1 MPa, capable of supplying 1
m3/min of air.
There is an incorporated air blowing system for holes that is controlled by valves and
that allows cutting off water and blowing with the air.
After passing the lubricator, the compressed air together with oil mist is supplied to the
lubricating system of the drill. Intensity of lubrication of the drill is adjusted by a change
to pressure of the air supplied to the drill and a quantity of oil drops dosed to the
compressed air. Pressure of the lubricating air is adjusted by a pressure reducing valve
of the lubricator. A quantity of oil for lubricating purposes is determined by adjustment
of the drop feeder located in the lubricator. A quantity of drops should be 10 drops per
minute. Additionally, lubrication should be carried out with air pressure reduced to 0.2
÷ 0.3 MPa.
Installation
The following general precaution must be observed during installation:
• Ensure that all components and fittings are clean before connecting up.
• Keep all open ports capped or plugged if they are disconnected.
• Do not exceed given pressure limit.
Instruction for Reel output torque adjustment:

• Unscrew the torque regulating key
• Turn the key up-side-down and insert it into gear-housing
• Turn the drum slowly until the key clicks into a locked position
• Adjust torque by turning the drum half a turn at a time. The torque must be
sufficient with a full drum, but not to pull cable too much with an empty drum.
• To increase torque – turn the drum clockwise
• To decrease torque – turn the drum counter clockwise.
NOTE: Max. torque = 200 Nm

Number of turns between MIN and MAX torque = 3.5.
~ 37 ~
Face Master 2.3-1B
OPERATIONS
3-11-3 Water Reel Preventative Maintenance
After first week of operation

Check oil level in the gear housing. Oil should be visible through the upper oil plug.
Check if the torque of the Reel is correctly adjusted. The torque should be set so that
the cable never slackens but not to the point where the cable is stretched. If torque is
correctly adjusted once, under normal circumstances it should not require re-adjusting.
Check that all bolts/nuts are properly tightened, especially on the drum and at the cable
connections inside the collector.
Every second month

Check oil level – replenish if insufficient
Check all nuts and bolts – re-tighten
In severely polluted areas, it is advisable to open and clean the collector regularly.
When cleaning, the following should be observed:

Never use water when cleaning. Use a vacuum cleaner, brush or a lint-free cloth or rag.
Slip rings must be dry, clean and free from oil or other covering stains.
If a damaged component is discovered, it must be replaced immediately.
After cleaning the slip rings, the collector housing is to be mounted with its drainage
holes downwards and achieving a good seal.
Oil type / change

The standard oil type used in the gear housing is ESSO GX 85W-90 (or equivalent).
The oil is used for applications at ambient temperatures of -10o to +40o C.
Oil change is to be done every 1000 hours of operation. If reels are used intensively
than the oil change should be every 500 hours of operation.
Required oil quantity = 4.5 liters.
~ 38 ~
Face Master 2.3-1B
OPERATIONS
Water and Air circuit
~ 39 ~
Face Master 2.3-1B
OPERATIONS
~ 40 ~
Face Master 2.3-1B
OPERATIONS
Water and Air Circuit components

1 WATER FILTER 53191610 1
2 WATER PUMP 9046926 1
3 OIL-WATER COOLER 9053953 -
4 VALVE 53199003 1
5 VALVE 53141048 1
6 VALVE 9022155 1
7 PRESOSTATE 9064813 2
8 AUTOMATIC VENT 9019634 1
9 VALVE 53141123 2
10 VALVE 53191550 2
11 VALVE 9069973 2
12 VALVE 9069974 1
13 MANOMETER 9052983 5
15 SWITCH 9055542 0
16 THERMAL OVERLOAD MODULE 9039601 0
17 VALVE 53141123 1
18 COMPRESSOR 9082215 1
19 SEPARATOR 9079988 1
20 AIR FILTER 9065979 1
21 CONNECTOR 9024964 1
22 VALVE 53111118 1
24 ROCKDRILL LUBRICATION PUMP 9050974 1
25 AIR TANK 53141007 1
~ 41 ~

03 Operation

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

03 Operation

Uploaded by

Copyright:

Available Formats

Face Master 2.

This page is intentionally blank

The Face Master 2.3-1B is configured for the following drilling

3-2 Equipment description and identification

Rotary percussive Rockdrill – the rockdrill is ideally suitable for this

Feeder (fixed) – Hydraulic cylinder and rope driven with front

Circuit testing – Pressure gauges monitor the system by measuring

Hydraulic supply – taken from the on-board system.

3-3 Main Component Location

Exhaust System Electrical System Operator Stand Boom and Drill

Fire Extinguisher Chassis Braking System Main Hydraulic System

Water and Air System Air Inlet System

Steering System Transmission System Fire Extinguisher

Water Hose Reel Electric Cable Reel

3-4 Control Panel Operations

Drilling Panel Driving Control Panel

1. Brake Pedal 5. Parking Brake

3-5 Drilling Panel

3-5-1 Boom control

1. Rockdrill Percussion Pressure 7. Rockdrill Rotation

TILT (with pressed button)

ORIENTATION (with pressed button)

3-5-2 Electric control

1. WATER FLOW – LIGHT 8. HYDRAULIC OIL LEVEL– LIGHT

3-5-3 Air/Water Pressure Gauges at the rear of rig

3-6 Driving Panel

1. Parking lights 12. Diesel engine ignition button

1. Front right hydraulic jack ↕↔* 5. Water hose reel ↕

After lifting the canopy, secure it with pin.

* Up – jack up / Down – jack down / Sideways: Extend/Retract

3-6-1 Gear lever

1. Gear grip (gear 1,2,3)

3-6-2 Prior to start up check:

1. Diesel fuel level.

Hydraulic oil Hydraulic oil

3-6-3 Starting the engine

Check that the emergency/park brake on the machine is in the ON position.

Push green button to start engine.

3-7 Driving the vehicle

To drive, proceed as follows:-

DO NOT CHANGE THE DRIVE DIRECTION WHILE THE

Change the drive direction as follows:

Stop the machine.

• Stopping and Parking

Moving the Boom

Normally the drill boom should be kept in the tramming position

EXTREME CAUTION MUST BE EXERCISED WHEN THE

• Driving on a Cambered Roadway and Turning the Rig

EXTREME CAUTION MUST BE EXERCISED WHEN THE

• Towing the Rig

Ensure the rig is secured against running away.

Reset the brake release screws before returning the vehicle to

3-8 Drill Rig Components

3-8-1 Main Hydraulic System

Each system has three sub-systems:

This page is intentionally blank

Main Hydraulic System 9086600

This page is intentionally blank

Components of Main Hydraulic System

ITEM DESCRIPTION PART NO QTY

ITEM DESCRIPTION PART NO QTY

3-8-2 Major hydraulic components

High Pressure Filter for

Hydraulic pumps Electric Motor
