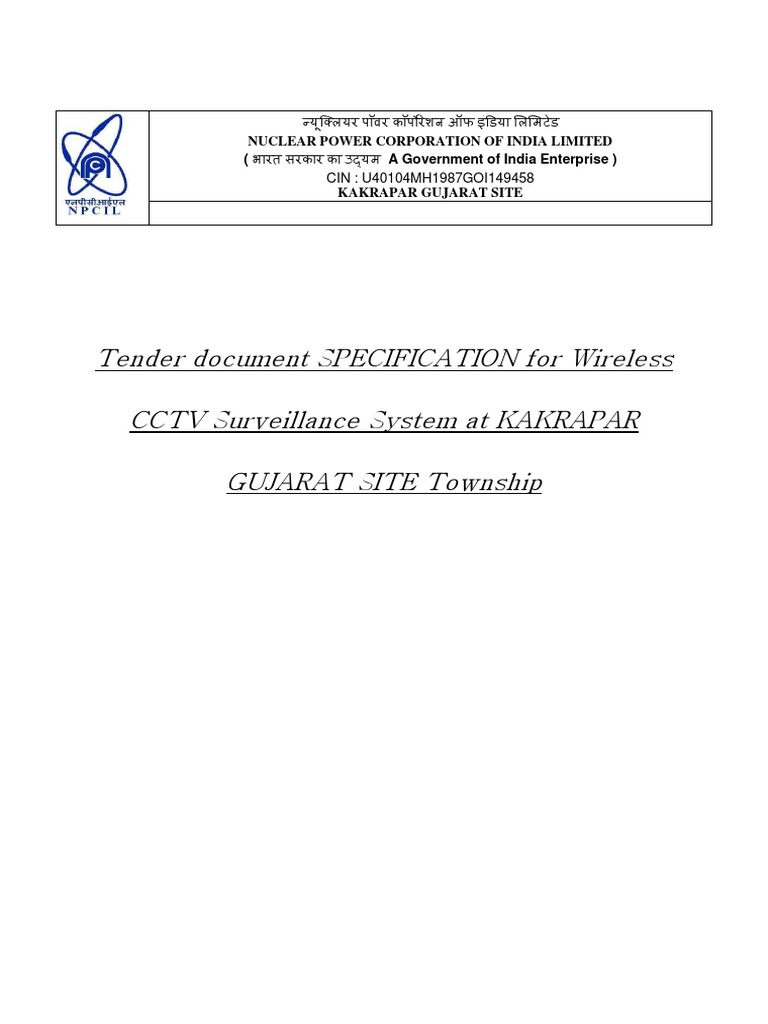

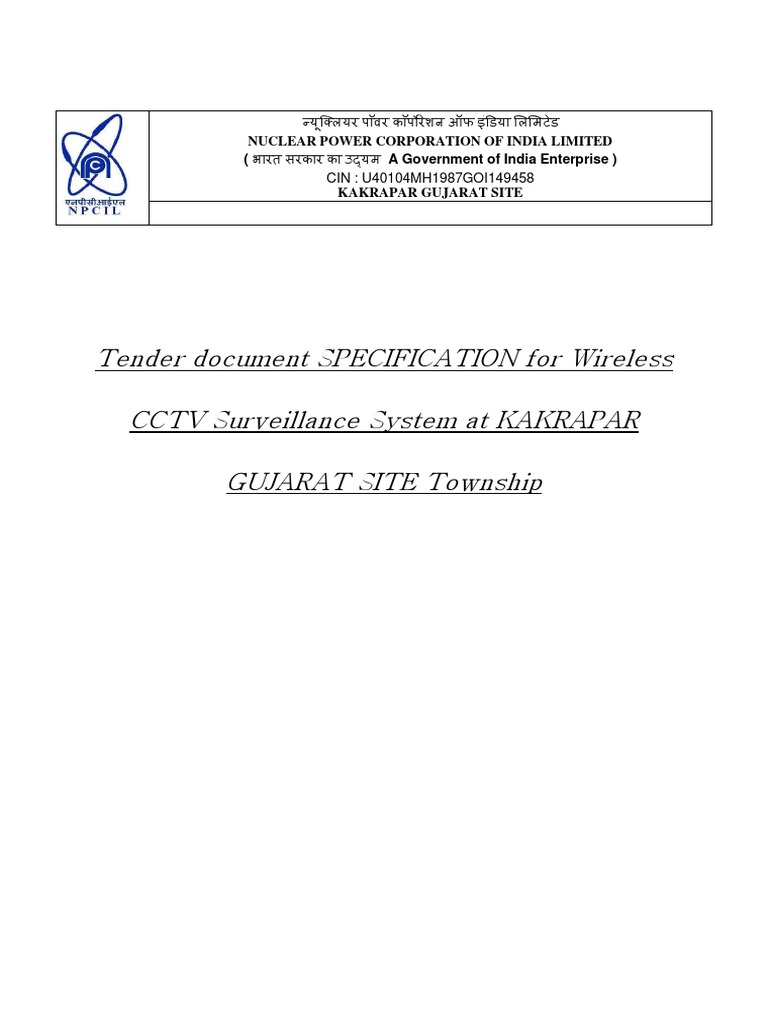

यूि लयर पॉवर कॉप रे शन ऑफ इं डया ल मटे ड

NUCLEAR POWER CORPORATION OF INDIA LIMITED

( भारत सरकार का उ यम A Government of India Enterprise )
CIN : U40104MH1987GOI149458
KAKRAPAR GUJARAT SITE

Tender document SPECIFICATION for Wireless

CCTV Surveillance System at KAKRAPAR

GUJARAT SITE Township

1. Scope:

This tender is for the design, engineering, supply, installation, testing and commissioning of Wireed IP
based CCTV Surveillance system for Kakrapar Township Hospital . The scope of the work includes

• Design, engineering of Wireless based IP CCTV surveillance system.

• Design, engineering of Wired based IP CCTV surveillance system.
• Inspection and testing of components as per the technical specifications at factory.
• Supply of all components / constituents required and delivery at Kakrapar.
• Supplier shall prepare a commissioning procedure report for approval by the purchaser along
with schedule indicating the dates of commissioning.
• Installation of Cameras, Network switches, NVR, Servers, and other components connected to
the system.
• Integration of various components mentioned above and establishing the connectivity among
all components of the system
• Commissioning of the integrated system as per the approved commissioning report.
• Handing over the system and warranty for 1 years as per technical specifications.

The tender includes supply of Cameras and associated power supply adapters, Network
switches, and associated components, power cable and their connectivity to the components
such as cameras, switches, servers and other necessary hardware. Suppliers need to quote cost
per meter for the cabling, and the payment of installation shall be on actual as per the site
requirement.

2. Qualification of bidder

The manufacturer shall have a proven technology for the item such as camera, video
management software and equipment. Bidder shall have experience in supply installation,
testing, commissioning and maintenance of CCTV system.

The bidder shall produce a proof of installation of video surveillance system working
elsewhere, along with the quotation and also arrange for a demonstration/ field visit, if called
for, preferably a place nearer to Surat.

3. Information to be included with tender

Manufacturer's name and make, model number of individual items and their specification.
Applicable standard of all items.
Specification and data sheet of all the constituted equipments.

4. Time schedule

Completion period of work is 3 months after acceptance PO. Party has to submit the detailed time
schedule for execution of the PO.

5. Packages, Transportation and place of delivery

Each shipment shall be packed such that it is protected from water, dust and moisture in-grace.
All packages should be properly marked for the content of the packages of identification. The entire
system shall be delivered at CMM section, Plant site, Kakrapar Gujarat Site.
6. System Description

CCTV system is wired IP CCTV system with 14 cameras.

7. Technical particulars

• The following details shall be submitted along with quotation.

• Manufacturer’s name and make, type, module number of individual items and their specifications.
• Applicable standards for all items shall be submitted.
• Details of experience in the supply (installation, commissioning of systems similar in nature both
in magnitude and specifications).
• List of approved agencies along with certificates.
• Specifications and datasheets of all the constituents of the system.

8. Site /location visits

Bidders are advise to visit the Kakrapar township with respect to terrain and camera location
for identification of correct design.
Once offer submitted, it is bidders responsibility make system functional with offered design

9. General Features & Requirements:

• The power supply available to the electrical loads of the system is 240V AC ±10%, 50 Hz ±3%, and
sufficient isolation shall be provided from the loads.

• The electronic circuits used in the system shall be of solid state fail-safe design and be provided with
proper coating to have resistance to humidity and corrosion which prevents the operation from being
impaired by dust and dirt.

• The cameras shall be tamper-proof and shall alarm during tampering, and shall log the event to the main
database and shall be plug in type with suitable locking devices.

• The bidders who wish to supply cameras apart from the recommended make shall produce the
test/qualification certifications of the cameras. Bidding without certificates or producing fake certificates
may lead to disqualify the bidder.

• The Video Management software shall be user friendly and menu driven with self-checking i.e. all the
routines shall be checked periodically for their proper functioning and integrity.

• Diagnostic checks shall be done by the system periodically for the proper functioning of the Video
cameras.
• The configuration modifications can be done only from the control room.

• The system shall have flexibility for upgrading and expansion in all respects depending on future
requirements.

• The supplier may quote for additional items if required for completion of the system under the heading as
optional items.

• All the software manuals, hardware manuals, user manuals, training manuals related to the system shall
be supplied in hard copy format [ two sets] and 2 nos. in CD format
• The system shall confirm highest standards of the engineering design and work man ship. The system
shall perform well without much degradation for the service life of 20 years.
• Training: The supplier shall provide training at KAPS premises for personnel of user department and
security personnel on the operation, maintenance of 1. Cameras 2. Configuration of the system 3. Video
Monitoring system software for 2 technical persons and 5 security personnel. Training manuals [5 copies]
towards this shall be prepared and handed over to the purchaser before starting of the training.
 Technical Specifications

10. Fixed Focus High Resolution IP Camera

Make Honeywell, Hkvision, Dahua Palco, Bosch Vivotek, axis, Panasonic

Type Fixed focus, 1.3 mega pixel indoor IP camera or better
Video Signal Color, CCIR Standards
Imaging Device 1/3" high resolution
Lens Fixed focus suitable for viewing 1 to 50 meter narrow view
Iris Auto iris
Minimum Illumination 1 lux
Day night True day / night auto selection
IR enhancement Passive IR enhancement up to 50 feet
Streaming Multi Streaming
Signal to noise ratio 40 dB or better
Frame per second 15 to 30 frame user selectable
Connector Ethernet connection
Power source Should accept both POE and external DC Supply

11. Industrial Grade 16 channel NVR

Operating Mode Front control panel and monitor display control.

Auto continuous channel (Channel skips frequency: 1 – 9 sec, adjustable).
skipping
Record Quality NTSC: 704 x 240: 15 Frames /sec (adjustable).
352 x 240: 30 Frames /sec (adjustable)
PAL: 704 x 288: 15 Frames /sec (adjustable). 352 x 288: 30 Frames
/sec (adjustable)
Record Mode Manual, Schedule, Event, Trigger, Motion Detection, continuous
Compression MPEG4 / H 264 / H 265
Screen Division 1, 4, 9, 16 selectable and full screen
Camera Input 16 channel
Video Output Channel format, PC connectivity 1, 1 HDMI port
Playback Function Standard Playback — Rewind and Forward.
Fast Forward Fast Rewind Step
HDD 4 TB HDD installed
Recording Search Mode Camera, date, time and event
Power Supply AC100V~240V, 50/60Hz
Cables- connectors Should be supplied with all necessary cable s and connector for
installation – commissioning

12. LED Display Monitor- system-2

Screen Size 40-inch or bigger

Type LED TV
Aspect Ratio 16:09
Resolution (H x V) 1,920 x 1240 pixels
Moving Picture Resolution 720 lines or more
HDTV Display Capability 1080p, 1080i, 720p
Power supply 180-230v AC
Interface VGA interface, HDMI, NVR
13. CAT 6 UTP cable Make: AMP / Finolex/ Polycab

• Pair Cable, 23 AWG Copper with integral cross -member pair separator for uniform characteristic impedance.
• Standardization ISO/IEC 11801 2nd Ed.; IEC 61156-5 2nd Ed.; EN 50173-1; EN 50288-6-1; • EIA/TIA
568B.2.1
• Cable overall diameter :Ø 6.3 mm.
• Cable jacket characteristics: zero-halogen
• Cable jacket characteristics: flame-retardant
• Should have tensile strength of 100N.
• The cable should have 100ohm impedance and data transmission frequencies up to 250MHz.
• It should be certified by independent test labs like 3P/Delta to meet Cat -6 Standards.

14. PVC flat conduit – casing capping

• Ivory colour.
• Made of PVC
• 25 mm size
• Including supply of screw, band, elbow and all accessories etc.

15. Fiber cable

Fiber cable

Fiber type Single mode (SM)

Number of core 06
FILLING JELLY
Cable jacket characteristics water-tight
Cable armoring steel Unarmored
Cladding diameter (μm) 125.0 ± 0.7
Cladding non-circularity (%) ≤ 0.7
Core (MFD) non-circularity (%) ≤ 6
Core (MDF) -cladding ≤ 0.5 (μm)
concentricity error
Wavelength support 1310nm and 1500 nm
OVERALL DIAMETER MORE THEN 15 MM

APPLICATION DISTANCE (m)

10GBASE-L (1310 nm) 8,000
10GBASE-E (1550 nm) 30,000
10G Fibre Channel (Serial-1310 nm) 10,000
10G Fibre Channel (WDM-1310 nm) 10,000
1000BASE-LX (1300 nm) 5,000
Fibre Channel 266/1062 (1300 nm) 10,000

16. Layer 3 POE switch

Make Allied Telesys / Sixnet / Cisco / Avaya / Netgear

Port Connector 10/100TX: RJ-45 x 24 PoE ( minimum 16 Port POE)
SFP Combo 100/1000 SFPx 2 or more (Loaded with Single mode Fiber
 module)
Console port RJ 45 x 1 or USB Port including cable
WEB Interface Built in WEB Interface
Switching capacity 5.6Gbps or better
address table Up to 8K MAC or better
Redundant power
12 - 48 VDC
inputs
Enclosure IP30, Metal with aluminum shell
Installation DIN-rail/Wall Mount Design including accessoroies
Operating
15 to 50 C
Temperature
IEEE 802.3af,
MBTF 272,000 hrs or better
Safety UL/cUL60950-1
EMC CE, FCC Class A
PoE All 24 ports shall support PoE with support
Accessories Power supply adaptors shall be required
VLAN PORT and IP based

17. Fiber LIU

• The 12-port wall mount METALLIC enclosure should provide termination space for
backbone cabling and fiber to the desk installations. The front door offers protection
for the terminated optical fiber. For additional security an optional lock should be
available. Integrated fiber management rings should meet current industry standard
specifications.
• Wall mounted optical Metallic enclosures shall support up to 12 ports. The
enclosures shall be minimum 8.37"H X 4.1"D X 15.13"W in size.
• Each enclosure shall provide two separate, lockable compartments for cabling and
patch cords.
• Should be supplied with Blank snap-in adapter plate, Fiber Single mode LC snap-in
adapter plate Single mode SC snap-in adapter plate.

18. 19 inch rack

Metallic enclosure (full back plate is required) with front

Type
glass cover
Material Metallic from 1.5 mm thick sheet.

Power supply 230V AC Spike Buster with 5 power socket of 5 amp

From bottom for 1- fiber, 10 Ethernet and three power
Cable entry
cable
Size 19" Rack type and of height 6U.

Arrangement Installed with slotted channel

Mounting arrangement Suitable mount on wall

19. Component- Connector

All connector like RJ-45, LC connector patch cord etc required to complete the system is in
supplier’s scope.

20. Inspection, testing and commissioning:

The purchaser or his authorized representative shall have access to the supplier's premises at all
reasonable times to the extent necessary to assess compliance with the provisions of this specification.
All the constituent units of IP based CCTV system equipment supplied to the provisions of this
specification shall be subjected to visual, dimensional and functional inspection and testing to the
satisfaction of the purchaser. Where functional and operating tests are performed, the equipment shall
comply with all the provisions of this specification at the conclusion of such tests. To this effect written
procedures describing the stepwise inspection and testing procedures in-detail shall be submitted to the
purchaser for approval, prior to the commencement of such tests.

21. Test at site

After acceptance at the factory all the equipment shall be packed and transported to the site. After
delivery all the tests for hardware and software shall be repeated at the site. After the acceptance of the site
test report, installation and commissioning shall be carried out.

22. Real plant test (Semi industrial run)

Extensive testing of installed system at site for a period not less than 2 months under real plant
conditions shall be carried out to remove any hardware/software bugs

23. Commissioning

After successful completion of the semi-industrial run as per technical requirement and to the
satisfaction of purchaser, the equipment will be considered as commissioned. After it is commissioned, the
system shall be handed over to the purchaser. The supplier shall prepare a commissioning document
containing all the tests and other details. Commissioning shall be competed with 6 months from the date of
purchase order.

24. Guarantee

The equipment supplied shall be guaranteed for a period of 12 months from the date of commissioning

25. Documentation

The supplier shall provide complete details of wiring, cable routing and all necessary documents after
installation as directed by purchaser.

26. Cable Tags

All the cables are to be tagged as per drawing or as guided by engineer in charge with metallic tag. All
the termination of cables shall have necessary markers /ferrules and terminated through metallic ferrules by
crimping only (Industrial type).
27. Test may be like

1. Test : Environmental Test.

2. Test : True day night Test.
3. Test : Actual Running Test.
4. Test : Video Quality Test.
5. Test : ONVIF Compliance.
6. Test : Any other Test.
7. Qualification : Any Certificate issued on offer item by third party
