YITE GROUP
( Taiwan & Hongkong & Shanghai)

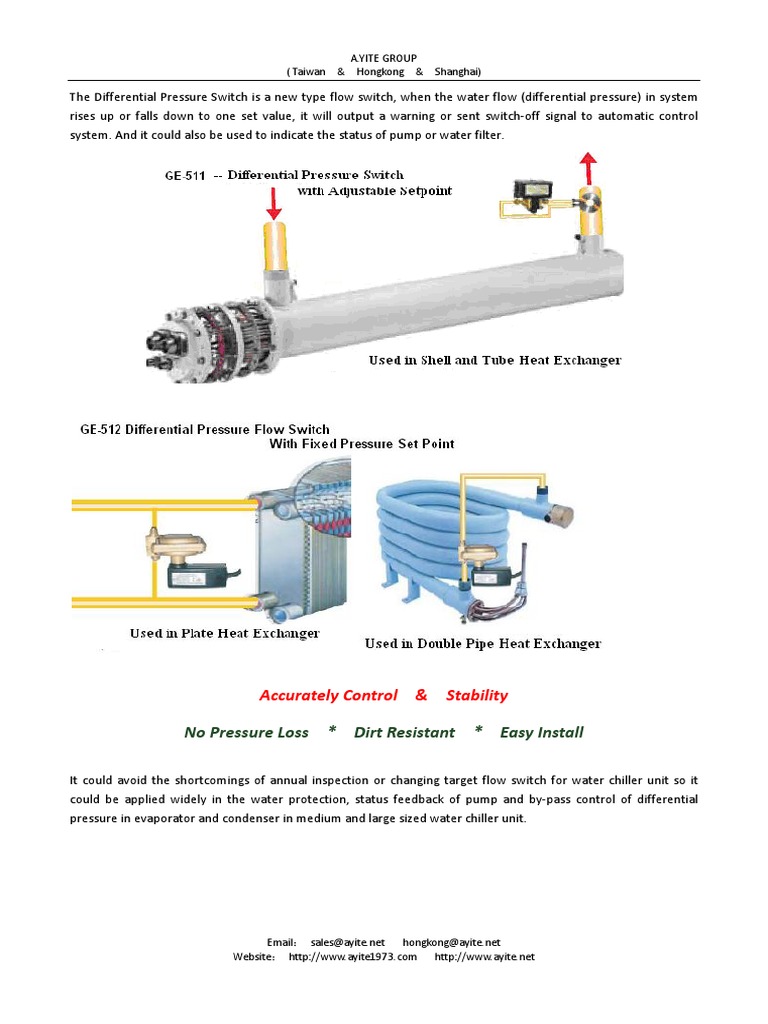

The Differential Pressure Switch is a new type flow switch, when the water flow (differential pressure) in system
rises up or falls down to one set value, it will output a warning or sent switch-off signal to automatic control
system. And it could also be used to indicate the status of pump or water filter.
It could avoid the shortcomings of annual inspection or changing target flow switch for water chiller unit so it
could be applied widely in the water protection, status feedback of pump and by-pass control of differential
pressure in evaporator and condenser in medium and large sized water chiller unit.
Specification:
GE-511A Series is D-P Flow Switch with single adjustable setpoint. The adjustable differential pressure switch
could be calibrated directly by manufacturer according to customer’s requirement, and printed the calibrated
value on the label of product, so user needs not readjust in the field. The customer could calibrate by professional
instrument according to the differential pressure required by equipment, and A.YITE COMPANY could provide
relevant service.
GE-511B Series is D-P Flow Switch with 2 adjustable setpoint. In order to meet various requirements of customers,
A.YITE COMPANY also developed the adjustable double setpoints DP switch for upper-lower limit control of
differential pressure. And if choose the local indicator, it could be applied to control the water cooled evaporator
and condenser in HVAC system, the more or less flow of other heat exchanger, and low flow of heat exchanger due
to scaling or dirty jamming, which has incomparable advantages than target flow switch.
* Stable
* Accuracy Control
* No Pressure Loss
* Dirt Resistant
* Easy Adjustment of Switch
* Easy Install
Specification:
GE-512 Series is Differential Pressure Switch with Fixed Pressure Setpoint, the setpoint could not be changed. So if
the user choose one type of GE-512, the user could not change the flow setpoint, then it will avoid the mistake in
Installing.
Swithing Differential
Type Pressure Setpoint Output Cable
Set To
006 6 K Pa 1.5 K Pa 1×10A SPDT 2~3×0.75mm2
010 10 K Pa 2 K Pa 1×10A SPDT 2~3×0.75mm2
014 14 K Pa 3 K Pa 1×10A SPDT 2~3×0.75mm2
017 17 K Pa 4 K Pa 1×10A SPDT 2~3×0.75mm2
020 20 K Pa 5 K Pa 1×10A SPDT 2~3×0.75mm2
025 25K Pa 6 K Pa 1×10A SPDT 2~3×0.75mm2
030 30 K Pa 7 K Pa 1×10A SPDT 2~3×0.75mm2
035 35 K Pa 8 K Pa 1×10A SPDT 2~3×0.75mm2
040 40 K Pa 8 K Pa 1×10A SPDT 2~3×0.75mm2
050 50 K Pa 10 K Pa 1×10A SPDT 2~3×0.75mm2
065 65K Pa 10 K Pa 1×10A SPDT 2~3×0.75mm2
080 80 K Pa 10 K Pa 1×10A SPDT 2~3×0.75mm2
Remark: GE512 Series differential pressure flow switch have fixd pressure set point..
* Easy Install
* Sensitive
* Dirt Resistant
* No Pressure Loss
* Connect with female thread
* Fixed Pressure Setpoint, the setpoint
could not be changed
The pressure setpoint is 0.4bar, when pressure is 0.4bar, the switch will sent a signal. The Max pressure
is 3 bar, when pressure is 3 bar, the water pressure switch will output water to low the pressure. This
function will protect the pipe of water system, proof
the broken of water pipe
Specification:
It is a plastic body, as a differential pressure switch, used in water heating systerm. It is a better
Substitute Products for common target flow switch, as it is stable performance and low price.
Technical Specification:
Specification:
Ranges: 0~50Pa~200Pa~1KPa~10KPa ~100KPa
±(50Pa~200Pa~1KPa~10KPa ~100KPa)
Accuracy:0.1%, 0.5%FS, 1.0%FS
Output: 0~5V; 1~5V; 4~20mA
Power supply:12VDC~36VDC(24VDC is Standard)
Medium Temperature: -20~85 C
This Air Differential Pressure transmitter is produced with magnetic sensing technology, pressure ranges from
0~25Pa at up to 1250Pa. Available with Unidirectional and bidirectional pressure ranges, and air velocity, with LCD
display screen
The gas pressure switch is used to detect air flow in forced draught appliances, guards against poor or hazardous
combustion, indicates dirty or inefficient filters, mainly used in the gas water heater
