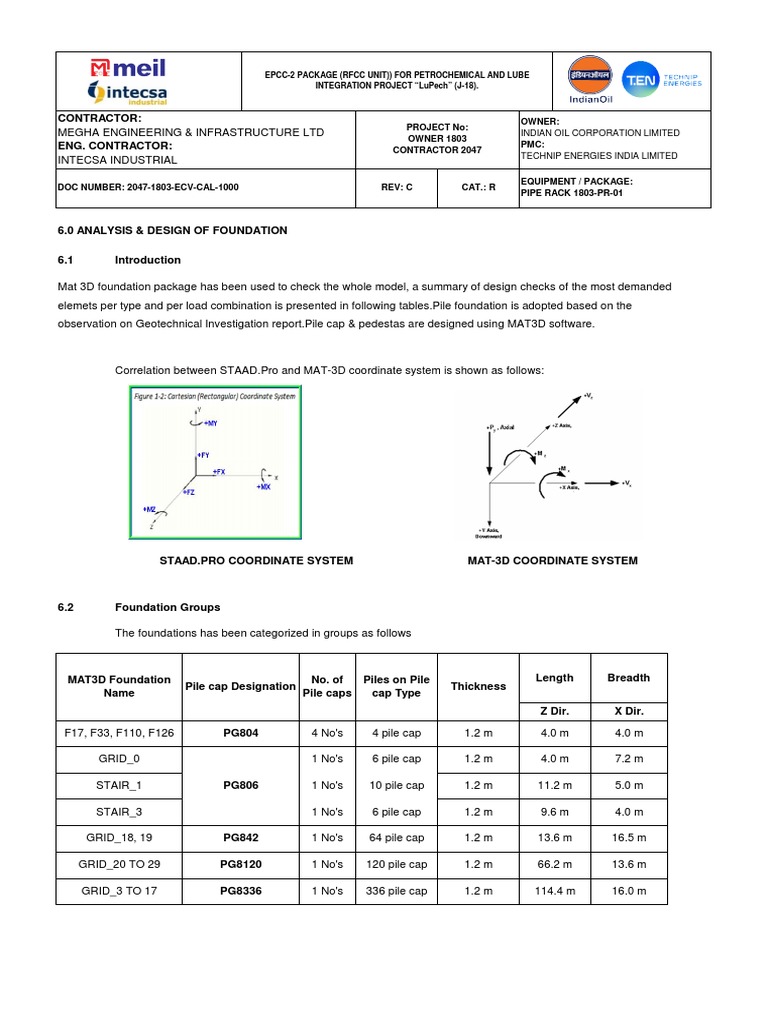

6.0 ANALYSIS & DESIGN OF FOUNDATION

6.1 Introduction

Mat 3D foundation package has been used to check the whole model, a summary of design checks of the most demanded
elemets per type and per load combination is presented in following tables.Pile foundation is adopted based on the
observation on Geotechnical Investigation report.Pile cap & pedestas are designed using MAT3D software.

Correlation between STAAD.Pro and MAT-3D coordinate system is shown as follows:

STAAD.PRO COORDINATE SYSTEM MAT-3D COORDINATE SYSTEM

6.2 Foundation Groups

The foundations has been categorized in groups as follows

MAT3D Foundation No. of Piles on Pile Length Breadth

Pile cap Designation Thickness
Name Pile caps cap Type
Z Dir. X Dir.

F17, F33, F110, F126 PG804 4 No's 4 pile cap 1.2 m 4.0 m 4.0 m

GRID_0 1 No's 6 pile cap 1.2 m 4.0 m 7.2 m

STAIR_1 PG806 1 No's 10 pile cap 1.2 m 11.2 m 5.0 m

STAIR_3 1 No's 6 pile cap 1.2 m 9.6 m 4.0 m

GRID_18, 19 PG842 1 No's 64 pile cap 1.2 m 13.6 m 16.5 m

GRID_20 TO 29 PG8120 1 No's 120 pile cap 1.2 m 66.2 m 13.6 m

GRID_3 TO 17 PG8336 1 No's 336 pile cap 1.2 m 114.4 m 16.0 m

 EPCC-2 PACKAGE (RFCC UNIT)) FOR PETROCHEMICAL AND LUBE
INTEGRATION PROJECT “LuPech” (J-18).

CONTRACTOR: OWNER:
PROJECT No:
MEGHA ENGINEERING & INFRASTRUCTURE LTD INDIAN OIL CORPORATION LIMITED
OWNER 1803
ENG. CONTRACTOR: PMC:
CONTRACTOR 2047
TECHNIP ENERGIES INDIA LIMITED
INTECSA INDUSTRIAL

EQUIPMENT / PACKAGE:
DOC NUMBER: 2047-1803-ECV-CAL-1000 REV: C CAT.: R
PIPE RACK 1803-PR-01

6.3 Foundation layout :

The foundations has been categorized in groups as follows
