4/3/2012

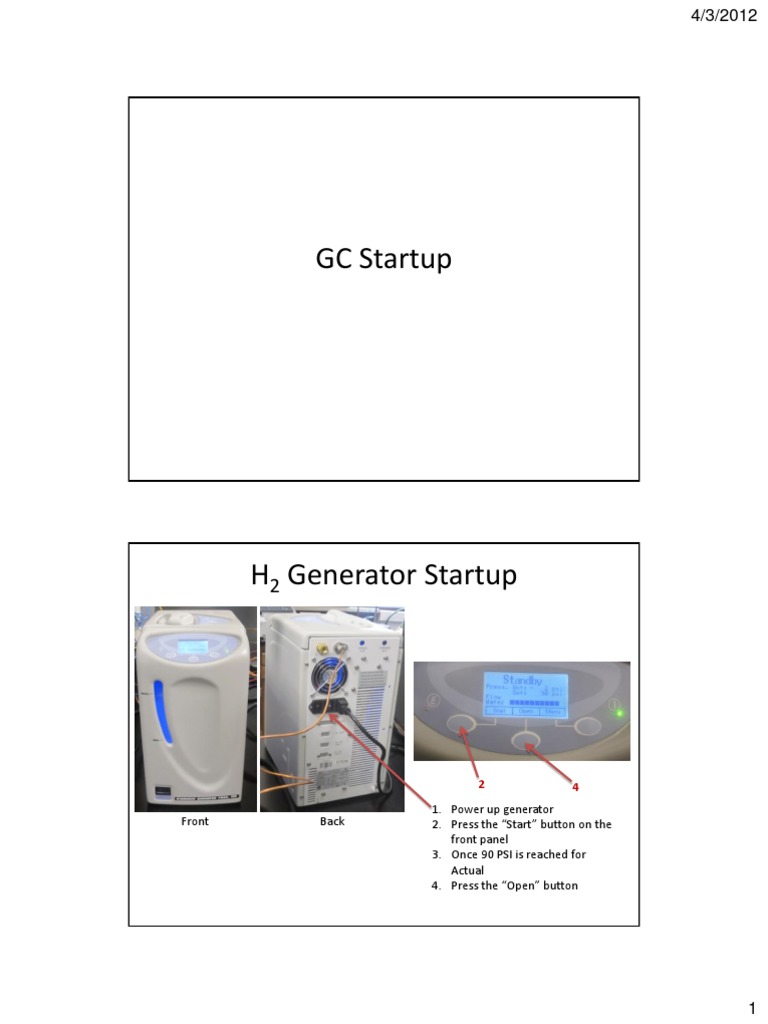

GC Startup

H2 Generator Startup

2 4
1. Power up generator
Front Back 2. Press the “Start” button on the
front panel
3. Once 90 PSI is reached for
Actual
4. Press the “Open” button

1
 4/3/2012

Compressed Air

Input valve

1. Turned on compressed air supply and adjust to 120 to 150 psi

(not shown)
2. Turn on air dryer (plug in or turn on switch / not shown)
3. Open input valve
4. Allow system to equilibrate for 10 minutes

Compressed Air
Regulator Output valve

Post-Dryer
valve

5. Open Post-Dryer valve

6. Adjust regulator to 90 PSI
7. Open output valve

2
 4/3/2012

Power on GC

1. Turn on Power Switch

Power on GC

2. Click on “Log In”

3. Click on “FID”

3
 4/3/2012

Power on GC

4. Click on “Ignite”
• You should hear a small pop
from the top of the GC.
• The Set and Actual should be
the same when the FID is
running.
