Please write your name and ID number, and sign your answer sheet.

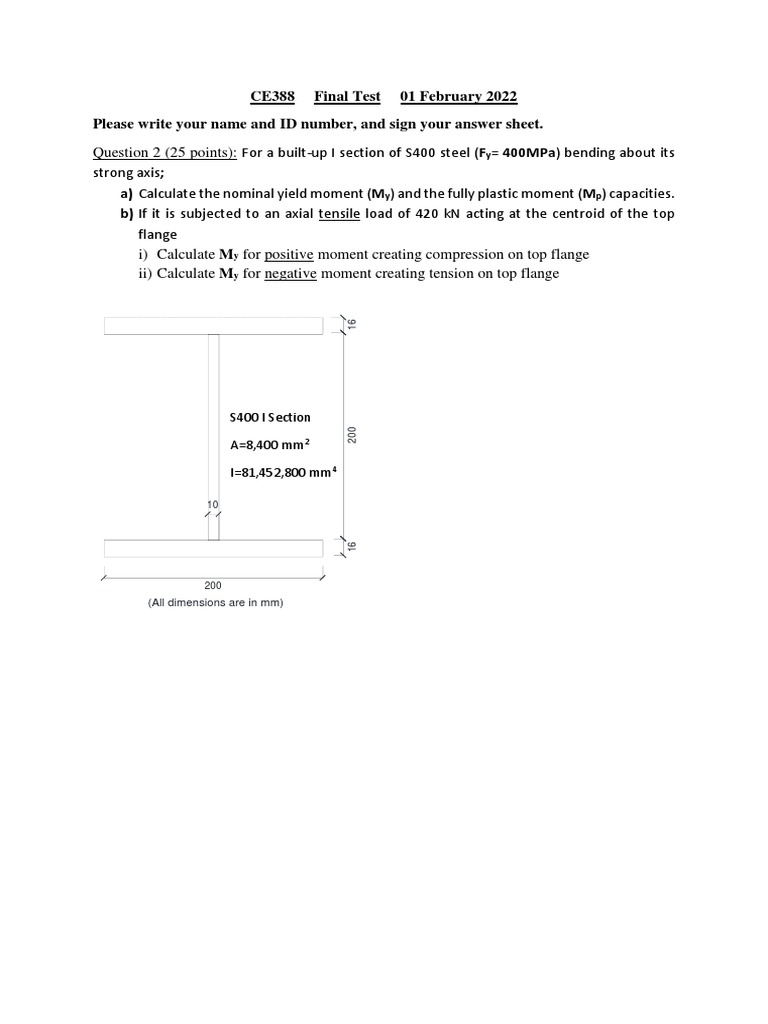

Question 2 (25 points): For a built-up I section of S400 steel (Fy= 400MPa) bending about its
strong axis;
a) Calculate the nominal yield moment (My) and the fully plastic moment (Mp) capacities.
b) If it is subjected to an axial tensile load of 420 kN acting at the centroid of the top
flange
i) Calculate My for positive moment creating compression on top flange
ii) Calculate My for negative moment creating tension on top flange
16
S400 I Section
200
A=8,400 mm2
I=81,452,800 mm4
10
16
200
(All dimensions are in mm)
