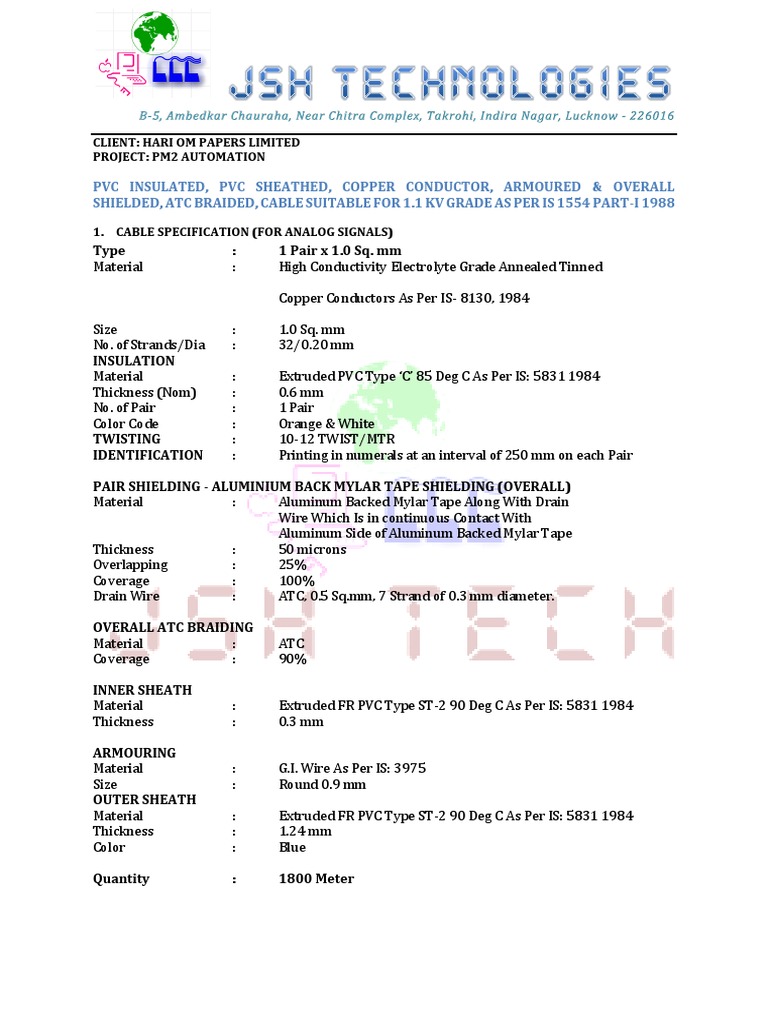

CLIENT: HARI OM PAPERS LIMITED

PROJECT: PM2 AUTOMATION

PVC INSULATED, PVC SHEATHED, COPPER CONDUCTOR, ARMOURED & OVERALL

SHIELDED, ATC BRAIDED, CABLE SUITABLE FOR 1.1 KV GRADE AS PER IS 1554 PART-I 1988

1. CABLE SPECIFICATION (FOR ANALOG SIGNALS)

Type : 1 Pair x 1.0 Sq. mm
Material : High Conductivity Electrolyte Grade Annealed Tinned

Copper Conductors As Per IS- 8130, 1984

Size : 1.0 Sq. mm

No. of Strands/Dia : 32/0.20 mm
INSULATION
Material : Extruded PVC Type ‘C’ 85 Deg C As Per IS: 5831 1984
Thickness (Nom) : 0.6 mm
No. of Pair : 1 Pair
Color Code : Orange & White
TWISTING : 10-12 TWIST/MTR
IDENTIFICATION : Printing in numerals at an interval of 250 mm on each Pair

PAIR SHIELDING - ALUMINIUM BACK MYLAR TAPE SHIELDING (OVERALL)

Material : Aluminum Backed Mylar Tape Along With Drain
Wire Which Is in continuous Contact With
Aluminum Side of Aluminum Backed Mylar Tape
Thickness : 50 microns
Overlapping : 25%
Coverage : 100%
Drain Wire : ATC, 0.5 Sq.mm, 7 Strand of 0.3 mm diameter.

OVERALL ATC BRAIDING

Material : ATC
Coverage : 90%

INNER SHEATH
Material : Extruded FR PVC Type ST-2 90 Deg C As Per IS: 5831 1984
Thickness : 0.3 mm

ARMOURING
Material : G.I. Wire As Per IS: 3975
Size : Round 0.9 mm
OUTER SHEATH
Material : Extruded FR PVC Type ST-2 90 Deg C As Per IS: 5831 1984
Thickness : 1.24 mm
Color : Blue

Quantity : 1800 Meter

PVC INSULATED, PVC SHEATHED, COPPER CONDUCTOR, ARMOURED & OVERALL
SHIELDED, CABLE SUITABLE FOR 1.1 KV GRADE AS PER IS 1554 PART-I 1988

1A. CABLE SPECIFICATION (FOR ANALOG SIGNALS) (ALTERNATE SPECIFICATION)

Size : 1 Pair x 1.0 Sq. mm
Material : High Conductivity Electrolyte Grade Annealed Tinned

Copper Conductors As Per IS- 8130, 1984

Size : 1.0 Sq. mm

No. of Strands/Dia : 32/0.20 mm
INSULATION
Material : Extruded PVC Type ‘C’ 85 Deg C As Per IS: 5831 1984
Thickness (Nom) : 0.6 mm
No. of Pair : 1 Pair
Color Code : Blue & White
TWISTING : 10-12 TWIST/MTR
IDENTIFICATION : Printing in numerals at an interval of 250 mm on each Pair

PAIR SHIELDING - ALUMINIUM BACK MYLAR TAPE SHIELDING (OVERALL)

Material : Aluminum Backed Mylar Tape Along With Drain

Wire Which Is in continuous Contact With
Aluminum Side of Aluminum Backed Mylar Tape
Thickness : 50 microns
Overlapping : 25%
Coverage : 100%
Drain Wire : ATC, 0.5 Sq.mm, 7 Strand of 0.3 mm diameter.

ARMOURING
Material : G.I. Wire As Per IS: 3975
Size : Round 0.9 mm

OUTER SHEATH
Material : Extruded FR PVC Type ST-2 90 Deg C As Per IS: 5831 1984
Thickness : 1.24 mm
Color : Blue

Quantity : 1800 Meter

PVC INSULATED, PVC SHEATHED, COPPER CONDUCTOR, ARMOURED, CABLE SUITABLE
FOR 1.1 KV GRADE AS PER IS 1554 PART-I 1988

2. CABLE SPECIFICATION (FOR DIGITAL SIGNALS)

Type : 1 Pair x 1.0 Sq. mm
Material : High Conductivity Electrolyte Grade Annealed Tinned

Copper Conductors As Per IS- 8130, 1984

Size : 1.0 Sq. mm

No. of Strands/Dia : 32/0.20 mm
INSULATION
Material : Extruded PVC Type ‘C’ 85 Deg C As Per IS: 5831 1984
Thickness (Nom) : 0.6 mm
No. of Pair : 1 Pair
Color Code : Blue & White
TWISTING : 10-12 TWIST/MTR
IDENTIFICATION : Printing in numerals at an interval of 250 mm on each Pair

INNER SHEATH
Material : Extruded FR PVC Type ST-2 90 Deg C As Per IS: 5831 1984
Thickness : 0.3 mm

ARMOURING
Material : G.I. Wire As Per IS: 3975
Size : Round 0.9 mm

OUTER SHEATH
Material : Extruded FR PVC Type ST-2 90 Deg C As Per IS: 5831 1984
Thickness : 1.24 mm
Color : Blue

Quantity : 100 Meter

PVC INSULATED, PVC SHEATHED, COPPER CONDUCTOR, ARMOURED & OVERALL SHIELDED, ATC
BRAIDED, CABLE SUITABLE FOR 1.1 KV GRADE AS PER IS 1554 PART-I 1988

3. CABLE SPECIFICATION (FOR AJB)

Type : 12 Pair x 1.0 Sq. mm
Material : High Conductivity Electrolyte Grade Annealed Tinned

Copper Conductors As Per IS- 8130, 1984

Size : 1.0 Sq. mm

No. of Strands/Dia : 32/0.20 mm
INSULATION
Material : Extruded PVC Type ‘C’ 85 Deg C As Per IS: 5831 1984
Thickness (Nom) : 0.6 mm
No. of Pair : 12 Pair
Color Code : Orange & White
TWISTING : 10-12 TWIST/MTR
IDENTIFICATION : Printing in numerals at an interval of 250 mm on each Pair

PAIR SHIELDING - ALUMINIUM BACK MYLAR TAPE SHIELDING (OVERALL)

Material : Aluminum Backed Mylar Tape Along With Drain

Wire Which Is in continuous Contact With
Aluminum Side of Aluminum Backed Mylar Tape
Thickness : 50 microns
Overlapping : 25%
Coverage : 100%
Drain Wire : ATC, 0.5 Sq.mm, 7 Strand of 0.3 mm diameter.

OVERALL ATC BRAIDING

Material : ATC
Coverage : 90%

INNER SHEATH
Material : Extruded FR PVC Type ST-2 90 Deg C As Per IS: 5831 1984
Thickness : 0.3 mm

ARMOURING
Material : G.I. Strip As Per IS: 3975
Size : Strip 4 x 0.8 mm
OUTER SHEATH
Material : Extruded FR PVC Type ST-2 90 Deg C As Per IS: 5831 1984
Thickness : 1.24 mm
Color : Blue

Quantity : 350 Meter

PVC INSULATED, PVC SHEATHED, COPPER CONDUCTOR, ARMOURED & OVERALL SHIELDED, ATC
BRAIDED, CABLE SUITABLE FOR 1.1 KV GRADE AS PER IS 1554 PART-I 1988

3A. CABLE SPECIFICATION (FOR AJB) (ALTERNATE SPECIFICATION)

Type : 12 Pair x 1.0 Sq. mm
Material : High Conductivity Electrolyte Grade Annealed Tinned

Copper Conductors As Per IS- 8130, 1984

Size : 1.0 Sq. mm

No. of Strands/Dia : 32/0.20 mm
INSULATION
Material : Extruded PVC Type ‘C’ 85 Deg C As Per IS: 5831 1984
Thickness (Nom) : 0.6 mm
No. of Pair : 12 Pair
Color Code : Orange & White
TWISTING : 10-12 TWIST/MTR
IDENTIFICATION : Printing in numerals at an interval of 250 mm on each Pair

PAIR SHIELDING - ALUMINIUM BACK MYLAR TAPE SHIELDING (OVERALL)

Material : Aluminum Backed Mylar Tape Along With Drain

Wire Which Is in continuous Contact With
Aluminum Side of Aluminum Backed Mylar Tape
Thickness : 50 microns
Overlapping : 25%
Coverage : 100%
Drain Wire : ATC, 0.5 Sq.mm, 7 Strand of 0.3 mm diameter.

ARMOURING
Material : G.I. Strip As Per IS: 3975
Size : Strip 4 x 0.8 mm
OUTER SHEATH
Material : Extruded FR PVC Type ST-2 90 Deg C As Per IS: 5831 1984
Thickness : 1.24 mm
Color : Blue

Quantity : 350 Meter

PVC INSULATED, PVC SHEATHED, COPPER CONDUCTOR, ARMOURED, CABLE SUITABLE FOR 1.1 KV
GRADE AS PER IS – 1554 PART – 1 1988.

4. CABLE SPECIFICATION (FOR POWER DISTRIBUTION)

Size : 3 Core x 1.5 Sq. mm
CONDUCTOR
Material : High Conductivity Electrolytic Grade Annealed Bare
Copper Conductor As Per IS 8130
No. of Strands/Dia : 30/0.25 mm
INSULATION
Material : Extruded PVC Type ‘A’ 70 Deg C As Per IS: 5831 1984

Thickness : 0.6 mm
No. of Core : 3 Core
Color Code : As Per IS Color Code

INNER SHEATH
MATERIAL : Extruded PVC Type ST-1 70 Deg C As Per IS: 5831 1984
Thickness : 0.3 mm

ARMOURING
Material : G. I. Wire/Strip As Per IS: 3975
Size : Round 1.4 mm/Strip 4 x 0.8 mm

OUTER SHEATH
MATERIAL : Extruded PVC Type ST-1 70 Deg C As Per IS: 5831 1984
Thickness : 1.24 mm
Color : Black

Quantity : 100 Meter

PVC INSULATED, PVC SHEATHED, COPPER CONDUCTOR, ARMOURED, CABLE SUITABLE FOR 1.1 KV
GRADE AS PER IS – 1554 PART – 1 1988.

5. CABLE SPECIFICATION (FOR MCC MARSHALLING TO DIGITAL INPUT)

Size : 36 Core x 1.0 Sq. mm
CONDUCTOR
Material : High Conductivity Electrolytic Grade Annealed Bare
Copper Conductor As Per IS 8130
No. of Strands/Dia : 32/0.20 mm
INSULATION
Material : Extruded PVC Type ‘A’ 70 Deg C As Per IS: 5831 1984

Thickness : 0.9 mm
No. of Core : 36 Core
Color Code : As Per IS Color Code

INNER SHEATH
MATERIAL : Extruded PVC Type ST-1 70 Deg C As Per IS: 5831 1984
Thickness : 0.3 mm

ARMOURING
Material : G.I. Strip As Per IS: 3975
Size : Strip 4 x 0.8 mm

OUTER SHEATH
MATERIAL : Extruded PVC Type ST-1 70 Deg C As Per IS: 5831 1984
Thickness : 1.24 mm
Color : Black

Quantity : 100 Meters (As per distance from MCC to PAC Panel)
PVC INSULATED, PVC SHEATHED, COPPER CONDUCTOR, ARMOURED, CABLE SUITABLE FOR 1.1 KV
GRADE AS PER IS – 1554 PART – 1 1988.

6. CABLE SPECIFICATION (FOR MCC MARSHALLING TO DIGITAL OUTPUT)

Size : 18 Core x 1.0 Sq. mm
CONDUCTOR
Material : High Conductivity Electrolytic Grade Annealed Bare
Copper Conductor As Per IS 8130
No. of Strands/Dia : 32/0.20 mm
INSULATION
Material : Extruded PVC Type ‘A’ 70 Deg C As Per IS: 5831 1984

Thickness : 0.9 mm
No. of Core : 18 Core
Color Code : As Per IS Color Code

INNER SHEATH
MATERIAL : Extruded PVC Type ST-1 70 Deg C As Per IS: 5831 1984
Thickness : 0.3 mm

ARMOURING
Material : G.I. Strip As Per IS: 3975
Size : Strip 4 x 0.8 mm

OUTER SHEATH
MATERIAL : Extruded PVC Type ST-1 70 Deg C As Per IS: 5831 1984
Thickness : 1.24 mm
Color : Black

Quantity : 100 Meters (As per distance from MCC to PAC Panel)
