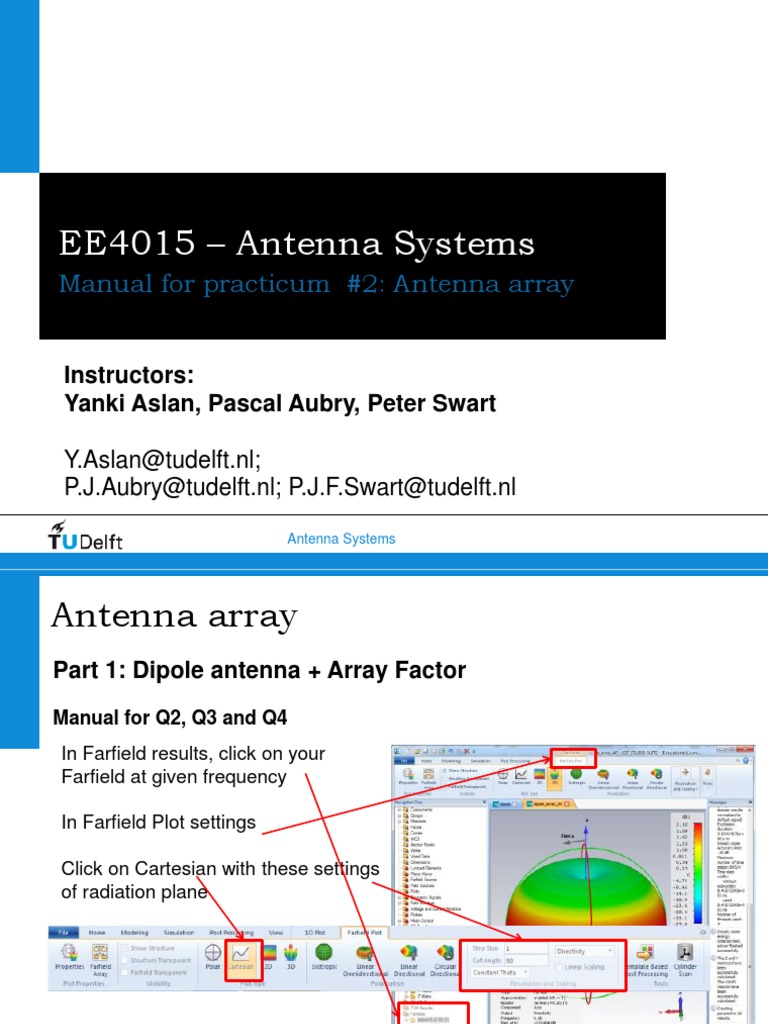

    EE4015 – Antenna Systems

    Manual for practicum #2: Antenna array

    Instructors:
    Yanki Aslan, Pascal Aubry, Peter Swart

    Y.Aslan@tudelft.nl;
    P.J.Aubry@tudelft.nl; P.J.F.Swart@tudelft.nl
    Delft 4-3-2023 1
    University of
    Technology
    Antenna Systems
    Challenge the future
    Antenna array
    Part 1: Dipole antenna + Array Factor

    Manual for Q2, Q3 and Q4


    In Farfield results, click on your
    Farfield at given frequency

    In Farfield Plot settings

    Click on Cartesian with these settings


    of radiation plane

    Antenna Systems Titel van de presentatie 2 2


    Antenna array
    Part 1: Dipole antenna + Array Factor

    Manual for Q2, Q3 and Q4


    In Farfield Plot settings

    - Click on Farfield Array

    - Define number dipoles in Y axes, 5

    - Define distance among the dipoles


    in Y axes

    - Define phaseshift among the dipoles

    Update antenna list after each setting,


    press OK

    Antenna Systems Titel van de presentatie 3 3


    Antenna array
    Part 2: Dipole Antenna Array

    Model of dipole antenna array

    Select the components of dipole and click


    on “transform”

    Antenna Systems Titel van de presentatie 4 4


    Antenna array
    Part 2: Dipole Antenna Array

    Model of dipole antenna array

    - Use the transform operation “Translate”

    - Click on copy

    - Change repetition factor to 4 to get


    another 4 copies of dipole

    - Define spaceshift among the dipoles


    (l, 3l/2 and 2l. )

    Antenna Systems Titel van de presentatie 5 5


    Antenna array
    Part 2: Dipole Antenna Array

    Model of dipole antenna array

    Define the discrete port for each dipole

    - Pick the edges (in modelling settings)


    of both arms of dipole

    - Define the discrete port


    (in simulation settings)
    Zo = 75W

    Antenna Systems Titel van de presentatie 6 6


    Antenna array
    Part 2: Dipole Antenna Array

    Manual for Q2 _ ‘passive’ antenna array

    Distance among the dipoles can be changed


    in parameter list, ‘array_dy’

    Open the Transient Solver settings

    - As source type select ‘Selection’ and


    click on ‘Excitation list’

    Antenna Systems Titel van de presentatie 7 7


    Antenna array
    Part 2: Dipole Antenna Array

    Manual for Q2 _ ‘passive’ antenna array

    Distance among the dipoles can be changed


    in parameter list, ‘array_dy’

    Open the Transient Solver settings

    - As source type chose ‘Selection’ and


    click on ‘Excitation list’

    You can define which port will be excited;


    excite them all

    Start the simulation

    Antenna Systems Titel van de presentatie 8 8


    Antenna array
    Part 2: Dipole Antenna Array

    Manual for Q2 _ ‘passive’ antenna array

    Results:

    Radiation patterns of each dipole

    Mutual coupling between center


    dipole and other ones
    “ s13, s23, s43 and s53”

    s23 s43

    s53
    s13

    Antenna Systems Titel van de presentatie 9 9


    Antenna array
    Part 2: Dipole Antenna Array

    Manual for Q3 _ ‘active’ antenna array

    Open the Transient Solver settings

    - As source type select ‘Selection’ and


    click on ‘Excitation list’

    - Excite all ports and activate simultaneous


    excitation

    - Start the simulation

    - Active S-parameters and current


    resonances

    Antenna Systems Titel van de presentatie 10 10


    Antenna array
    Part 2: Dipole Antenna Array

    Manual for Q4 _ ‘active’ antenna array

    Distance among the dipoles can be changed


    in parameter list, ‘array_dy’

    - Radiation patterns results are in Far-field


    section

    Antenna Systems Titel van de presentatie 11 11
