STRUCTURAL ANALYSIS PROPOSED (INSERT TYPE OF BUILDING)
& DESIGN REPORT IN (INSERT LOCATION)

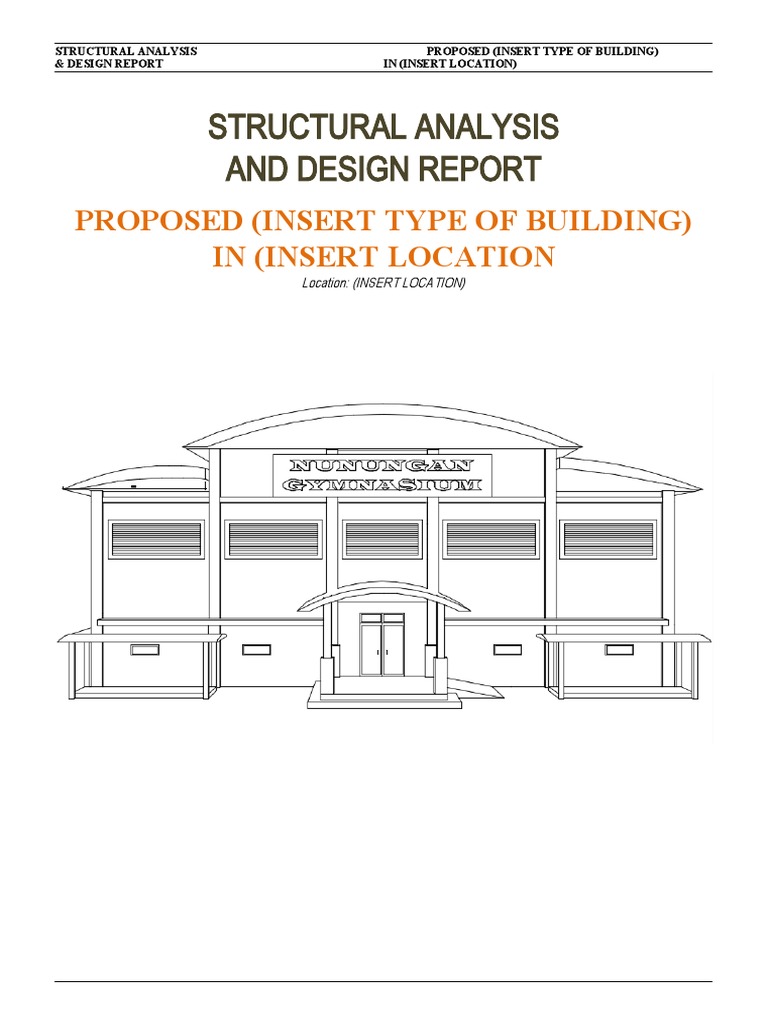

STRUCTURAL ANALYSIS
AND DESIGN REPORT
PROPOSED (INSERT TYPE OF BUILDING)
IN (INSERT LOCATION
Location: (INSERT LOCATION)
STRUCTURAL ANALYSIS PROPOSED (INSERT TYPE OF BUILDING)
& DESIGN REPORT IN (INSERT LOCATION)

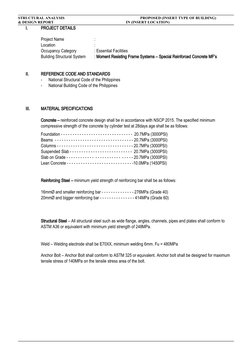

I. PROJECT DETAILS
Project Name :
Location :
Occupancy Category : Essential Facilities
Building Structural System : Moment Resisting Frame Systems – Special Reinforced Concrete MF’s
II. REFERENCE CODE AND STANDARDS
- National Structural Code of the Philippines
- National Building Code of the Philippines
III. MATERIAL SPECIFICATIONS
Concrete – reinforced concrete design shall be in accordance with NSCP 2015. The specified minimum
compressive strength of the concrete by cylinder test at 28days age shall be as follows:
Foundation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20.7MPa (3000PSI)
Beams - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20.7MPa (3000PSI)
Columns - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20.7MPa (3000PSI)
Suspended Slab - - - - - - - - - - - - - - - - - - - - - - - - - - - 20.7MPa (3000PSI)
Slab on Grade - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20.7MPa (3000PSI)
Lean Concrete - - - - - - - - - - - - - - - - - - - - - - - - - - - - -10.0MPa (1450PSI)
Reinforcing Steel – minimum yield strength of reinforcing bar shall be as follows:
16mmØ and smaller reinforcing bar - - - - - - - - - - - - - - 276MPa (Grade 40)
20mmØ and bigger reinforcing bar - - - - - - - - - - - - - - - 414MPa (Grade 60)
Structural Steel – All structural steel such as wide flange, angles, channels, pipes and plates shall conform to
ASTM A36 or equivalent with minimum yield strength of 248MPa.
Weld – Welding electrode shall be E70XX, minimum welding 6mm. Fu = 480MPa
Anchor Bolt – Anchor Bolt shall conform to ASTM 325 or equivalent. Anchor bolt shall be designed for maximum
tensile stress of 140MPa on the tensile stress area of the bolt.
STRUCTURAL ANALYSIS PROPOSED (INSERT TYPE OF BUILDING)
& DESIGN REPORT IN (INSERT LOCATION)
IV. DESIGN LOAD CRITERIA
Dead Loads (DL) – consist of the weight of all materials of construction incorporated into the building or other
structure, including but not limited to walls, floors, roofs, ceilings, stairways, finishes, cladding and other similarly
incorporated architectural and structural items, and fixed service equipment, including the weight of cranes.

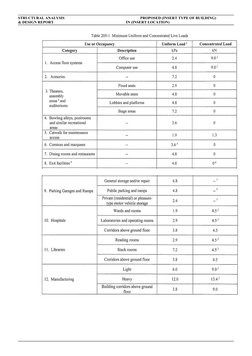

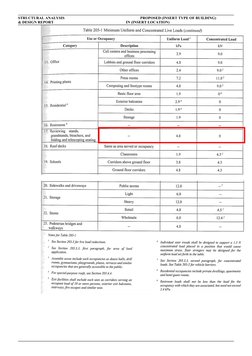

Live Loads (LL) – shall be the maximum loads expected by the intended use or occupancy but in no case shall be
less than the loads required by this section.
STRUCTURAL ANALYSIS PROPOSED (INSERT TYPE OF BUILDING)
& DESIGN REPORT IN (INSERT LOCATION)
STRUCTURAL ANALYSIS PROPOSED (INSERT TYPE OF BUILDING)
& DESIGN REPORT IN (INSERT LOCATION)
STRUCTURAL ANALYSIS PROPOSED (INSERT TYPE OF BUILDING)
& DESIGN REPORT IN (INSERT LOCATION)

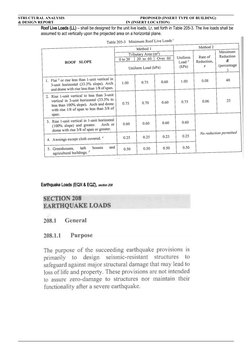

Roof Live Loads (LL) – shall be designed for the unit live loads, Lr, set forth in Table 205-3. The live loads shall be
assumed to act vertically upon the projected area on a horizontal plane.

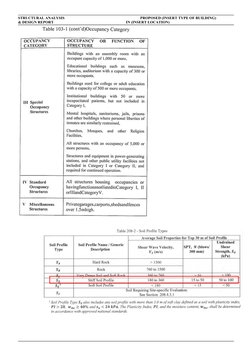

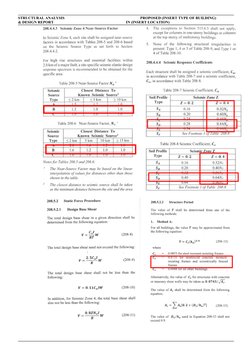

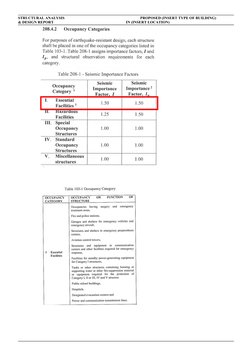

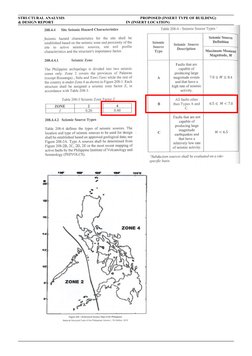

Earthquake Loads (EQX & EQZ), section 208
STRUCTURAL ANALYSIS PROPOSED (INSERT TYPE OF BUILDING)
& DESIGN REPORT IN (INSERT LOCATION)
STRUCTURAL ANALYSIS PROPOSED (INSERT TYPE OF BUILDING)
& DESIGN REPORT IN (INSERT LOCATION)
STRUCTURAL ANALYSIS PROPOSED (INSERT TYPE OF BUILDING)
& DESIGN REPORT IN (INSERT LOCATION)
STRUCTURAL ANALYSIS PROPOSED (INSERT TYPE OF BUILDING)
& DESIGN REPORT IN (INSERT LOCATION)
STRUCTURAL ANALYSIS PROPOSED (INSERT TYPE OF BUILDING)
& DESIGN REPORT IN (INSERT LOCATION)
STRUCTURAL ANALYSIS PROPOSED (INSERT TYPE OF BUILDING)
& DESIGN REPORT IN (INSERT LOCATION)
V. LOAD COMBINATIONS
STRUCTURAL ANALYSIS PROPOSED (INSERT TYPE OF BUILDING)
& DESIGN REPORT IN (INSERT LOCATION)
LOAD COMBINATION FOR DESIGN
LOAD COMB 16 1.2DL + 0.5LL + 1.0EQX
LOAD COMB 17 1.2DL + 0.5LL - 1.0EQX
LOAD COMB 18 1.2DL + 0.5LL + 1.0EQZ
LOAD COMB 19 1.2DL + 0.5LL - 1.0EQZ
LOAD COMB 20 0.9DL + 1.0EQX
LOAD COMB 21 0.9DL - 1.0EQX
LOAD COMB 22 0.9DL + 1.0EQZ
LOAD COMB 23 0.9DL - 1.0EQZ
LOAD COMBINATION FOR DRIFT CHECK
LOAD COMB 16 1.2DL + 0.5LL + 1.0EQX
LOAD COMB 17 1.2DL + 0.5LL - 1.0EQX
LOAD COMB 18 1.2DL + 0.5LL + 1.0EQZ
LOAD COMB 19 1.2DL + 0.5LL - 1.0EQZ
LOAD COMB 20 0.9DL + 1.0EQX
LOAD COMB 21 0.9DL - 1.0EQX
LOAD COMB 22 0.9DL + 1.0EQZ
LOAD COMB 23 0.9DL - 1.0EQZ
LOAD COMBINATION FOR DEFLECTION CHECK
LOAD COMB 24 1.0DL + 1.0LL + 1.0RL
VI. GEOMETRY
STRUCTURAL ANALYSIS PROPOSED (INSERT TYPE OF BUILDING)
& DESIGN REPORT IN (INSERT LOCATION)
3D STRUCTURAL RENDERED VIEW
VII. LOAD CALCULATION
STRUCTURAL ANALYSIS PROPOSED (INSERT TYPE OF BUILDING)
& DESIGN REPORT IN (INSERT LOCATION)
VIII. ANALYSIS
STRUCTURAL ANALYSIS PROPOSED (INSERT TYPE OF BUILDING)
& DESIGN REPORT IN (INSERT LOCATION)
IX. DESIGN
DESIGN OF BEAMS AND GIRDERS
STRUCTURAL ANALYSIS PROPOSED (INSERT TYPE OF BUILDING)
& DESIGN REPORT IN (INSERT LOCATION)
DESIGN OF COLUMNS
STRUCTURAL ANALYSIS PROPOSED (INSERT TYPE OF BUILDING)
& DESIGN REPORT IN (INSERT LOCATION)
DESIGN OF FOOTINGS
STRUCTURAL ANALYSIS PROPOSED (INSERT TYPE OF BUILDING)
& DESIGN REPORT IN (INSERT LOCATION)
