Date 09.02.
2019

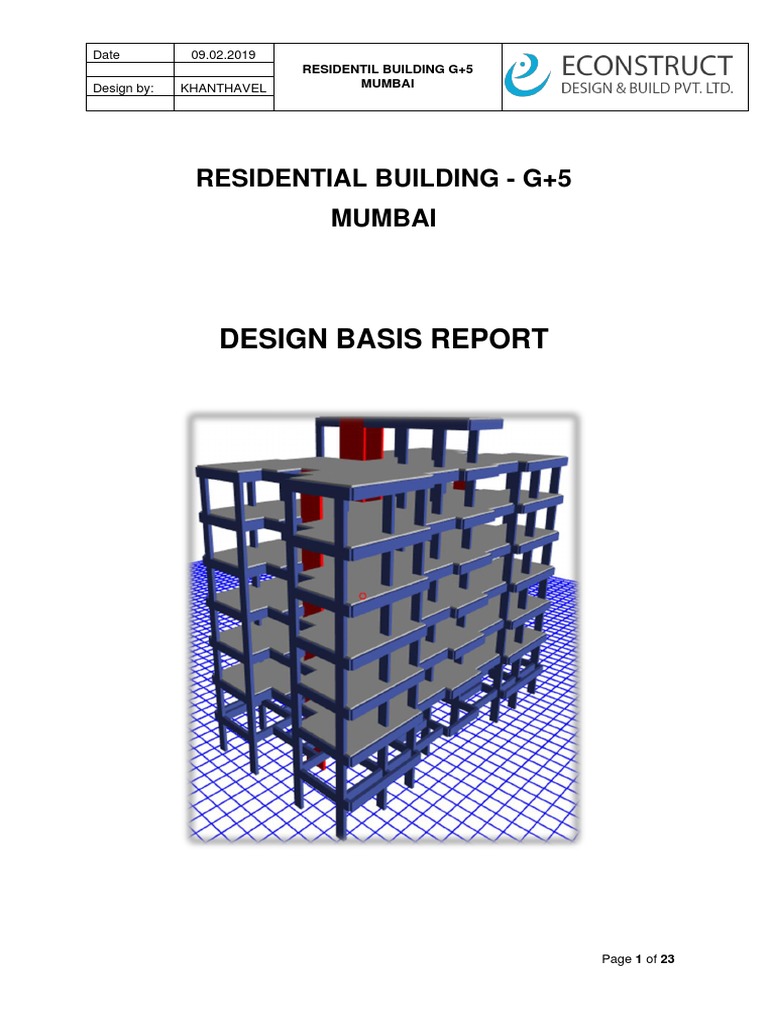

RESIDENTIL BUILDING G+5
Design by: KHANTHAVEL MUMBAI
RESIDENTIAL BUILDING - G+5

MUMBAI
DESIGN BASIS REPORT
Page 1 of 23
Date 09.02.2019
CONTENTS
1 Introduction .......................................................................................................................................... 3
2 Structural Arrangements ...................................................................................................................... 3
2.1 Architectural plan .......................................................................................................................... 3
2.2 Structural layout ........................................................................................................................... 4
2.3 Centre line layout ......................................................................................................................... 4
3 Input Data ............................................................................................................................................. 5
3.1 Material specification..................................................................................................................... 5
3.2 Sections input ................................................................................................................................ 5
4 Codes and Standards .......................................................................................................................... 6
5 Load Calculation .................................................................................................................................. 7
6 Load Application................................................................................................................................... 8
7 Load Combinations ............................................................................................................................ 13
8 Deflection & Drift control .................................................................................................................... 14
9 Base shear ......................................................................................................................................... 17
10 Analysis result .................................................................................................................................. 18
10.1 Beam ......................................................................................................................................... 18
10.2 Column ...................................................................................................................................... 19
10.3 Shear wall ................................................................................................................................. 20
11 Design result .................................................................................................................................... 21
11.1 Beam ......................................................................................................................................... 21
11.2 Column ...................................................................................................................................... 22
11.3 Shear wall ................................................................................................................................. 23
Page 2 of 23
Date 09.02.2019
1 Introduction
The proposed Residential building project is a R.C.C framed structure. The size of the
Building is 22.36m x 12.90m and number of story is G+5. Each story height is 2.99m. This document
covers the design of super structure for residential building using Limit state method. This building is
designed to resist Earthquake and Wind. ETABS V16.2.1 Software is used for the analysis and
design of the structure
2 Structural Arrangements
2.1 Architectural Plan
Page 3 of 23
Date 09.02.2019
2.2 Structural layout
2.3 Centre line layout
Page 4 of 23
Date 09.02.2019
3 Input Data
Code : Indian
3.1 Material specification
Concrete grade : M20

Reinforcement grade : Fe500D bars for longitudinal bars
Fe415D bars for ties and stirrups bar
Unit weight of Blocks : 10kN/cu.m
3.2 Section Input
Column sizes : 230x600mm

Beam sizes : 230x600mm
Slab thickness
General : 125mm
OHT & LMR : 200mm
Shear wall thickness : 230mm
Page 5 of 23
Date 09.02.2019
4 Codes and Standards
The following codes and standards shall be used in design
Sl.No. CODE DESCRIPTION USAGE
1 IS 456:2000 PLAIN AND REINFORCED CONCRETE - Design of Concrete

CODE OF PRACTICE Structures.
CODE OF PRACTICE FOR

IS 875 (Part 1): DESIGN LOADS (OTHER THAN
2 For weight of building
1987 EARTHQUAKE) FOR BUILDINGS AND materials
STRUCTURES

IS875 (Part 2): DESIGN LOADS (OTHER THAN For Imposed load on
3 EARTHQUAKE) FOR BUILDINGS AND
1987 the building.
STRUCTURES

IS 875 (Part 3): DESIGN LOADS (OTHER THAN For Wind load on the
4 EARTHQUAKE) FOR BUILDINGS AND
1987 Building.
STRUCTURES
CRITERIA FOR EARTHQUAKE RESISTANT For General

5 IS 1893(Part
DESIGN OF STRUCTURES Provisions and
1):2002
Buildings
Page 6 of 23
Date 09.02.2019
5 Load Calculation
Self-weight of elements are calculated by ETABS program.
Wall Load [(F/F ht. – Beam depth) x Wall Tk. X Unit wt. of material]
230mm Tk (2.3m Height) : 5.29kN/m
Slab load
Dead load
General : 1.5kN/sq.m (Floor finish)
Stairs, Toilet & Terrace : 3.0kN/sq.m (Sunken & Floor finish)
OHT : 20.0kN/sq.m (Differs based on water tank capacity)
Live load
General : 2.0kN/sq.m
Lobby & Stairs : 3.0kN/sq.m
Seismic load
Earth quake load is assessed according to IS 1893 (Part 1):2002. Earth quake forces
are arrived based on following basic considerations:
Seismic zone = III

Zone Factor = 0.16
Structural system = Special RC Moment Resisting Frame (SMRF)
Response Reduction Factor = 5.0
Importance factor = 1
Soil type = II (Medium soil type)
Page 7 of 23
Date 09.02.2019
6 Load Applications
Wall loads (General)
Wall loads (Terrace)
Page 8 of 23
Date 09.02.2019
Slab loads (General)
Slab loads (Terrace)
Page 9 of 23
Date 09.02.2019
Slab loads (OHT & LMR)
Seismic load consideration
Page 10 of 23
Date 09.02.2019
Temperature load
Page 11 of 23
Date 09.02.2019
Temperature load
Wind load
Page 12 of 23
Date 09.02.2019
7 Load Combinations
Table 4.3.4.1 Limit State of Strength – Load combinations

Environmental
Loads Normal Loads Crane Loads
loads
Load comb DL LL WL/EQ CL
LC1 1.5 1.5 - 1.05
LC2 1.2 1.2 1.2 0.53
LC3 1.2 1.2 0.6 1.05
LC4 1.5 - 1.5 1.5
LC5 0.9 - 1.0 -
Table 4.3.4.2 Serviceability – Load combinations

Environmental
Loads Normal Loads Crane Loads
loads
Load comb DL LL WL/EQ CL
LC1 1 1 - 1
LC2 1 0.8 0.8 0.8
LC3 1 - 1 -
DL - Dead load LL - Live load CL - Crane load

WL- Wind load EQ- Earthquake forces
Page 13 of 23
Date 09.02.2019
8 Deflection & Drift control
Deflection
Deflections are to be checked for the most adverse but realistic combination of service loads
and their arrangement, using a load factor of 1.0. The following deflection limits shall be used
of all elevated structures.
Maximum Vertical Deflection Limits
L/350 or
Beams, Cantilever beams
20 mm
L- Span of the Member
Maximum Horizontal Deflection Limits
Building against wind H/500
Building against earthquake H/250
H- Height of the Building.
Drift
Inter – story drift ratio should be less than 0.004 times of floor height.
Page 14 of 23
Date 09.02.2019
Vertical Deflection
Net deflection in critical portion = 4mm Hence ok.
Horizontal deflection against earthquake
H/250 = 23200/250 = 92.8mm
Therefore Actual < Allowable. Hence ok.
Page 15 of 23
Date 09.02.2019
Horizontal deflection against wind
H/500 = 23200/500 = 46.4mm
Drift
0.004xh = 0.004x2.9 = 0.0116
Page 16 of 23
Date 09.02.2019
9 Base shear
Static base shear VB
Dynamic base shear Vb
Hence VB/Vb = 1.0
Page 17 of 23
Date 09.02.2019
10 Analysis result
10.1 Beam
Bending moment
Limit state of strength
Load case – Envelope
Page 18 of 23
Date 09.02.2019
10.2 Column
Axial force
Page 19 of 23
Date 09.02.2019
10.3 Shear wall
Axial force
Page 20 of 23
Date 09.02.2019
11 Design result
11.1 Beam
Beam size – 230x600mm
Area of steel Required
Page 21 of 23
Date 09.02.2019
11.2 Column
Column size – 230x600mm
Page 22 of 23
Date 09.02.2019
11.3 Shear wall
Shear wall – 230mm Tk
Page 23 of 23
