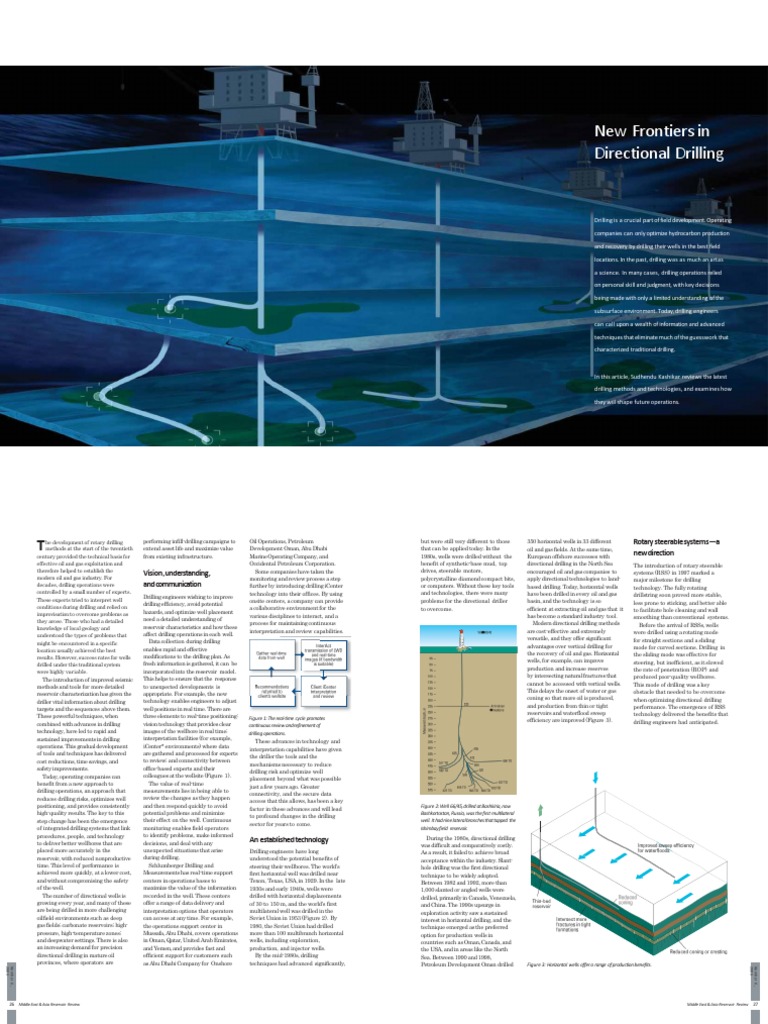

New Frontiers in

Directional Drilling

Drilling is a crucial part of field development.Operating

companies can only optimize hydrocarbon production

and recovery by drilling their wells in the best field

locations. In the past, drilling was as much an artas

a science. In many cases, drilling operations relied

on personal skill and judgment, with key decisions

being made with only a limited understanding of the

subsurface environment. Today, drilling engineers

can call upon a wealth of information and advanced

techniques that eliminate much of the guesswork that

characterized traditional drilling.

In this article, Sudhendu Kashikar reviews the latest

drilling methods and technologies, and examines how

they will shape future operations.


T he development of rotary drilling
methods at the start of the twentieth
century provided the technical basis for
effective oil and gas exploitation and
therefore helped to establish the
modern oil and gas industry. For
decades, drilling operations were
controlled by a small number of experts.
These experts tried to interpret well
conditions during drilling and relied on
improvisation to overcome problems as
they arose. Those who had a detailed
knowledge of local geology and
understood the types of problems that
might be encountered in a specific
location usually achieved the best
results. However, success rates for wells
drilled under this traditional system
were highly variable.
The introduction of improved seismic
methods and tools for more detailed
reservoir characterization has given the
driller vital information about drilling
targets and the sequences above them.
These powerful techniques, when
combined with advances in drilling
technology, have led to rapid and
sustained improvements in drilling
operations. This gradual development
of tools and techniques has delivered
cost reductions, time savings, and
safety improvements.
Today, operating companies can
benefit from a new approach to
drilling operations, an approach that
reduces drilling risks, optimizes well
positioning, and provides consistently
high-quality results. The key to this
step change has been the emergence
of integrated drilling systems that link
procedures, people, and technology
to deliver better wellbores that are
placed more accurately in the
reservoir, with reduced nonproductive
time. This level of performance is
achieved more quickly, at a lower cost,
and without compromising the safety
of the well.
The number of directional wells is
growing every year, and many of these
are being drilled in more challenging
oilfield environments such as deep
gas fields; carbonate reservoirs; high-
pressure, high-temperature zones;
and deepwater settings. There is also
an increasing demand for precision
directional drilling in mature oil
provinces, where operators are
2005
Number 6,
26 Middle East & Asia Reservoir Review
performing infill-drilling campaigns to
extend asset life and maximize value
from existing infrastructure.
Vision,understanding,
andcommunication
Drilling engineers wishing to improve
drilling efficiency, avoid potential
hazards, and optimize well placement
need a detailed understanding of
reservoir characteristics and how these
affect drilling operations in each well.
Data collection during drilling
enables rapid and effective
modifications to the drilling plan. As
fresh information is gathered, it can be
incorporated into the reservoir model.
This helps to ensure that the response
to unexpected developments is
appropriate. For example, the new
technology enables engineers to adjust
well positions in real time. There are
three elements to real-time positioning:
vision technology that provides clear
images of the wellbore in real time;
interpretation facilities (for example,
iCenter* environments) where data
are gathered and processed for experts
to review; and connectivity between
office-based experts and their
colleagues at the wellsite (Figure 1).
The value of real-time
measurements lies in being able to
review the changes as they happen
and then respond quickly to avoid
potential problems and minimize
their effect on the well. Continuous
monitoring enables field operators
to identify problems, make informed
decisions, and deal with any
unexpected situations that arise
during drilling.
Schlumberger Drilling and
Measurements has real-time support
centers in operations bases to
maximize the value of the information
recorded in the well. These centers
offer a range of data delivery and
interpretation options that operators
can access at any time. For example,
the operations support center in
Mussafa, Abu Dhabi, covers operations
in Oman, Qatar, United Arab Emirates,
and Yemen, and provides fast and
efficient support for customers such
as Abu Dhabi Company for Onshore
Oil Operations, Petroleum
Development Oman, Abu Dhabi
Marine Operating Company, and
Occidental Petroleum Corporation.
Some companies have taken the
monitoring and review process a step
further by introducing drilling iCenter
technology into their offices. By using
onsite centers, a company can provide
a collaborative environment for the
various disciplines to interact, and a
process for maintaining continuous
interpretation and review capabilities.
Figure 1: The real-time cycle promotes
continuous review and refinement of
drilling operations.
These advances in technology and
interpretation capabilities have given
the driller the tools and the
mechanisms necessary to reduce
drilling risk and optimize well
placement beyond what was possible
just a few years ago. Greater
connectivity, and the secure data
access that this allows, has been a key
factor in these advances and will lead
to profound changes in the drilling
sector for years to come.
An establishedtechnology
Drilling engineers have long
understood the potential benefits of
steering their wellbores. The world’s
first horizontal well was drilled near
Texon, Texas, USA, in 1929. In the late
1930s and early 1940s, wells were
drilled with horizontal displacements
of 30 to 150 m, and the world’s first
multilateral well was drilled in the
Soviet Union in 1953 (Figure 2). By
1980, the Soviet Union had drilled
more than 100 multibranch horizontal
wells, including exploration,
production, and injector wells.
By the mid-1980s, drilling
techniques had advanced significantly,
but were still very different to those
that can be applied today. In the
1980s, wells were drilled without the
benefit of synthetic-base mud, top
drives, steerable motors,
polycrystalline diamond compact bits,
or computers. Without these key tools
and technologies, there were many
problems for the directional driller
to overcome.
Figure 2: Well 66/45, drilled at Bashkiria, now
Bashkortostan, Russia, was the first multilateral
well. It had nine lateral branches that tapped the
Ishimbay field reservoir.
During the 1980s, directional drilling
was difficult and comparatively costly.
As a result, it failed to achieve broad
acceptance within the industry. Slant-
hole drilling was the first directional
technique to be widely adopted.
Between 1982 and 1992, more than
1,000 slanted or angled wells were
drilled, primarily in Canada, Venezuela,
and China. The 1990s upsurge in
exploration activity saw a sustained
interest in horizontal drilling, and the
technique emerged as the preferred
option for production wells in
countries such as Oman, Canada, and
the USA, and in areas like the North
Sea. Between 1990 and 1998,
Petroleum Development Oman drilled
350 horizontal wells in 33 different
oil and gas fields. At the same time,
European offshore successes with
directional drilling in the North Sea
encouraged oil and gas companies to
apply directional technologies to land-
based drilling. Today, horizontal wells
have been drilled in every oil and gas
basin, and the technology is so
efficient at extracting oil and gas that it
has become a standard industry tool.
Modern directional drilling methods
are cost-effective and extremely
versatile, and they offer significant
advantages over vertical drilling for
the recovery of oil and gas. Horizontal
wells, for example, can improve
production and increase reserves
by intersecting natural fractures that
cannot be accessed with vertical wells.
This delays the onset of water or gas
coning so that more oil is produced,
and production from thin or tight
reservoirs and waterflood sweep
efficiency are improved (Figure 3).
Figure 3: Horizontal wells offer a range of production benefits.
Rotary steerablesystems—a
newdirection
The introduction of rotary steerable
systems (RSS) in 1997 marked a
major milestone for drilling
technology. The fully rotating
drillstring soon proved more stable,
less prone to sticking, and better able
to facilitate hole cleaning and wall
smoothing than conventional systems.
Before the arrival of RSSs, wells
were drilled using a rotating mode
for straight sections and a sliding
mode for curved sections. Drilling in
the sliding mode was effective for
steering, but inefficient, as it slowed
the rate of penetration (ROP) and
produced poor-quality wellbores.
This mode of drilling was a key
obstacle that needed to be overcome
when optimizing directional drilling
performance. The emergence of RSS
technology delivered the benefits that
drilling engineers had anticipated.
2005
Number 6,
Middle East & Asia Reservoir Review 27
 Accurate andpowerful
The PowerDrive* RSS is a compact
system, comprising a bias unit and a
control unit, that adds only 3.8 m to
the length of the bottomhole assembly
(BHA) (Figure 4). The bias unit sits
immediately behind the bit and
applies force to the bit in a controlled
direction while the entire drillstring
rotates. The control unit contains
self-powered electronics, sensors, and
a control mechanism to provide the
average magnitude and direction of
the bit-side loads that are used to
adjust well trajectory.
The bias unit has three external,
hinged pads that are activated by
controlled mud flow through a valve.
The valve exploits the difference in
mud pressure between the inside and
the outside of the bias unit. The
three-way rotary disk valve actuates
the pads by sequentially diverting
mud into the piston chamber of each
pad as it rotates into alignment with
the desired push point—the point
opposite the desired trajectory—in
the well (Figure 5).
Once a pad has passed the push
point, the rotary valve cuts off its mud
supply and the mud escapes through a
specially designed leakage port.
Each pad extends no more than
approximately 0.95 cm during each
revolution of the bias unit. An input
shaft connects the rotary valve to the
control unit, and this regulates the
position of the push point. If the angle
of the input shaft is geostationary
with respect to the rock, the bit is
Figure 4: The PowerDrive RSS produces high-quality boreholes at high ROPs.
2005
Number 6,
28 Middle East & Asia Reservoir Review
constantly pushed in one direction,
the direction opposite the push point.
If no change in direction is needed,
the system is operated in a neutral
mode, with each pad extended in
turn, so that the pads push in all
directions and effectively cancel each
other out.
Improved drilling methodsproduce
betterwells
Fully rotating steerable systems have
been tested and shown to minimize
problems such as wellbore spiraling
and ballooning. RSS systems optimize
the efficiency of cuttings transport
Figure 5: Actuators push against the side
of the borehole to steer the RSS.
and reduce the risk of sticking. Other
studies indicate that using an RSS
reduces stress on logging-while-
drilling (LWD) systems and cuts bit
wear. Good design and an effective
RSS will minimize or eliminate
undesirable effects such as bounce,
stick-slip, whirl, and lateral vibration.
Fully rotating the entire steering
system
◼ reduces mechanical and differential
sticking of the drillstring because
there are no stationary components
in contact with the casing, whipstock,
or borehole. It also reduces the risk
of the BHA packing off.
◼ improves penetration rates because
there are no stationary components
to create friction. The efficient
removal of cuttings means that
cuttings are not reground during
drilling.
◼ enhances the flow of drilled cuttings
past the BHA because there are no
annular bottlenecks in the wellbore.
Enhanced production
The ability to land and position
wellbores more precisely within the
reservoir leads directly to better
production. The more sophisticated
RSSs, which have automated, closed-
loop control of the steering response,
can position wells more precisely than
even the very best directional driller
could using conventional technology.
This ability to land and navigate wells
precisely within the best production
zones provides an immediate benefit
for improving the production
performance of the well. Straighter,
cleaner wellbores improve the flow
rates for hydrocarbons by eliminating
water sumps and gas crests (Figure 6).
Improved reservoir access and drainage
In areas where three-dimensional
directional drilling control is
troublesome, RSSs can provide a much
wider range of well-trajectory design
options at low operational risk. This has
proved particularly beneficial in fields
where a lack of directional drilling
control had limited well designs to
simple, two-dimensional wells and thus
restricted reservoir access and field-
drainage patterns. With the
introduction of rotary steerable drilling
techniques to these fields, producible
reserves are increased through
improved reservoir access and more
efficient drainage patterns.
Minimized lost-in-hole time
Continuous pipe rotation, smoother
and less tortuous trajectories, and
overall improvements in hole-gauge
quality help to reduce stuck-pipe
and lost-in-hole incidents. A study
comparing lost-in-hole incidents for
RSSs with those for conventional BHAs
showed the RSS lost-in-hole rate was
only 15 % of that experienced with
conventional systems.
Improved safety
When drilling programs are conducted
with RSSs, fewer trips in and out of
hole should be required. RSS methods
Figure 6: Conventional drilling technology produces tortuous wells. In horizontal producers, this can restrict the flow of hydrocarbons (a). Flow rates are
maximized when the borehole is smooth and straight (b).
extend the life of drill bits, which
results in more footage per bit and,
therefore, fewer trips for bit changing.
In addition, continuous rotation at high
rotary speeds results in very efficient
hole cleaning and removes the need
for many short cleaning trips. RSSs
are also much more versatile and
should be able to drill
all of the required section trajectories
(such as build, drop, tangent, and
turn) using a single BHA design; this
means fewer trips for BHA change.
This dramatic reduction in tripping
saves time, reduces drill-floor activity,
cuts handling of tubulars, and,
ultimately, increases safety.
Reduced tripping activity can be
measured by plotting the footage
drilled against the total amount of pipe
tripped over the course of a project. In
some cases, the introduction of RSSs
has reduced tripping by almost 50 %.
Figure 7: Wells drilled overgauge generate
Reduced environmental impact more cuttings waste and are drilled at a lower
Drilling with rotary steerable annular velocity.
assemblies results in a more in-gauge
All of the RSS-related improvements
hole than drilling with steerable motor
listed combine to deliver time savings,
systems. This gives smaller volumes of
improved safety performance, and
drilled cuttings waste and lower
greater cost efficiencies that translate
drilling fluid losses. For example, if the
into lower production costs for field
hole in a 121⁄4-in section were drilled
operators (Figure 8).
overgauge to an average diameter of
14 in, this would represent an increase
of about 30 % in cuttings waste and,
correspondingly, a 30 % lower annular
velocity compared with drilling the
section in gauge (Figure 7).
2005
Number 6,
Middle East & Asia Reservoir Review 29
 The tools for thejob
Drilling technology must be flexible
and enable the engineer to design and
execute the most appropriate drilling
program for any well. There are often
considerable variations across oil- and
gas-bearing formations. Even adjacent
wells may be significantly different, and
each can exhibit unique temperature,
pore-pressure, permeability, and
lithological conditions. The industry
needs an integrated drilling system that
can be adapted to these local variations
and that will meet the specific needs of
each customer.
For example, the PowerDrive
Xceed* RSS has been designed to
excel in harsh environments. It is a
fully rotating tool that provides high
levels of accuracy and reliability in
extreme drilling applications.
Maersk Oil Qatar AS used the
PowerDrive Xceed system to drill thin
sands in the Nahr Umr reservoir in
Qatar (Figure 9). The system
provided excellent geosteering
control, with the bit staying in the
sand section through 99 % of the
2,006-m, 81⁄2-in hole. More than 90 %
of the drain section was drilled within
the optimum sand zone, and, during
2005
Number 6,
Figure 8: The key features of the PowerDrive system. Precise deviation control, continuous rotation,
and improved hole cleaning all lead to lower production costs.
30 Middle East & Asia Reservoir Review
this operation, the system achieved
a significant 90-degree change in well
trajectory azimuth at an extended
step-out. This level of performance
has proved very difficult to achieve
with conventional technology.
Reliability and wear resistance
are key features in demanding
environments. The PowerDrive Xceed
tool has a totally enclosed internal
steering mechanism and rugged, field-
proven electronics that safeguard
the tool’s performance in abrasive,
hot, and high-shock applications.
The reduced dependence of the
steering principle on wellbore contact
makes the tool ideal for openhole
sidetracking steering in overgauge-
hole and soft-formation applications.
Minimal wellbore dependence also
enables the PowerDrive Xceed system
to be used with bicenter bits for
directional drilling.
The nextstep
As the exploration and production
industry extends its operations into
new areas, there is increasing pressure
on service companies to provide tools
with higher levels of reliability that can
complete demanding drilling programs
quickly and cost-effectively.
Figure 9: The thin sands of the Nahr Umr
reservoir in Al-Shaheen field were drilled using
a PowerDrive Xceed system.
Today, drilling systems are being
deployed in tough conditions, such
as deep, hot wells, where they are
expected to deliver better images
and more accurate data. Precision
drilling and field optimization require
excellent depth control and smoother
holes that pass into the productive
pays of any target zone and remain
within it.
When providing directional drilling
services, it is usually preferable to
drill from shoe to total depth in one
run, every time, at maximum ROP.
The PowerDrive X5* RSS was
developed to meet these challenges.
This system represents a step change
in reliability and efficiency that makes
it possible to drill longer runs,
optimize wellbore placement, and
reduce drilling time. The associated
cost savings can be substantial.
The PowerDrive X5 system has a
robust steering section and utilizes
advanced coating materials that
reduce wear and so ensure reliable,
consistent performance in a wide
range of drilling environments. The
system’s electronics, which are
chassis mounted for reliability and
durability, can operate in downhole
temperatures of up to 150 degC.
High-quality drilling is achieved using
a simple, rugged steering section and
directional measurements near the
bit for precise, true-vertical-depth
directional control.
The availability of near-bit
measurements in real time ensures
accurate, efficient drilling and
wellbore placement. The efficient
downlink systems and the automatic
inclination hold provide a smooth
tangent section and improve the
accuracy of the true vertical depth
in the horizontal section—critical
for maximizing recoverable reserves
and the well’s production potential.
A measurement-while-drilling
(MWD) type triaxial sensor package
close to the bit provides accurate
azimuth and inclination directional
information, which enables fast,
responsive directional control in
either the automatic or the manual
operation mode. Once a target
formation has been penetrated, the
trajectory can be locked in using the
inclination-hold functionality. No
further input is required from the
directional driller. Steering decisions
are further aided by an optional
real-time azimuthal gamma ray
measurement and imaging of the
wellbore to provide information on
formation dip or fault boundaries. An
azimuthal gamma ray sensor 2 m
from the bit enables drillers and
geologists to identify bed boundaries
quickly and thus respond faster to
formation changes in order to
optimize well placement. Casing and
coring point detection are optimal,
penetration of the formations to be
cored is minimized, and the chances
of drilling through a potentially
valuable core section or wasting time
coring an uninteresting formation are
significantly reduced.
High-performancedrilling
with amotor
When a PowerPak* steerable mud
motor is run in conjunction with a
PowerDrive system, all of the drilling
energy is concentrated at the bit. This
configuration can improve the ROP,
eliminate slip/stick and unpredictable
Figure 11: Short bit-to-bend and bit-to-stabilizer spacings enable high surface rotary speeds and improve hole cleaning.
torque, minimize dogleg severity, drill
a smoother hole, and increase bit life
(Figures 10 and 11).
PowerPak* steerable motors are
positive displacement mud motors
that incorporate a stabilizer and a
bent-housing section that permits
rotary drilling in vertical, tangential,
or horizontal sections of the hole as
well as oriented drilling during
kickoffs or course corrections. The
surface-adjustable bent housing
provides flexibility as orientation
requirements change.
The PowerPak motor’s modular
design meets a full range of directional
drilling requirements. The superior
design of the tool features short bit-to-
bend and bit-to-stabilizer spacings to
enable high surface rotary speeds for
improved hole cleaning.
Formationevaluation
whiledrilling
Two decades ago, formation
evaluation was usually conducted
using wireline tools that were
introduced to the borehole once
drilling had been completed. The
Figure 10: The principle of the mud motor.
delay between drilling and logging
meant that the results from wireline
logs had to be corrected for invasion
and other postdrilling effects.
The Schlumberger LWDtool
was introduced in 1988. The basic
measurements were resistivity,
neutron and density porosities, and
photoelectric factor. By the early
1990s, improvements had been made
in areas such as tool reliability and
data-transfer rates.
Further advances included the
introduction of the IDEAL* Integrated
Drilling Evaluation and Logging system,
which enabled drillers to monitor
trends and spot abnormal situations
using quick-look interpretations on a
drill-floor screen, and the arc5* Array
Resistivity Compensated tool, which
proved extremely useful in thin-bed
environments.
This development process has
continued with the arrival of two
new measurement systems, the
seismicVISION*seismic-while-drilling
service and the proVISION* real-time
reservoir steering service tool, which
provide detailed formation evaluation
information during drilling. This
information has changed the ways
that wells are drilled and reservoirs
aredeveloped.
2005
Number 6,
Middle East & Asia Reservoir Review 31
 Reduce depth uncertainty with
real-time borehole seismic
The seismicVISION LWD tool delivers
time-depth/velocity information in
real time without affecting drilling
operations. The tool helps operating
companies to make the best drilling
decisions, while reducing costs and
improving safety. The seismicVISION
tool delivers traditional borehole-
seismic measurements, including real-
time checkshot and interval velocity
data, that reduce the uncertainty of
events ahead of the bit. Real-time
access to these calibration data is
critical where there are significant
uncertainties in the time–depth
relationship or in wells where casing
must be set in an interval identified by
surface seismic data.
Continuously updating the bit’s
position on the seismic map helps
in navigation, selection of casing and
coring points, prediction of target
depth, and reduction of sidetracks and
pilot holes. Acquired interval
velocities provide the necessary data
to manage pore pressure while drilling
and to optimize mud weight.
Real-time producibility information
while drilling
The proVISION nuclear magnetic
resonance tool helps oil and gas
companies to optimize productivity.
This tool represents a step change
in how nuclear magnetic resonance
technology is applied to formation
characterization. The proVISION
tool delivers real-time evaluation of
formation productivity, and provides
reliable determinations of mineralogy-
independent porosity, bound- and
free-fluid volumes, productive zones,
and pore size, as well as the
identification of fluids (Figure 12).
2005
Number 6,
Thebig picture fromtheborehole
Although LWD and MWD tools have
been available for many years, it is
only recently that advances in data
transmission and interpretation have
progressed to generating accurate
images of the wellbore. These images
are based on real-time data and offer
insight into what is really happening
downhole.
Typically, a high-quality image is
drawn from detailed, 3D resistivity
data. A resistivity tool similar to the
wireline-deployed FMI* Fullbore
Formation MicroImager tool supplies
these data. The resistivity tool is
capable of identifying wellbore
features and characterizing faults,
cementation changes, and threaded
or spiraling boreholes caused by bit
Figure 12: The proVISION tool clearly identifies hydrocarbon layers, rock porosity, production zones,
and bound-and free-fluid volumes.
whirl. Software converts the
resistivity data into 3D wellbore
images that can be viewed from any
angle using simple mouse movements.
The resistivity measurements are
transformed into 56 azimuthal sectors
around the circumference of the
wellbore to provide extremely
detailed images.
Current imaging-while-drilling
technology is sufficiently fast and
accurate to facilitate geosteering
while drilling. Modern software and
MWD telemetry systems provide a
clear insight into 3D wellbore
features, well placement within the
reservoir, wellbore stability issues,
formation dip, and structural
configurations. Combining resistivity
and density services with real-time
logging images and geosteering
techniques will help operators to
reduce risk and overcome some of the
geological uncertainties encountered
while drilling complex wells.
Ultrahigh telemetry rates (up to
12 bps) have been used to optimize
horizontal well placement and to warn
of wellbore stability issues before they
jeopardize operations or impact on
drilling costs (Figure 13). Transmission
of high-quality, real-time azimuthal and
image log data is possible, even in cases
where penetration rates are high.
Resistivity images are transmitted
uphole to present the wellbore in four
quadrants. This information can be
wrapped into a 3D image of the
wellbore, which helps the drilling
team to optimize well placement using
geological markers. Armed with this
information, the drilling engineer Figure 13: High data-transmission rates enable drillers to control wells with high ROPs.
can make rapid adjustments to the
wellbore trajectory, relative to
geological bedding planes or faults,
and can modify steering while drilling.
Wellbore stability problems are
detected using ultrasonic caliper
logs from density LWD tools. Hole
enlargement or washouts can be
identified while drilling or during
subsequent trips. This helps to
monitor wellbore stability and enables
adjustments to be made to mud
weights or effective circulating
density as required (Figure 14).
Wellbore stability problems can be
confirmed using VISION* Formation
Evaluation and Imaging While Drilling
technology that incorporates
azimuthal density/neutron viewer
software, which provides density-
image and caliper data while drilling.
The azimuthal density/neutron
viewer also generates 3D images and
caliper logs that, when combined,
make it easier to understand wellbore
conditions during drilling. In addition,
the 3D density images and ultrasonic
caliper information enable engineers
to characterize wellbore instability
mechanisms and then resolve them.
This is vital in completions where
gravel packs or expandable screens
are required. The ultrasonic and
density caliper information gathered
during drilling can indicate whether
the hole quality is good enough for
engineers to deploy specialized

completions. Log data acquired on
a subsequent wiper trip provides a
clear picture of hole enlargement and
stress failures after drilling.
32 Middle East & Asia Reservoir Review
2005
Number 6,
Figure 14: LWD tools can help drilling engineers to modify mudweights and so avoid
problems such as kicks and fluid loss.
Middle East & Asia Reservoir Review 33
 Whatcouldpossibly gowrong? stuck portion and drill a sidetrack The faults and fractures that the Drillstring vibrations can weaken to inform all the relevant personnel.
around it. This changes the drilling wellbore encounters open conduits and destroy pipe and equipment as The plan must include procedures to
Oil and gas companies spend around
program completely and may for loss of drilling fluid to the well as seriously damage the wellbore. follow under normal circumstances
USD 20 billion on drilling each year.
significantly increase the well’s cost. formation. Excessively high mud And some problems, even if they and methods for dealing with the most
Unfortunately, about 15 % of this is
Drilling at high ROPs can save time pressure can fracture the formation do not completely suspend the drilling likely and the most severe problems
attributed to losses. These losses
and money, but when this high rate is and cause lost circulation. However, process, jeopardize subsequent that could be encountered.
include materials such as drilling
accompanied by a low drillstring if the mud pressure is too low, it will logging, completion, and production. Despite these challenges, successful
equipment and fluids, and deficiencies
rotation rate or a mud flow rate that fail to keep high-pressure formations Drillers who have to decide how best drilling should be a routine process for
in drilling process continuity (called
fails to lift rock cuttings to surface, under control and can lead to gas to correct these problems face tough properly trained personnel who are
nonproductive time) that are incurred
the result is stuck pipe. kicks or blowouts. challenges: there are many factors for following a well-defined drilling
while searching for and implementing
remedies to drilling problems them to consider. For example, procedure and who have sufficient
(Figure 15). Avoiding drilling problems increasing the mud weight to control data and tools for interpretation.
cuts finding and development costs wellbore stability in one interval in a
and enables oil companies to focus on well may cause fracturing elsewhere.
their core business—building and Often, the most effective solutions
replacing reserves. cannot be widely applied, as many
Every well presents problems: the drilling-related problems are well- or
main challenge for drilling engineers field-specific. The key to successful
is to manage the drilling risk in a way drilling is to develop a sound plan,
that prevents small problems from to update this continuously as new
escalating. Most of the time spent information becomes available, and
drilling wells, and most of the cost, is
associated with cutting down
through the rock sequence above the g. Poor hole cleaning h. Wellbore geometry
reservoir. Knowing what the
potential risks are and where they
are likely to occur helps to keep the
drilling program on schedule.
There are various problems that can
trouble drilling engineers (Figure 16,
a–n). For example, drillpipe can
become stuck against the borehole
wall through differential pressures or
by lodging in borehole irregularities;
skill and force are required to free it.
When sticking cannot be resolved, the Figure 15: Offshore drilling costs are high, and problems that take days to solve will have major
only solution may be to abandon the implications for field-development budgets.

a. Cement b. Collapsed c. Differential d. Drillstring e. Fractured f. Geopressure i. Debris j. Key seating k. Mobile l. Reactive m.Unconsolidated n. Undergauge
related casing sticking vibration zone formation formation zone hole
2005
Number 6,

2005
Number 6,
Figure 16: Every well can present problems for the drilling engineer. Understanding the potential risks and where problems might occur helps to keep the
drilling programon schedule.

34 Middle East & Asia Reservoir Review Middle East & Asia Reservoir Review 35
 Real-time dip information, provided expertise. This means that all parties operation. There are three phases in are being introduced to fill the gaps
The path to betterwells Right firsttime
by the LWDresistivity imaging tools, can observe the well’s progress in real an NDS project, see Figure 18. in drilling-services packages, and
Drilling optimization and the benefits As with all oilfield operations, drilling is
can be used to view geological time and that the drilling engineer has Continuous updating of the living companies are starting to integrate
it brings cannot be achieved through an activity that field operators want to
structures and reduce the uncertainties the full support of an expert team, well plan helps the asset team to drilling data with seismic, logging,
tools and technology alone. Drilling complete quickly and cost- effectively.
in earlier geological models. Production should the well encounter any ensure that drilling decisions are production, and other reservoir data.
and production engineers require risk- The keys to avoiding problems while
teams can also analyze surface seismic difficulties. Modern connectivity based on accurate and up-to-date This integration has led to benefits in
management systems to help them to drilling are assessing and managing
data to establish the presence or systems such as the InterACT* real- information and that they will not areas such as stimulation, completions,
optimize wellbore construction and risk, and optimizing wellbore
location of erosion surfaces that might time monitoring and data delivery compromise hydrocarbon production and production optimization.
performance, and to learn the lessons construction through detailed
jeopardize the well trajectory. Data system make this possible by linking recovery, or safety.
from previous drilling programs. This planning and real-time monitoring
transmission from the rig site enables remote locations to field offices and Balancingcostsandbenefits
approach requires detailed planning, during the execution phase. Predrilling
experts to observe the wellbore corporate headquarters through Technologies tomeet Many operators, while acknowledging
real-time control during execution of analysis and prediction, with real-time
remotely and to anticipate changes in secure Internet and intranet the technical advances that have been
the drilling plan, and a method for updating as drilling progresses, enable keychallenges
the bedding plane and the structural connections (Figure 17). made in drilling, would like to see more
reviewing performance. the drilling engineer to anticipate
behavior of the reservoir. Growing market demand has created technology aimed directly at reducing
The first challenge for a new drilling potential problems ahead of time and
Azimuthal density/neutron viewer a broad spectrum of drilling services. costs. Although costs appear to be
program is to link all the relevant to solve them proactively. No Drilling
software also enables structural dip Today, leading service companies are falling in many areas, for example,
picking from images. This can be Surprises (NDS) is a focused process investing heavily in their own research software, well costs are not coming
used in combination with the real-time that covers all aspects of well planning and development to keep pace with down. In real terms, some wells cost
data for structural interpretation. Bed and execution, and delivers relevant industry needs and are participating in more today than they would have done
dips and layer thickness are also information to the appropriate collaborative efforts with their 5 or 10 years ago. However, these
characterized for the evaluation of personnel at every stage in the drilling customers. New products and services higher costs do reflect the technical
structural cross sections. The reduction
in risk and geological uncertainty will
make wellbore imaging an essential tool
for companies operating in geologically
complex fields.

LWD VISION tool eliminates the

need for a pilot hole
The VISION drilling tool has helped to
save time and reduce costs by enabling
several operators worldwide to drill
deepwater production wells without
first drilling a pilot hole. The geological
drilling campaigns used real-time LWD
images and bit resistivity data to land
the well in the reservoir.
Accurate well steering and
placement require significant prejob
Stimulation
planning in order to minimize drilling operations
risks while steering using geological Wireline
criteria. The use of LWD images in logging Downhole
monitoring
real time was a key element in
predicting undesirable events that Drilling
operations
might otherwise have jeopardized the
success of the project. In this well,
subseismic faults and premature
entry into the shale zone occurred. Production
The interpretation of the available monitoring Figure 18: The three phases in an NDS project. Careful planning, live monitoring and updating during drilling, and detailed postjob analysis can help to
log and image data was critical to the eliminate drilling problems before they arise.
decision-making process during
drilling and ensured reentry into the
reservoir.
2005
Number 6,

2005
Number 6,
Figure 17: The InterACT real-time monitoring and data delivery system provides secure monitoring
and control.

36 Middle East & Asia Reservoir Review Middle East & Asia Reservoir Review 37

Figure 19: Brownfield production dominates global oil and gas supply.
achievements of recent years, as
the industry drills deeper and more
complex wells.
Well construction costs may be
rising, but the aim of reservoir
development technology is to
optimize reservoir exploitation using
a few advanced wells that significantly
outperform their conventional
counterparts. Nowhere has this
been illustrated more clearly than
in Russia, where a field development
plan for 57 vertically drilled wells was
recently scrapped in favor of two
geosteered horizontal wells. The total
field production from the original plan
was estimated at about 2,000 m3/d
with a 19-year life. Production from
the two designer wells totals
5,000 m3/d and depletion is expected
in 7.6 years.
Brownfielddrilling
Today, most of the world’s oil
production comes from mature fields
(Figure 19), and some of these
brownfield assets are over 30 years
old. The industry is working hard to
prolong the lives of these fields, to
optimize production from them, and
to improve recovery factors through
remediation and production-
enhancement technologies. However,
there are many technical and economic
challenges to be overcome in mature
and brownfields. In these fields, drilling
expenditure must be justified by the
value of the incremental production
from the asset (Figure 20).
In recent years, significant progress
has been made in this area by
developing technologies designed to
combat the decline of older fields and
to add capacity for the future.
Once the company operating
a brownfield asset has a clear
understanding of the reservoir and
its production, it can optimize well
placement and select the best
perforation zones or drilling trajectories.
Over the next decade, worldwide
oil demand is projected to increase
significantly, especially within the
developing economies (Figure 21).
Published estimates indicate that the
reserves to meet this demand are
available, but that they are those that
are usually more difficult and costly to
produce. Reserves located in remote or
challenging environments such as deep
water or environmentally sensitive
regions, or those that are considered
nonconventional such as coalbed
methane or heavy oil will require
substantial research and development
to devise suitable extraction solutions Figure 21: The steep rise in global oil demand will be driven by countries in the developing world.
(Figure 21). The key to success will
be finding economically viable methods Sources: Energy Information (EIA). Office of Energy Markets and End Use, International Statistics Database
to tap those reserves, despite the and International Energy Annual 1999, DOE/EIA-0319(99) (Washington, DC, February 2001) EIA. World Energy
increased technical complexity that Projection System (2002).
will be necessary.
Recent advances in wellbore-
construction and production-
enhancement techniques have been
key contributors in this drive to meet
technical challenges while reducing
costs. Until now, the demand for
stimulation services has been largest
in North America, but demand is
rising quickly in other parts of the
world. Even in the Middle East, which
contains many of the world’s most
prolific reservoirs, depletion and
production problems are starting
to affect field performance and
production-enhancement services
are being investigated. Interest
in unconventional resources is
increasing globally, a sure sign that
easy oil and gas production may soon Figure 22: As conventional oil production peaks, other sources of hydrocarbons, such as heavy oils or
be a thing of the past. coalbed methane, will have to be tapped to meet demand.

Reaching further, drillingsmarter

As operators locate satellite fields
and bypassed zones around a main
reservoir, they may seek to develop
these with extended-reach wells.
However, for extended-reach wells
to succeed there must be a careful
Figure 20: The key challenges in brownfield development are to reach assessment of risk. Extended wells
bypassed oil cost-effectively and to avoid collision with existing wells. can reach under urban centers or
protected wilderness sites to tap oil
and gas that would be inaccessible
using any other approach.
2005
Number 6,

2005
Number 6,
38 Middle East & Asia Reservoir Review Middle East & Asia Reservoir Review 39
 Extended reach in the South China Sea
Phillips China Inc. and its partners,
China National Offshore Oil Company
and Shell China, discovered the
Xijiang 24-3 field in the South China
Sea in 1994 (Figure 23). The
operators drilled several wells to
different producing horizons and put
them on production. Smaller, satellite
reservoirs, such as Xijiang 24-1, were
not drilled because the estimated
production would not support the
costs associated with a separate
platform or drilling subsea wells.
Figure 23: Extended-reach drilling opens up
smaller satellite fields at a fraction of the cost
of traditional field development methods.
Production from the Xijiang 24-3
field indicated that the booked
reserves understated the actual
amount of oil in place. Revised maps
and seismic interpretations provided
the operator with several promising
undrilled locations, including the
Xijiang 24-1 structure. This location
became regarded as a development
project, but was still considered too
small to justify a new platform.
Proving the validity of the new
maps required drilling additional
wells. In a newly discovered prospect,
these would normally be vertical
delineation wells, which are discarded
after logging. However, project
2005
Number 6,
40 Middle East & Asia Reservoir Review
economics dictated that every new
well should produce oil to cover or
offset drilling costs.
The first proposed bottomhole
location was over 8 km from the
platform, and meeting the objectives
of this well would require going
beyond the range of normal
development drilling. Ultimately, an
extended-reach well was directionally
drilled, to a then world-record
measured depth of more than 9,200 m,
while using real-time LWDservices to
provide formation evaluation in a
timely and cost-effective manner. The
success of this well led to an extension
of the drilling campaign.
Subsequent wells, while not reaching
as far from the platform, used LWD
sonic and resistivity logging tools to
provide real-time seismic correlation,
porosity data, and hydrocarbon
evaluation. These data enabled the
operator to optimize costs and make
decisions much more quickly.
Dramatic rise in drilling efficiency
for Middle East operator
In the Middle East, Schlumberger has
helped one operator achieve a 52 %
(USD 1.5 million) reduction in total
well costs. This resulted primarily from
a 91 % increase in drilling efficiency
per bit run, which persuaded the field
operator to replace conventional motor
technology throughout the company’s
ongoing field program with the
PowerDrive system.
During the second phase of the
multiwell program, the operator
needed increased ability to overcome
obstacles in the highly faulted and
laterally variable sandstone reservoir.
Nearly 90 % of these wells required
openhole sidetracks for geological
realignment. The available seismic data
defined the heavily faulted area, and
sidetracks were imperative. Steerability
and directional control in loose sands;
geosteering between different sand
layers; abrasion; excessive wear; and
hole cleaning were among the obstacles
to be overcome.
The PowerDrive Xceed system
met the challenge and exceeded
expectations on cost and time savings.
Reduced wellbore tortuosity cut trip
time by 68 %—a direct result of
improved hole quality. The operators
used the PowerDrive Xceed system
to drill the longest well in the field and,
for the first time, managed to drill the
sandstone section (4,172 m) in one run.
Reliable toolsand
clearerpictures
Drilling places tough demands on
tools. For Schlumberger, tool reliability
has been a priority for many years.
Every downhole tool that the company
develops is subjected to an intense
testing program that simulates the
severe shock, bending, vibration,
and temperature cycles it will
encounter in the well. By using
sophisticated test methods, new
tools can be subjected to a lifetime of
downhole stress in just a few days.
Only tools that pass these tests are
released to the field. Tool reliability is
vital and helps to boost performance,
but not all of the improvements in
drilling operations are made downhole.
Schlumberger is working in close
cooperation with operating companies
to develop and introduce 3D
visualization rooms for integrated well
planning and remote support through
real-time data transfer and virtual-
reality technology (Figure 24). Some
operating companies are using
software packages that help them to
produce integrated well designs that
bring geophysicists, geologists, and
drilling engineers together to work
on the same model. This enables the
team to identify zones of interest,
select targets, and work on the well
path in an integrated process.
Real-time visualization and the use
of secure Internet links, such as the
InterACT system, also enable
companies to identify potential
problems before they affect production.
Operating companies that use virtual-
reality systems for well planning report
these have led to optimized designs
that help to save time and money.
Visualization technology has a proven
track record and is constantly under
development. For many companies, the
major challenge is not introducing the
systems, but modifying the way that
departments and individuals interact—
changing the ways in which they work
and learn together.
The wayahead
The demands of modern oil and
gas exploration will continue to
shape the drilling-services sector. In
mature and marginal fields, operating
companies expect complex wells,
excellent reliability, and low drilling
risks at reasonable costs. As a result,
manufacturers and service suppliers
will have to continue to improve their
technology and provide more efficient
equipment throughout every area of
the drilling process. To achieve this
goal, manufacturers and service
companies will have to work in close
cooperation with customers to answer
their specific needs.
Collaborating withcustomers
There are many examples of
collaborative projects for developing
new technologies and processes
with customers. For example,
Schlumberger Drilling and
Measurements is currently working
with BP and Shell on a through-tubing
RSS that is designed to reduce the
costs of sidetracking from existing
wells and to reach small pockets of
hydrocarbons in mature fields.
In the drilling sector, the key to
business success is the ability to drill
wells efficiently and safely while
Figure 24: Advanced visualization facilities enable field operators to assess reservoir conditions
within a multidisciplinary framework.
providing maximum environmental
protection. Operating companies
and regulatory authorities set
these standards as part of the field-
development plan, and any service
company that cannot reach the
required standards is unlikely to
form a long-term partnership.
Future advances in tools and
techniques will be driven by the
needs of customers. Oil and service
companies that can establish and
maintain business relationships over
several years are more likely to
optimize drilling performance and so
generate time and cost savings.
Leading operators have found that
they can benefit from synergy when
modern workflow processes
are applied by highly trained and
experienced members of the drilling
team operating within a customized
business model.
Peoplemakethedifference
The introduction of instrumented
drilling systems, including surface
and downhole components, has had
a beneficial effect on the drilling
community. This step change in
technology made it necessary to
implement radical training programs
to teach personnel how to get the
best from the new equipment. As
drilling engineers gained experience
and confidence in applying the new
drilling practices, they were prepared
to conduct drilling programs that
were more technically demanding.
Drilling, like any other technology,
will continue to develop. Engineering
capabilities will become increasingly
important as the reservoir targets
become harder to drill and technology
offers further opportunities for
efficiency improvement.
People also play an increasingly
critical role in developing new
business models. The last few years
have seen evolution in the way that
service companies—particularly
drilling-services providers—work with
their customers. In some areas, the
traditional short-term client–supplier
relationship persists. In areas where
work is seasonal and activity is
variable, this may be the only sensible
way of working. However, many
operators have been trying to enter
into more comprehensive and long-
term relationships, particularly where
the work scope is larger and more
consistent. This approach benefits the
oil company and the supplier, who can
become a drilling partner rather than
an equipment and service vendor.
As the industry moves forward, an
important consideration is more risk
sharing and collaboration in order to
ensure that solutions are provided for
today’s and tomorrow’s challenges.
Leading service suppliers are
investing heavily in new technology
and processes, and in personnel
development for addressing these
challenges. To continue this process,
and potentially raise investment
levels, requires service companies
to find opportunities for collaborating
with their customers, particularly
when they will be rewarded for the
value they bring through improved
drilling performance.
2005
Number 6,
Middle East & Asia Reservoir Review 41
 Cooperation—the keyto
long-termsuccess
In many fields, the drilling-services
providers are only called in once the
targets have been selected and the
drilling program has been sketched
out. This leaves very little scope for
the service provider to help reduce
costs or increase the efficiency of
the program. When drilling-services
providers are present from the early
stages of field development and
intimately involved in the planning
process from the conceptual target
selection, then their potential impact
is much greater and the cost savings
can be immense (Figure 25). Targets
can be selected to tie in with the
optimal drilling surface location or
slot, and targets may be linked to
increase the reservoir penetration
with a single wellbore. Well profiles
can be optimized by reservoir
engineers and petrophysicists to
ensure the optimal trajectory, and
the field can be planned to ensure
that anticollision issues are addressed.
In addition, involving the drilling-
services’ drilling engineers at this
early stage enables early optimization
of the BHA. All these factors, when
added together, can significantly
reduce well costs.
Developing relationships
characterized by openness and trust
between operators and contractors is
fundamental to team building. Even
without financial incentives, close
cooperation encourages people to
be proactive and find new ways to
boost performance.
Assessingperformance
For drilling performance to improve
as a field development or contract
progresses, performance must be
benchmarked effectively. The key
performance indicators (KPI) must
be genuine measures of drilling
performance, and must be agreed
upon by the operator and the
provider in advance. As drilling
advances and the number of wells
increases, the learning curve can be
2005
Number 6,
42 Middle East & Asia Reservoir Review
assessed and the impact of various
drilling services can be evaluated.
Typically, drilling-services companies
have been assessed on and compared
using tool reliability in terms of
circulating hours. While this provides
a simple way to compare suppliers,
it does not drive performance, and
leading companies are trying to use
KPIs that better reflect the impact
that a service provider can have on
drilling performance. For example,
Schlumberger is trying to move to
more representative KPIs such as
meters between failure and meters
drilled per circulating hour, which are
Figure 25: Choosing an integrated service company to cover all aspects of drilling lowers costs, saves
time and reduces the administrative burden on operating companies.
much more closely tied to an
operator’s own performance metrics
when a well is drilled.
By crossplotting these suggested
metrics against each other, it becomes
apparent that after a certain base level
of reliability is achieved (meters
between failures), savings from
increased reliability become very small
compared with those achieved through
increased effective performance
(meters per circulating hour). As the
effective performance improves the
drilling efficiency, the well cost
continues to be significantly reduced.
Performance also directly affects the
number of sections drilled before a
failure occurs, so, while no increase
in reliability would be seen in terms
of traditional reliability KPIs such
as mean time between failures, the
reliability measured as meters between
failures will continue to improve.
Meeting thetargets
Operators want strong production
from every well they drill, so justifying
a drilling campaign on prospects
other than certainties has become
increasingly difficult in recent years.
As a result, operators and service
providers must work together to
ensure that the targets are selected,
planned, and drilled correctly. To help
the operating companies reach their
business goals, service companies
must understand the financial
limitations and find a way to work
profitably within them.
The development of new
technology should be driven by the
operators’ needs and only introduced
where a business benefit can be
clearly demonstrated. This is where
the use of performance-driven KPIs
becomes invaluable. Although new
technology often has a reliability risk,
its use may be justified if it offers a
step change in performance. To help
operators weigh these issues, it is
essential that service companies be
involved early in the planning process.
This enables better technical solutions
to be proposed and planned to
address the needs of any project.
Figure 26: Drilling technology has advanced rapidly over the past 30 years. The development and introduction of new tools has enabled engineers to reach
deeper and more complex targets in frontier areas and established oil provinces.
Risksand rewards
Drilling-services providers are
generally compensated on an hourly
basis for equipment and personnel.
However, many service providers
maintain that the key to sustained
improvement is for them to share
some of the potential project risks
and the value that they can deliver
through performance gains. This kind
of business model already exists in the
exploration and production industry
and could include incentives for shoe-
to-shoe drilling, reduced number of
failures, and variable pricing based
on effective penetration rates.
Over the past 20 years, the
exploration and production industry
has welcomed innovations in drilling
practices ranging from the
introduction of MWD technologies
and steerable motors, to computerized
rig-site displays and high-resolution
while-drilling logs. In the early 1990s,
various operators and service
companies applied while-drilling
measurements to new methods of
stuck-pipe avoidance and developing
drilling training programs.
Today, the development rate
for new drilling methods and
technologies remains high. This
continued commitment to drilling
optimization reflects the fact that
well designs and drilling programs
have become more complex, and
present tough, new challenges and
offer greater potential rewards.
The key challenges for the next
decade are already well defined. Drilling
multilateral wells requires extraordinary
accuracy and control. Deepwater and
high-pressure, high-temperature wells
offer additional challenges. Wells are
being drilled in tectonically active and
remote areas where the infrastructure
may be less well developed and the
communications problematic. The
emergence of new drilling technology
is driven by the needs of the industry
(Figure 26).
Sharing risks and rewards would fit
into the cooperative systems being
advocated by operators. Many oil
companies are now seeking a complete
package from drilling-services
providers. By this, they mean that their
drilling-services provider is an
important member of the team and
plays a full role in assessing projects
and tackling problems. If service
companies and their customers can
achieve this level of trust, then other
benefits will follow.
2005
Number 6,
Middle East & Asia Reservoir Review 43
