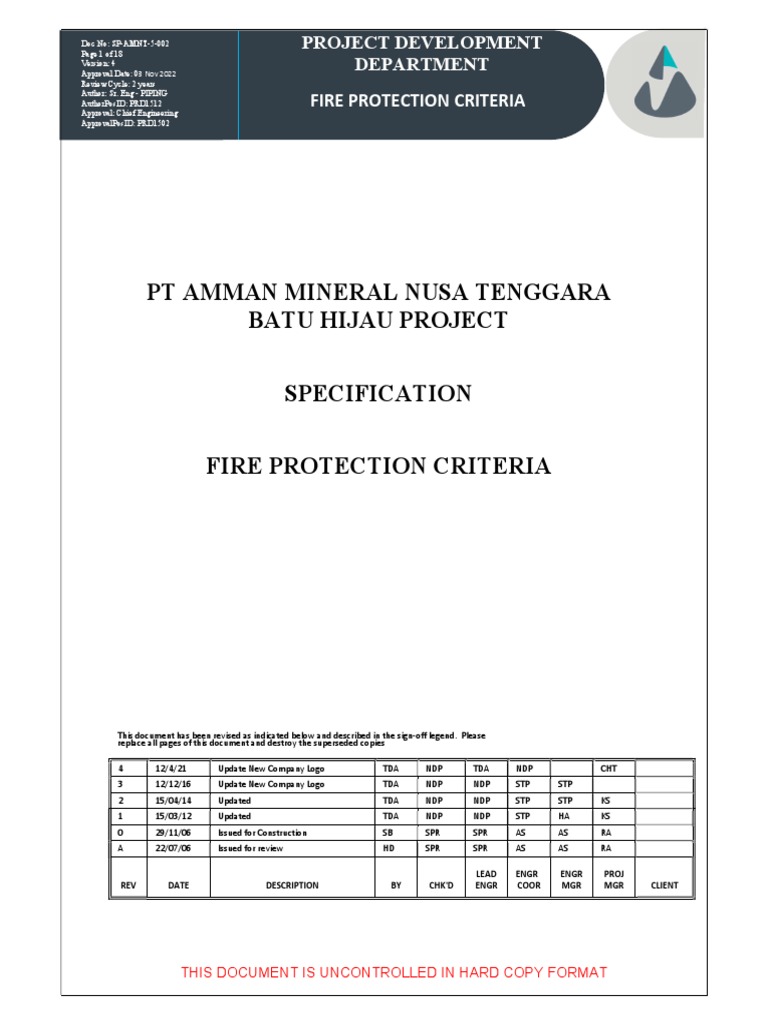

PT Amman Mineral Nusa Tenggara Batu Hijau Project Specification Fire Protection Criteria

Doc No: SP-AMNT-5-002
Page 1 of 18
PROJECT DEVELOPMENT
Version: 4
Approval Date: 03 Nov 2022
DEPARTMENT
Review Cycle: 2 years
FIRE PROTECTION CRITERIA

Author: Sr. Eng - PIPING
[Type here]
AuthorPosID: PRD1512
Approval: Chief Engineering
ApprovalPosID: PRD1502
PT AMMAN MINERAL NUSA TENGGARA

BATU HIJAU PROJECT
SPECIFICATION
This document has been revised as indicated below and described in the sign-off legend. Please
replace all pages of this document and destroy the superseded copies
4 12/4/21 Update New Company Logo TDA NDP TDA NDP CHT
3 12/12/16 Update New Company Logo TDA NDP NDP STP STP
2 15/04/14 Updated TDA NDP NDP STP STP KS
1 15/03/12 Updated TDA NDP NDP STP HA KS
0 29/11/06 Issued for Construction SB SPR SPR AS AS RA
A 22/07/06 Issued for review HD SPR SPR AS AS RA
LEAD ENGR ENGR PROJ

REV DATE DESCRIPTION BY CHK'D ENGR COOR MGR MGR CLIENT
THIS DOCUMENT IS UNCONTROLLED IN HARD COPY FORMAT

Page 2 of 18
PROJECT DEVELOPMENT
Version: 4
DEPARTMENT

[Type here]
TABLE OF CONTENTS
Page
1.0 SCOPE ....................................................................................................................................................................................... 4
2.0 PRODUCTS ................................................................................................................................................................................ 5
3.0 EXECUTION ............................................................................................................................................................................... 5
4.0 ATTACHMENT......................................................................................................................................................................... 14

Page 3 of 18
PROJECT DEVELOPMENT
Version: 4
DEPARTMENT
[Type here]
AuthorPosID: PRD1512 FIRE PROTECTION CRITERIA
1.0 SCOPE
1.1 Scope of Criteria
These criteria establish the requirements for fire protection for the Batu Hijau Project. The criteria covers the areas
to be protected, the codes and regulations to be followed and the design, materials, installation, testing, fire alarm
systems and fire extinguishers requirement.
1.2 Related Technical Documents/Specification
The following documents/specifications prescribe items of related work.
 Drawings and Data Sheets

 Underwriter’s and Owner’s Standards
 NNT, Consultant or Subcontractor Calculations
 SP-NNT-5-05: Piping Material Specification
 SP-NNT-5-74: Painting
 SP-NNT-6-01: Electrical Design Criteria
A. References
The publications listed below form a part of this specification. Each publication shall be the latest
revision or addendum in effect at the time of issue of the Contract and of issue of this specification unless
otherwise noted. Except as modified by the requirements specified herein or the details of the drawings,
criteria included in this specification shall conform to the applicable provisions of these publications.
1. FM (Factory Mutual Engineering Corporation) - Approval Guide
2. NICET (National Institute for Certification in Engineering Technologies)
3. NFPA (National Fire Protection Association)
 NFPA 10: Portable Fire Extinguishers
 NFPA 11 Low Expansion Foam
 NFPA 12 Carbon Dioxide Extinguishing Systems
 NFPA 13 Installation of Sprinkler Systems
 NFPA 14 Installation of Standpipe and Hose System
 NFPA 15 Water Spray Fixed Systems
 NFPA 16 Standard on the installation of Deluge Foam water sprinkler and Foam
water spray system.
 NFPA 20 Centrifugal Fire Pumps
 NFPA 22 Water Tanks for Private Fire Protection
 NFPA 24 Private Fire Service Mains and their Appurtenances
 NFPA 30 Flammable and Combustible Liquids Code
 NFPA 50 Bulk Oxygen Systems at Consumer Sites
 NFPA 51A Acetylene Cylinder Charging Plants
 NFPA 70 National Electrical Code
 NFPA 72 National Fire Alarm Code

Page 4 of 18
PROJECT DEVELOPMENT
Version: 4
DEPARTMENT
[Type here]
 NFPA 78 Standard for installation of lightning protection systems
 NFPA 90A Installation of ventilating and Air-Conditioning systems
 NFPA 101 Life Safety Code
 NFPA 495 Explosive Materials Code
 NPFA 850 Recommended practice for fire protection for Electric Generating Plants
B. UL (Underwriters Laboratories)
 Fire Protection Equipment Directory
C. The Republic of Indonesia Guidelines, Decrees, Codes and Specifications.
INS.11/M/BW/1997 Pengawasan Khusus K3 Penanggulangan Kebakaran
D. Institute of Electronics and Electrical Engineers
 980-1994 IEEE Guide for Containment and Control of Oil Spills in Substations
E. Australian Building Code
Sprinkler system requirement for non-process buildings are based on Australian Building Code and
attachments 01 and 02 to this specification.
2.0 PRODUCTS
2.1 Materials
Piping materials shall be in accordance with specification SP-NNT-5-005. Pre-pipe or packaged items shall be in
accordance with respective package specifications.
2.2 All equipment installed as part of the Fire Protection System shall be FM approved or UL listed. Painting shall be in
accordance with SP-NNT-4-74.
2.3 All electrical conductors & conduits shall comply with NEC (NFPA 70).
2.4 Future additions and alterations to buildings will require to be assessed against the above reference. Detectors
types, Manual pull stations, alarm/strobe units and other devices require selection options such as addressable or
Nonaddressable, stand-alone or integrated. The requirements for sprinkler, Inergen or CO2 gas suppression foam
supponification, VESDA or other piped fire protection systems is to be assessed as part of the overall evaluation of
the facility. The need for, and type of, communication between facilities and interface into existing systems will
require to be evaluated.
2.5 Selection of detection and protection equipment in storage rooms, switch rooms, Telecommunications rooms and
other special purpose room is to be in accordance with these criteria.
3.0 EXECUTION
3.1 General
A. All Facilities shall be provided with a looped fire water system around periphery that complies with the
requirements of NFPA 24.
B. Hose cabinet where required shall each be equipped with a hose rack and 30.5m (100 ft) of 1.5" diameter,
lined hose with a combination nozzle. All areas shall be within 9.14m (30 ft) of the hose nozzle when
extended.

Page 5 of 18
PROJECT DEVELOPMENT
Version: 4
DEPARTMENT
[Type here]
C. Fire protection piping shall be designed to provide 685 kPag (100 psig) pressure at most remote hydrant
when flowing at 114 m3/hr (500 gpm).
3.2 Mine and Mine Magazine
A. The mine area facilities consist of the mine maintenance shop and warehouse, administration offices, light
vehicle maintenance shop, tire repair building, fuel tanks and dispensing, core storage building, mine
dispatch tower and explosives storage. All facilities shall be constructed in accordance with the
requirements of the Republic of Indonesia Guidelines, Decrees, Codes, and Specifications if available, or
shall conform to the exiting requirements of NFPA 101.
B. The Warehouse portion of Mine Administration building shall be protected by an automatic sprinkler
system in accordance with the requirements of NFPA 13, as ordinary hazard group 2. The warehouse and
maintenance areas shall be separated from the administration area and themselves by two-hour fire rated
barriers.
C. The mine water storage tank shall be designed for dual use, fire water storage and freshwater storage. The
total storage capacity shall be 6840 m3 (1,807,100 gallons). It shall have 2 hours of supply 946 m3 (250,000
gallons) of water, (based on maximum usage at Primary Crusher) dedicated for fire protection. Tank shall
be designed and installed in accordance with NFPA 22. The mine water storage tank will supply the fire
water to mine, crusher and mine magazine area.
D. The mine site shall be provided with a looped firewater system that complies with the requirement of NFPA
24. The distribution piping shall provide the water to fire hydrant spaced at 100 meters apart. It shall be
sized for 295 m3 /hr (1300 gpm) and to provide 685 KPag (100 psig) at the most remote hydrant when
flowing at 114 m3/hr (500 gpm).
E. A Class III standard pipe with hose cabinets shall be installed in the following buildings in accordance with
requirement of NFPA 14:
Warehouse Compartment
Shops (electrical, rebuilt shop, etc.)
Maintenance Shop
Rebuild Shop
F. Fire extinguishers shall be installed in the following places in accordance with the requirement of NFPA 10.
They shall be rated 10A-60B:C:
Warehouse
Maintenance Shop
Administrative Offices
Core Storage Building
Dispatch Tower
Tire Repair Building
Mobile Prayer Building
Helipad
Readiline
Plant Nursery No. 1
Training Centre
G. The fuel tanks and dispensing areas shall conform to the requirements of NFPA 30 for construction, location
and isolation. Fire extinguishers shall be provided in accordance with the requirements of NFPA 10, rated
80B:C.
H. The mine magazine site shall be constructed in accordance with the requirements of the Republic of
Indonesia Guidelines, Decrees, Codes, Specifications if available, or shall conform to the requirements of
NFPA 495 for design, separation, and operation. Fire extinguishers shall be provided in accordance with the
requirements of NFPA 10, rated 10A-60B:C.
I. The mine magazine site shall be provided with a looped firewater system. The distribution pipe shall be
sized for 227 m3 /hr (1000 gpm) and to provide 685 KPag (100 psig) at the most remote hydrant when
flowing at 114 m3/hr (500 gpm).

Page 6 of 18
PROJECT DEVELOPMENT
Version: 4
DEPARTMENT
[Type here]
J. Fire (smoke) detection/alarm systems shall be provided in warehouse, shop compartment and maintenance
shop compartment. Smoke detectors and pull stations shall be wired to local panel(s) and alarmed through
the plant wide communication system.
3.3 Primary Crusher and Overland Conveyor
A. The facilities consist of the primary crusher, electrical rooms, control room, and conveyor. All facilities shall
be constructed in accordance with the Republic of Indonesia Guidelines, Decrees, Codes and Specifications
if available, or shall conform to the exiting requirements of NFPA 101.
B. The Primary Crusher site shall be provided with a looped firewater system. The distribution pipe shall be
sized for 476 m3/hr (2100 gpm) and to provide 685KPag (100 psig) at the most remote hydrant when flowing
at 114m3/hr (500 gpm). The facilities shall be provided with fire extinguishers in accordance with the
requirements of NFPA 10, rated 10A-60B:C.
C. The primary crusher hydraulic system shall be protected by an automatic water spray system in accordance
with the requirements of NFPA 15 as ordinary hazard group 1. Actuation shall be by means of a pilot head
detection system. An automatic or remote manual switch to shut off the hydraulic pumps shall be provided
in the event of fire. Electrical equipment other than electric motors shall be separated from all hydraulic
systems, either by physical separation or fire rated barrier. Cable trays and cabling shall not pass
unprotected over hydraulic systems.
D. The underground portion of the overland conveyor shall be protected by an automatic sprinkler system in
accordance with the requirements of NFPA 13 as ordinary hazard group 2.
E. All electrical rooms shall be provided with fire extinguishers in accordance with NFPA10, rated 10A-60B:C.
Switchgear rooms shall be separated from the remainder of the facility by two-hour fire rated barriers. All
penetrations shall be protected by through penetration seals, all ventilation ducts shall meet the
requirements of NFPA 90A, and all doors shall have an equivalent fire rating of 1.5 hours. Rate compensated
heat detectors, rated
73.9C (165F) shall be provided in all electrical rooms. All alarms shall annunciate in the primary crusher
control room and the Concentrator control room.
F. The power transformers shall be separated by fire walls from the remainder of the facility in accordance
with the NFPA requirements. Adequate drainage and curbing shall be provided to contain any spills.
3.4 Concentrator
A. The concentrator facility includes grinding, rougher and cleaner flotation, regrinding, concentrate
thickening, tailing disposal, reagent storage and handling, laboratory, electrical & control rooms,
administration, maintenance facilities. All facilities shall be constructed in accordance with the
requirements of the Republic of Indonesia Guidelines, Decrees, Codes, and Specifications and shall conform
the exiting requirements of NFPA 101. All alarm signals shall be annunciated in the Concentrator Control
Room and Security Room.
B. The main administration/security building, concentrator maintenance shop, mill laboratory, SAG Mill 101
Building and SAG Mill 201 Building shall be provided with hose cabinets in accordance with the
C. Fire extinguishers shall be installed in following building in accordance with NFPA 10, rated 10A-60B:C.:
Administration/Security Building
Maintenance Shop
Laboratory
Light Vehicle Maintenance Shop
SAG Mill 101 Building
SAG Mill 201 Building
Mobile prayer Building
Recycle Pebble Crusher Structure
Blower/Compressor Building
Regrind Mill Structure
CCD Structure
Tailings Deaeration Structure
CCD/Concentrate

Page 7 of 18
PROJECT DEVELOPMENT
Version: 4
DEPARTMENT
[Type here]
Reagent Storage and Mixing

Concentrate Mainline Pump House
Electrical Rooms
Lube Oil Rooms
D. The electrical switchgear rooms shall be separated from other areas by two hour rated fire barriers. All
penetrations of these rated fire barriers shall be protected by sealing with equivalent rated through
penetration seals. All ventilation ducts shall meet the requirements of NFPA 90A. All doors shall be of
equivalent fire rating of 1.5 hours. Electrical cables in trays shall not run over lube oil facilities and care shall
be taken in routing to minimize the exposure of cables to hazards. Rate Compensated heat detectors rated
73.9C (165F) shall be provided in all electrical switchgear rooms.
E. Lube oil equipment for the grinding facilities and pebble crushers shall not be located beneath cable racks.
The lube oil equipment and the cable racks should be separated by a distance of at least 6m (20 ft.),
otherwise a 2-hr. fire rated barrier shall be used in between them. Reservoirs which contain over 190 l (50
gal) of lube oil shall be protected by an automatic deluge water spray system in accordance with the
requirements of NFPA 15 and actuated by a pilot head system.
F. Transformers and switchyards shall conform to the spacing requirements of NFPA 850 or be separated by
two hour fire rated barriers. As with all identified hazards in the facility, physical separation is preferred to
active suppression systems.
G. The concentrator facility shall have a water storage tank designed for dual use, fire water storage and
freshwater storage. The total storage tank capacity shall be 1351 m3 ( 356,900 gallons). It shall have 2 hours
of supply 527 m3 (139,200 gallons) of water, dedicated for fire protection. Tank shall be designed and
installed in accordance with NFPA 22.
H. Two fire pumps, one with electric motor drive and one with diesel engine drive together with an electric
motor driven jockey pump shall be installed at the fire water storage tank. Each pump shall be complete
with all control. Each fire pump is rated at 250 m3/hr (1100 gpm) at 700kpa and Jockey pump is rated at
1.25 m3/hr (5,5 gpm) at 700 kpa.
I. The concentrator facility shall be protected by, or provided with, a closed loop fire water system. The
distribution piping shall provide the fire hydrants spaced at 100 meters apart. It shall be sized for shall be
sized for 250 m3/hr (100 psig) at the most remote hydrant when flowing at 114 m3/hr (500 GPM)
J. Fire (smoke) detection/alarm systems shall be provided in the administration building, laboratory and
maintenance shops. Smoke detectors shall be wired to local and centrally located control panel in the
Concentrator Control Room.
K. The coarse ore stockpile reclaim tunnel hydraulic storage units and conveyor shall be protected by an
automatic water sprinkler system in accordance with the requirements of NFPA 13.
3.5 Port
A. The Port site includes a concentrate dewatering plant, concentrate storage, concentrate berth, general
cargo berth, pioneering berth, government and security offices, ammonium nitrate storage, administration,
maintenance shop, warehouse, fuel storage tanks, oxygen and acetylene cylinder filling plants, container
storage/mine truck assembly area, power plant and temporary magazine container storage area. All
facilities shall be constructed in accordance with the Republic of Indonesia Guidelines, Decrees, Codes and
Specifications and shall conform to the exiting requirements of NFPA 101.
B. A two-hour fire rated separation shall be provided between the maintenance and warehouse areas.
C. Fire extinguishers shall be installed in following building in accordance with NFPA 10, rated 10A-60B:C.:
Administration
Government Services Building
Maintenance Shop/Warehouse
Guardhouse
Mobile Prayer Building
Oxygen Plant & Storage
Acetylene Plant & Storage

Page 8 of 18
PROJECT DEVELOPMENT
Version: 4
DEPARTMENT
[Type here]
Fire Pumper Truck House

Plant Nursery No.2
Dewatering Plant
Concentrate Storage Plant
Compressor & MCC Building
Electrical Rooms
Ammonium Nitrate Storage Facility
Helipad
The Diesel Fuel/Gasoline Off-Loading shall be provided with fire extinguishers in accordance with the
requirements of NFPA 10, rated 80B:C.
D. The acetylene plant and storage building shall meet the requirements of NFPA 51A for construction,
location, and protection. Electrical equipment shall be in accordance with Article 501 of NFPA 70 in areas
designated as exposed to acetylene. Explosion venting and ventilation shall be as required by the code.
E. The Oxygen plant and storage shall be designed to meet the requirements of NFPA 50 for construction,
location and protection. Electrical systems shall be in accordance with Article 501 of NFPA 70 in areas
designated as exposed to Oxygen.
F. The Port facility (including Power Plant) shall have dedicated fire water storage reservoir. The reservoir
designed in accordance with NFPA 22 shall have 1136 m 3 (300,000 gallons) of available fire water volume.
It shall have 2 hours of supply at 567 m3/hr (2500 gpm). The Port facility shall be protected by a closed loop
fire water system. Two independent full capacity lines from the storage reservoir shall feed the loop. The
distribution piping (fire loop) shall provide the fire water to fire hydrants spaced at 100 meters apart. It shall
be sized for 453.5 m3/hr (2000 gpm) for power plant and 249.4 m3/hr for other than power plant. It shall
provide 863 kPa (125 psig) at power plant and 685 KPag (100 psig) at the most remote hydrant when flowing
at 114 m3/hr (500 gpm).
G. The fuel off loading and storage facilities shall be in accordance with the requirements of NFPA 30. The
separation of the tanks, tank construction, venting, diking drainage, impounding, and protection shall be
based on the commodity stored. Fire hydrants outside the dike area shall be installed.
H. A foam system shall be provided both in the unloading area and the dike area of Gasoline or any product
with a flash 36 C (100 F).
I. The Ammonium Nitrate storage facility shall conform to the requirements of NFPA 495.
J. Fire (smoke) detection /alarm systems shall be provided in Warehouse Building, Port Oxygen and Acetylene
Storage, Government Services/Administration Building. The detection system shall be wired to a panel
located in Administration Building.
3.6 Power Generation (Area 50)
A. The power generation facilities include coal-fired steam power generation supplemented with diesel power
at the port. Design and layout of the power plants shall be in accordance with the requirements of NFPA
850.
B. The water source for the power facilities fire protection system shall be the fresh-water storage reservoir
serving the port facility. The reservoir shall supply the largest fixed fire protection demand and its
accompanying hose stream demand for two hours duration. Water supply configuration shall be in
accordance with NFPA 850.
C. The water distribution system shall consist of a looped private fire main. The water distribution system
shall be designed in accordance with NFPA 24. The yard main shall be arranged as a loop with sectional
valves at strategic locations to maintain essential fire service when sections are isolated for maintenance
or repair. Two independents full-capacity lines from the storage reservoir shall feed the loop. Redundant
branch lines shall feed the coal and diesel powerhouses. Pipe size shall be selected based on hydraulic
calculations to assure delivery of the highest water demand with the hydraulically shortest flow path out of
service. Each powerhouse feed shall be equipped with an isolation valve. The feeds shall be
cross-connected inside the steam and diesel plants so that fixed fire protection systems can be supplied
with either feed out of service. Post indicator valves shall be provided for header sectional valves, main
building supply lines, and isolation of major branches. Where valves must be located in vehicle traffic areas,
roadway boxes and key operated valves shall be provided in lieu of post indicators. Roadway boxes with

Page 9 of 18
PROJECT DEVELOPMENT
Version: 4
DEPARTMENT
[Type here]
key operated valves shall be provided for individual hydrant isolation. Vehicle barriers shall be provided for
hydrants and post indicators located near vehicle pathways. Exterior control valves shall be located at least
12 meters (40 feet) from the protected hazard. If it is necessary to locate a control valve less than 12 meters
(40 feet) from the protected hazard, the valve shall be located in a fire resistive enclosure. Interior control
valves shall be located outside the protected area.
D. Yard fire hydrants shall be located approximately 80-120 meters (250-350 feet) apart. Hydrants shall have
two 2½ inch hose outlets. Pumper connections shall be provided on the hydrants. The coal pile perimeter
shall be provided with monitor nozzles where the exposure poses a hazard to adjacent structures. Fire hose
houses shall be provided at alternate fire hydrants. Houses shall be equipped to meet the
recommendations of NFPA 24.
E. Each sprinkler and water spray system shall be hydraulically designed to provide specific densities of water
application based on the classification of each protected hazard. Identification of hazards and selection of
protection systems shall be based on the recommendations of NFPA 850. Design of sprinkler systems shall
be in accordance with the NPFA 13. Design of water spray systems shall be in accordance with NFPA 15.
F. Coal conveyors shall be equipped with pre-action sprinkler systems, hydraulically designed to provide a
density of 0.61 m3 /hr per square meter (0.25 gpm per square foot) over the most hydraulically remote
232.3 m2 (2,500 square feet) with 170 m3/hr (750 gpm) reserved for hose streams. Sprinkler heads or
nozzles shall be rated at 100C (212F). The systems shall be actuated by continuous line type heat
detection. The fire detection system shall be arranged to shut down affected conveyors upon actuation.
G. Boiler burner fronts shall be provided with an automatic water spray system in the ignitor areas,
hydraulically designed to provide a density of 0.61 m3/hr per square meter (0.25 gpm per square foot) over
the area within 3m (10 feet) of the ignitors. Detection shall be provided by fixed temperature detectors.
The system can be manually actuated from the control room.
H. Coal Powerhouse basement area shall be equipped with a wet sprinkler system protecting areas containing
plant auxiliaries as follows:
 Lube Oil Reservoirs and Conditioners

 Hydraulic Control Units
 Boiler Feed Pumps
 Air Compressors
 Pulverizer Oil Systems
The system shall be hydraulically designed to provide a density of 0.30 gpm per square over equipment for
one generating unit, or up to 464.5 m2 (5,000 square feet), whichever is less, with 170m 3/hr (750 gpm)
reserved for hose streams. Sprinkler heads shall be rated at 141C (286F) (near hot parts, 177C (350F)
heads are acceptable).
I. Boiler burner fronts shall be provided with an automatic water spray system in the ignitor areas,
hydraulically designed to provide a density of 0.61 m3/hr per square meter (0.25 gpm per square foot) over
the area within 3m (10 feet) of the ignitors. Detection shall be provided by fixed temperature detectors.
The system can be manually actuated from the control room.
J. The turbine generator bearings shall be protected with a pre-action sprinkler system, hydraulically designed
to provide a density of 0.61 m3/hr per square meter (0.25 gpm per square foot) at turbine-generator
bearings. Sprinkler heads or nozzles shall be rated at 100C (212F).
K. Crusher building (including bag-type dust collection systems) and reclaim pit shall be protected by wet
sprinkler systems, hydraulically designed to provide a density of 0.61 m 3/hr per square meter (0.25 gpm
per square foot) over the most hydraulically demanding elevation, with 114 m 3 (500 gpm) reserved for hose
streams. Sprinkler heads shall be rated at 100C (212F). Sprinklers shall be installed inside dust collectors
serving the crusher house.
L. Tripper room shall be protected by a wet sprinkler system, hydraulically designed to provide a density of
0.61 m3/hr per square meter (0.25 gpm per square foot) over the most hydraulically remote 186 m2 (2,000
square feet), with 114 m3 (500 gpm) reserved for hose streams. Sprinkler heads shall be rated at 100C
(212F). Sprinklers shall be installed inside silo dust collectors serving the tripper conveyor.

Page 10 of 18
PROJECT DEVELOPMENT
Version: 4
DEPARTMENT
[Type here]
M. Large oil filled transformers (i.e., main step-up and unit auxiliary transformers) shall be protected by an
automatic water spray system, hydraulically designed to provide a density of 0.61 m 3/hr per square meter
(0.25 gpm per square foot) over the exterior surface of the transformer cabinet (excluding the bottom
surface). Any non-permeable ground surfaces susceptible to oil accumulation shall be protected with a
density of 0.37 m3/hr/square meter (0.15 gpm per square foot). The design shall include 170 m3/hr (750
gpm) reserved for hose streams. The system shall be actuated by fixed temperature heat detectors.
N. Service building offices/shops and administration building shall be protected by a wet sprinkler system
designed to protect ordinary hazard Group II occupancies.
O. Diesel room shall be protected by a wet sprinkler system, including fuel and lubricating oil auxiliaries. The
system shall be hydraulically designed to provide a density of 0.74 m 3/hr/square meters (0.30 gpm per
square foot) over the area containing three generator sets or up to 464.5 m2 (5,000 square feet), whichever
is less, with 170 m3/hr (750 gpm) reserved for hose streams. Sprinkler heads shall be rated at 286F (near
hot parts, 177C (350F) heads are acceptable).
P. Warehouse (part of service building) shall be protected with a wet sprinkler system designed to protect
ordinary hazard Group III occupancies and rack storage of Class IV commodities to 4.88 m (16 ft) high.
Q. Powerhouses shall be equipped with Class III wet standpipe systems in accordance with NFPA 14. Hose
stations shall be located to provide coverage based on 100 feet lengths of fire hose, and consist of a cabinet,
2-1/2" hose valve, 1-1/2" hose, and nozzle. Fire hose stations shall be designed to operate at a minimum
flowing pressure of 65 psig and a maximum flowing pressure of 100 psi. Pressure reducing orifices shall be
provided where required to ensure that flowing pressure does not exceed 685 KPag (100 psi). Adjustable
spray nozzles listed for use on the expected fire hazard shall be provided. Specifically, nozzles to be used
on electrical fires shall be listed for that use.
R. Coal handling area, powerhouses, and water treatment building shall be equipped with listed multipurpose
dry chemical fire extinguishers. Extinguishers have a maximum charge of 9.9 Kg (20 pounds) of ammonium
phosphate, and a minimum rating of 20A: 80 B, C.
S. Electrical equipment areas shall be equipped with listed 9.9 Kg (20 pound) carbon dioxide extinguishers.
T. Offices, shops, laboratory areas, and main plant control room shall be equipped with listed 5 Kg (10 pound)
carbon dioxide extinguishers.
U. Fire detection using ionization smoke detectors shall be provided in the following areas:
 Control room
 Electronics room
 Switchgear and electrical equipment rooms
 Elevator machine room
V. The following alarms shall be provided:
 Water flow alarms for fixed fire suppression systems

 Fire detection system activation
 Loss of air pressure for pre-action sprinkler systems
 Low water storage reservoir level
 All alarms shall be annuciated in the main control room.
W. Electrical equipment in the following areas shall be qualified for use in Class II, Division I areas:
 Coal preparation system/dust collection and baghouses

 Coal preparation system/crusher and feed systems
 Dust collection storage bins
 Coal transfer and within conveyor enclosures (tunnels and conveyor hoods)
 Coal unloading structure (dumping shed and pit)
 Tripper room
X. Electrical equipment in the following area shall be qualified for use in Class II, Division II areas:
 Pulverizer area

Page 11 of 18
PROJECT DEVELOPMENT
Version: 4
DEPARTMENT
[Type here]
Y. Two-hour fire rated barriers and penetrations shall be provided as follows:
 Stair tower enclosures

 Elevator shaft
 Electronics room
 Between transformer yard and turbine electrical equipment rooms
 Tripper room
 Electrical switchgear and equipment rooms
 Doors in fire barriers shall be listed for one- and one-half hour fire resistance rating.
Z. Miscellaneous requirements shall be included as follows:
 Oil reservoirs have diking to contain the capacity of the reservoir. Drainage shall be provided for
each diked area.
 Main control room shall be constructed of non-combustible material and shall be automatically
pressurized to prevent smoke infiltration upon activation of the control room area fire detection
system.
 Oil collection pits shall be provided for the large transformers with drainage to an oil separator pit.
Drainage shall be arranged to include a water seal in the drainage piping.
 Interior finish materials in the power production areas shall be qualified as Class A
materials. _1
 Interior finish materials in non-power production areas shall be qualified as Class B materials.
 All fire protection equipment shall be UL Listed and/or FM Approved for use in fire protection
service.
 Fuel oil storage tanks shall be located at least 7.6 meters (25 feet) from other plant buildings and
have dikes to contain the contents of the tank. Fire hydrant coverage shall be provided.
 No oil cooled transformers shall be located in the powerhouses.
3.7 Water Supply
A. The water supply consists of the water supplies, sewage treatment, water recovery, reservoirs, treatment
plants and pipelines. All buildings shall be constructed in accordance with the requirements of the Republic
of Indonesia Guidelines, Decrees, Codes and Specifications if available, or shall conform to the exiting
B. The water treatment plant and the sewage treatment plant shall be provided with fire extinguishers in
accordance with the requirements of NFPA 10, rated 10A-60B:C.
3.8 Township and Construction Camp
A. The Township and Construction Camp shall be constructed in accordance with the requirements of the
Republic of Indonesia Guidelines, Decrees, Codes and Specifications if available, or shall conform to the
exiting requirements of NFPA 101.
B. The Township area shall be provided with a water storage tank designed for dual use, fire water storage
and for domestic (potable) water storage. The total water storage capacity shall be 3925.6 m 3 (1,037,100
gallons). The tank designed in accordance with NFPA 22 will have 2385 m 3 (630,000 gallons) of available
fire water storage volume before domestic (potable) water use.
C. The Township area shall be provided with a common water header from the storage tank that supplies the
fire water and the domestic (potable) water that complies with the requirement of NFPA 24. The Township
area shall be provided with a closed loop fire water distribution piping system which will provide the water
to fire hydrants spaced at 100 meters apart and to fire sprinkler system. The water main shall be capable of
supplying fire water at 249.4 m3/hr (1100 gpm) and to provide 685 kPa (100 psig) to most remote hydrant
when flowing at 114 m3/hr (500 gpm).
D. The medical Clinic Building shall be protected by an automatic sprinkler system designed in accordance with
the requirements of NFPA 13, ordinary hazard group 1.

Page 12 of 18
PROJECT DEVELOPMENT
Version: 4
DEPARTMENT
[Type here]
E. A class III standpipe with hose cabinet shall be installed in Laundry Building, Staff Dining area, Non Staff
Mess Hall, Non Staff club house, Theater, Administrative Building, Maintenance/Warehouse, Warehouse,
Township Maintenance & warehouse Building carport in accordance with the requirements of NFPA 14.
F. Fire extinguishers shall be installed in following building in accordance with NFPA 10, rated 10A-60B:C.:
Staff Commissary Building

11kv electrical building
Mosque Building
Non Staff Multipurpose sport
Township Administration
Staff Recreation Hall
Expatriate School
National School
G. Fire (smoke) detection /alarm systems shall be provided in following building:
Staff Recreation Hall

Medical Clinic
Staff Commissary
Non-Staff Multipurpose sport
Township Administration
Expatriate school
National school and ablution block
11 kV electrical building
The detection system shall be wired to a panel located in Administration/Security

Building. Non monitored, electrically powered (with battery back-up), photoelectric smoke
Detectors shall be installed in housing (staff and non-Staff) in accordance NFPA 72.
4.0 Attachment
Attachment 01 Mine, Port, & Concentrator Building Code of Australia Code Requirements
Attachment 02 Township Building Code of Australia Code Requirements
End of Specification

Page 13 of 18
PROJECT DEVELOPMENT
Version: 4
DEPARTMENT

[Type here]
Mine, Port, & Concentrator

Building Code Requirements
Building Area in Bldg. Class Const. Sprinklers FDA HS HDT Remarks

Description Square Type
Meters
Mine Administration,
Maintenance, Warehouse
Building
Warehouse Compartment
- Warehouse 4914.0 7b A Yes X Area Separation of FRL
- Office 1512.0 5 A No X X 180/180/180 Required, Fire
Total 7426.0 Alarm
Shop Compartment
- Shop 1026.0 6 B No X X No Separation required
- Office 432.0 5 B No between shop and offices
- Training 306.0 9b B No above
Total 1764.0
Maintenance Shop X X
Compartment 418.0 6 C No
Mine Core Storage Bldg. 600.0 10a C No
Mine Explosives Magazine No special requirements

320.0 7 C No X
Mine Detonator Magazine 144.0 10a C No X No special requirements
Mine Explosives
Guardhouse 49.8 5 C No
Mine Dispatch Tower 45.0 5 C No
Mine Tire Repair Bldg. 612.0 10a C No X
Mine Prayer Building 15.0 9b C No
Mine temporary C No Protection to be assessed in

maintenance building 3 the future. Tag number not
allocated
Port Government Services/ 312.0 5 C No

Administration Bldg.. 312.0 5 C No X
Total Area 624.0
Port Maintenance/ YES

Warehouse 90 BG-015 1020 6 C X
Office 90-BG-162 347 5 C No
Total 1367
Port Explosive Guardhouse

49.8 5 C No

Page 14 of 18
PROJECT DEVELOPMENT
Version: 4
DEPARTMENT

[Type here]

Meters
Port Guardhouse 16.0 5 C No
Port Prayer Building 15.0 9b C No
Port Oxygen Storage 360.0 10a C No X
Port Acetylene Storage 360.0 10a C No X

X
Port Maintenance C NO
workshop Building 25-90-
BG-019
Port maintenance C NO X
workshop building 25 90-
BG-019
Port Maintenance C NO X
workshop building 26-90-
BG-020
Port Admin 1 building 27 960 C NO X
90-BG-013P
Port admin 2 building 28 546 C NO X
90-BG-014P
Port Admin 3 building 29 30 216 C NO X
90-BG-102
Port Admin 4 building 29 30 216 C NO X
90-BG-102
Port Dormitories ( K171)

3.347 C NO X
building 31 90-BG-
002/009/012
Port Rec/Admin building 32

1104 C O X X
90-BG-011
Converted from FDI HRD
Port HRD/Security building
216 C NO X
90BG-118
Detection requirements to
Port materials and Harbour
72 C determined. Tag number not
building 34
allocated
Port Government /customs Tag Number not allocated
648 C No X
building 35
Port Hardie camp building Detection requirements to be
Prefabs C No X
36 determined
Port QA/QC building 37 a Critical document storage
334 C Yes X
Power plant service
486 C YES X
building
warehouse/office/shop 38

Page 15 of 18
PROJECT DEVELOPMENT
Version: 4
DEPARTMENT

[Type here]

Meters
50-BG-003
Port plant construction Document storage convert
78 C NO X
office building 39 90-BG- from construction office
179
Port power filter press Tag Number not allocated
94 C NO X
building 39A
Concentrator Main Fire hose
1575.0 5 B NO X X
Administration Building cabinets required.90/90/90
1575.0 5 B NO
- First Floor wall @ telecom, computer, &
3150.0
- Second Floor record storage areas, Tag
Total number not allocated
NO
Concentrator Laboratory
672.0 8 C X X
32-BG-005
Concentrator Maintenance
1024.0 5 C NO X X
Shop 32-BG-003
512
Office
Total

Page 16 of 18
PROJECT DEVELOPMENT
Version: 4
DEPARTMENT

[Type here]
Township Building Code Requirements
Building Area in Bldg.Class Const. Sprinklers FDA HS HDT Remarks

Meters
Main Gate Guard House 151.2 5 C No

Carport 14.4 7 C No
Total Area 165.6
Bus Shelter 288.0 9b C No Open Shed
Laundry Building 216.0 8 C No X X
Staff Dining 776.2 6a C No X X
Non Staff Mess Hall 2156.4 6a B No X X
Fire Station 57.6 5 C No

Carport 46.1 7 C No
Total Area 103.7
Staff Commissary 432.0 6d C No

Musholla Building 25.9 9b C No X
Guest House 374.0 3a C No X
Medical Clinic Bldg.. 1107.6 9a C Yes FRL 60/60/60 at Kitchen, &

Mechanical 49.0 9a C No X 1000 M compartment at
Carport 34.6 10a C No Treatment rooms
Total Area 1191.2
Mosque Building 375.8 9b C No
Church Building 178.6 9b C No
Staff Club House 896.4 6a C No X
Non Staff Multipurpose

Sport 745.2 9b C No X
Non Staff Clubhouse

Bank / Post Office/ Store 432.0 6c,6d C No X
Non Staff Clubhouse Stage separation FRL

Movie Theater 542.2 9b C No X X 60/60/60
Township Administration 373.7 5 C No X X
Township Maintenance &

Warehouse Building 345.6 7b, 8 C No X X
Township Warehouse 756.0 7b C No X X
Township Maintenance &

Page 17 of 18
PROJECT DEVELOPMENT
Version: 4
DEPARTMENT

[Type here]
Building Area in Bldg.Class Const. Sprinklers FDA HS HDT Remarks

Meters
Warehouse Building 216.0 7b C No X X
Carport 288.0 7a C No
Total Area 504.0
Staff Recreation Hall 743.4 9b C No
Expatriate School -
Office and Storage 194.4 5 C No X X
Expatriate School -
Library Building 288.0 9b C No X X
Expatriate School -
Classroom Bldg.. Type A 216.0 9b C No X X
Expatriate School -
Classroom Bldg.. Type C 9b C No X X
Expatriate School -
Kindergarten Classroom 151.2 9b C No X X
Expatriate School -
Ablution Block 57.6 6 C No X X
National School -
Classroom Bldg.. Type A 9b C No X X
National School -
Classroom Bldg.. Type B 9b C No X X
National School -
Classroom Bldg.. Type C 9b C No X X
National School -
Office 5 C No X X
National School -
Library 9b C No X X
National School -
Multipurpose Building 360.0 9b C No X X
National School -
Canteen 412.9 6a C No X X
National School -
Mushola 9b C No X X
National School -
Laboratory 9b C No X X

Page 18 of 18
PROJECT DEVELOPMENT
Version: 4
DEPARTMENT

[Type here]

PT Amman Mineral Nusa Tenggara Batu Hijau Project Specification Fire Protection Criteria

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

PT Amman Mineral Nusa Tenggara Batu Hijau Project Specification Fire Protection Criteria

Uploaded by

Copyright:

Available Formats

Doc No: SP-AMNT-5-002

FIRE PROTECTION CRITERIA

PT AMMAN MINERAL NUSA TENGGARA

FIRE PROTECTION CRITERIA

LEAD ENGR ENGR PROJ

THIS DOCUMENT IS UNCONTROLLED IN HARD COPY FORMAT

FIRE PROTECTION CRITERIA

1.0 SCOPE ....................................................................................................................................................................................... 4

2.0 PRODUCTS ................................................................................................................................................................................ 5

3.0 EXECUTION ............................................................................................................................................................................... 5

THIS DOCUMENT IS UNCONTROLLED IN HARD COPY FORMAT

1.1 Scope of Criteria

1.2 Related Technical Documents/Specification

The following documents/specifications prescribe items of related work.

 Drawings and Data Sheets

1. FM (Factory Mutual Engineering Corporation) - Approval Guide

2. NICET (National Institute for Certification in Engineering Technologies)

3. NFPA (National Fire Protection Association)

 NFPA 10: Portable Fire Extinguishers

 NFPA 11 Low Expansion Foam

 NFPA 12 Carbon Dioxide Extinguishing Systems

 NFPA 13 Installation of Sprinkler Systems

 NFPA 14 Installation of Standpipe and Hose System

 NFPA 15 Water Spray Fixed Systems

 NFPA 20 Centrifugal Fire Pumps

 NFPA 22 Water Tanks for Private Fire Protection

 NFPA 24 Private Fire Service Mains and their Appurtenances

 NFPA 30 Flammable and Combustible Liquids Code

 NFPA 50 Bulk Oxygen Systems at Consumer Sites

 NFPA 51A Acetylene Cylinder Charging Plants

 NFPA 70 National Electrical Code

 NFPA 72 National Fire Alarm Code

THIS DOCUMENT IS UNCONTROLLED IN HARD COPY FORMAT

 NFPA 78 Standard for installation of lightning protection systems

 NFPA 90A Installation of ventilating and Air-Conditioning systems

 NFPA 101 Life Safety Code

 NFPA 495 Explosive Materials Code

 Fire Protection Equipment Directory

C. The Republic of Indonesia Guidelines, Decrees, Codes and Specifications.

INS.11/M/BW/1997 Pengawasan Khusus K3 Penanggulangan Kebakaran

D. Institute of Electronics and Electrical Engineers

E. Australian Building Code

THIS DOCUMENT IS UNCONTROLLED IN HARD COPY FORMAT

3.2 Mine and Mine Magazine

THIS DOCUMENT IS UNCONTROLLED IN HARD COPY FORMAT

3.3 Primary Crusher and Overland Conveyor

THIS DOCUMENT IS UNCONTROLLED IN HARD COPY FORMAT

Reagent Storage and Mixing

THIS DOCUMENT IS UNCONTROLLED IN HARD COPY FORMAT

Fire Pumper Truck House

3.6 Power Generation (Area 50)

THIS DOCUMENT IS UNCONTROLLED IN HARD COPY FORMAT

 Lube Oil Reservoirs and Conditioners

THIS DOCUMENT IS UNCONTROLLED IN HARD COPY FORMAT

V. The following alarms shall be provided:

 Water flow alarms for fixed fire suppression systems

 Coal preparation system/dust collection and baghouses

THIS DOCUMENT IS UNCONTROLLED IN HARD COPY FORMAT

Y. Two-hour fire rated barriers and penetrations shall be provided as follows:

 Stair tower enclosures

Z. Miscellaneous requirements shall be included as follows:

3.7 Water Supply

3.8 Township and Construction Camp
