Issue 2, date 05.08.

2008

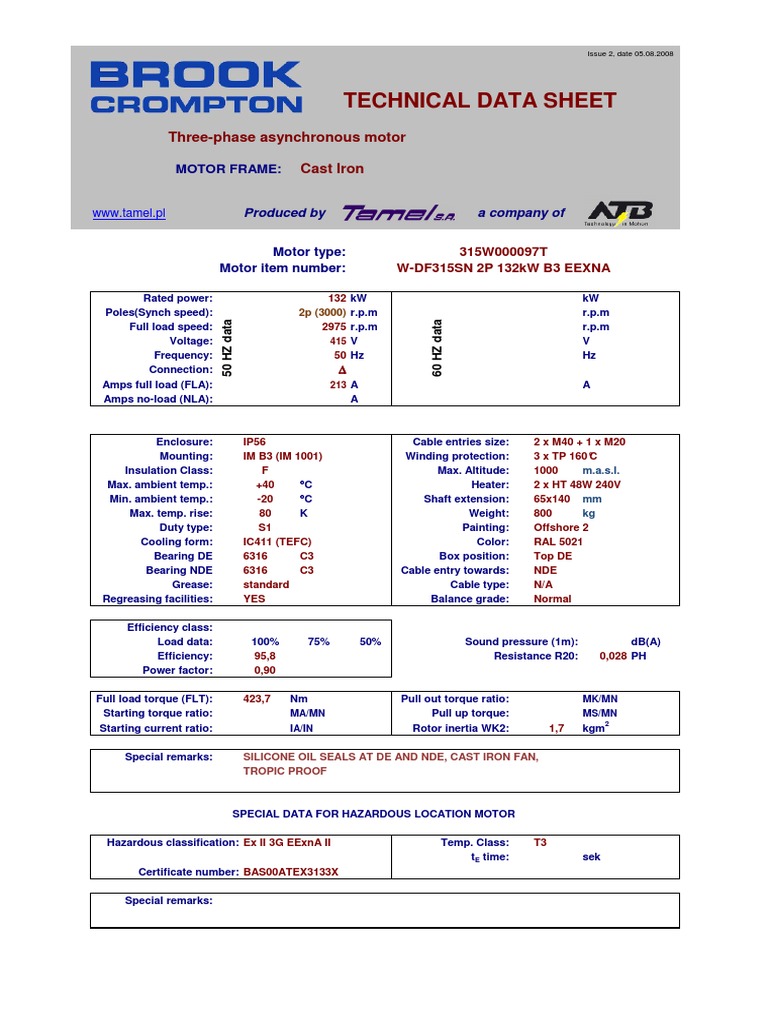

TECHNICAL DATA SHEET

Three-phase asynchronous motor

MOTOR FRAME: Cast Iron

www.tamel.pl Produced by a company of

Motor type: 315W000097T

Motor item number: W-DF315SN 2P 132kW B3 EEXNA

Rated power: 132 kW kW

Poles(Synch speed): 2p (3000) r.p.m r.p.m
50 HZ data

60 HZ data
Full load speed: 2975 r.p.m r.p.m
Voltage: 415 V V
Frequency: 50 Hz Hz
Connection: ∆
Amps full load (FLA): 213 A A
Amps no-load (NLA): A

Enclosure: IP56 Cable entries size: 2 x M40 + 1 x M20

Mounting: IM B3 (IM 1001) Winding protection: 3 x TP 160°C
Insulation Class: F Max. Altitude: 1000 m.a.s.l.
Max. ambient temp.: +40 °C Heater: 2 x HT 48W 240V
Min. ambient temp.: -20 °C Shaft extension: 65x140 mm
Max. temp. rise: 80 K Weight: 800 kg
Duty type: S1 Painting: Offshore 2
Cooling form: IC411 (TEFC) Color: RAL 5021
Bearing DE 6316 C3 Box position: Top DE
Bearing NDE 6316 C3 Cable entry towards: NDE
Grease: standard Cable type: N/A
Regreasing facilities: YES Balance grade: Normal

Efficiency class:
Load data: 100% 75% 50% Sound pressure (1m): dB(A)
Efficiency: 95,8 Resistance R20: 0,028 PH
Power factor: 0,90

Full load torque (FLT): 423,7 Nm Pull out torque ratio: MK/MN
Starting torque ratio: MA/MN Pull up torque: MS/MN
Starting current ratio: IA/IN Rotor inertia WK2: 1,7 kgm2

Special remarks: SILICONE OIL SEALS AT DE AND NDE, CAST IRON FAN,
TROPIC PROOF

SPECIAL DATA FOR HAZARDOUS LOCATION MOTOR

Hazardous classification: Ex II 3G EExnA II Temp. Class: T3

tE time: sek
Certificate number: BAS00ATEX3133X

Special remarks:
