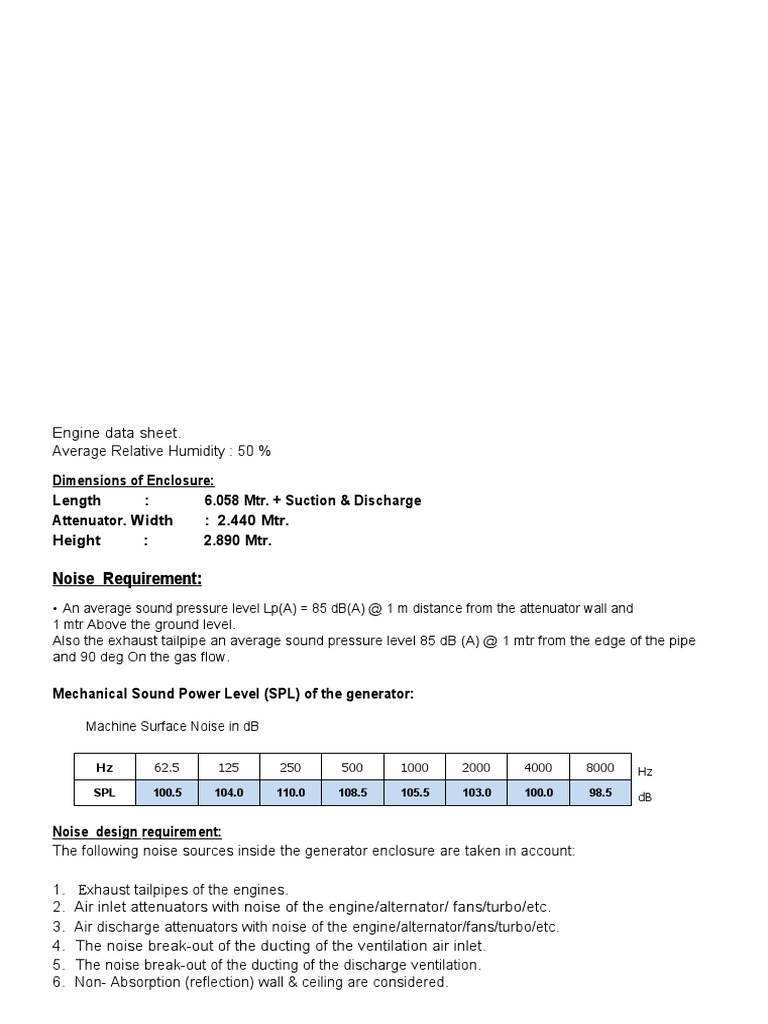

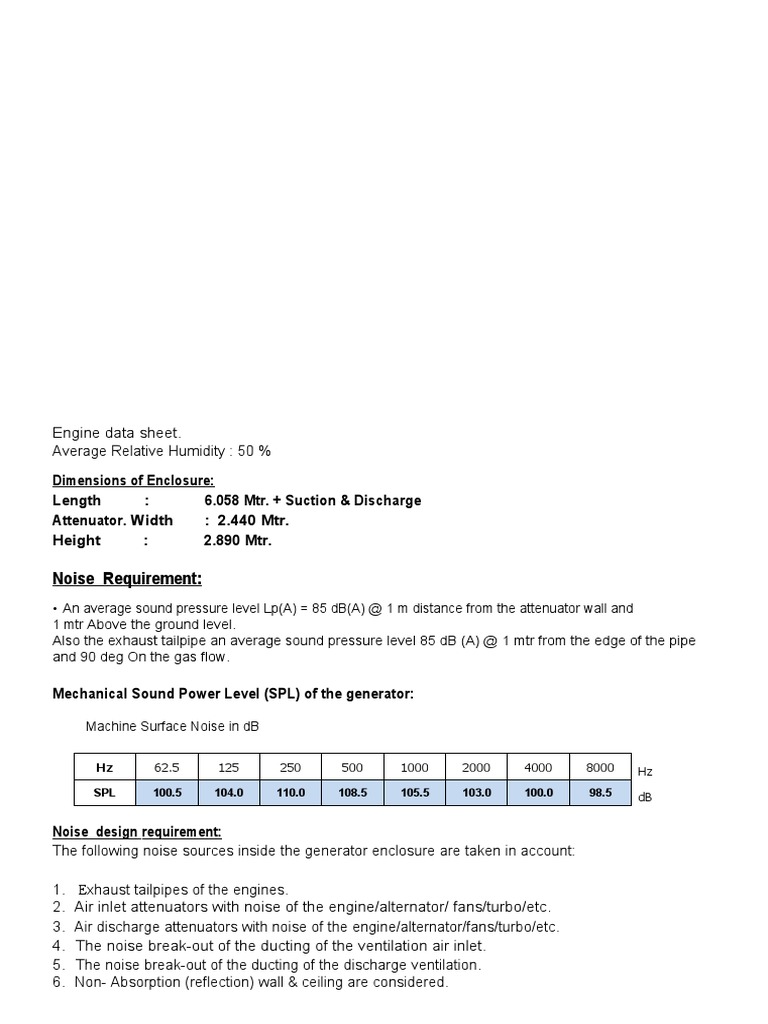

Engine data sheet.

Average Relative Humidity : 50 %

Dimensions of Enclosure:
Length : 6.058 Mtr. + Suction & Discharge
Attenuator. Width : 2.440 Mtr.
Height : 2.890 Mtr.

Noise Requirement:
• An average sound pressure level Lp(A) = 85 dB(A) @ 1 m distance from the attenuator wall and
1 mtr Above the ground level.
Also the exhaust tailpipe an average sound pressure level 85 dB (A) @ 1 mtr from the edge of the pipe
and 90 deg On the gas flow.

Mechanical Sound Power Level (SPL) of the generator:

Machine Surface Noise in dB

Hz 62.5 125 250 500 1000 2000 4000 8000 Hz

SPL 100.5 104.0 110.0 108.5 105.5 103.0 100.0 98.5 dB

Noise design requirement:

The following noise sources inside the generator enclosure are taken in account:

1. Exhaust tailpipes of the engines.

2. Air inlet attenuators with noise of the engine/alternator/ fans/turbo/etc.
3. Air discharge attenuators with noise of the engine/alternator/fans/turbo/etc.
4. The noise break-out of the ducting of the ventilation air inlet.
5. The noise break-out of the ducting of the discharge ventilation.
6. Non- Absorption (reflection) wall & ceiling are considered.
7. Calculations are based on free field conditions.

Air Flow Requirement:

Total Intake Air Flow = 32.40 m3/sec.

OUTPUT DATA:
Air Intake Weather Louver:
Total Louver Pressure drop = 30 Pa.
Output Data Inlet Attenuator:

H W L
Machine Dimensions:
2.43 2.13 5.20 m

Hz 62.5 125 250 500 1000 2000 4000 8000 Hz

SPL 100.5 104.0 110.0 108.5 105.5 103.0 100.0 98.5 dB

Engine SPL

r1 (Distance from enclosure wall,m): 1 dh (hydraulic diameter): 0.197 m

r2 (Distance from the source,m): 6.50 k (Duct Roughness): 0.0009 m

H (Enclosure height,m): 2.71  (Air density): 1.109 Kg/m3

W (Enclosure width,m): 2.44

L (Enclosure length,m): 11.05 k/dh (Relative roughness): 0.005

Q (Total air flow,m3/sec): 32.40  (Friction coefficient): 0.02960

h (Aperture height,m): 2.610 q (Air flow per air way): 3.60 m3/sec

w (Aperture width,m): 2.300 Air way area: 0.27

m2

No of air ways: 9 V (Air Way velocity): 13.50 m/sec

B (Air way width,m): 0.102

l (Air way length,m): 1.8 A (Splitter thickness 2l): 0.153 m

Ti (Inlet air temp, deg C): 50 Enclosure volume: 65.46

m3

 (Maximum temp Rise, deg C): 10 Enclosure surface area: 115.20

m2

Filling Material Density (Kg/m3): 48

Filling Material Used: Rockwool

Face Velocity (m/sec): 5.40

Friction Loss = 27.4 Pa 0.110 inch w.g

Resultant Noise SPL = 82.8 dBA Dynamic Press Drop = 39.2 Pa 0.0158 inch w.g
Total Press Drop
at: 1.0 meter = 66.8 Pa 0.268 inch w.g
 Octave Band Frequencies 62.5 125 250 500 1000 2000 4000 8000 Hz
Machine SWL0 120.8 124.3 130.3 128.8 125.8 123.3 120.3 118.8 dB

Room volume correction 18.2 18.2 18.2 18.2 18.2 18.2 18.2 18.2 dB
Reverberation Time (sec) 0.5 0.3 0.2 0.1 0.1 0.2 0.2 0.2 sec

Rev time correction -2.8 -5.1 -8.2 -8.4 -8.4 -8.0 -7.4 -6.2 dB

Source SPL rev 113.7 114.9 117.8 116.2 113.2 111.0 108.6 108.3 dB
Aperture area correction 7.8 7.8 7.8 7.8 7.8 7.8 7.8 7.8 dB

Non-reverberant correction 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 dB
SWL (Aperture) 115.5 116.7 119.6 118.0 115.0 112.8 110.4 110.1 dB

Aperture directivity correction 7.0 8.0 9.0 9.0 9.0 9.0 9.0 9.0 dB

Distance correction (r1) -11.0 -11.0 -11.0 -11.0 -11.0 -11.0 -11.0 -11.0 dB

Other noise corrections 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 dB
Surface directivity 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 dB

Near filed correction -4.0 -4.0 -4.0 -4.0 -4.0 -4.0 -4.0 -4.0 dB
SPL at receiver (rev path) dB 110.5 112.7 116.6 115.0 112.0 109.8 107.4 107.1 dB

Distance correction (r2) -26.8 -26.8 -26.8 -26.8 -26.8 -26.8 -26.8 -26.8 dB
Direct path surface correction 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 dB

SPL at receiver (direct path) dB 99.0 102.5 108.5 107.0 104.0 101.5 98.5 97.0 dB
Duct noise SWL 69.8 56.8 53.8 51.8 50.8 48.8 46.8 39.8 dB

SPL at receiver (Total) dB 110.8 113.1 117.2 115.6 112.6 110.4 107.9 107.5 dB

Lined duct attenuation-chart 3.5 10.6 26.4 40.5 81.0 88.1 70.5 24.7 dB
Duct Inlet attenuation 0.0 1.0 6.0 9.7 10.0 10.0 10.0 10.0 dB

Duct exit attenuation 4.0 4.0 1.0 0.0 0.0 0.0 0.0 0.0 dB

Static insertion Loss (SIL) 7.5 15.6 33.4 50.2 91.0 98.1 80.5 34.7 dB

Static insertion Loss (SIL) 7.5 15.6 33.4 50.2 55.0 55.0 55.0 34.7 dB
Dynamic insertion Loss (DIL) 8.0 16.5 35.4 53.2 60.0 60.0 60.0 36.8 dB

SPL at receiver (SPL2) dB Total 102.8 96.6 81.8 62.4 52.6 50.4 47.9 70.7 dB
SPL at receiver (SPL2) dB 102.8 96.6 81.8 62.4 52.6 50.4 47.9 70.7 dB

dBA scale weigtings -26.0 -16.0 -9.0 -3.0 0.0 1.0 1.0 -1.0 dB

Resultant SPL2 (dBA) 76.8 80.6 72.8 59.4 52.6 51.4 48.9 69.7 dBA

Air Suction Attenuator:

Dimensions H = 2.610 m x W = 2.300 m x D = 1.800 m
Number of Baffles 8 Pieces
Thickness of Baffle 150 mm
Number of side Baffles 2 pieces
Thickness of side Baffles 75 mm
Air Gap between Baffles 102 mm
Height of Baffles 2610 mm
Depth of Baffle 1800 mm
Air velocity Air intake external 5.40
m/sec
Output Data Discharge Attenuator:

H W L
Machine Dimensions:
2.43 2.13 5.20 m

Engine SPL
Hz 62.5 125 250 500 1000 2000 4000 8000 Hz
SPL 100.5 104.0 110.0 108.5 105.5 103.0 100.0 98.5 dB

r1 (Distance from enclosure wall,m): 1 dh (hydraulic diameter): 0.197 m

r2 (Distance from the source,m): 6.50 k (Duct Roughness): 0.0009 m

H (Enclosure height,m): 2.71  (Air density): 1.109 Kg/m3

W (Enclosure width,m): 2.44

L (Enclosure length,m): 11.05 k/dh (Relative roughness): 0.005

Q (Total air flow,m3/sec): 32.40  (Friction coefficient): 0.02960

h (Aperture height,m): 2.610 q (Air flow per air way): 3.60 m3/sec

w (Aperture width,m): 2.300 Air way area: 0.27

m2

No of air ways: 9 V (Air Way velocity): 13.50 m/sec

B (Air way width,m): 0.102

l (Air way length,m): 2.5 A (Splitter thickness 2l): 0.153 m

Ti (Inlet air temp, deg C): 50 Enclosure volume: 65.46

m3

 (Maximum temp Rise, deg C): 10 Enclosure surface area: 115.20

m2

Filling Material Density (Kg/m3): 48

Filling Material Used: Rockwool

Face Velocity (m/sec): 5.40

Friction Loss = 36.3 Pa 0.146 inch w.g

Resultant Noise SPL = 84.8 dBA Dynamic Press Drop = 37.7 Pa 0.151 inch w.g
Total Press Drop
at: 1.0 meter = 74.0 Pa 0.297 inch w.g
Air discharge Attenuator:
Dimensions H = 2.610 m x W = 2.300 m x D = 2.500 m
Number of Baffles 8 Pieces
Thickness of Baffle 150 mm
Number of side Baffles 2 pieces
Thickness of side Baffles 75 mm
Air Gap between Baffles 102 mm
Height of Baffles 2610 mm
Depth of Baffle 2500 mm
Air velocity Air intake external 5.40
m/sec

PRESSURE DROP CALCULATION:

Pressure Drop,
Sl No. Description
Pa
1 Inlet Weather Louver 30.00
2 Inlet Attenuator 66.76
3 Discharge Weather Louver 20.00
4 Discharge Attenuator 73.98
5 Around the Equipment 3.00
6 After Radiator transition 3.00

Total Pressure Drop, 196.74

Pa

Total pressure drop in inlet & discharge: 196.74 Pa

So the total ventilation system pressure drop is : 196.74 Pa < 200 Pa
The Pressure drop is lower than the given value of 200 Pa @ 32.40 m3/sec.
Exhaust Muffler:
The design of the mufflers has to be based on the required end level of Lp(A) = 85 dB(A) @ 1.0 m.

Remark:
All our acoustical calculations are based on air borne
noise. Noises due to mechanical vibrations are
excluded.
All noise sources must be decoupled with extremely high anti-vibration units.
Conclusion:
To reach the required end noise level, for individual noise sources we try to reach 82 to 84 dB(A)
@
1.0 m. Combination of several noise sources will give a level around the expected sound pressure
level of Lp(A) <= 85 dB(A) @ 1.0 m.
We have no reserve in our acoustical calculations.
Note: Sound levels and Pressure drop are predictions based on typical Muffler performance.
Actual results will vary depend on a number of factors affecting the individual application &
installation. Calculations shown are estimates only and do NOT constitute a warranty.
