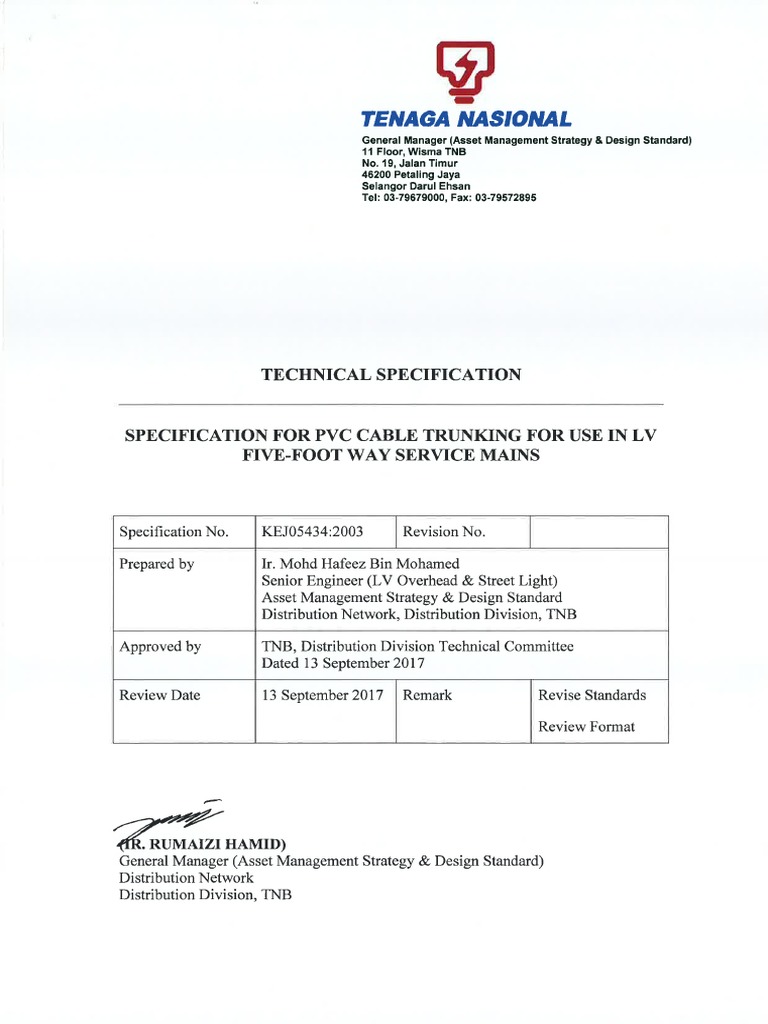

TENAGA NASIONAL
General Manager (Assot Management Strategy & Design Standard)
114 Floor, Wisma TNB
No. 19, dalan Timur
46200 Petaling Jaya
Selangor Darul Ehsan
‘Tol: 03-79679000, Fax: 03-79572895
TECHNICAL SPECIFICATION,
SPECIFICATION FOR PVC CABLE TRUNKING FOR USE IN LV
FIVE-FOOT WAY SERVICE MAINS.
Specification No. | KEJ05434:2003 _| Revision No.
Prepared by Ir, Mohd Hafeez Bin Mohamed
Senior Engineer (LV Overhead & Street Light)
Asset Management Strategy & Design Standard
Distribution Network, Distribution Division, TNB
Approved by ‘NB, Distribution Division Technical Committee
Dated 13 September 2017
Review Date
13 September 2017 | Remark Revise Standards
Review Format
UMAIZI HAMID)
General Manager (Asset Management Strategy & Design Standard)
Distribution Network
Distribution Division, TNBTechnical Specification G
Specification For PVC Cable Trunking For Use In
Foot Way Service Mains TENAGA NASIONAL
Specification No.
KETOS&34-2005 Revision No. Page 1 of
[Approved by | Distribution Division Technical Committee Dated 13 September 2017
10 SCOPE
LL This specification covers the material, design, construction, performance and
test requirements for Polyvinyl Chloride (PVC) cable trunking, which is
intended to be used as an integral part of TNB five-footway service mains
installation,
1.2 The PVC cable trunking shall be suitable for outdoor use in the Tropical Zone
with high humidity of approximately 100%, heavy rainfall, ambient temperature
of 28°C to 45°C, and an average of isoceraunic level of approximately 200
thunder-days per annum at a preferred operational altitude of up to 2,500 meters.
2.0 CONFORMITY WITH STANDARDS,
2a
22
Unless otherwise specified, this specification shall include, but is not limited to,
the following standards or the latest version as reference and for compliance
together with all current amendments for the design, construction, electrical
characteristics, performance, and test requirements:
i, IEC 61084-1 (2017) Cable trunking systems and cable ducting
systems for electrical installations - Part 1:
General requirements
ii, IEC 61084-2-1 (2017) Cable trunking systems and cable ducting
systems for electrical installations ~ Part 2-1
Particular requirements — Section 1: Cable
trunking systems and cable ducting systems
intended for mounting on walls or ceilings
Other internationally recognized standards that are compatible to the
abovementioned standards can be considered provided that an English version
of such standards shall be submitted to TNB for further reference.Technical Specification G
Specification For PVC Cable Trunking For Use In Five-
Foot Way Service Mains TENAGA NASIONAL
Specification No. | KEJ054342003 [Revision No. [Pese2of 14
‘Approved by __| Distribution Division Technical Committee Dated 13 September 2017
3.0 FUNCTION
3a
3.2
33
34
The cable trunking system is introduced to provide an alternative to the
current wooden backing method used to secure and install five-foot-way
service cable mains,
‘The PVC cable trunking system is a semi-enclosed casing system comprising
of a non-circular cross-section base tray with removable fastening clips, and
a Junction Box base, assembled together to allow insulated cables to be laid
in, and Junction Box to be mounted on.
‘The PVC trunking system is intended to be mounted directly on walls and
shall provide adequate mechanical strength to hold and secure firmly the
cables contained therein, and shall withstand the stresses likely to occur
during transport, storage, installation and usage.
When used as part of the TNB five-footway service mains, the PVC cable
trunking shall be suitable to be used together with TNB approved PVC
Aluminum insulated 7/2.10mm (7/.083”), 19/1.53mm (19/.064"), 7/1.12mm
(7/,044”) service cables and junction boxes operating on a 3 phase, 4 wire 400
Volts, 50Hz, multiple neutral-earthed distribution system,
4.0 DESIGN AND CONSTRUCTION
4a
For the intended purposes mentioned in paragraph 3.0 above, the cable
‘trunking system may consist of a base tray, fastening clips and junetion box
base. The base tray, which will be surface mounted on the wall, will provide
the base surface for the cables to be laid in, Removable fastening. clips
installed at intervals of 20 em (8 inches) along the base tray length may be
used as a mean to firmly secure, hold and fasten the cables in the base tray.
Removable junction box base plate is fastened onto the PVC base tray and
will provide a base for mounting the Junction box onto the PVC cable
ded for
trunking system. A piece of junction box base plate shall be pro\
every 5.48 meter (18 feet) length of the base tray.Specification For PVC Cable Trunking For Use In Five-
‘Technical Specification &
Foot Way Service Mains TENAGA NASIONAL
Specification No. | KEIOS434:2003 Revision No. [Page 3of 14
‘Approved by
Distribution Division Technical Commitee Dated 13 September 2017
42
43
44
45
46
47
48
‘The general design drawing of the cable trunking system and the junction box
base are shown in Appendix A and B.
‘The means of fastening the cables in the base tray shall be designed so as to
allow for easy installation, maintenance and replacement of the clips as a
single unit without the use of any special tools.
Fully covered plates shall not be used as a means of fastening as it is the
intention of INB to keep the cables visible throughout.
‘The base tray, junction box base and clip shall be sized to accept the size, and
number of cables appropriate to the rating and application of the distribution
network system, and the insulation shall be appropriate to the cables rated
voltage and temperatures of the cables.
Bidders may propose alternative designs based on the conceptual design
described in paragraph 4.1 - 4.4 and the functional requirements outlined
paragraph 2.0 above. Relevant design drawings and documentation complete
with the dimensions and descriptions shall be attached in the submission.
The cable trunking system shall be manufactured and tested and complied fully
with the relevant MS and IEC standards, and shall withstand a maximum
operating temperature of 60°C 41/- 2°C, and evenly distributed load of 0.13
kg/em?,
Al components with the exception of small fixing screws, that form part of the
cable trunking system shall be made from heavy duty Poly Vinyl Cholride
(PVC) material with weather, Ultra Violet (UV) and aged resistant, heat and
non-flame propagating protection properties. ‘The manufacturer shall provide a
report conducted by an independent and accredited laboratory to certify the UV
and aged resistant properties of the material used.Specification For PVC Cable Trunking For Use In Five- =
Foot Way Service Mains TENAGA NASIONAL
‘Specifieation No. [ KEI05434:2003 Revision No. Page 4of 14
‘Approved by __| Distribution Division Technical Committee Dated 13 September 2017
4.9 The finished product shall be white in color. It shall not be coloured by painting
or other superficial means.
4.10 The trunking system shall be free from sharp edges, burrs, flash or surface
projections which could cause damage to insulated conductors or cables or
inflict injury to installer or user, and shall be so designed that in normal use thei
performance are reliable and without danger to persons or surroundings.
4.11 — The PVC trunking system shall have adequate mechanical strength and shall
comply with at least the Class 4 (Impact 2 J) of Impact Test Values specified in
Table 6 of IEC 61084-1
4.12 If screws or studs are used to secure the components of the trunking system,
they shall not cause damage to cable insulation. The screws shall have
isometric threads. Thread cutting screws shall not be used.
4.13 Screw fixing means shall be so designed to withstand the mechanical stress
occurring during installation and normal use and shall comply with
requirement of Clause 9 of IEC 61084-1 and other related amendments, if
any.
5.0 SIZES
‘The trunking system shall be supplied complete with the junction box base, fastening
clips and screws of appropriate dimensions and numbers. The cable trunking system
sizes and dimensions shall be as follows:-
No. Type Dimension Length
(Width) mm x (Height) mm
1 2 Wire c/w 5 clips/meter 35mm x13 mm, 2 meters
2 | 3 wire chw 5 clips/meter 47mm x 13mm, 2 meters
3 | [Link] c/w 5 clips/meter 60mm x 13mm 2 meters
4 Junction box base plate 68mm(W) x 18mm (H) x 102 mm,
1.4mm(Thickness)Specification For PVC Cable Trunking For Use In Five-
Technical Specification @
Foot Way Service Mains TENAGA NASIONAL
Specification No. | KEJ0S434:2005, Revision No. Page 5 of 14
Approved by __| Distribution Division Technical Commitee Dated 13 September 2017
6.0
10
MARKING AND IDENTIFICATION
‘The markings shall comply in accordance with clause 7 of IEC 61084-1 and other
related amendments, if any. In addition to this, the cable trunking shall be marked
with the followings:
i) Contract No.
ii) Manufacture date
iil) Delivery Month and Year
iv) Warranty Period
¥)_ Supplier Name
vi) Serial No/Batch No/Tracking No
vii) Rated Current
viii) TNB Acronym
The marking shall be permanent at the product either using
engrave/embossed/permanent ink/permanent sticker. Please refer to Guideline
“Terma Serta Syarat Pengurusan dan Penguatkuasaan Jaminan Kualiti Produk
Untuk Bahagian Pembahagian TNB”
INSPECTION AND TESTING
7.1 General Requirements
7.1.1 Itis the responsibility of the manufacturer to ensure that the product is,
inspected and tested at all stages of manufacturing in accordance to
requirements as stipulated in this specification.
7.1.2 The approval or passing of any such tests and inspections shall
not prejudice the right of TNB to reject the product if it does not
comply with this specification when installed or if it does not giveSpecification For PVC Cable Trunking For Use In Five-
Technical Specification
Foot Way Service Mains TENAGA NASIONAL
Specification No.
‘Approved by
KEI0S43422005 Revision No [Page 6 of a
Distribution Division Technical Committee Dated 13 September 2017
73
14
TAS
complete satisfaction in service. This condition shall apply only if
the causes of the abovementioned situations are due to any
deficiency or wrong action on the part of the manufacturer
towards the fulfillment of the requirements of this specification.
The manufacturer shall allow the representative of TNB or its
appointed Quality Agents access to all production facilities
necessary for the manufacture of this product at all reasonable
times, The manufacturer is responsible to maintain all Quality
and Test records for a minimum period of five (5) years. TNB
and/or its appointed agent reserved the right to inspect these
records as and when deemed necessary.
Not less than thirty working days, notice of all tests shall be given
to TNB representative(s) in order that he or she may be present if
he or she so desires. As many tests as in the opinion of the TNB
representative(s) are possible shall be arranged together
During such inspection, any corrective actions necessary shall be
complied with within the scope of this specification.
The tests shall be carried out in accordance to the standards as
mentioned in Clause 2.0 above and any additional requirements
as stated in this specification,
Two (2) copies of all test certificates and reports shall be
furnished to the TNB representative(s). All inspection and testing
requirements please refer to Guideline “Terma Serta Syarat
Pengurusan dan Penguatkuasaan Jaminan Kualiti Produk Untuk
Bahagian Pembahagian TNB”Technical Specification eA)
Specification For PVC Cable Trunking For Use In Five- =
Foot Way Service Mains TENAGA NASIONAL
‘Specification No. | KEI05434:2003 Revision No. Page 7 oF 14
‘Approved by __| Distribution Division Technical Committee Dated 13 September 2017
7.2 Type Test
7.2.1 The product shall have passed the type tests in accordance to standards
122
723
specified below and its other related amendments, if any.:
‘Marking Test (Clause 7 of IEC 61084-1)
Dimensions Test (Clause 8 of IEC 61084-1)
iii, Distortion test (Clause 10 of IEC 61084-1)
iv, Impact Test (Clause 10.3 of IBC 61084-1)
vy. Non-Flame Propagation Test (Clause 13 of IEC 61084-1)
vi. Resistance to Heat Test (Clause 12.1 of IEC 61084-1)
vii. Insulation Strength & Resistance Test (Clause 11.2 of IEC
61084-1)
In the event that modifications to the design of the product are
made which, in the opinion of TNB, will affect the performance
of the product, the relevant type tests shall be repeated at the
expense of the manufacturer,
Type Tests shall be conducted at any national or intemational
independent laboratory accredited to ISOMEC 17025 by the
National Accreditation Body who is the MRA/MLA signatory to
ILAC, APLAC, EA, NACLA or IAAC. The tests to be conducted
shall be within the scope of accreditation of the laboratory and
shall cover the appropriate capacity limit for the specified tests.
TNB shall reserve the rights to witness the conduet of the said
tests if deemed necessary through its engineers or appointed
representatives‘Technical Specification Y
Specification For PVC Cable Trunking For Use In Five-
Foot Way Service Mains TENAGA NASIONAL
spe [ KEIO543 Revision No. Page 8 of 14
‘Approved by __| Distribution Division Technical Committee Dated 13 September 2017
Note:
a MRA —: Mutual Recognition Agreement
b. MLA Multilateral Agreement
c. ILAC : International Laboratory —_Acereditation
Cooperation
d. APLAC Asia Pacifie Laboratory Accreditation
Cooperation
e EA : European Cooperation for Accreditation
NACLA : National Cooperation for Laboratory
Accreditation
g. IAAC — : _ Inter-American Accreditation Cooperation
73 Routine Tests
7.3.1 Routine tests shall be carried out by the manufacturer on all products
in the finished state or, where appropriate, during the
manufacturing processes in accordance to IEC standard or
compatible standards and other related amendments, if any.
7.3.2. The routine test that shall be made on the products are:~
i, Check on markings (Clause 7 of IEC 61084-1)
Physical and visual checks on dimension and construction,
7.4 Sampling Tests
7.4.1 The manufacturer shall carry out sampling tests on sample of
products in the finished state. The sampling tests that shall be
made on the products are: -
Distortion test (Clause 10 of IEC 61084-1 and IEC 61084-2-1)
Verification of material used for the batch production*
8a pf EN 2 FRING FOR SECMSpecification For PVC Cable Trunking For Use In Five-
Speciation No.
‘Technical Specification &
Foot Way Service Mains TENAGA NASIONAL
[ KEI05434:2003 Revision No. Page 9 of 14
‘Approved by ___| Distribution Division Technical Committee Dated 13 September 2017
Manufacturer shall furnish independent laboratory's report
verifying the material used for the batch production, TNB
reserves the right to sample a material batch for independent
tests and verifications.
7.42 The manufacturer have to provide all necessary tools and testing
equipments on their own initiative for the sampling test to be
witnessed by TNB representatives.
7.8 Acceptance Tests
75.1
152
153
754
For each contract, a schedule for the implementation of acceptance
testing shall be agreed between the manufacturer and TNBD in order
that acceptance testing may be carried out on a regular basis.
‘The following documentation shall_be made available for
inspection during acceptance testing:
i, Routine Test report
Sampling test Report
Mill Certification or 1
st Report of material used for
manufacturing
‘The acceptance tests to be carried out by the manufacturer and
witnessed by a representative of TNBD shall consist of all the tests
listed under routine tests and sampling tests. The check on the product
shall be done periodically at the discretion of TNBD.
If any sample fails in any of the tests, two further samples shall be taken
from the same batch and submitted to the same tests in which the earlier
sample failed. If both additional samples pass the tests, all the products
in the same batch from which they were taken shall be regarded asSpecification For PVC Cable Trunking For Use In Five-
Technical Specification
Foot Way Service Mains TENAGA NASIONAL
| Specification No.
‘KEIOS434:2003 Revision No. Page 10 of 14
[Approved by
Distribution Division Technical Committee Dated 13 September 2017
8.0
16
1d
complying with the requirements of this standard. If either of the
addi
regarded as failing to comply.
1al samples fails, the batch from which they were taken shall be
Quality Control
‘The manufacturer shall set up and implement a good quality management
system. This system shall be inspected / audited by TNB appointed Quality
Audit Agent before the commencement of any new contract and subsequently at
agreed regular interval to ascertain the proper implementation of the quality
‘management system. Corrective actions resulting from the audit shall be taken
ina timely manner.
Instruments And Calibration
All measuring, recording and testing equipment to be used in assessing the
quality of the products, sub components, assemblies or raw materials at all
stages of manufacturing shall be calibrated using equipment calibrated by at
recognized calibration laboratory approved by TNBD at the expense of the
‘manufacturer. Alternatively, if in-house calibrated equipment are used the
measurements standards used shall be traceable to the Malaysian’ international
standards of measures. Manufacturing of product shall not commence or shall
be discontinued if the manufacturer defaults on this requirement, The
manufacturer is responsible to maintain all calibration records for a minimum
period of five ( 5 ) years. TNB and / or its appointed agents reserve the right to
inspect these records as and when deem necessary
SAFETY
81
Safety Information
‘The equipment must be accompanied by instructions and safety
information in a language understood by the end-user. Such instructions‘Technical Specification
Specification For PVC Cable Trunking For Use In Five-
Foot Way Service Mains
%
TENAGA NASIONAL
‘Specification No.
KEJ0S434:2003 [Revision No.
Page I1 of 14
“Approved by
Distribution Division Technical Committee Dated 13 September 2017
82
and safety information, as well as any labeling, must be clear,
understandable and intelligible.
Protection Against Third Party
‘The manufacturer shall take technical measures to ensure that general
public persons and animals are adequately protected against the danger of
physic:
contact with the equipment.
9.0 TECHNICAL DATA
injury or other harm which might be caused by direct or indirect
All technical drawings and pertinent data of the design and construction of the
products, in the format as shown in Appendix A attached shall be submitted for
technical evaluation and test purposes.Specification For PVC Cable Trunking For Use In Five-
‘Technical Specification
%
Foot Way Service Mains TENAGA NASIONAL
Specification No. | KEI0S434:2005 [ Revision No. Page (2 of 14
‘Approved by __| Distribution Division Technical Committee Dated 13 September 2017 1
APPENDIX A
TECHNICAL DATA. TION
No | TECHNICAL REQUIREMENTS TECHNICAL DATA
‘Type No./ Trade Mark/ Manufacturer
To be declare by manufacturer
(Mandatory)
2 | Compliance to at least class 4 (Impact 2 J) Yes / No
Classification of Impact Test value as per Clause
10.3 of IEC 61084-1
3 | Maximum Operating Temperature "c
4 | Non-flame propagation material Yes / No
5 | Ultra Violet protection material Yes / No
6 | Colour of Trunking
7 | Size of Base tray
(Width) x (Height) x (Length) (mm)
8 _ | Size of Junction Box base plate (mm)
(Width) x (Height) x (Length) x (Thickness)
9, | Size of fastening clip (W) x (H) x (L) (mm)
10 | Drawings of designs and construction Enclosed / Not Enclosed
Type Test Certificate and Laboratory Report
(tested and passed accordance to IEC 61084-1
shall be enclosed)
Yes/No‘Technical Specification &
Specification For PVC Cable Trunking For Use In Five-
Foot Way Service Mains TENAGA NASIONAL
Specification No.
KEIOSAS43003 [Revision No. [Page 13 of 14
‘Approved by
Distribution Division Technical Committee Dated 13 September 2017
GENERAL CONCEPTUAL DESIGN DRAWING OF
CABLE TRUNKING SYSTEN
Fastening
la
suzes
DIREnS TORE
Gomme Gan Cn
Tire] Stee + ann Be
alee | Winn x Sen x ee
clip want
a | oaTechnical Specification
Specification For PVC Cable Trunking For Use In Five-
Foot Way Service Mains
Specification No. [ KEI05434:2003
Revision No. Page 14 of 14
‘Approved by
jon Division Technical Committee Dated 13 September 2017
Appendix 8
GENERAL CONCEPTUAL DESIGN DRAWING OF
JUNCTION BOX BASE
rRouT ViEM SpE var REAR VIEW
7
- — 4| =
e — 4 =
a =
7 4 =
Sasa,
F aozanct) ' s1zes
Hz) _
Tinensions
ps (ome Gm (Lm
d Vises | bane
Length [02a
Weight [van
xe section of Junction Box gase Thiexness| 3.4mm
Fastening
clip
van
copies
Junction Box Bai
Front View
Praguk: GENERAL DESTGN DEAUING
GrOUNCTION BOX BASE
[FaRTEna978705
No SERE® TWBD/KEJ/03/034
TENAGA NASTONAL,
BERHAD
